1、Product Descriptoin
Manufactured by Huizhou Antenk Electronics Co., Ltd, this 1.27mm right angle edge mount ribbon receptacle connector with SPCC metal shell is a dedicated PCB edge connection component for stable signal transmission between ribbon cables and circuit boards. Following official drawing standards, it supports 14, 20, 26, 36 and 50 pin multiple specifications with fixed 1.27mm pitch. The insulator is made of 30 percent glass fiber filled PBT material conforming to UL94V-0 flame retardant grade. Copper alloy contact pieces adopt optional selective gold plating and tin plating to lower contact resistance and boost corrosion resistance, while the outer shell is constructed from nickel plated SPCC sheet metal to enhance structural protection and electromagnetic shielding performance. Its electrical indicators include 1.0A rated current, minimum 500MΩ insulation resistance and maximum 25mΩ contact resistance, which can withstand 500V AC voltage for one minute and operate reliably from minus 55°C to plus 125°C. Multiple threaded insert locking structures and latch bracket types are available to lock the connector firmly onto PCB boards and prevent loose separation during vibration. Our complete production workflow includes independent precision mold development, high-speed copper terminal stamping, SPCC shell punching forming, high temperature resistant plastic injection molding, multi-process electroplating and automatic assembly. Imported Taiwan high speed punching equipment and Japanese injection molding machines strictly control all dimensional tolerances to match standard PCB edge mounting processes.
This right angle ribbon receptacle is installed by clamping the PCB edge into the connector positioning slot and fixing it with matched threaded inserts or lock brackets according to the official PCB layout drawing, then inserting flat ribbon cables into the contact clamping area to finish electrical connection. It is widely applied in communication signal modules, industrial control mainboards, portable storage devices, digital display equipment, automotive on-board control units and precision testing instruments. During assembly and application, users must avoid excessive forced insertion to prevent terminal deformation and shell cracking, select matched locking accessories to guarantee mounting firmness, and store unused connectors in dry sealed packages to prevent metal shell and contacts from oxidation and rust. All products comply with EU RoHS and REACH environmental regulations, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management certifications.
Compared with other connector suppliers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision metal stamping molds, supporting customized pin count, contact plating mode, locking hardware and shell surface treatment for this right angle ribbon receptacle series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring consistent batch product quality and fast delivery for large bulk orders. As a brand awarded Guangdong Famous Trademark qualification, more than 70 percent of our edge mount connectors are exported to global overseas markets. Our multi-stage incoming material inspection, in-process monitoring and finished product full inspection system greatly improves shock resistance and long-term connection stability, effectively eliminating signal interruption faults caused by poor contact, and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

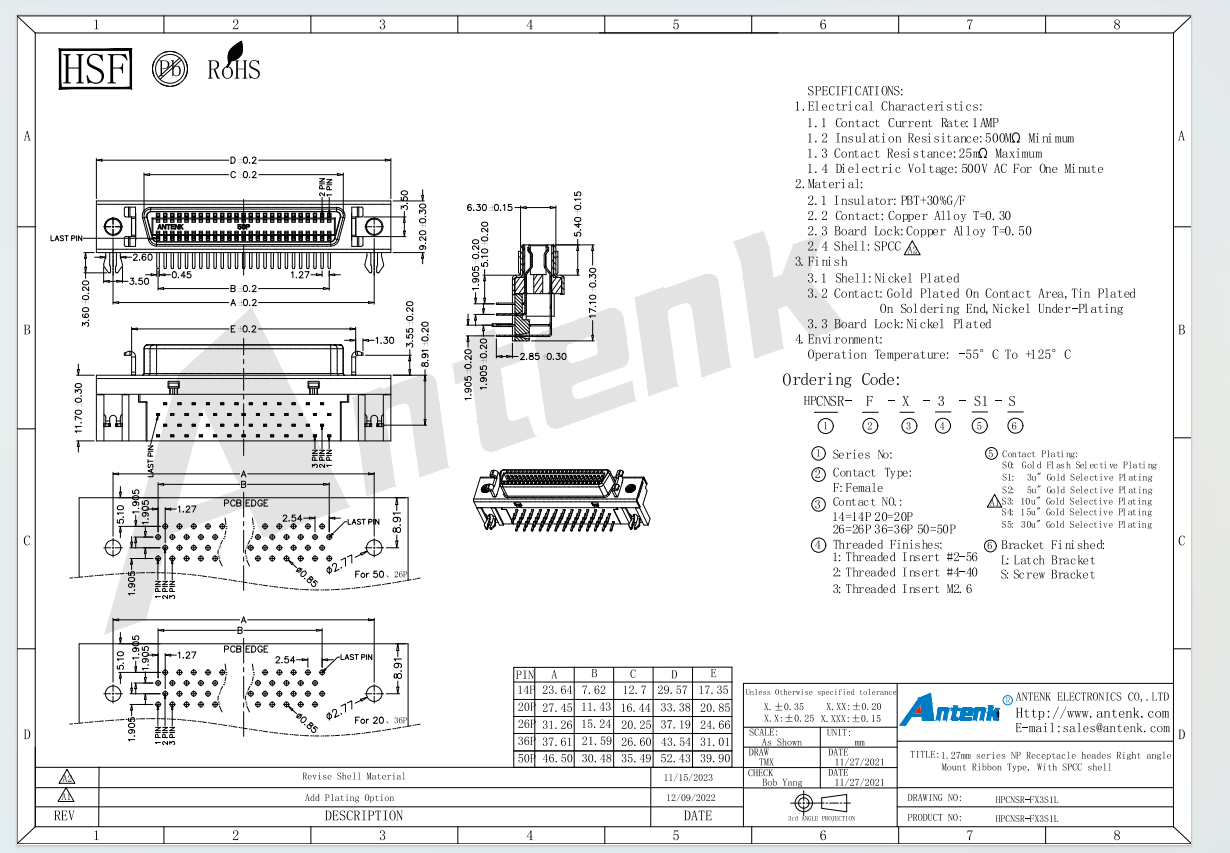

3、Product Drawing
