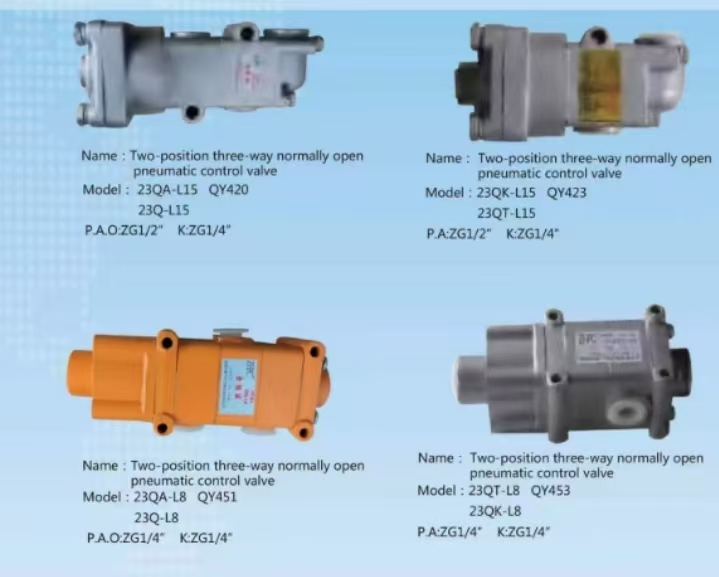

23QK-L15 (QY423) Two-Position Three-Way Normally Open Pneumatic Control Valve

normally open pneumatic control valve 23QK‑L15 is a 3/2‑way pilot‑operated normally‑open directional component, belonging to key Pneumatic Parts. It is widely matched with Power Pack Unit to perform airflow on‑off and direction switching for pneumatic control circuits. Installed on drilling rig, petroleum and mining industrial Machine, this air‑controlled valve outputs continuous air supply under normal status and cuts off airflow upon receiving pilot signal. It is suitable for new‑equipment assembly, pneumatic system upgrading and aftermarket replacement of worn Pneumatic Parts.

1. Basic Information:

• Model: 23QK-L15 (also known as QY423)

• Type: Two-position three-way normally open pneumatic control valve

• Connections: 2-ZG1/2" Z1/4"

• Nominal Diameter: 15mm

• Weight: 1.5kg (may vary among different suppliers)

• Scope of Application: Specialized for oil fields, drilling rig accessories, etc.

2. Technical Parameters:

• Pneumatic Control Method: Single pneumatic control

• Structural Form: Plunger type

• Sealing Form: Soft sealing

• Working Pressure: 1MPa (some sources indicate 0.15~0.8MPa or 0.2~0.8MPa, depending on the application scenario and supplier)

• Temperature Range: -40~+60℃ (some sources indicate -5~+60℃, depending on the application scenario and supplier)

• Effective Cross-Sectional Area: ≥20mm² (some sources may provide different values, such as ≥60mm², depending on the model and specifications)

• Changeover Time: ≤0.12s (some sources may provide different values, such as ≤0.15s, depending on the model and specifications)

• Switching Frequency: ≥6Hz (specific values may vary depending on the model and specifications)

3. Features and Applications:

• Features: Can be directly installed near pneumatic actuators, controlled by air to manage system intake and exhaust, and accelerate exhaust speed.

• Applications: Suitable for pneumatic control systems requiring remote control of various actuators, such as oil field drilling rig accessories.

4. Supplier Information:

• Suppliers: Wuxi Hongxing Pump Pneumatic Components Factory, Weihai Zhonghao Pneumatic Complete Equipment Co., Ltd., etc.

• Contact Information: Available through supplier websites or relevant platforms.

23QT-L15 Two-Position Three-Way Normally Open Pneumatic Control Valve

1. Basic Information:

• Model: 23QT-L15

• Type: Two-position three-way normally open pneumatic control valve

• Connections and Nominal Diameter: Specific connections and nominal diameter may vary depending on the model and specifications, but are typically similar or identical to those of the 23QK-L15.

2. Technical Parameters and Applications:

• Technical Parameters: Similar to those of the 23QK-L15, including pneumatic control method, structural form, sealing form, working pressure, temperature range, effective cross-sectional area, changeover time, and switching frequency. Specific values may vary depending on the model and specifications.

• Applications: Also suitable for pneumatic control systems requiring remote control of various actuators.

3. Supplier Information:

• Suppliers: May include Shanghai Aierkang Industrial Equipment Co., Ltd., etc.

• Contact Information: Available through supplier websites or relevant platforms.
