1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the PHES08 series 2.54mm three row straight pin header is a classic through-hole board-to-board connector for stable signal and low-power circuit interconnection between printed circuit boards. In accordance with engineering drawing specifications, this header adopts standard 2.54mm pitch and supports 3 to 120 contacts to meet diverse PCB layout demands. The insulating base can be customized with multiple high temperature resistant materials including PBT, PA6T, LCP, PA46 and PA9T, all complying with UL94V-0 flame retardant standard. Square brass pins are available with gold flash, selective gold plating in different thicknesses and pure tin plating options to lower contact resistance and enhance anti-oxidation and soldering performance. Its electrical parameters include 3A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, which can withstand 500V AC dielectric voltage for one minute and operate steadily from minus 65°C to plus 125°C. Multiple fixed pin length options are provided to fit PCBs of different thickness, with strictly controlled dimensional tolerances to perfectly match standard through-hole wave soldering procedures. Our complete production workflow consists of independent precision mold development, high-speed brass terminal stamping, high temperature plastic injection molding, anti-corrosion electroplating and automatic pin assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment guarantee consistent dimensional accuracy during mass production.
This three row straight pin header is installed by inserting straight pins into reserved through holes on printed circuit boards following the official PCB layout drawing and finishing wave soldering fixation, then mating with matching female sockets to build complete board-to-board connection circuits. It is widely applied in industrial control mainboards, communication circuit modules, digital display screens, smart household control panels, portable data storage devices, automotive electronic control units and precision measuring instruments. During soldering and application, users must control soldering temperature properly to avoid thermal deformation of the plastic insulator, avoid excessive pulling force to prevent pin bending and detachment, and store unused connectors in dry sealed packaging to prevent brass pins from oxidation and discoloration. All products comply with EU RoHS and REACH environmental directives, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications. Multiple packaging methods including tray, bag, tube and tape and reel are offered to adapt to manual assembly and fully automatic SMT production lines.
Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision brass stamping molds, supporting personalized customization of contact quantity, insulator material, pin length, contact plating type and packaging mode for this three row pin header series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and punctual delivery for large bulk export orders. As an enterprise holding Guangdong Famous Trademark qualification, more than 70 percent of our pin header products are exported to global overseas markets. We implement full-process quality inspection covering incoming raw material inspection, in-process production monitoring and finished product comprehensive testing, greatly improving vibration resistance and long-term connection stability, effectively eliminating circuit disconnection faults caused by poor contact, and establishing long-term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international
regions worldwide.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

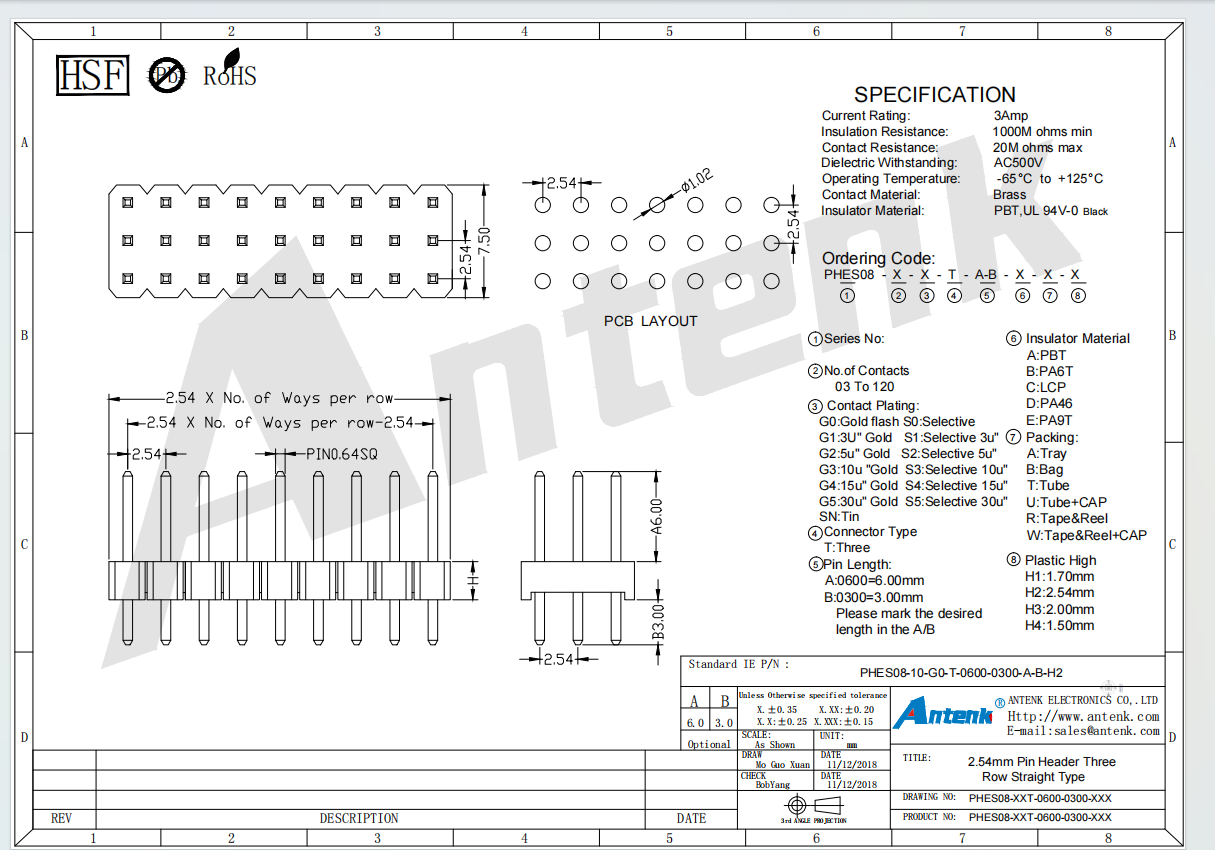

3、Product Drawing
