Stainless Steel Lap Joint Flanges – Premium Quality, Engineered for Global Industrial Excellence When precision, durability, and corrosion resistance meet in a single mechanical component, the result is the Stainless Steel Lap Joint Flange—a cornerstone of high-performance piping systems across diverse industries. Designed specifically for seamless integration in demanding environments, these flanges are crafted from premium-grade stainless steel alloys such as S304 and S316, ensuring long-term reliability under extreme pressure, temperature fluctuations, and aggressive chemical exposure.
Whether you're managing fluid transport in offshore platforms, pharmaceutical processing units, or food and beverage facilities, the Lap Joint Flange delivers unmatched performance with minimal maintenance needs.

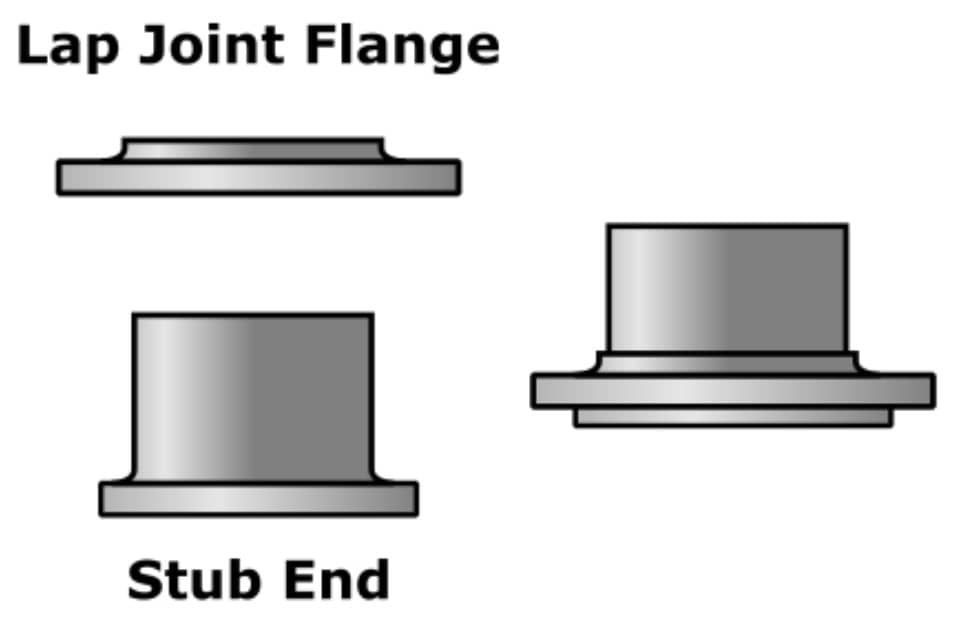

Key Features: Superior Corrosion Resistance, Seamless Joint Design, High-Temperature Stability, Enhanced Leak-Proof Integrity, Low Maintenance, Easy Installation, Compliant with ASME B16.9 & DIN 2633 Standards Engineered with meticulous attention to dimensional accuracy and surface finish, the S304 Lap Joint Flange and S316 Stainless Lap Joint Flange offer exceptional resistance to oxidation, pitting, and crevice corrosion—common challenges in marine, chemical, and sanitary applications. The unique lap joint configuration allows for easier alignment during installation while maintaining structural integrity through thermal expansion cycles.
Unlike traditional weld neck flanges, these components do not require full penetration welding on the facing side, reducing fabrication time and minimizing distortion risks. This makes them ideal for retrofitting existing systems or working with materials that are difficult to weld. The S316 variant, enriched with molybdenum content, provides enhanced protection against chloride-induced corrosion, making it particularly suitable for coastal installations, seawater handling systems, and applications involving chlorinated solvents.
Both grades meet international material specifications, including ASTM A182 and ISO 15156, guaranteeing compliance with global safety and quality benchmarks. The smooth, polished finish not only improves flow dynamics but also ensures hygienic conditions in regulated environments such as biopharmaceutical manufacturing and dairy processing plants. In industrial settings ranging from petrochemical refineries to power generation facilities, the Lap Joint Flange serves as a reliable connection point between pipes and equipment.
Its ability to accommodate misalignment without compromising seal integrity makes it a preferred choice for complex piping networks where flexibility and resilience are paramount. Additionally, its compatibility with standard gaskets and bolting systems ensures quick deployment and cost-effective maintenance schedules. Users consistently highlight the longevity and ease of use associated with these flanges.
Operators report significantly reduced downtime due to leaks or joint failures, while engineers appreciate the consistent performance across varying operational conditions. Many professionals note that switching to S316 Stainless Lap Joint Flanges has led to extended service life in harsh environments, ultimately lowering lifecycle costs despite higher initial investment. Frequently Asked Questions: What is the difference between S304 and S316 Stainless Lap Joint Flanges? S304 offers excellent general-purpose corrosion resistance and is suitable for most non-harsh environments. S316, with added molybdenum, excels in chloride-rich environments and exhibits superior resistance to pitting and crevice corrosion, making it ideal for marine or chemical processing applications.
Are Lap Joint Flanges suitable for high-pressure systems? Yes, when properly rated and installed according to ASME standards, these flanges perform reliably in high-pressure scenarios, especially when paired with appropriate gasket materials and bolt torque sequences. Can these flanges be used in sanitary applications? Absolutely. Their smooth, non-porous surface and compatibility with clean-in-place (CIP) procedures make them compliant with FDA and EHEDG hygiene standards, widely adopted in food, beverage, and pharmaceutical sectors. How do I ensure proper installation? Always follow manufacturer guidelines for bolt tightening sequences and torque values.
Use compatible gaskets and inspect mating surfaces for debris or damage prior to assembly. Why choose a lap joint design over other flange types? Lap joint flanges provide a cost-effective alternative to weld neck flanges by allowing the use of lower-cost pipe materials while still offering robust performance. They also simplify field repairs and reduce welding requirements. With their blend of advanced metallurgy, precise engineering, and proven field performance, Stainless Steel Lap Joint Flanges stand as a benchmark in modern piping solutions.
From offshore energy projects to precision medical equipment, these components deliver peace of mind through consistent, dependable operation. Choose S304 or S316 based on your environmental demands—because excellence begins at the joint.
