MAR-026RBT2 Double Line Cable Replacing Stringing Roller

Our MARSHINE as a cable installation tools manufacturing and trading company in China, owns 20 years ample experience for providing worldwide electricians and linemen with reliable cable mounting tools at competitive price. This MARSHINE MAR-026RBT2 Double Line Cable Replacing Stringing Roller is our cable replacing cradle block for earth wire or conductors.

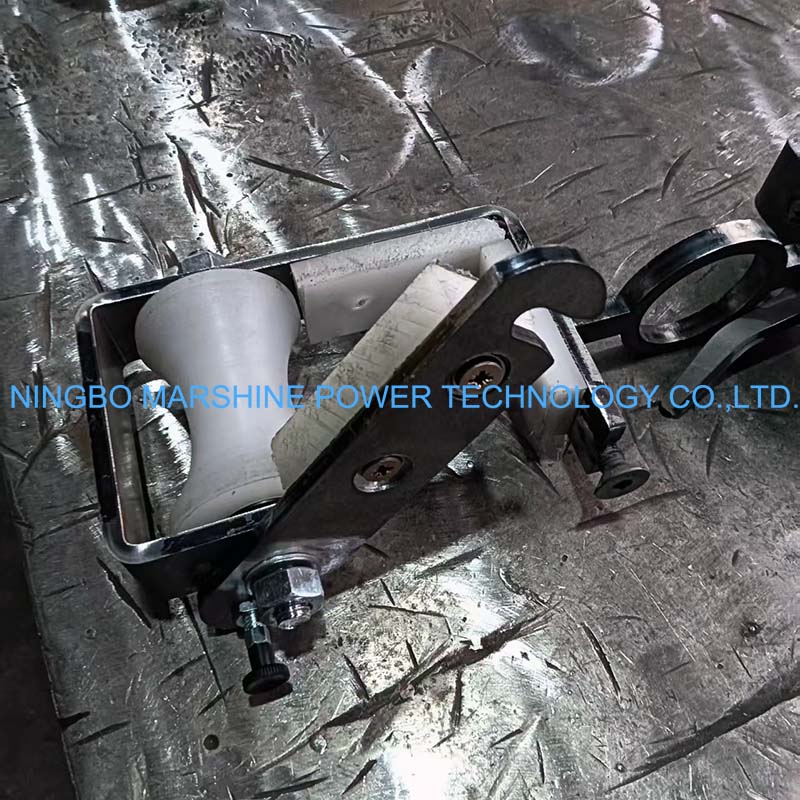

The MARSHINE Double Line Replacing Block is a compact and reliable cable guiding tool specifically designed for conductor replacement, OPGW installation, and overhead line stringing operations. Featuring a dual-roller configuration, the unit enables the simultaneous guidance of pulling ropes and replacement conductors, ensuring smooth cable movement while minimizing friction and protecting the cable surface during installation.

Been manufactured with durable nylon rollers mounted on precision ball bearings, the MAR-026RBT2 provides low rolling resistance and excellent wear performance. The heavy-duty galvanized steel frame is reinforced with protective nylon side plates, helping prevent accidental contact between the conductor and the metal frame while improving cable protection. With a 2 KN working load, 10 KN breaking load, and a lightweight design weighing only 1.8 kg, this stringing roller is an ideal choice for overhead transmission line maintenance, earth wire replacement, and OPGW installation projects.

Product Parameter

Model	MAR-026RBT2
Working Load	2 KN
Breaking Load	10 KN
Roller Material	Nylon
Frame Material	Galvanized Steel with nylon protection plates
Dimension	37111325 mm
Weight	1.8 kg

Product Feature

Double Line Roller Configuration

The dual-sheave design allows the pulling rope and replacement conductor to be guided simultaneously, improving cable alignment and increasing installation efficiency during conductor replacement operations.

High-Strength Nylon Rollers

The precision-machined nylon rollers provide smooth cable movement with minimal friction while protecting conductor surfaces from abrasion and mechanical damage.

Precision Ball Bearing System

Each roller is fitted with high-quality sealed ball bearings that ensure smooth rotation, reduce pulling resistance, and improve overall stringing performance.

Heavy-Duty Galvanized Steel Frame

The robust galvanized steel frame of our MARSHINE Cable Replacing Stringing Roller is able to deliver excellent structural strength while providing superior resistance to corrosion, making it suitable for long-term outdoor use.

Protective Nylon Side Plates

Integrated nylon protection plates can help prevent the conductor from contacting the steel frame, reducing the risk of cable damage and improving operational safety during stringing.

Lightweight and Portable

Weighing only 1.8 kg, the roller is easy to transport, install, and reposition on utility structures, reducing operator fatigue and improving worksite productivity.

Compact Design

With overall dimensions of 371 * 113 * 25 mm, the compact structure allows convenient handling and easy installation, even in confined working areas.

Foldable Design

The entire assembly folds into a compact profile measuring 1415 * 1050 * 59 mm, making transportation, storage, and deployment simple and convenient for field operations.

Product Application

The MARSHINE MAR-026RBT2 Cradle Blocks Replacing Cable is particularly suitable for replacing existing conductors or earth wires while using a pulling rope to guide the new cable into position. Its dual-roller design enables smooth and controlled cable movement, helping reduce installation time while protecting valuable conductors from unnecessary wear.
