1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the FHEM13 series 2.54mm dual row SMT female header with 7.1mm plastic height is a surface-mount board-to-board receptacle designed for stable signal and low-current power interconnection between PCB boards. Following official drawing specifications, this connector supports contact counts from 2 pins to 80 pins under fixed 2.54mm pitch, and it provides Type A without locating pegs and Type B with positioning pegs two structural versions to avoid offset during SMT mounting and soldering. A protective cap is reserved on the insulator to shield internal elastic terminals from external collision and dust pollution. The insulating body can be customized with PBT, PA6T, LCP, PA46 and PA9T multiple flame retardant materials that all satisfy UL94V-0 safety certification. Brass spring terminals are available with gold flash, graded selective gold plating and tin plating options to reduce contact resistance and boost anti-tarnish durability. Its electrical indexes include 3.0A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, which can withstand 500V AC dielectric voltage for one minute and run stably within the temperature range from minus 65°C to plus 125°C. Our full production chain consists of independent precision mold development, high-speed brass terminal stamping, high-temperature plastic injection molding, anti-oxidation electroplating and automatic assembly. Imported Taiwan punching machines and Japanese injection molding equipment strictly control PCB mounting dimensional tolerances to fit standard SMT reflow soldering procedures.
This SMT dual row female header is placed onto designated PCB pads according to the official PCB layout drawing and fixed via automatic reflow soldering, then mated with matching male pin headers to form complete board-to-board signal and power transmission loops. It is widely adopted in industrial control mainboards, communication signal modules, liquid crystal display driver boards, smart home control panels, portable storage devices, automotive electronic control units and precision testing instruments. During application, users must follow standard reflow temperature curves to prevent plastic housing deformation, avoid forced mis-mating to prevent terminal spring fatigue, and store unused connectors in dry sealed packages to stop brass contacts from oxidation and rust. All products comply with EU RoHS and REACH environmental regulations, most item specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management certifications. Multiple packaging modes including tray, bag, tube and tape reel with or without caps are supplied to match manual assembly and fully automatic SMT production lines.
Compared with other connector manufacturers, Antenk independently develops more than 250 sets of plastic molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin number, locating peg structure, insulator material, terminal plating type and packaging form for this SMT female header series. Our 10000-square-meter production base with 250 professional staff is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring consistent batch product quality and on-time delivery for large bulk export orders. As a brand awarded Guangdong Famous Trademark qualification, more than 70 percent of our board-to-board connectors are exported to global overseas markets. We implement full-process quality inspection covering incoming raw material inspection, in-process production monitoring and finished product comprehensive testing, greatly improving shock resistance and long-term connection reliability, effectively eliminating intermittent circuit faults caused by poor contact, and establishing long-term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

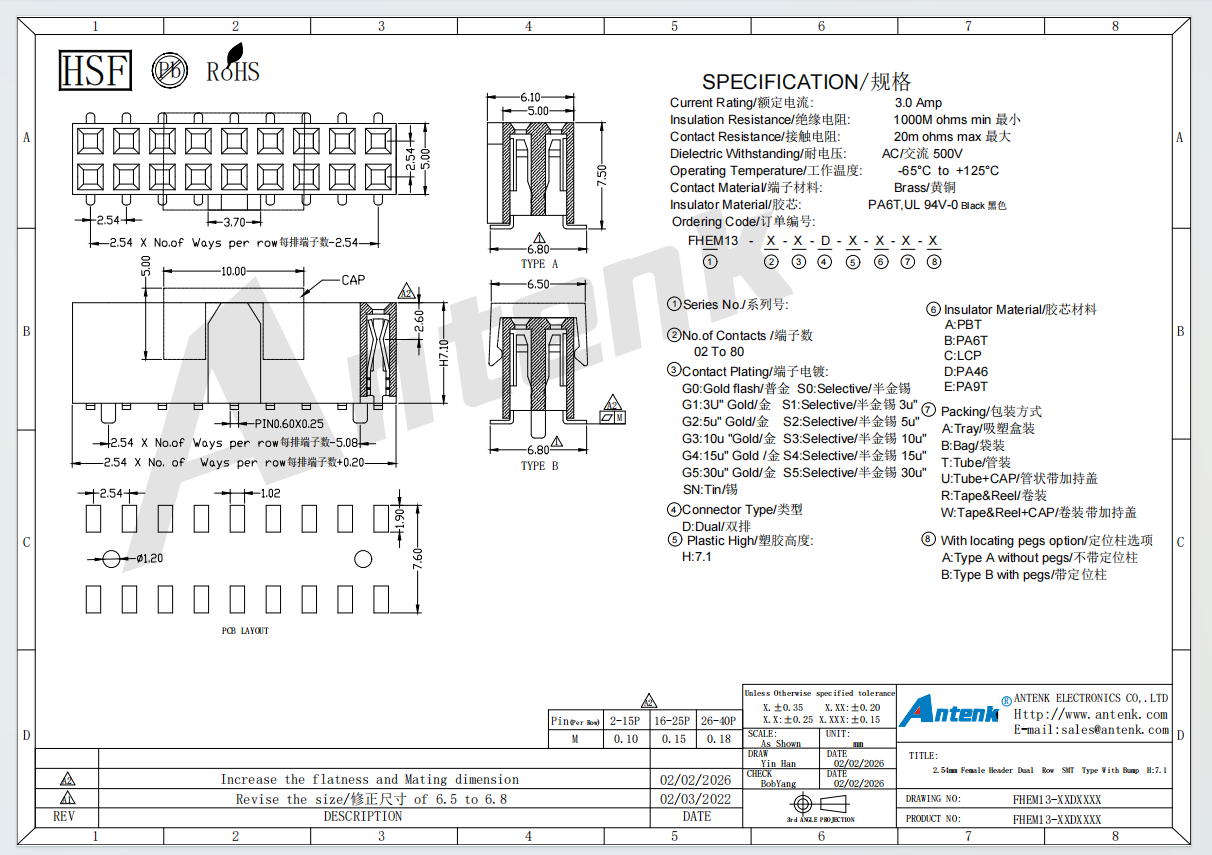

3、Product Drawing
