1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the AW2008V series 2.00mm pitch 180 degree dual row wafer connector is a professional through-hole wire-to-board plug used to build stable signal and power links between wiring harnesses and printed circuit boards. In strict accordance with drawing specifications, this dual row wafer supports pole numbers ranging from 6 pins up to 40 pins with fixed 2.0mm pitch, and it is perfectly mated with the AH2008 dual row housing series for complete wiring assembly. The insulating base is injection molded with UL94V-0 flame retardant Nylon 66 material in standard ivory color. Square brass pins adopt tin over nickel plating treatment to reduce contact resistance and greatly improve oxidation resistance and soldering performance. Its electrical parameters include 250V AC DC rated voltage and 3A rated current, which can withstand 1000V AC voltage for one minute, maintain minimum 1000MΩ insulation resistance and work stably within the temperature range from minus 40°C to plus 105°C. All PCB layout dimensions are controlled within precise tolerance ranges to fit standard through-hole wave soldering processes. Our full production workflow includes independent precision mold development, high-speed brass terminal stamping, flame retardant nylon injection molding, anti-corrosion electroplating and automatic pin assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment guarantee unified dimensional accuracy during mass batch production.
This dual row straight wafer connector is installed by inserting straight through-hole pins into reserved holes on PCB boards following the official PCB layout drawing and finishing wave soldering fixation. After wires are crimped onto matching terminals and locked into the AH2008 housing, plug the housing onto this wafer plug to finish wire-to-board circuit connection. It is widely applied in household appliance control panels, industrial control modules, communication signal circuits, digital display devices, portable power equipment, automotive electronic accessories and precision measuring instruments. During soldering and use, users must control soldering temperature reasonably to prevent nylon insulator melting and deformation, avoid violent plugging to prevent pin bending and terminal damage, and store unused wafers in dry sealed packaging to stop brass pins from rusting and discoloration. All products comply with EU RoHS and REACH environmental directives, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications.
Compared with other connector manufacturers, Antenk owns more than 250 sets of self-developed plastic molds and 180 sets of precision brass stamping molds, supporting customized pin count, insulator color and pin plating type for this dual row wafer series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch quality and fast delivery for large export orders. As an enterprise holding Guangdong Famous Trademark qualification, more than 70 percent of our wire-to-board connectors are exported to global markets. We implement multi-stage incoming material inspection, in-process monitoring and finished product full inspection, greatly enhancing vibration resistance and connection stability, effectively eliminating circuit interruption faults caused by poor contact, and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

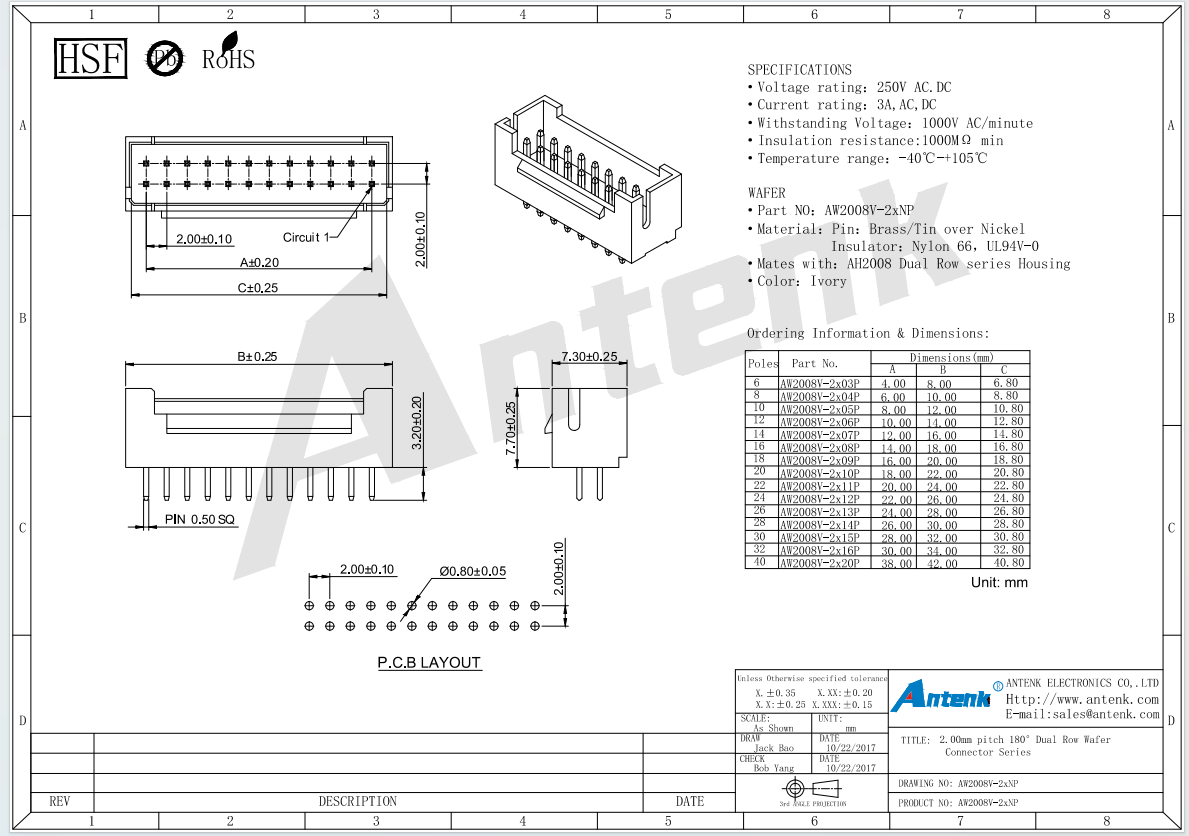

3、Product Drawing
