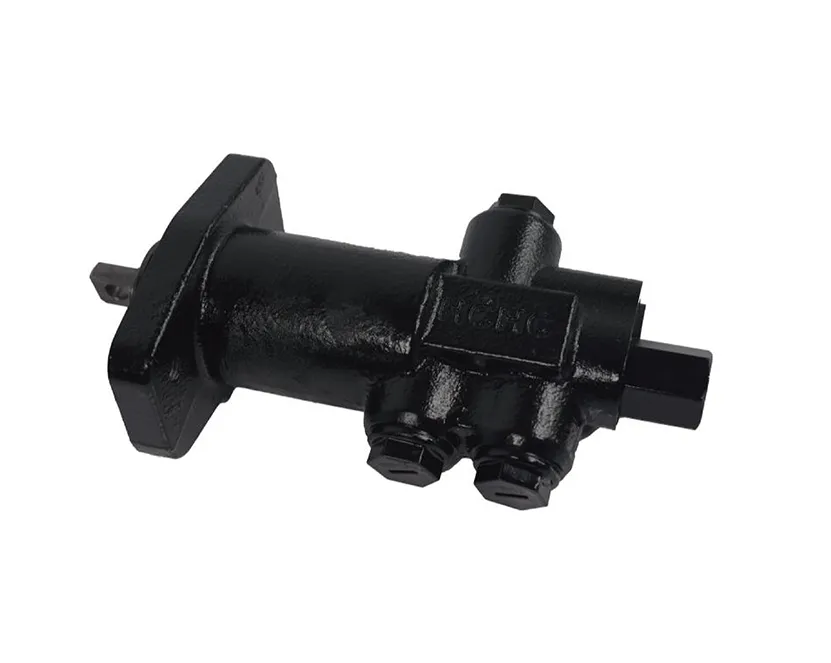

Hydraulic Counter-Adjusting Brake Valve HCZFR-E25L Full Product Introduction
1. Basic Product Overview
The HCZFR-E25L is a heavy-duty hydraulic counter-adjusting brake valve integrated with load holding, speed limiting and emergency braking functions. It is a core safety component specially matched to hoist hydraulic motor, slewing mechanisms and large lifting cylinders within the whole hydraulic system. Different from conventional fixed-setting brake valves, it adopts reverse adjustable pressure design: the unlocking pilot pressure can be fine-tuned on-site to match loads of different weights, effectively preventing free falling, runaway slipping and overspeed gliding of heavy loads under gravity. It is widely installed on truck-mounted cranes, wreckers, aerial work platforms, mining hoists and drilling rig lifting systems for safety braking control.
Model Breakdown
- HCZFR: Series code for counter-adjustable hydraulic brake valve
- E: High-pressure resistant version
- 25: Nominal flow rate 25L/min
- L: Left pilot oil inlet layout (right pilot version HR optional)
2. Core Technical Parameters
Item Specification
Product Type Counter-Adjustable Hydraulic Brake & Load Control Valve
Rated Flow 25L/min
Max Working Pressure 31.5MPa
Adjustable Pilot Unlocking Pressure 1.2MPa–8MPa stepless reverse regulation
Connection Form In-line threaded mounting
Port Thread Specification G1/2 standard pipe thread
Valve Body Material Forged alloy steel
Sealing Assembly NBR seals as standard; FKM high-temperature and oil-resistant seals optional
Applicable Hydraulic Fluid ISO VG46, VG68 anti-wear hydraulic oil
Operating Temperature -20℃ ~ +85℃
Core Functions Gravity load anti-falling, overspeed braking, reverse pressure fine tuning, static load locking
Warranty Period 1 year
3. Structure & Working Principle
Composed of main poppet valve assembly, reverse pressure regulating screw, pilot control chamber and built-in one-way bypass check valve, it is installed in series on the oil line between the main control valve and load-side hydraulic motor:
1. Load Locking Static State: No pilot control pressure input; the main valve poppet is fully closed under spring force, completely cutting off the return oil circuit of the hydraulic motor. Heavy loads are mechanically locked without descending or drifting even with main system pressure loss.
2. Normal Lifting Operation: Hydraulic oil flows through the built-in one-way check valve with zero throttling resistance to drive the hydraulic motor to lift loads upward, with no extra power consumption.
3. Lowering & Reverse Adjustable Braking Working Condition: When lowering loads by reversing the oil circuit, pilot control oil acts on the regulating chamber. Users can adjust the built-in screw to set reverse opening pressure: only when pilot pressure reaches the preset threshold can the main valve open gradually to release return oil. It automatically throttles and brakes if the load accelerates to overspeed under gravity, limiting descending speed steadily.
4. Emergency protection: Sudden failure of the main hydraulic system cuts pilot pressure instantly, the main valve shuts tightly to trigger emergency lock braking and halt load falling immediately.
4. Core Product Advantages
1. Unique reverse stepless pressure adjustment design, adaptable to frequent switching of heavy and light loads on one machine without replacing valve bodies, improving universality of the hydraulic system.
2. Integrated one-way free oil passage + throttling brake integration, no energy loss during lifting, precise speed control and anti-runaway during lowering.
3. Alloy steel forged valve body with high compression resistance, resistant to hydraulic impact and vibration, suitable for rugged construction and mining sites.
4. Independent pilot pressure regulation avoids interference with main circuit pressure, does not affect normal output torque of the hydraulic motor.
5. Fail-safe design for power failure and oil cut-off, realizing automatic locking braking to eliminate safety hazards of load dropping.
5. Typical Application Scenarios
1. Hoist hydraulic motor lowering safety control on truck-mounted cranes and mobile cranes;
2. Lifting cylinder load anti-falling braking for wreckers and aerial work platforms;
3. Slewing hydraulic motor anti-swing and overspeed limiting for drilling rigs and engineering machinery;
4. Mining underground winch, material handling hoist hydraulic system safety braking configuration;
5. Retrofitting upgrade of old equipment lacking load self-locking protection.
6. Fault Replacement Instructions
Replace the complete HCZFR-E25L brake valve assembly if encountering symptoms including uncontrollable load free falling, jittery lowering speed, inability to adjust braking pressure, oil leakage at valve body threads, or failure to lock the hydraulic motor after system shutdown. Common root causes include internal poppet wear, damaged regulating spring and seal aging.
