Manufactured by Huizhou Antenk Electronics Co., Ltd, the PHEM09 series 2.54mm dual row SMT pin header is a surface mount board-to-board connector built for stable signal and low-power circuit interconnection between printed circuit boards. Complying with official drawing specifications, this header adopts standard 2.54mm pitch and supports contact quantities from 2 pins up to 80 pins. It supplies two structural variants: Type A without locating pegs and Type B with positioning pegs to prevent shifting during SMT reflow soldering, plus a protective top cap to shield internal pins from collision and dust contamination. The insulator can be customized with PA6T, LCP, PA46, PA9T and PBT flame retardant materials that all meet UL94V-0 fire safety certification. Square brass pins are offered with gold flash, graded selective gold plating and tin plating treatments to cut contact resistance and strengthen anti-tarnish and soldering performance. Its electrical parameters include 3A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, withstanding 500V AC voltage for one minute and operating steadily between minus 65°C and plus 125°C. Multiple fixed pin length options are available to match PCB boards of different thicknesses, with strict tolerance control for all PCB layout dimensions to fit standard automated SMT assembly lines. Our complete production workflow includes independent precision mold development, high-speed brass terminal stamping, high temperature resistant plastic injection molding, anti-oxidation electroplating and automatic pin assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment guarantee consistent dimensional precision during mass production.
This dual row SMT pin header is positioned onto designated PCB pads according to the official PCB layout drawing and fixed via automatic reflow soldering. After soldering is finished, it mates with matching female header sockets to form complete board-to-board signal and power transmission loops. It is widely applied in industrial control mainboards, communication signal modules, liquid crystal display drive boards, smart home control panels, portable storage devices, automotive electronic control units and precision measuring instruments. During soldering and daily use, users must follow standard reflow temperature curves to avoid thermal deformation of the plastic housing, avoid forced mis-mating to prevent pin bending and terminal spring fatigue, and store unused connectors in dry sealed packages to avoid brass pin oxidation and discoloration. All products comply with EU RoHS and REACH environmental directives, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management certifications. Tray, bag, tube and tape and reel packaging choices are provided to adapt to manual assembly and fully automatic SMT feeding production lines.
Compared with other connector manufacturers, Antenk independently develops and owns more than 250 sets of plastic molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin count, locating peg structure, insulator material, pin length, contact plating type and packaging format for this dual row SMT pin header series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and on-time delivery for large bulk export orders. As a brand holding Guangdong Famous Trademark qualification, more than 70 percent of our board-to-board connectors are exported to global overseas markets. We implement full-process quality inspection covering incoming raw material inspection, in-process production monitoring and finished product comprehensive testing, greatly improving shock resistance and long-term connection reliability, effectively eliminating intermittent circuit faults caused by poor contact, and establishing long-term trusted cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

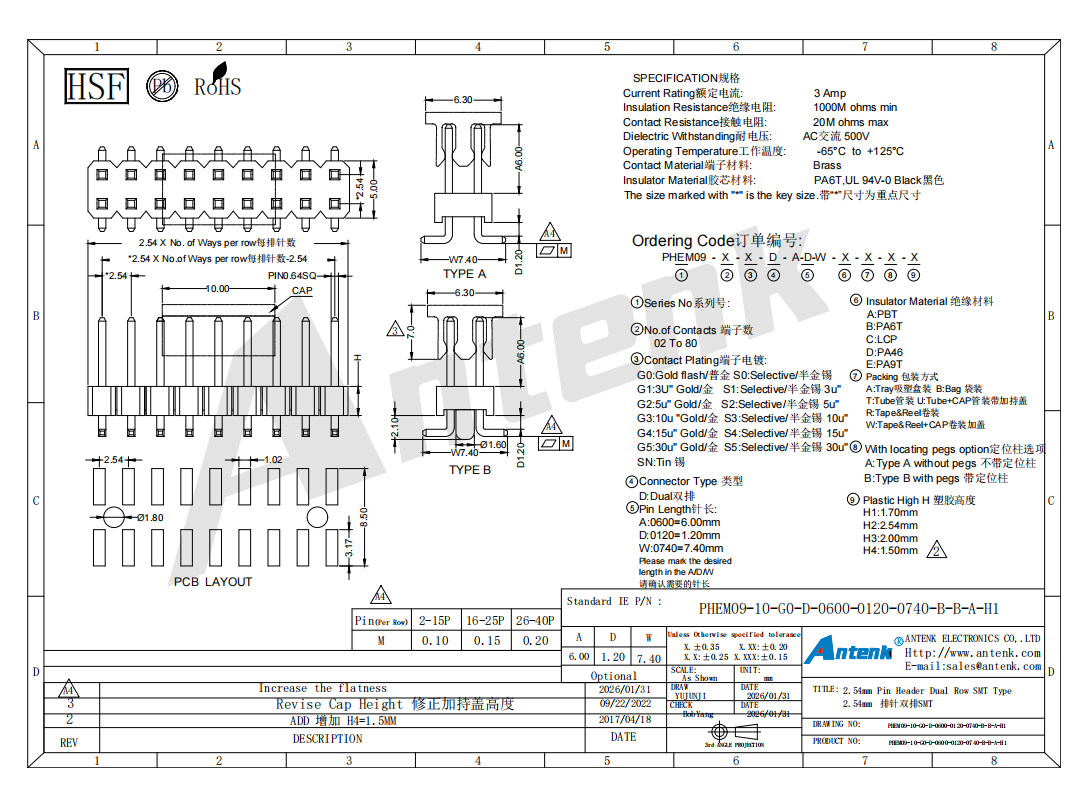

3、Product Drawing
