1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the FHEM08 series 2.54mm dual row SMT female header with 5.08mm width and 3.5mm plastic height is a surface-mount board-to-board receptacle built for stable signal and low-current power interconnection between printed circuit boards. Produced strictly to official drawing specifications, this connector supports contact counts ranging from 2 pins to 80 pins with fixed 2.54mm pitch. Two structural versions are available: Type A without locating pegs and Type B with positioning pegs to prevent offset displacement during SMT reflow soldering, and a protective cap is reserved on the insulator to shield internal brass contacts from dust and mechanical collision damage. The insulating housing can be customized with PBT, PA6T, LCP, PA46 and PA9T flame retardant materials that all comply with UL94V-0 fire resistance certification. Elastic brass terminals adopt gold flash, graded selective gold plating and tin plating surface treatments to reduce contact resistance and enhance anti-tarnish and anti-corrosion performance. Its electrical specifications include 3.0A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, which can withstand 500V AC dielectric voltage for one minute and operate reliably within the temperature range from minus 65°C to plus 125°C. All PCB layout dimensions are strictly controlled within tolerance limits to perfectly match automatic SMT reflow soldering production procedures. Our standardized production chain covers independent precision mold research and development, high-speed brass terminal stamping, high-temperature resistant plastic injection molding, anti-oxidation electroplating and automatic assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment guarantee consistent dimensional accuracy during mass production.
This dual row SMT female header is placed onto designated PCB bonding pads in accordance with the official PCB layout drawing and fixed via automatic reflow soldering. After soldering is completed, it is mated with matching male pin headers to form a complete closed-loop board-to-board signal and power transmission circuit. It is widely applied in industrial control mainboards, communication signal modules, liquid crystal display drive boards, smart household control panels, portable data storage devices, automotive electronic control units and precision testing instruments. During soldering and daily use, users must follow standard reflow temperature curves to avoid thermal deformation of the plastic insulator, prohibit forced improper mating to prevent permanent elastic fatigue and deformation of brass contact springs, and store unused connectors in dry sealed packaging to avoid oxidation and discoloration of internal terminals. All products conform to EU RoHS and REACH environmental protection directives, most product specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications. Multiple packaging options including tray, bag, tube and tape and reel are provided to adapt to manual assembly and fully automatic SMT feeding production lines.
Compared with other connector manufacturers in the industry, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin quantity, locating peg structure, insulator material, contact plating type and packaging mode for this dual row SMT female header series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and punctual delivery for large bulk export orders. As a brand qualified with Guangdong Famous Trademark certification, more than 70 percent of our board-to-board connectors are exported to global overseas markets. We implement full-process quality inspection including incoming raw material inspection, in-process production supervision and finished product comprehensive testing, greatly improving shock resistance and long-term connection reliability, effectively eliminating intermittent circuit disconnection faults caused by poor contact, and establishing long-term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

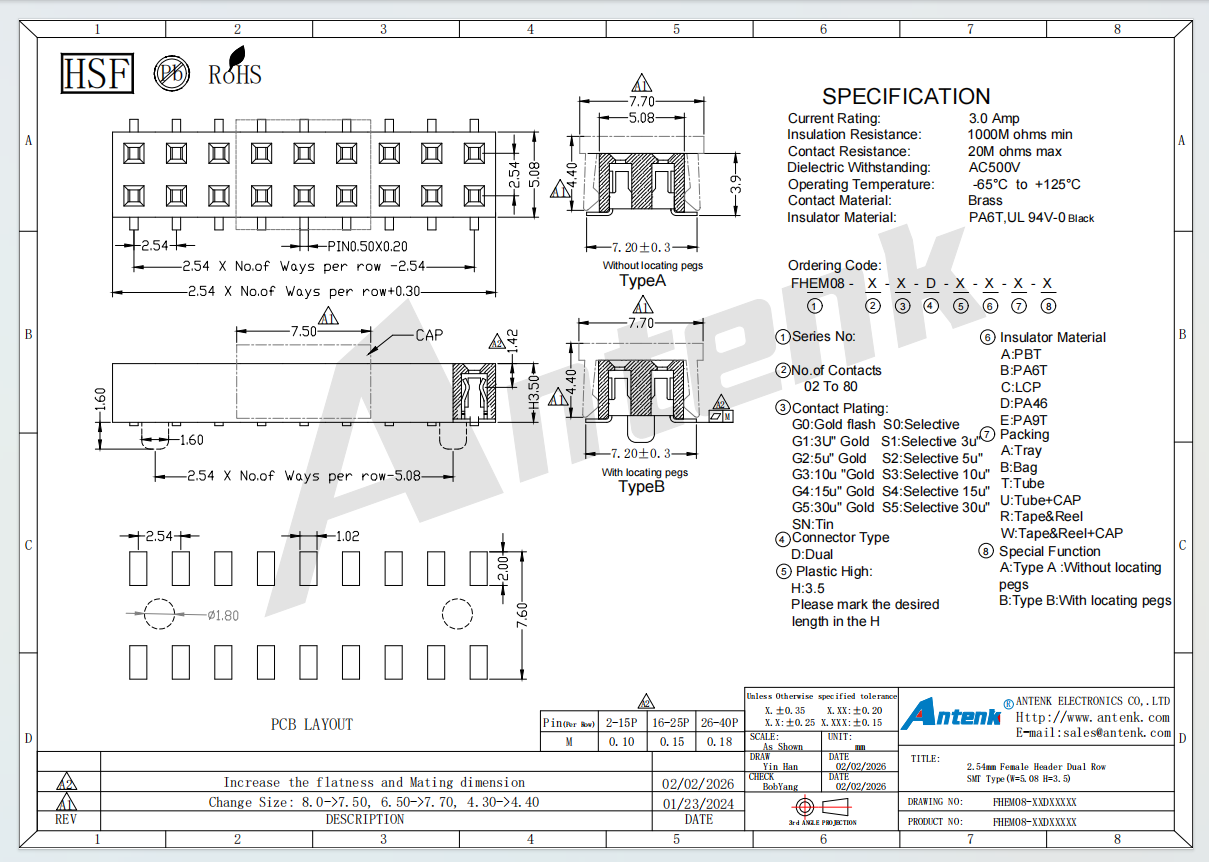

3、Product Drawing
