Manufactured by Huizhou Antenk Electronics Co., Ltd, the FHCM08 series 1.27mm pitch dual row SMT female header with dual locating posts is a miniature surface mount board-to-board receptacle for low-current signal transmission between compact PCB modules. Following official drawing specifications, this connector supports contact quantities ranging from 2 pins to 100 pins under fixed 1.27mm pitch. Two alternative plastic body heights H1=3.4mm and H2=4.3mm are available to fit different assembly space requirements, with integrated dual locating posts to prevent shifting during SMT reflow soldering. A removable protective cap is fitted on the insulator to shield internal brass spring terminals from dust and mechanical damage during production and storage. The insulating housing can be customized with PA6T, LCP and PA9T flame retardant materials complying with UL94V-0 fire resistance standard. Elastic brass terminals are supplied with gold flash, graded selective gold plating and tin plating surface treatments to reduce contact resistance and enhance anti-tarnish and soldering durability. Its electrical performance includes 1A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, which can withstand 500V AC dielectric voltage for one minute and operate steadily within the temperature range from minus 65°C to plus 125°C. All PCB layout dimensions are precisely controlled within tolerance limits to perfectly match automated SMT reflow soldering procedures. Our complete production workflow covers independent precision mold development, high-speed brass terminal stamping, high temperature resistant plastic injection molding, anti-oxidation electroplating and automatic component assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment guarantee unified dimensional consistency during mass batch manufacturing.
This dual-post SMT female header is positioned onto designated PCB pads according to the official PCB layout drawing and secured via automatic reflow soldering. After soldering is completed, matched male pin headers are inserted into the receptacle to form closed-loop signal transmission circuits between stacked printed circuit boards. It is widely applied in thin LCD display driver boards, wearable smart electronic circuits, digital camera internal wiring, portable memory devices, automotive mini sensor modules and micro precision testing instruments. During soldering and daily application, users must follow standard reflow temperature profiles to avoid thermal deformation of the plastic insulator, avoid forced skewed mating to prevent permanent fatigue deformation of brass contact springs, and store unused connectors in dry sealed packaging to avoid oxidation and discoloration of internal metal terminals. All products comply with EU RoHS and REACH environmental directives, most product specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications. Diversified packaging options including tray, bag, tube and tape and reel with or without protective caps are offered to adapt to manual assembly and fully automatic SMT feeding production lines.
Compared with other connector manufacturers in the industry, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin count, insulator material, plastic height, contact plating mode and packaging format for this dual row SMT female header series. Our 10000-square-meter production base with 250 professional staff is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and punctual delivery for large bulk export orders. As a brand certified with Guangdong Famous Trademark qualification, more than 70 percent of our miniature board-to-board connectors are exported to global overseas markets. We implement full-link quality inspection covering incoming raw material inspection, in-process production supervision and finished product comprehensive testing, greatly improving vibration resistance and long-term connection reliability, effectively eliminating intermittent circuit disconnection faults caused by poor contact, and establishing long-term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

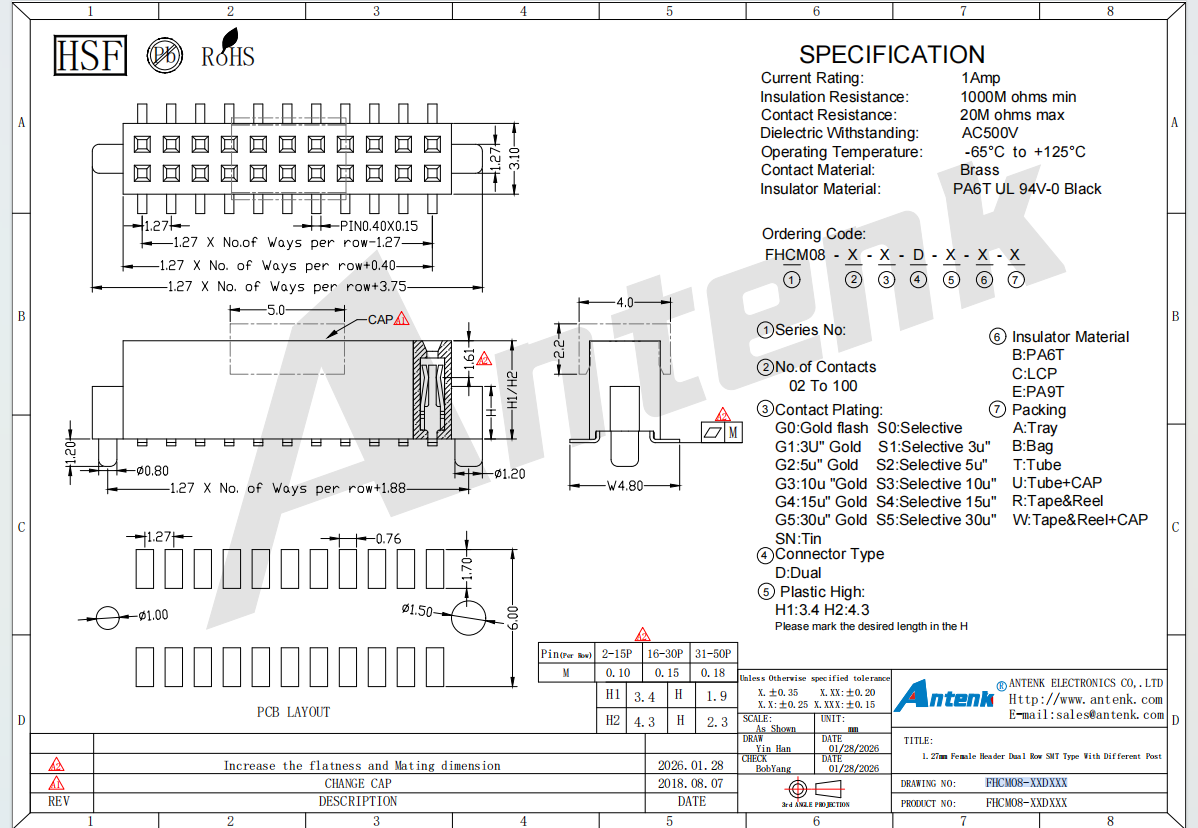

3、Product Drawing
