1. Basic Product Overview

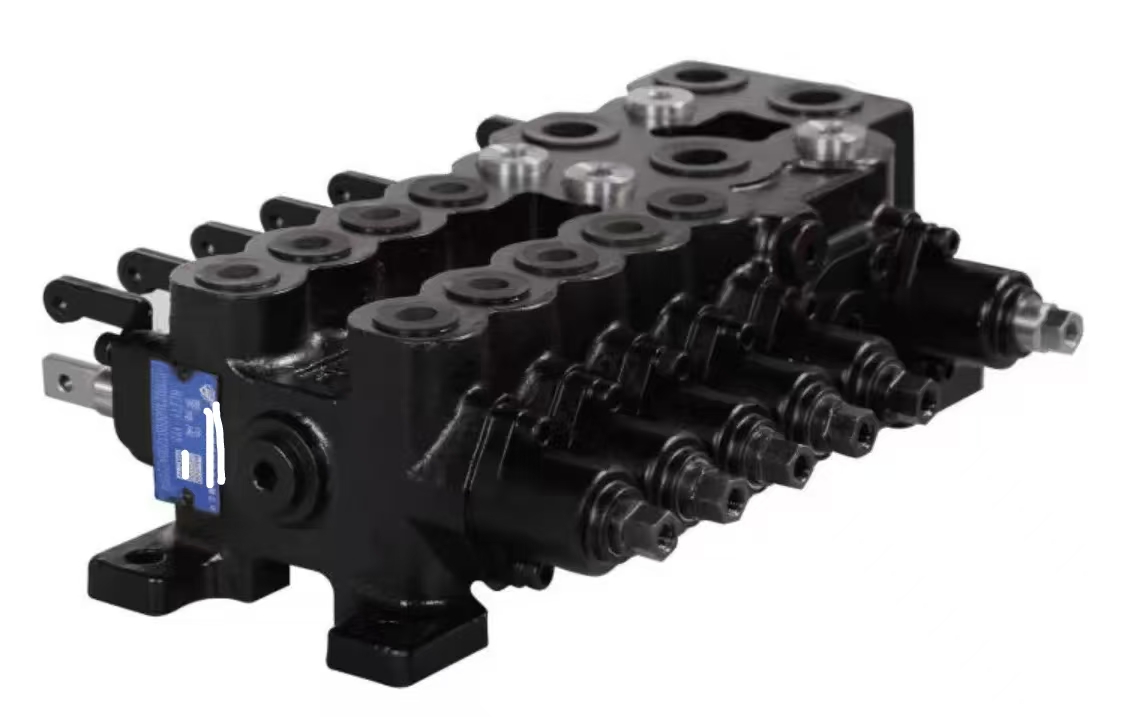

HCZTF-120 is an integrated heavy-duty monoblock multi-way directional valve developed by Hefei Changyuan Hydraulics, specially customized for vehicle chassis hydraulic systems of construction machinery. It adopts an overall master control spool + 5 working spools integrated design: one master selector spool (spring return type) globally cuts off the oil supply of all working circuits for safety protection, while 5 working spools use ball detent positioning to keep working continuously without manual holding. It can control up to 10 sets of hydraulic cylinders or hydraulic motor actuators simultaneously (single/double actuating optional), with through-flow bypass design to deliver residual pump flow to subsequent hydraulic components when idle, lowering energy consumption and heat generation. It is widely matched to truck cranes, concrete pump trucks, aerial work platforms, sanitation vehicles and mining machinery complete hydraulic system.
Model Explanation
- HCZTF: Series code for vehicle chassis integrated safety multi-way valve
- 120: Rated through-flow capacity 120L/min
Standard configuration: 1 main control spool + 5 working spools built-in, complete with safety relief valve, overload valve, hydraulic lock and one-way throttle valve integrated inside the valve body.
2. Core Technical Parameters
Item Specification
Product Type Monoblock Integrated Safety Multi-way Directional Valve
Rated Working Pressure 25MPa
Max Overload Pressure 31.5MPa
Nominal Through Flow 120L/min (P→V bypass flow: 120L/min; P→G working flow: 80L/min)
Spool Layout 1 master selector spool (spring return) + 5 working spools (ball detent positioning)
Spool Stroke Master spool: 8+8mm; Working spool: 6+6mm
Valve Body Material High-strength cast iron integral casting
Sealing Assembly Standard NBR oil-resistant seals; FKM high-temperature seals optional
Compatible Hydraulic Fluid ISO VG46, VG68 anti-wear hydraulic oil
Operating Temperature -20℃ ~ +85℃
Built-in Accessories Main relief valve, individual overload valves per spool, hydraulic lock, one-way throttle valve
Warranty Period 1 year
3. Structure & Working Principle
Integrated with common inlet port P, return port T, bypass outlet V, 5 groups of A/B working ports and H auxiliary port. Installed between hydraulic pump and cylinders/hydraulic motor actuators:
1. Master Safety Cut-off State: Push the master selector spool; spring resets automatically once released, completely cutting off pressure oil to all 5 working spools, locking all cylinders and hydraulic motor to stop movement for maintenance safety.
2. Single/Multiple Actuator Operation: Pull any working spool (locked by steel ball positioning after operation), pressure oil enters A/B ports to drive cylinders extend/retract or hydraulic motor forward/reverse rotation; multiple spools can be operated synchronously for composite actions.
3. Load Holding Protection: Built-in hydraulic lock seals A/B ports tightly after spool reset to prevent load sinking; matched one-way throttle valve cushions oil return speed, avoiding negative pressure and cylinder shrinkage failure.
4. Pressure Safety Protection: Main relief valve limits the whole valve’s maximum system pressure; each working spool is equipped with an independent overload valve to prevent component damage from sudden load surges.
5. Idle Energy-saving Mode: When all spools are in neutral position, full pump flow passes directly from P to V bypass port for downstream hydraulic supply, no useless overflow loss.
4. Core Product Advantages
1. Unique double-spool safety design: Master emergency cut-off + working spool self-locking, complying with construction machinery safety operation specifications, greatly reducing misoperation risks.
2. Highly integrated all-in-one valve body: Combines relief valve, overload valve, hydraulic lock and throttle valve into one piece, eliminating external pipeline assembly and leakage points, simplifying vehicle hydraulic system layout.
3. 5 working spools expandable for 10 actuators, flexible for complex composite movements of multi-cylinder/multi-hydraulic motor linkage equipment.
4. Bypass through-flow structure realizes energy-saving unloading at neutral position, lowering oil temperature and hydraulic pump wear during standby.
5. Heavy-duty cast iron valve body resists vibration and impact, stable in muddy, dusty and high-load construction sites; easy disassembly for on-site maintenance.
6. Perfect OEM matching for Changyuan original hydraulic assemblies, high interchangeability for old equipment retrofitting replacement.
5. Typical Application Scenarios
1. Truck cranes, concrete pump trucks: Chassis outrigger cylinders + slewing/winch hydraulic motor centralized control;
2. Aerial work platforms, road wreckers: Multi-group leveling and lifting cylinder synchronous control;
3. Sanitation sweepers, snowplows: Brush roller hydraulic motor and tipping cylinder combined control;
4. Mining light load transport machinery, agricultural heavy machinery: Multiple actuators integrated hydraulic control;
5. Refitting and upgrading old engineering vehicle hydraulic distribution systems.
6. Fault Replacement Instructions
Replace the complete HCZTF-120 valve assembly for faults including: master spool fails to cut off oil supply, working spool cannot be positioned or reset, serious internal leakage causing load drifting, valve body oil seepage, abnormal pressure jitter and invalid pressure regulation. Common causes include worn spool sleeves, broken positioning springs and aged sealing kits.
