1. Basic Product Overview

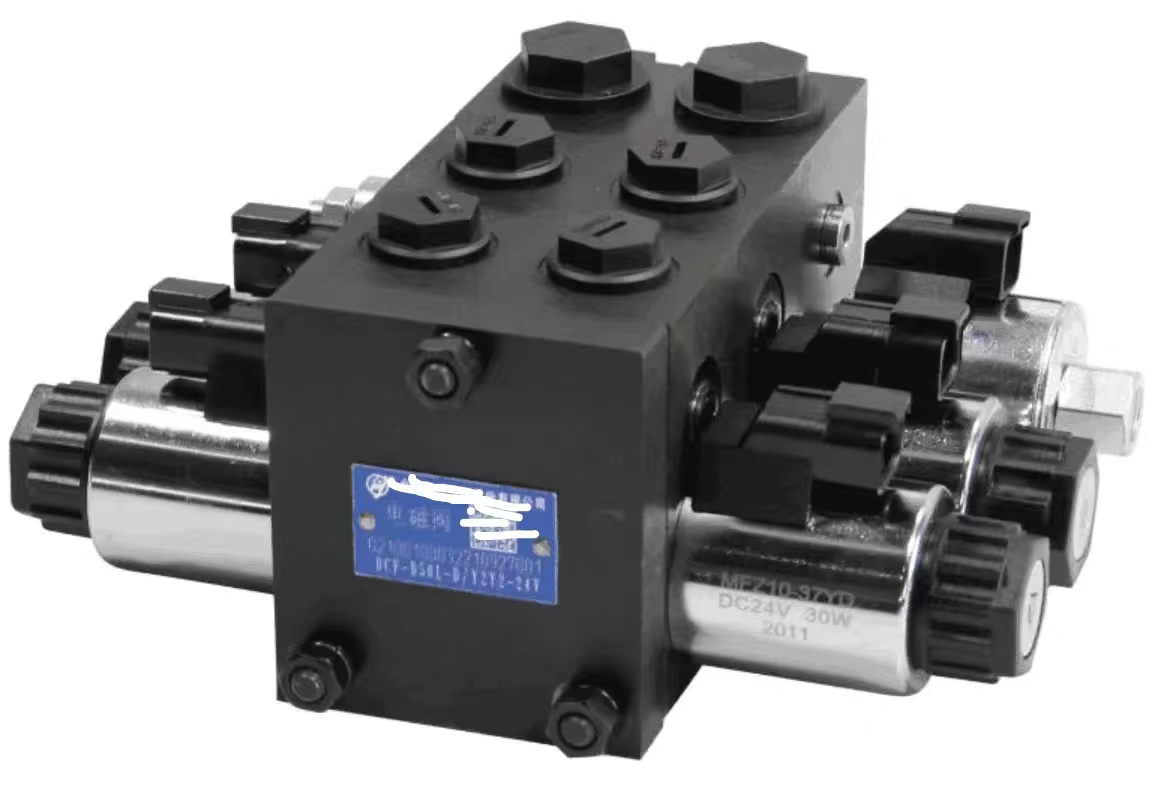

DCF-50 is a direct-acting high-pressure hydraulic solenoid directional valve from the same DCF product series as DCFB-G60L-4, mainly serving as a low-to-medium flow auxiliary electromagnetic switching valve matched with HCZTF-120 multi-way directional valves. It converts electrical signals into mechanical spool displacement to switch hydraulic oil circuits, controlling startup, stop and forward/reverse rotation of small and medium-displacement hydraulic motor or small hydraulic cylinders. Compact in size and easy for block mounting, it is widely used as an auxiliary control element for auxiliary actuators on wreckers, sanitation vehicles, forklifts and small engineering machinery hydraulic systems.
Model Breakdown
- DCF: Series code of general industrial hydraulic solenoid directional valve
- 50: Rated flow capacity 50L/min
- The asterisk DCF*-50 in your inquiry is a general coding form, supporting customization of spool function, coil voltage and mounting structure
2. Core Technical Parameters
Item Specification
Product Type Direct-Acting Solenoid Directional Valve
Rated Flow 50L/min
Max Working Pressure 31.5MPa (315bar)
Allowable Back Pressure 3MPa (30bar)
Spool Diameter 14mm
Spool Stroke 4.5mm
Mounting Form Standard subplate mounting
Standard Coil Voltage DC12V / DC24V (mainstream vehicle power supply); AC220V optional
Valve Body Material Precision cast ductile iron
Sealing Kit Standard NBR nitrile rubber seals; FKM high-temperature resistant seals optional
Compatible Hydraulic Fluid ISO VG46, VG68 anti-wear hydraulic oil
Operating Temperature -20℃ ~ +80℃
Required Oil Filtration Precision ≤10μm
Configuration Options 2-position 2-way / 2-position 4-way / 3-position 4-way spool types available
Warranty Period 1 year
3. Structure & Working Principle
Composed of electromagnetic coil, armature, valve spool, reset spring and integrated valve body, installed on the auxiliary oil circuit of the main hydraulic system:
1. De-energized Initial State: The spool is held in the home position by the reset spring, oil passages keep the default on/off or communicated state, and the matched hydraulic motor or cylinder remains stationary.
2. Coil Energized Operation: Electromagnetic suction pulls the armature to push the spool to shift, cutting off the original oil path and connecting the new oil circuit, driving the actuator to act, or making the hydraulic motor reverse rotation.
3. Power-off Reset: Once power supply is cut off, the spring instantly pushes the spool back to the initial position, the oil circuit resets, and the actuator stops running immediately.
4. Compared with pilot-operated DCFB-G60L-4, DCF-50 adopts direct-acting design without pilot oil supply, suitable for independent small oil circuits with low switching frequency and no auxiliary pilot pressure.
4. Core Product Advantages
1. Direct-acting integrated structure, no need for external pilot oil source, can work independently in simple hydraulic loops, flexible layout for narrow installation spaces on vehicles.
2. 50L/min rated flow perfectly matches small auxiliary hydraulic actuators, forming a flow gradient combination with 60L/min DCFB-G60L-4 and 120L/min HCZTF-120 main valve for hierarchical system control.
3. High-pressure resistance up to 31.5MPa, compatible with heavy-duty vehicle main system pressure without additional pressure reduction.
4. Multiple spool functions optional, adaptable to load locking, unloading and floating working conditions of different auxiliary devices.
5. Anti-vibration valve body and reinforced coil fixing structure, stable operation under vehicle bumping and construction site vibration, not easy to loose wiring.
6. Simple disassembly and maintenance, low spare parts cost for after-sales replacement.
5. Typical Application Scenarios
1. Auxiliary circuit control of HCZTF-120 multi-way valve assembly: switching control of small auxiliary hydraulic motor such as sweeper rolling brush, snowplow hydraulic rake;
2. Forklift side shifter, fork positioner small hydraulic cylinder electric switching;
3. Wrecker auxiliary support leg micro-action electric control;
4. Small hydraulic station, mechanical fixture clamping/releasing hydraulic circuit automatic switching;
5. Agricultural machinery auxiliary hydraulic actuators remote electric control transformation.
