1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the AW2001R series 2.00mm pitch right angle SMT wafer connector is a professional surface mount wire-to-board plug dedicated to establishing compact signal and low-power electrical connections between wiring harnesses and printed circuit boards. Strictly manufactured following official drawing standards, this wafer supports pin quantities ranging from 2 pins up to 20 pins with fixed 2.0mm pitch, and it perfectly matches the AH2001 series plastic housing to complete full wiring harness assembly. The white insulator is injection molded with UL94V-0 flame retardant Nylon 66 material with excellent heat resistance and structural stability to adapt to high-temperature SMT reflow soldering procedures. Square brass pins adopt tin over nickel plating treatment to minimize contact resistance and greatly boost anti-oxidation, anti-tarnish and soldering performance in long-term service. Its electrical parameters include 2A rated current under 100V AC and DC voltage, minimum 1000MΩ insulation resistance, and it can withstand 800V AC withstanding voltage for one minute while operating steadily within the temperature range from minus 40°C to plus 105°C. All PCB layout dimensional parameters are strictly controlled within unified tolerance limits to fit standard automatic SMT pick and placement processes. Our complete production workflow consists of independent precision mold development, high-speed brass terminal stamping, flame retardant nylon injection molding, anti-corrosion electroplating and automatic pin assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment guarantee consistent dimensional accuracy during mass batch production.
This right angle SMT wafer connector is positioned onto designated PCB pads according to the official PCB layout drawing and fixed firmly through automatic reflow soldering. After wires are crimped onto matched terminals and locked into the supporting AH2001 series housing, users insert the housing onto this SMT wafer plug to finish wire-to-board circuit connection. It is widely applied in liquid crystal display modules, digital camera internal wiring circuits, industrial control signal modules, smart household control panels, portable memory devices, automotive electronic auxiliary units and precision measuring instruments. During soldering and daily application, users must follow standard reflow temperature curves to prevent thermal melting and deformation of the nylon insulator, avoid forced violent mating to prevent pin bending and terminal spring fatigue, and store unused connectors in dry sealed packaging to avoid oxidation and discoloration of brass pins. All products comply with EU RoHS and REACH environmental directives, most product specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications to realize standardized quality control.
Compared with other connector manufacturers in the industry, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin number, insulator color, pin plating type and structural size for this SMT right angle wafer connector series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and punctual delivery for large bulk export orders. As a brand holding Guangdong Famous Trademark qualification, more than 70 percent of our wire-to-board connectors are exported to global overseas markets. We implement multi-stage incoming material inspection, in-process production monitoring and finished product full inspection system, greatly enhancing vibration resistance and long-term connection reliability, effectively eliminating intermittent circuit interruption faults caused by poor contact, and establishing long-term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

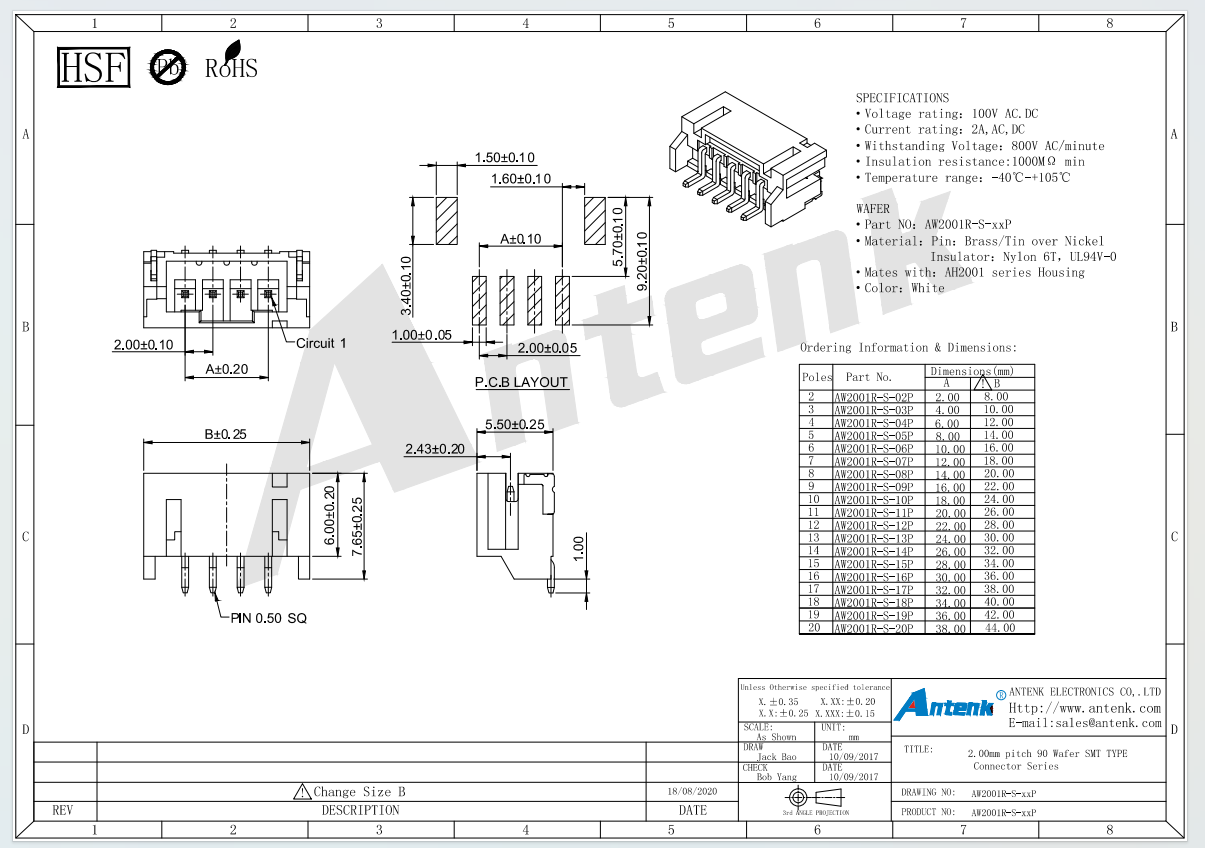

3、Product Drawing
