1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the FHGS01 series 5.08mm pitch single row straight female header with 8.9mm plastic height is a heavy-current through-hole board-to-board receptacle built for stable power supply and signal transmission between printed circuit boards. Designed strictly to official drawing standards, this connector supports contact counts ranging from 1 pin to 40 pins under fixed 5.08mm pitch. The insulating housing can be customized with PA6T, LCP, PA46 and PA9T high-temperature flame retardant materials that all meet UL94V-0 flame resistance certification. Elastic brass terminals are offered with gold flash, multiple grades of selective gold plating and pure tin plating surface treatments to cut contact resistance and improve long-term anti-tarnish and anti-corrosion performance. Its core electrical parameters include 7.0A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance. It can withstand 500V AC dielectric voltage for one minute and operate continuously within the temperature range from minus 65°C to plus 125°C. All PCB layout dimensional sizes are strictly controlled within unified tolerance ranges to perfectly match standard through-hole wave soldering production lines. Our complete manufacturing workflow includes independent precision mold development, high-speed brass terminal stamping, high-temperature resistant plastic injection molding, anti-oxidation electroplating and automatic assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment guarantee consistent dimensional precision during mass batch production.
This single row straight female header is installed by inserting vertical through-hole pins into pre-drilled holes on printed circuit boards following the official PCB layout drawing and finishing wave soldering fixation. After soldering is completed, it mates with matching straight male pin headers to form closed-loop power and signal transmission circuits between different PCB assemblies. It is widely used in industrial control power boards, switching power supply modules, household appliance main control panels, new energy device control units, automotive electronic power distribution modules and precision testing instrument power interfaces. During soldering and daily use, users must control soldering temperature reasonably to avoid thermal deformation and damage of the plastic insulator, prohibit forced repeated plugging to prevent permanent elastic fatigue of brass contact springs, and store unused connectors in dry sealed packages to avoid oxidation and discoloration of internal metal terminals. All products comply with EU RoHS and REACH environmental directives, most specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management certifications. Tray, bag, tube and tape and reel diversified packaging options are provided to adapt to manual assembly and fully automatic SMT feeding production.
Compared with other connector manufacturers, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin quantity, insulator material, plastic height, contact plating type and packaging mode for this single row female header series. Our 10000-square-meter production plant with 250 professional staff is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring stable batch product quality and on-time delivery for large bulk export orders. As a brand holding Guangdong Famous Trademark qualification, more than 70 percent of our board-to-board connectors are exported to global overseas markets. We implement full-link quality inspection covering incoming raw material inspection, in-process production supervision and finished product comprehensive testing, greatly enhancing shock resistance and long-term connection reliability, effectively eliminating intermittent circuit disconnection faults caused by poor contact, and establishing long-term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

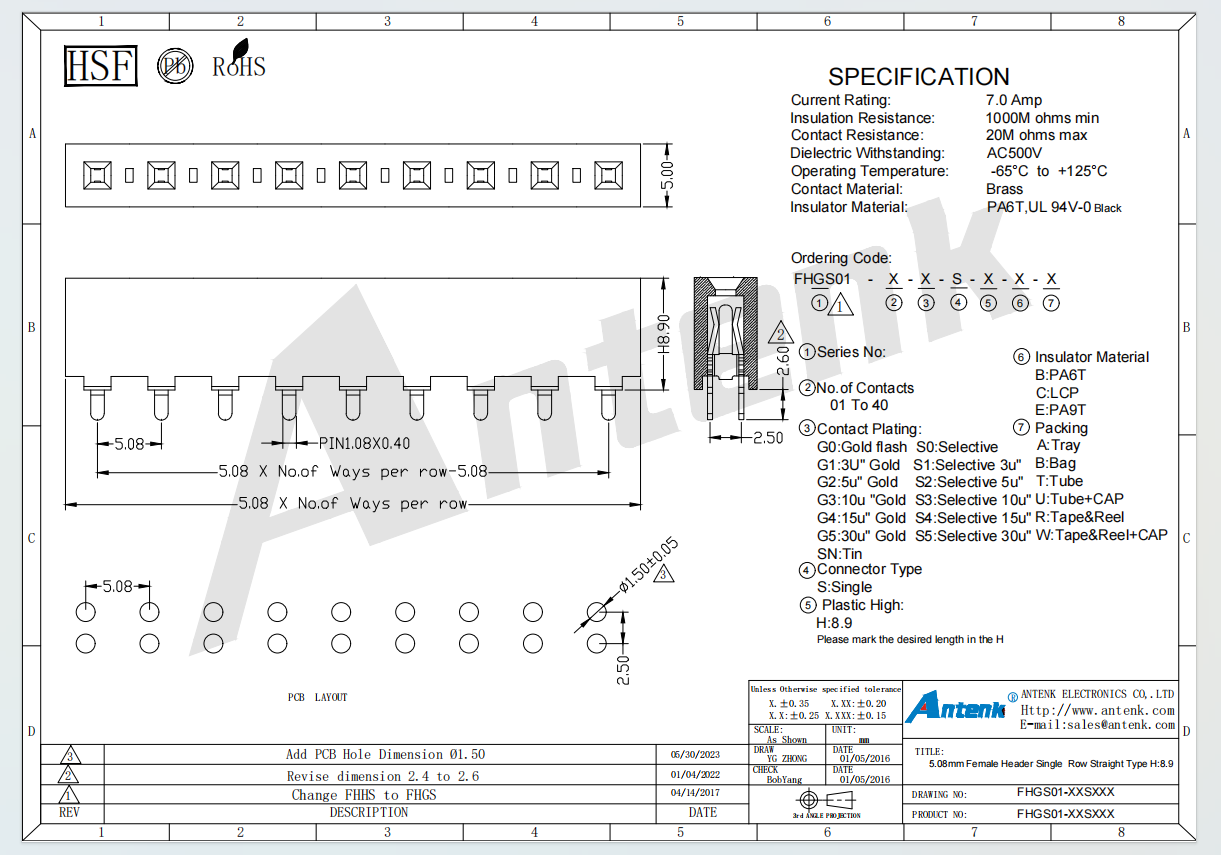

3、Product Drawing
