Manufactured by Huizhou Antenk Electronics Co., Ltd, the FHER03 series 2.54mm pitch single row right angle female header with 8.5mm plastic height is a right-angle through-hole board-to-board receptacle designed to realize lateral signal and low-power power interconnection between stacked printed circuit boards. Strictly produced in accordance with official engineering drawing specifications, this connector supports contact quantities ranging from 1 pin up to 40 pins under fixed 2.54mm pitch. The insulating housing is available with customizable PBT, PA6T, LCP, PA46 and PA9T flame retardant materials that all pass UL94V-0 fire resistance certification to resist deformation during wave soldering. Elastic brass terminals are equipped with gold flash, multiple thickness selective gold plating and pure tin plating surface treatment schemes to lower contact resistance and strengthen anti-tarnish, anti-corrosion and plugging durability during long-term service. Its electrical indicators include 3.0A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance. It can endure 500V AC dielectric voltage for one minute and operate stably within the temperature range from minus 65°C to plus 125°C. All PCB layout dimensional data are strictly restricted within tolerance limits to perfectly match standard through-hole wave soldering automated production procedures. Our complete standardized production workflow includes independent precision mold development, high-speed brass terminal stamping, high temperature resistant plastic injection molding, anti-oxidation electroplating and automatic pin assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment ensure unified dimensional accuracy in mass continuous production.
This single row right angle female header is mounted by inserting bent through-hole pins into preset PCB holes according to the official PCB layout drawing and fixing via wave soldering. After soldering is finished, it mates with matching straight male pin headers to form horizontal board-to-board signal and power transmission circuits. It is widely applied in industrial control signal motherboards, communication adapter circuit boards, liquid crystal display drive modules, smart household control panels, portable storage devices, automotive miniature electronic modules and precision testing instrument internal wiring systems. During soldering and daily use, operators must follow standard soldering temperature curves to avoid thermal melting of the plastic insulator, prohibit forced skew mating to prevent brass contact spring fatigue and pin breakage, and store unused connectors in dry sealed packaging to prevent terminal oxidation and discoloration. All products comply with EU RoHS and REACH environmental directives, most product specifications obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management system certifications. Tray, bag, tube and tape and reel packaging options with or without protective caps are provided to fit manual assembly and fully automatic SMT feeding production lines.
Compared with other connector manufacturers in the industry, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin count, insulator material, plastic height, contact plating type and packaging format for this right angle female header series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, guaranteeing stable batch product quality and punctual delivery for large bulk export orders. As a brand certified with Guangdong Famous Trademark qualification, more than 70 percent of our board-to-board connectors are exported to global overseas markets. We implement full-process quality inspection covering incoming raw material inspection, in-process production monitoring and finished product comprehensive testing, greatly improving shock resistance and long-term connection reliability, effectively eliminating intermittent signal interruption faults caused by poor contact, and establishing long-term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

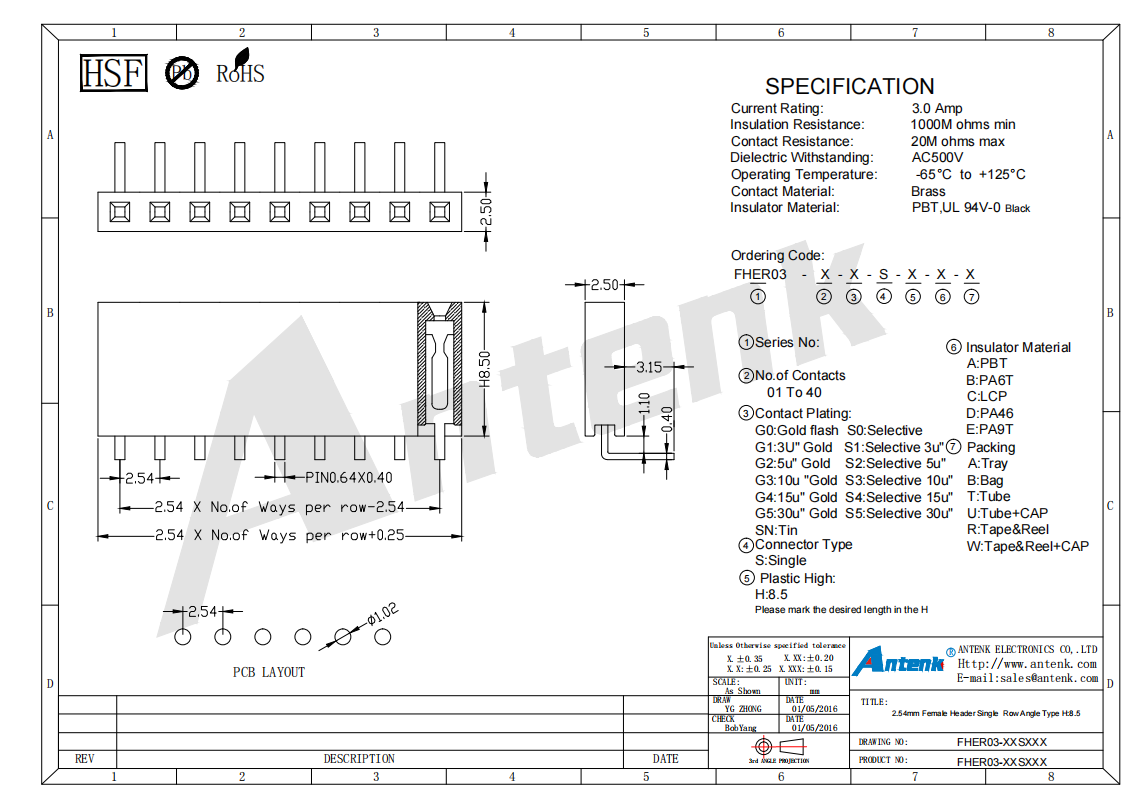

3、Product Drawing
