1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the FHCM04 series 1.27mm pitch single row SMT female header is a surface mount board-to-board connector designed for miniature signal transmission between densely arranged compact printed circuit boards. Produced strictly in accordance with official engineering drawing standards, this connector supports contact counts ranging from 1 pin up to 50 pins with fixed 1.27mm pitch, and it provides Type A and Type B two distinct PCB layout structures to match different circuit board design demands. A detachable protective dust cap is equipped to shield internal brass contact terminals from dust contamination and mechanical impact damage during production, transportation and storage. The insulator can be customized with PA6T, LCP and PA9T high temperature resistant materials that fully comply with UL94V-0 flame retardant standard. Square brass pins are processed with gold flash, various thickness selective gold plating and tin plating surface treatments to reduce contact resistance and improve oxidation resistance and soldering stability for long term service. Its electrical specifications include 1A rated current, minimum 1000MΩ insulation resistance and maximum 20mΩ contact resistance, which can withstand 500V AC voltage for one minute and operate reliably within the temperature range from minus 65°C to plus 125°C. The plastic body height is fixed at 5.7mm, and all PCB layout dimensions are precisely controlled within strict tolerance ranges to perfectly adapt to automatic SMT pick and place and reflow soldering procedures. Our complete production workflow covers independent precision mold development, high-speed brass terminal stamping, high temperature resistant plastic injection molding, anti-corrosion electroplating and automatic pin assembly. Imported Taiwan high-speed punching machines and Japanese precision injection molding equipment effectively guarantee unified dimensional consistency during mass batch manufacturing.
This single row SMT female header is placed on designated PCB bonding pads according to the official PCB layout drawing and fixed firmly through automatic reflow soldering. After soldering work is completed, it mates with matched male pin headers to build stable signal connection circuits between stacked miniaturized PCB modules. It is widely applied in tiny LCD display modules, wearable smart electronic devices, digital camera internal circuits, portable data storage equipment, automotive miniature electronic sensors and micro precision testing instruments. During soldering and daily application, users must follow standard reflow temperature curves to prevent thermal deformation and melting of the plastic insulator, avoid forced misalignment mating to prevent brass contact spring fatigue and pin bending damage, and store unused connectors in dry sealed packages to prevent brass terminals from rusting and surface discoloration. All products comply with EU RoHS and REACH environmental directives, most product items obtain UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 automotive industry quality management certifications. Multiple packaging solutions including tray, bag, tube and tape and reel with or without dust caps are supplied to satisfy manual assembly and fully automatic SMT feeding production line requirements.
Compared with other connector manufacturers in the industry, Antenk independently develops and owns more than 250 sets of plastic injection molds and 180 sets of precision brass stamping molds, supporting personalized customization of pin quantity, PCB layout type, insulator material, plastic height, contact plating type and packaging mode for this 1.27mm single row SMT female header series. Our 10000-square-meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional testing instruments, ensuring consistent batch product quality and on-time delivery for large bulk export orders. As a brand holding Guangdong Famous Trademark qualification, more than 70 percent of our miniature board-to-board connectors are exported to global overseas markets. We implement full-process quality inspection covering incoming raw material inspection, in-process production monitoring and finished product comprehensive testing, greatly enhancing shock resistance and long-term connection reliability, effectively eliminating intermittent signal interruption faults caused by poor contact, and establishing long-term trustworthy cooperative partnerships with customers across Europe, America, Southeast Asia and other international regions worldwide.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

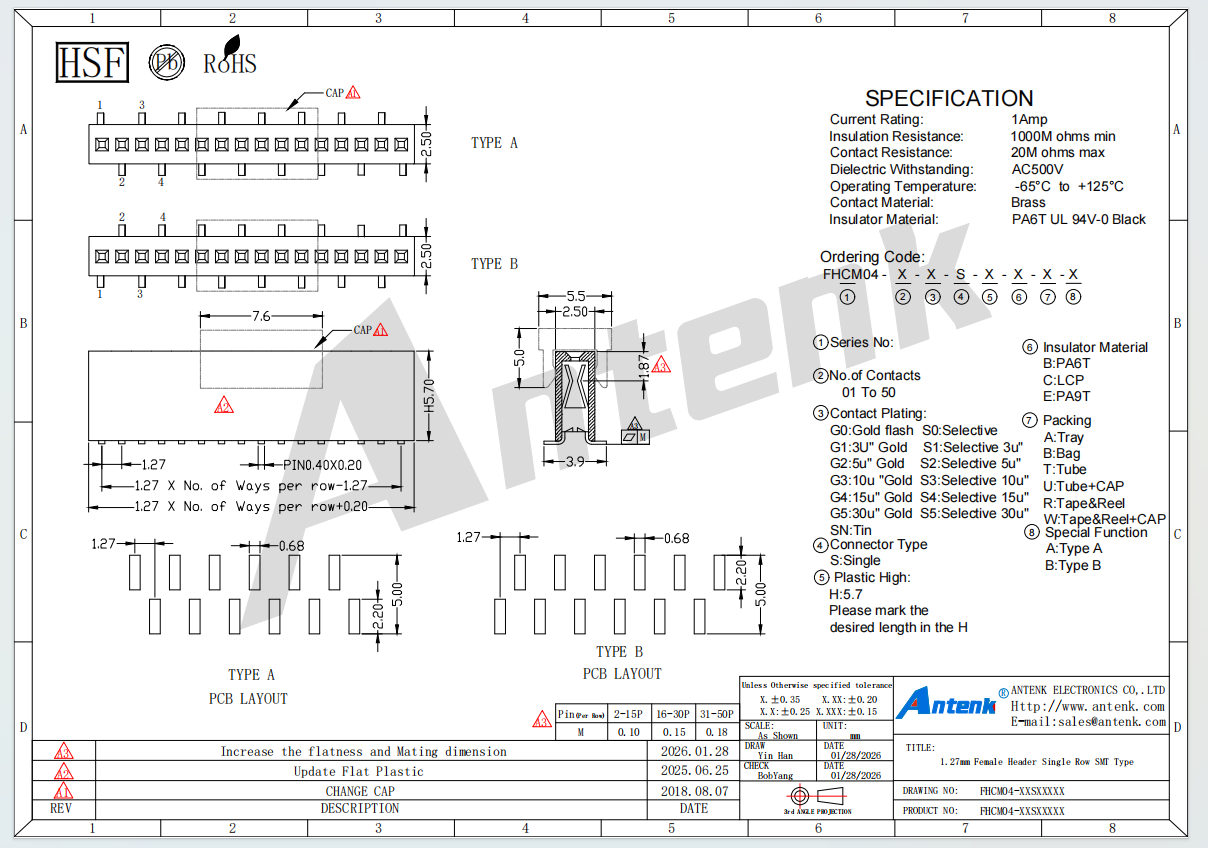

3、Product Drawing
