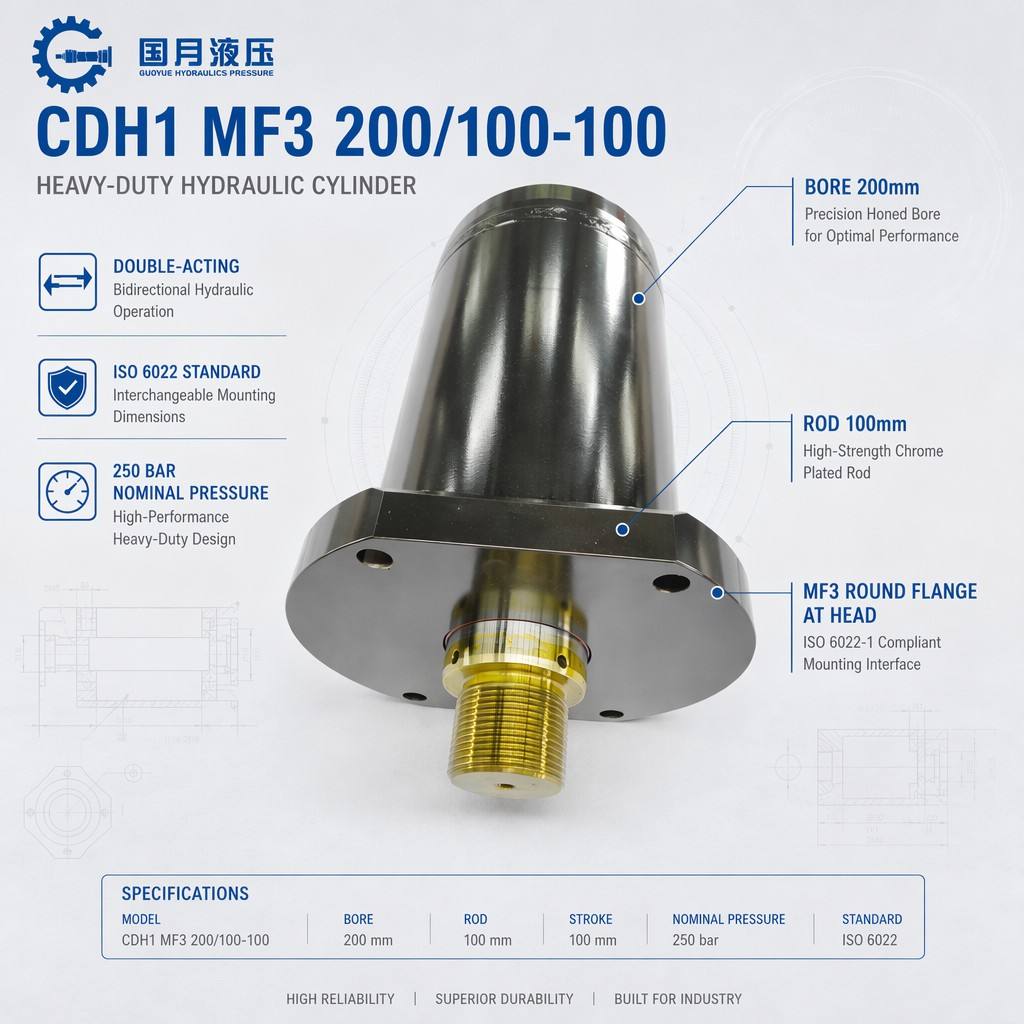

Specification: CDH1 MF3, 200mm Bore, 100mm Rod, 100mm Stroke, Mill Type Hydraulic Cylinder
CG series Hydraulic Cylinder, double acting mill cylinder, ISO 6022 hydraulic cylinder, heavy duty round body cylinder
Manufactured to ISO 6022 / DIN ISO 3320 dimensional and mounting standards, Bosch Rexroth CDH1 series compatible.
Bore 200 mm × Rod 100 mm × Stroke 100 mm, double-acting differential cylinder, nominal pressure 250 Bar (static proof pressure 375 Bar).
MF3 mounting style — round flange at head end, six standard mounting options available across CDH1 series (MF3 / MF4 / MP3 / MP5 / MT4 / MS2).
Piston rod: induction-hardened, chrome-plated 30–50 μm, surface roughness Ra ≤ 0.2 μm, corrosion-resistant to ISO 9227 (NSS ≥ 96 h).
Seal system: polyurethane/polytetrafluoroethylene (PU/PTFE) step seal + wiper, low friction, extended service life. End position cushioning with throttle valve (standard "E" option), adjustable on both ends.
Cylinder tube: precision-honed seamless cold-drawn steel, honed to H8 tolerance, internal surface roughness Ra ≤ 0.4 μm.
Threaded piston rod end with locking nut; Rexroth interchangeability — direct drop-in replacement for OEM Rexroth CDH1 MF3 cylinders.
Operating temperature range: −20 °C to +80 °C (NBR seals), viscosity 2.8–380 mm²/s (ISO VG 32 – 68 mineral oil recommended).
Application: steel mill roll gap control, continuous casting, heavy press, injection molding machine, hydraulic shear, forging press, and general heavy-duty linear actuation.
| Parameter | Value |
| Model | CDH1 MF3 200/100-100 |
| Type | Mill Type Differential Cylinder, Double-acting |
| Series Standard | ISO 6022 / DIN ISO 3320 |
| Nominal Pressure | 250 Bar (25 MPa) |
| Static Proof Pressure | 375 Bar (37.5 MPa) |
| Bore Diameter (ØAL) | 200 mm |
| Piston Rod Diameter (ØMM) | 100 mm |
| Stroke Length | 100 mm |
| Area Ratio (φ) | 1.33 : 1 |
| Push Force @ 250 Bar | 785.4 kN |
| Pull Force @ 250 Bar | 589.0 kN |
| Mounting Style | MF3 — Round Flange at Head End |
| Piston Rod | Induction-hardened, chrome-plated 30–50 μm, ≥ 55 HRC |
| Seal System | PU/PTFE step seal + wiper |
| End Cushioning | Adjustable throttle valve, both ends |
| Operating Temperature | −20 °C to +80 °C (NBR) |
| Weight (approx.) | ~165 kg |
| Test | Individually tested to Bosch Rexroth acceptance standards |
