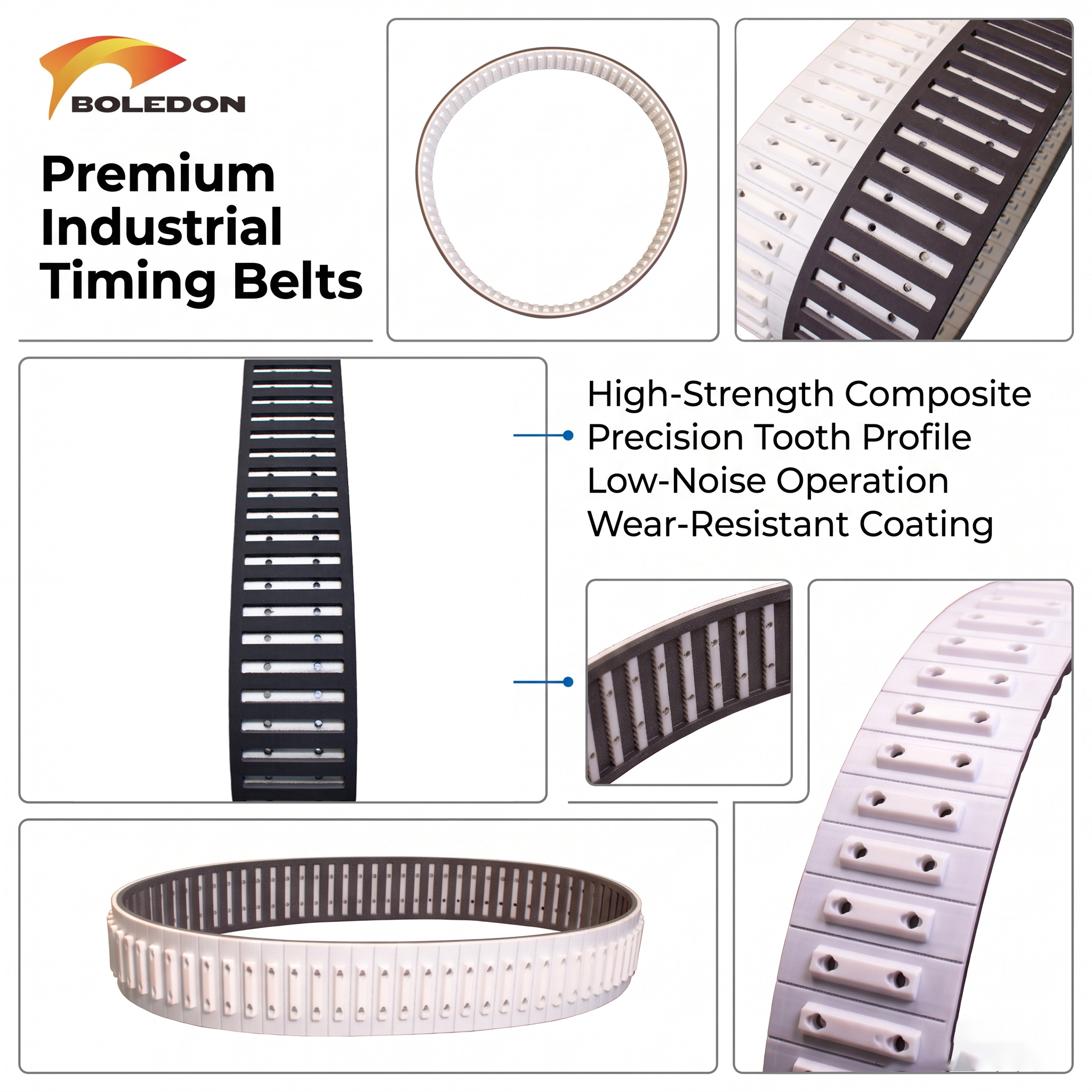

Perforated XH PU Timing Belt With Holes is a high-precision customized transmission and vacuum adsorption integrated belt developed for modern automated precision positioning and flexible material conveying scenarios. Different from ordinary standard timing belts that only complete single power transmission and lack material fixing functions, this XH-tooth specification perforated belt adopts high-toughness imported polyurethane material and dense precise hole punching technology, combining accurate synchronous transmission and vacuum negative pressure adsorption performance in one structure. With standard XH tooth pitch design, stable steel wire tension core and uniform hole array distribution, the belt realizes zero-backlash meshing while firmly adsorbing thin films, labels, flexible circuit boards and miniature workpieces. As a practical and high-performance Special Processing Timing Belt, it effectively solves common industrial problems such as material drifting, positioning deviation and low feeding precision caused by insufficient fixing force of ordinary belts during high-speed automated operation. It is widely matched with automatic labeling machines, thin film laminating equipment and precision pick-and-place robotic production lines, becoming a core customized accessory for high-precision automated processing equipment.
XH PU Hole Timing Belt is the standardized flagship model of this perforated belt series, retaining the professional XH large-tooth transmission structure and precise hole layout design. The scientific tooth profile design of XH PU Hole Timing Belt enhances meshing tightness with supporting pulleys, improving overall load-bearing capacity and transmission stability during high-frequency operation. The precisely punched round holes of XH PU Hole Timing Belt have smooth inner walls without burrs or micro cracks, ensuring uniform and stable vacuum air intake without air leakage, which can evenly absorb flexible materials of different sizes. Unlike ordinary punched belts that are prone to hole edge cracking and deformation after long-term operation, the optimized punching process of XH PU Hole Timing Belt improves the structural toughness of the hole area, greatly extending the service life under continuous vacuum and transmission dual working conditions. In the automatic labeling industry, a professional packaging equipment manufacturer adopted XH PU Hole Timing Belt for high-speed roll label feeding equipment. The stable vacuum adsorption effect completely solved the problems of label tilting, wrinkling and inaccurate cutting positioning, effectively improving the labeling precision and operational efficiency of packaging production lines.
Automation Perforated PU Belt focuses on optimizing comprehensive performance for long-cycle unmanned automated production lines, specially upgraded for high-speed reciprocating operation and frequent vacuum switching working conditions. The high-purity PU material of Automation Perforated PU Belt features excellent anti-fatigue, wear-resistant and low-temperature resistant properties, which can maintain stable structural integrity and adsorption effect after millions of cyclic operations. The integrated seamless molding process avoids joint jumping and transmission jitter, ensuring consistent positioning accuracy in long-term continuous production. As a versatile Special Processing Timing Belt tailored for automation equipment, it can adapt to diversified working modes such as intermittent feeding, variable-speed transmission and fixed-point pause positioning. A typical industry application case comes from precision electronic processing. An electronic component manufacturing enterprise deployed batch Automation Perforated PU Belt on flexible circuit board laminating production lines. The synchronous transmission and vacuum fixing functions perfectly matched the high-precision laminating process, eliminating material offset and laminating bubbles, and significantly improving the yield rate of flexible electronic finished products.
Anti-slip Back Synchronous Belt is an upgraded functional configuration of this perforated timing belt series, solving the hidden danger of belt slipping and transmission lag under variable load and high-speed operation. The specially treated rough back of Anti-slip Back Synchronous Belt increases the friction coefficient with the driving roller, effectively preventing idle slipping and speed deviation during instantaneous acceleration and heavy-load operation. While ensuring reliable vacuum adsorption and precise transmission on the tooth surface side, the anti-slip back structure of Anti-slip Back Synchronous Belt stabilizes the overall transmission rhythm of the equipment. This dual-functional design makes up for the defect that traditional perforated belts only focus on adsorption performance but ignore transmission stability. In the flexible film processing industry, many film rolling and cutting equipment manufacturers use Anti-slip Back Synchronous Belt to support high-speed film conveying. The dual advantages of vacuum adsorption and anti-slip transmission ensure flat and tension-balanced film conveying, avoiding film stretching and wrinkling defects caused by unstable belt operation.
As a multifunctional customized transmission accessory, Perforated XH PU Timing Belt With Holes fills the performance gap of ordinary standard belts in precision automated adsorption and positioning scenarios. Global automation equipment buyers can choose standardized transmission and adsorption XH PU Hole Timing Belt for conventional labeling and film feeding equipment, durable and stable Automation Perforated PU Belt for long-cycle unmanned production lines, and high-stability Anti-slip Back Synchronous Belt for variable-speed and variable-load precision conveying equipment. All products belong to professional Special Processing Timing Belt with customized punching and surface treatment, which are far more adaptable than ordinary industrial timing belts. Every belt undergoes vacuum tightness testing, meshing precision detection and long-cycle fatigue wear test before delivery. With precise hole position accuracy, stable synchronous transmission performance and reliable anti-slip operation, our perforated XH PU timing belts help automated manufacturing enterprises improve processing precision, reduce defective rates and stabilize long-term continuous production efficiency.
