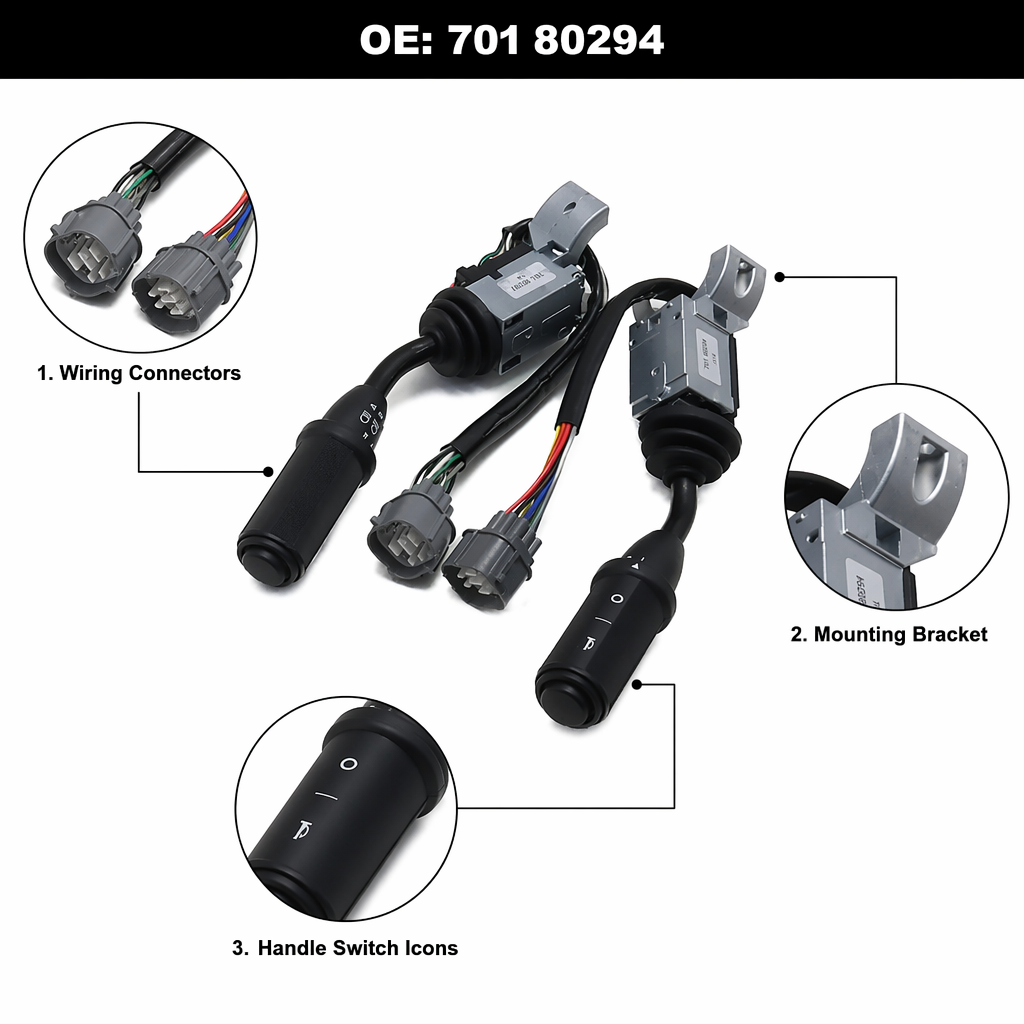

Precision Fit OE 701 80294 Integrated Light & Wiper / Forward & Reverse Switch for JCB (CAP Part No. C36066-010)
The CAP C36066-010 is a high-performance, all-in-one Steering Column Combination Switch meticulously engineered for JCB construction machinery. Cross-referenced to genuine OE code 701/80294, this robust multifunction assembly consolidates both Light & Wiper (L&W) and Forward & Reverse (F&R) controls into a single durable stalk. It allows operators to manage headlamps, indicators, multi-speed wipers, and transmission direction (Forward-Neutral-Reverse) with absolute precision. As a specialized manufacturer of high-quality JCB Wiper Switch solutions, CAP ensures that each Steering Column Switch meets the rigorous technical standards required for global machinery maintenance.
Core Technical Specifications
CAP Part Number: C36066-010
OE Cross Reference: 701/80294
Function Type: Integrated L&W / F&R Switch (All-in-One Control)
Application: JCB 3CX, 4CX Backhoe Loaders and Telescopic Handlers
Rated Voltage: 12V / 24V DC System Dual-Compatible
Contact Material: High-Purity Silver Alloy (Ag-Alloy) — Over 100,000 Shifting Cycles
Housing Material: Reinforced PA66 + 30% Glass Fiber (Flame Retardant UL94 V-0)
Operating Temperature: -40°C to +85°C
Protection Grade: IP54 (Dust & Splash Resistant)
Mechanical Life: Verified for continuous industrial operation
Why Choose CAP C36066-010?
Comprehensive Operator Control: Eliminates the need for multiple stalks by integrating all essential cab functions into one high-reliability unit, simplifying ergonomics and improving safety. The internal detent mechanism delivers a crisp tactile feedback for each gear and switch position, ensuring error-free operation. Our JCB Indicator Switch technology ensures precise signal transmission in all conditions.
Superior Contact Integrity: Equipped with premium silver-alloy internal contacts that minimize electrical resistance and prevent terminal oxidation, supporting consistent power flow for both high-intensity work lights and transmission solenoids. This Combination Switch is optimized for heavy duty cycles.
Ruggedized Industrial Build: Constructed from high-density PA66 reinforced with 30% glass fiber, the switch offers exceptional impact resistance and thermal stability against extreme cabin temperatures. This Forward Reverse Switch assembly is built to endure the constant vibrations of off-road excavator duty.
500-Hour Salt Spray Protection: All internal metal components and terminal pins are treated with specialized anti-corrosion coatings to resist humidity, mud, and corrosive elements on construction sites.
Exact OE Fitment: 1:1 original mold data ensures a perfect fit with the JCB 12-pin connector and steering column. True "plug-and-play" installation requires no custom wiring rework.
Factory Direct Value: Manufactured at CAP’s specialized production line, this Transmission Selector provides an OE-standard product with significant cost advantages for the global aftermarket.
Quality & Packaging
Every CAP C36066-010 unit undergoes 100% end-of-line quality verification, including electrical continuity testing, shifting torque profiling, and insulation resistance (≥100MΩ). Standard packaging: individual anti-static PE bag and a neutral white brand box; 50 units per reinforced master carton with edge protectors for safe international transit. Private label and bulk consolidation services are available for professional distributors.
Target Buyers
Ideal for JCB spare part wholesalers, heavy equipment aftermarket distributors, and fleet managers seeking a versatile, high-quality alternative to genuine JCB multifunction switches. For bulk pricing, sample requests, or stock availability, please contact CAP today.
