1、Product Description

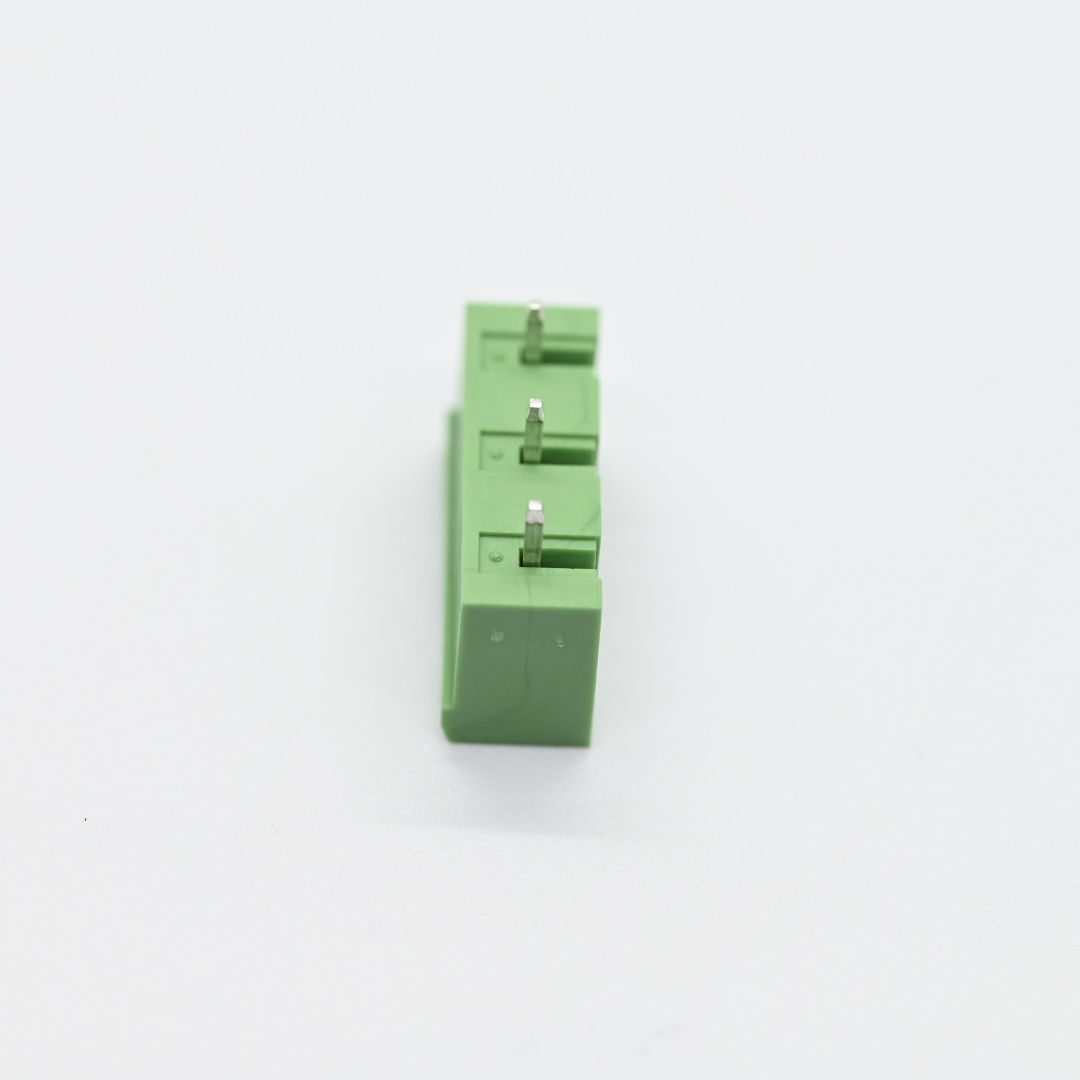

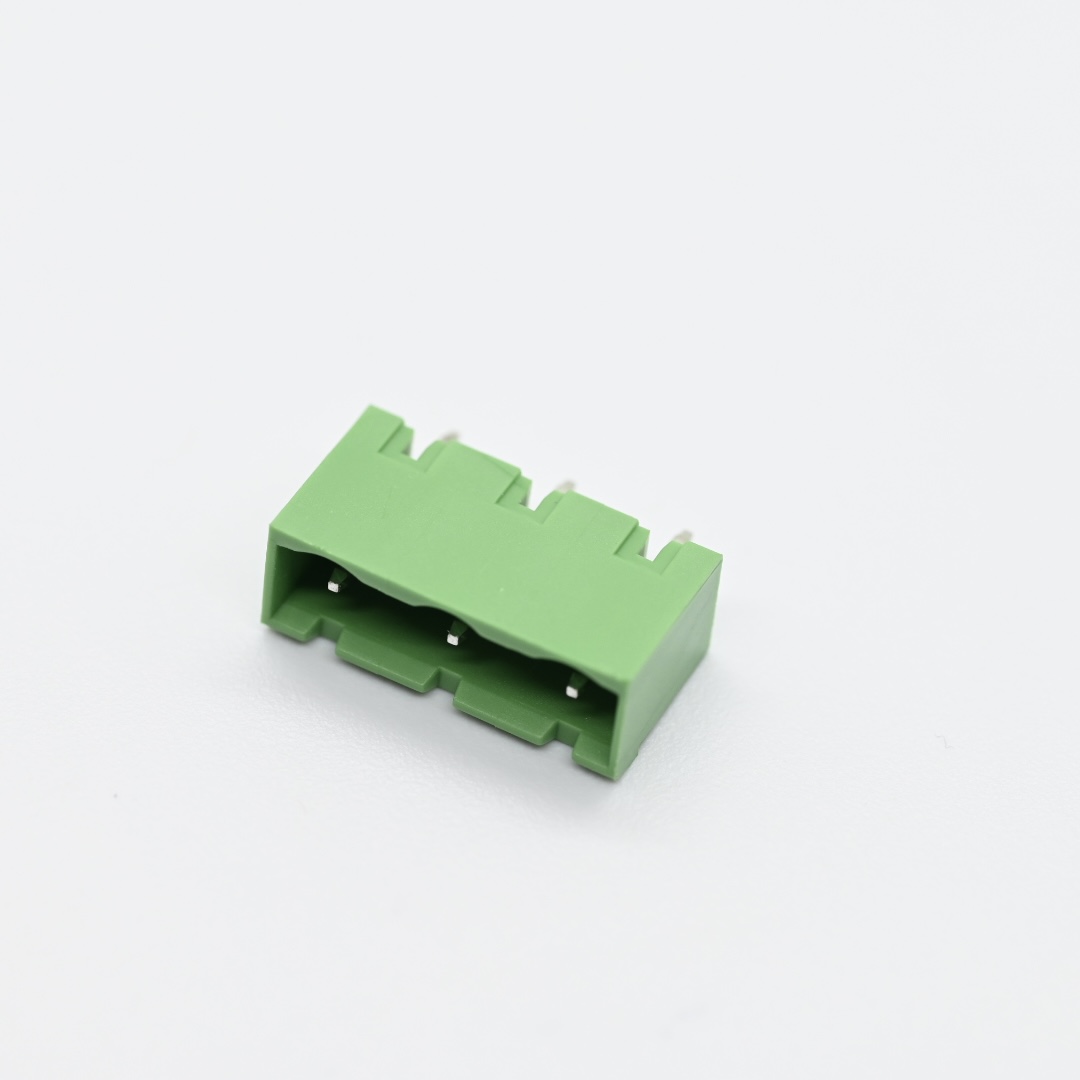

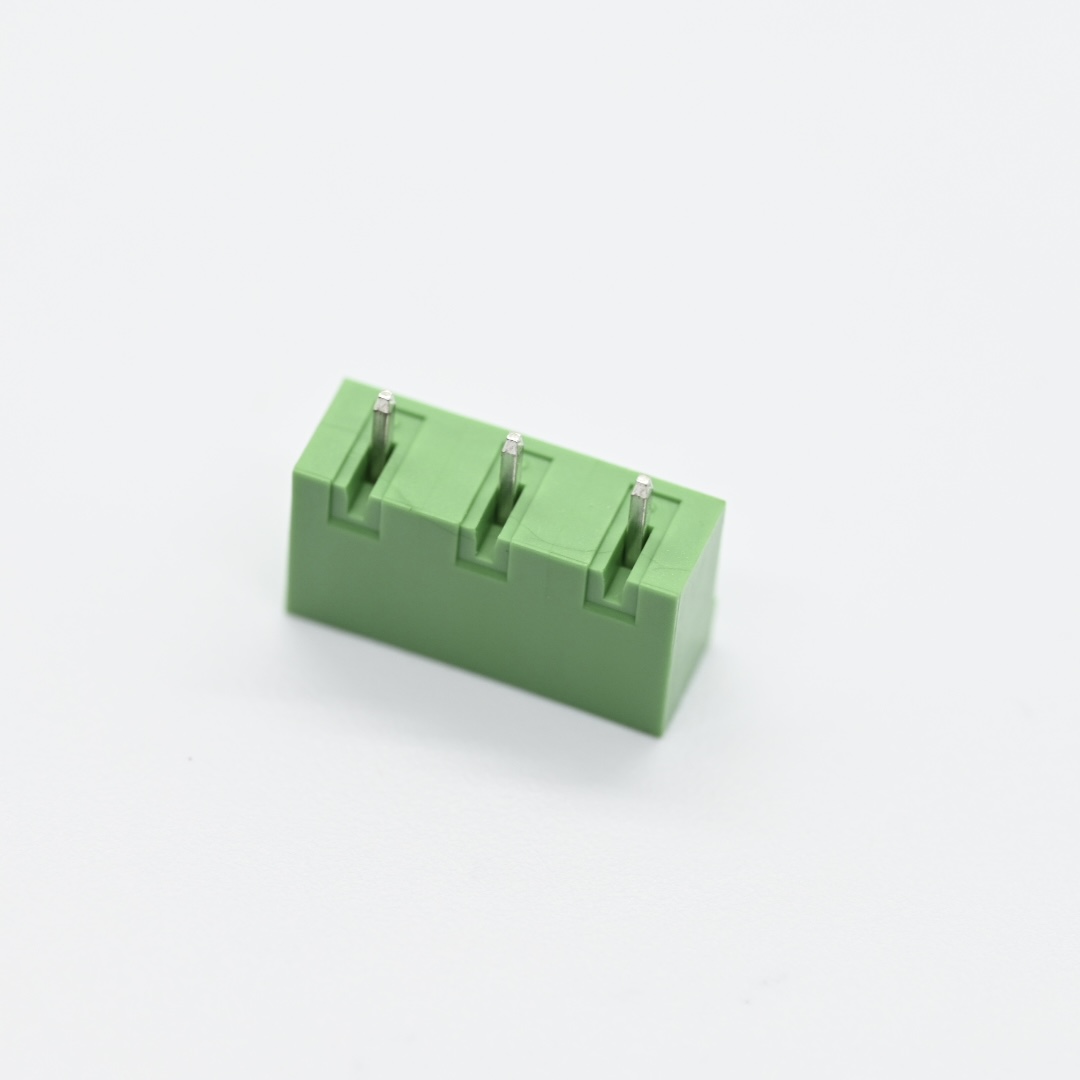

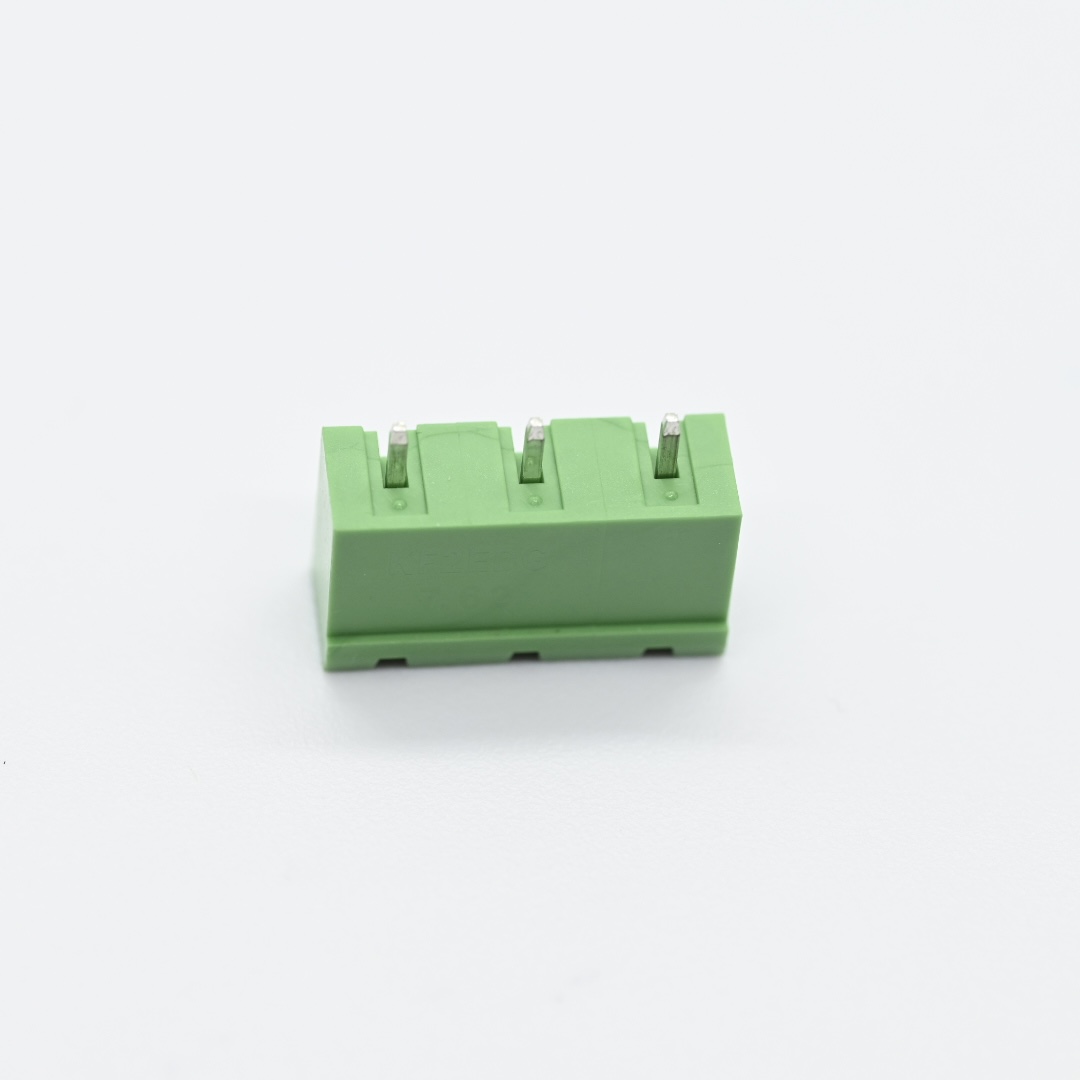

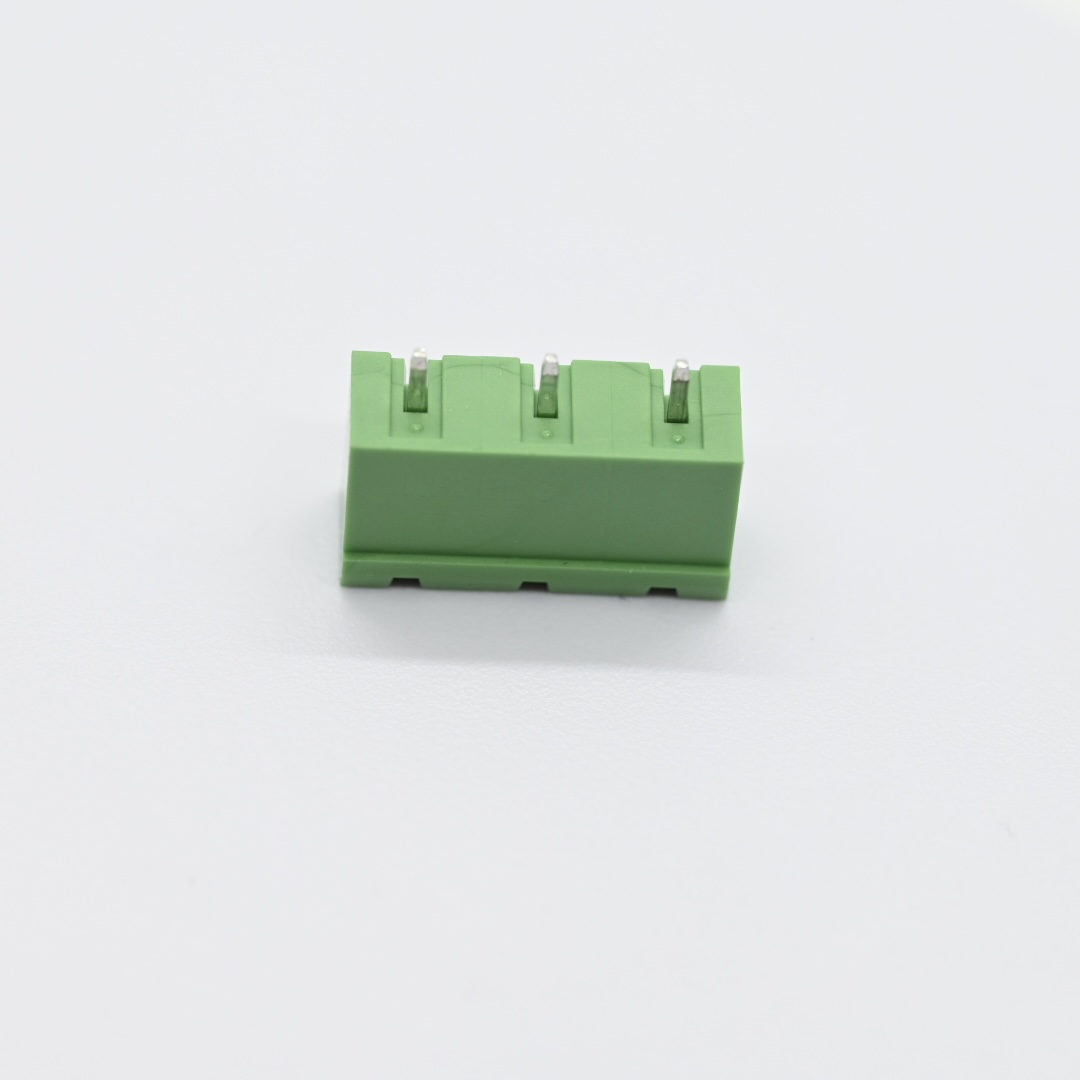

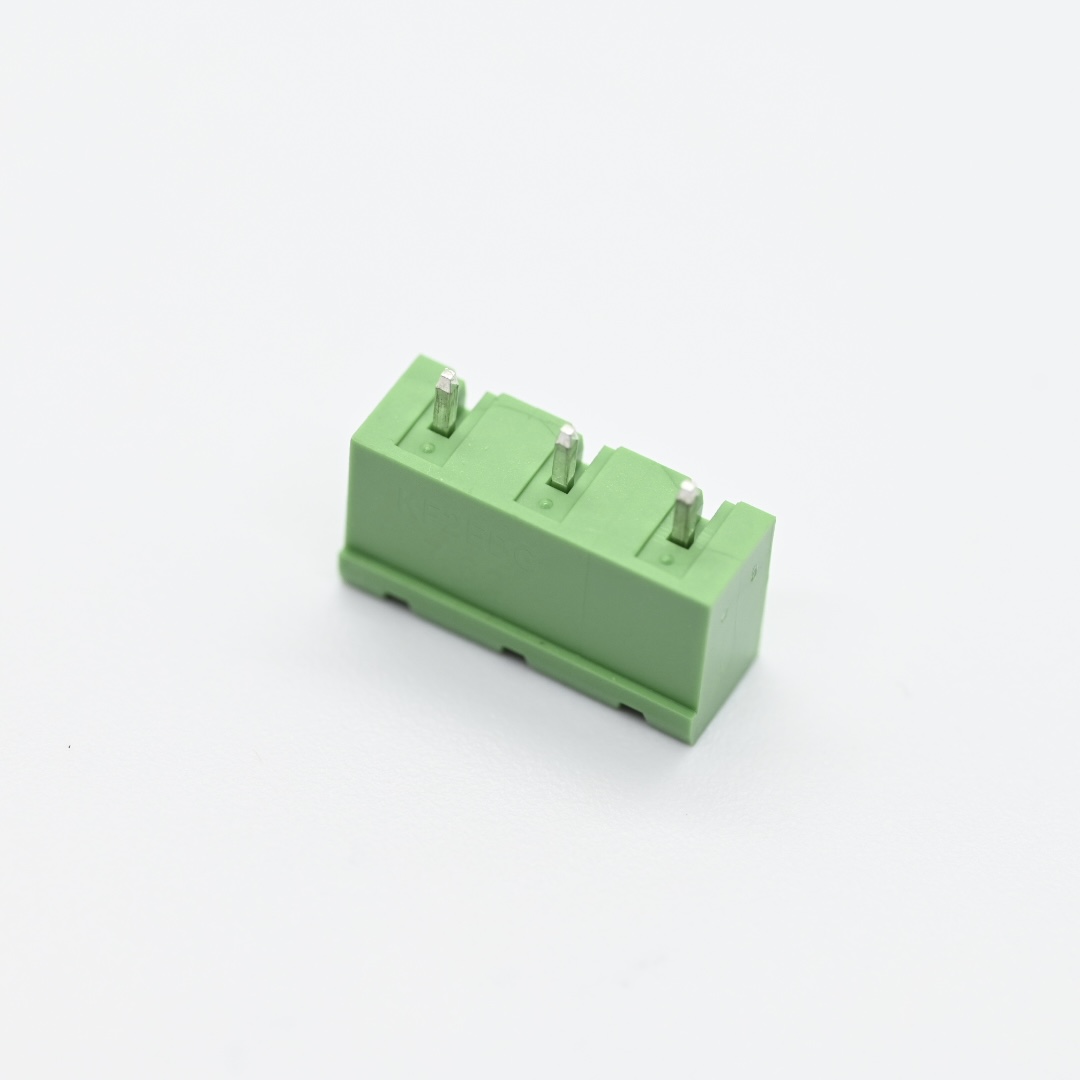

Manufactured by Huizhou Antenk Electronics Co., Ltd, the AT2500V series Plug-in Terminal Block Close Vertical Pitch 7.5 OR 7.62 is vertical pluggable wiring hardware designed for compact vertical PCB mounting to save horizontal board space. All production complies fully with the dimensional tolerances listed on official engineering drawings. The housing material is PA66 filled with 23 percent glass fiber, meeting UL94V-0 flame retardant standard for stable insulation and high temperature resistance during wave soldering. Conductive vertical pins are made of brass with full tin plating, rated at 300V voltage and 12A current for steady power and signal transmission. This series supports 2 to 24 poles and two vertical height options, with multiple insulator color choices to distinguish different circuit groups. Our complete manufacturing workflow consists of in-house independent mold development, high-temperature plastic injection molding, brass terminal high-speed stamping, anti-corrosion tin electroplating, automated vertical pin assembly and finished full dimensional inspection. Imported Japanese and Taiwanese injection molding and stamping machines guarantee uniform pitch size and consistent plug retention force in mass production, and all raw materials satisfy EU RoHS and REACH environmental standards.
This vertical plug-in terminal block adopts simple and reliable operation steps for wiring assembly. Users strip wire insulation to appropriate length, lock wires inside the matching female wire plug, then vertically insert the male PCB-mounted terminal block into the female housing to form separable electrical connection circuits. Its vertical close layout greatly reduces horizontal occupation on circuit boards, which perfectly fits narrow and compact internal layouts of small electronic equipment. This product is widely applied in industrial control modules, miniature switching power supplies, household control appliances, communication power distribution units and precision testing instruments. During assembly, users must not exceed the rated 12A current to avoid overheating damage. Violent plugging and unplugging shall be avoided to prevent plastic housing cracking and brass pin deformation. Unused terminal blocks need dry sealed storage to protect tin plating from oxidation. Most specifications hold UL certification numbered E472792, and our factory has obtained ISO9001, ISO14001 and IATF16949 automotive quality management certifications.
Antenk owns independent intellectual property rights for all molds of this vertical dual pitch terminal block series, with more than 250 sets of plastic injection molds and 180 sets of precision brass stamping molds self-developed in factory. Compared with other terminal block manufacturers, we provide free personalized customization of pole quantity, vertical pin height, housing color and plating thickness without extra tooling fees for standard models. Our 10000 square meter production base with 250 professional employees is equipped with over 180 automatic assembly machines and 20 sets of professional electrical testing instruments, supporting stable large-volume production and on-time delivery for overseas export orders. As a brand awarded Guangdong Famous Trademark qualification, more than 70 percent of our connector and terminal block products are exported to global markets covering Europe, America, Southeast Asia and South America.
We implement full-process strict quality inspection for every batch of vertical plug-in terminal blocks, including incoming raw material inspection for PA66 plastic and brass blanks, in-process monitoring for injection molding, stamping and electroplating procedures, finished dielectric strength testing, plug retention force testing and 48-hour salt spray corrosion testing. Each finished product has complete lot traceability to track every production link. Rigorous multi-layer testing significantly improves long-term connection stability and anti-vibration performance, effectively lowering circuit failure risks caused by poor contact or loose plugs. We supply free product samples, 2D and 3D CAD drawings and 24-hour online technical support for all global clients, establishing long-term trustworthy cooperative partnerships with electronic manufacturers worldwide.
Vertical PCB Terminal Blocks offer space-saving vertical mounting solutions for compact PCB wiring layouts.
Tin Plated Brass Pins deliver stable conductivity and outstanding anti-corrosion performance for plug-in terminal blocks.
Vertical Dual Pitch Connectors support both 7.5mm and 7.62mm pitches to satisfy diverse circuit design demands.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
3、Product Drawing
