1、Product Description

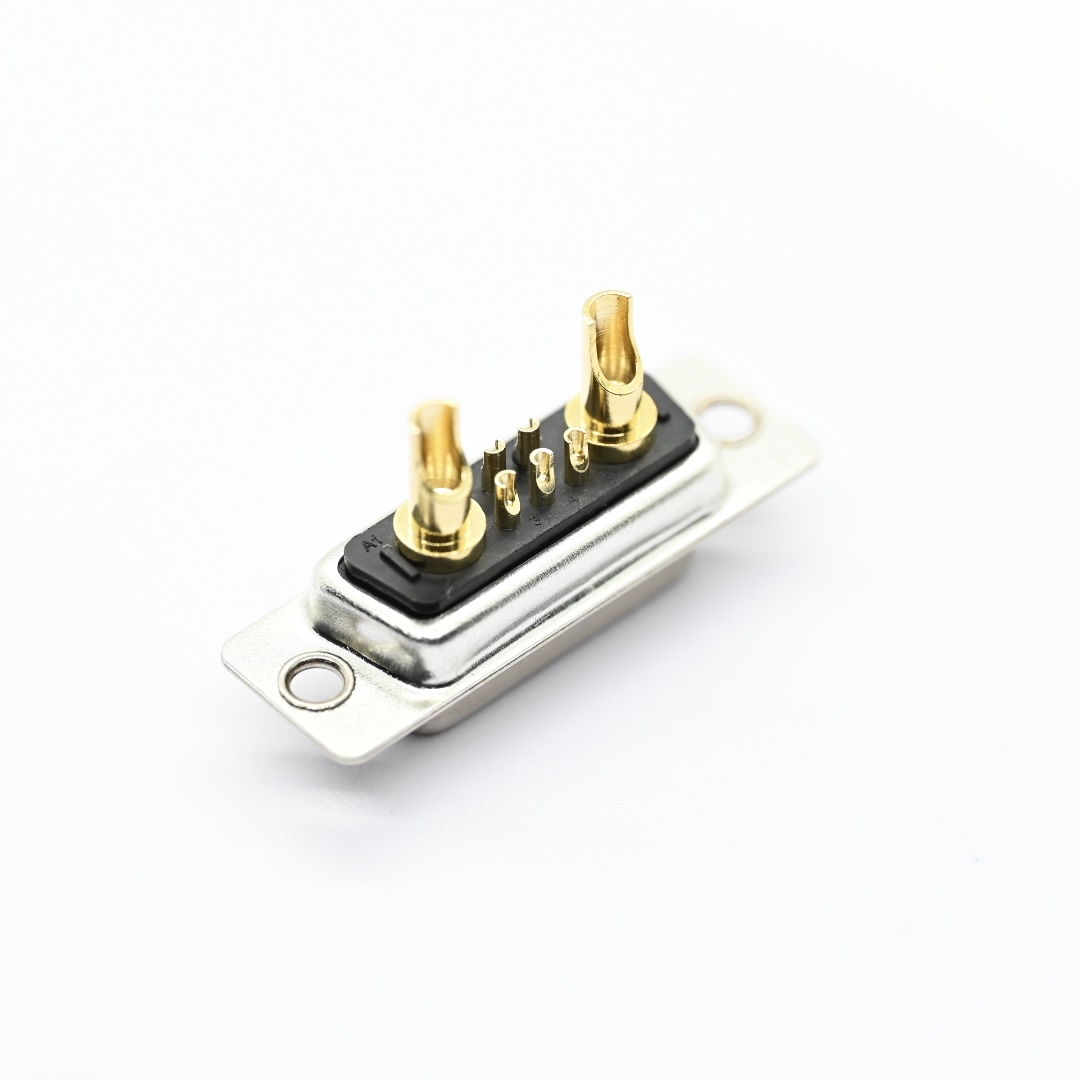

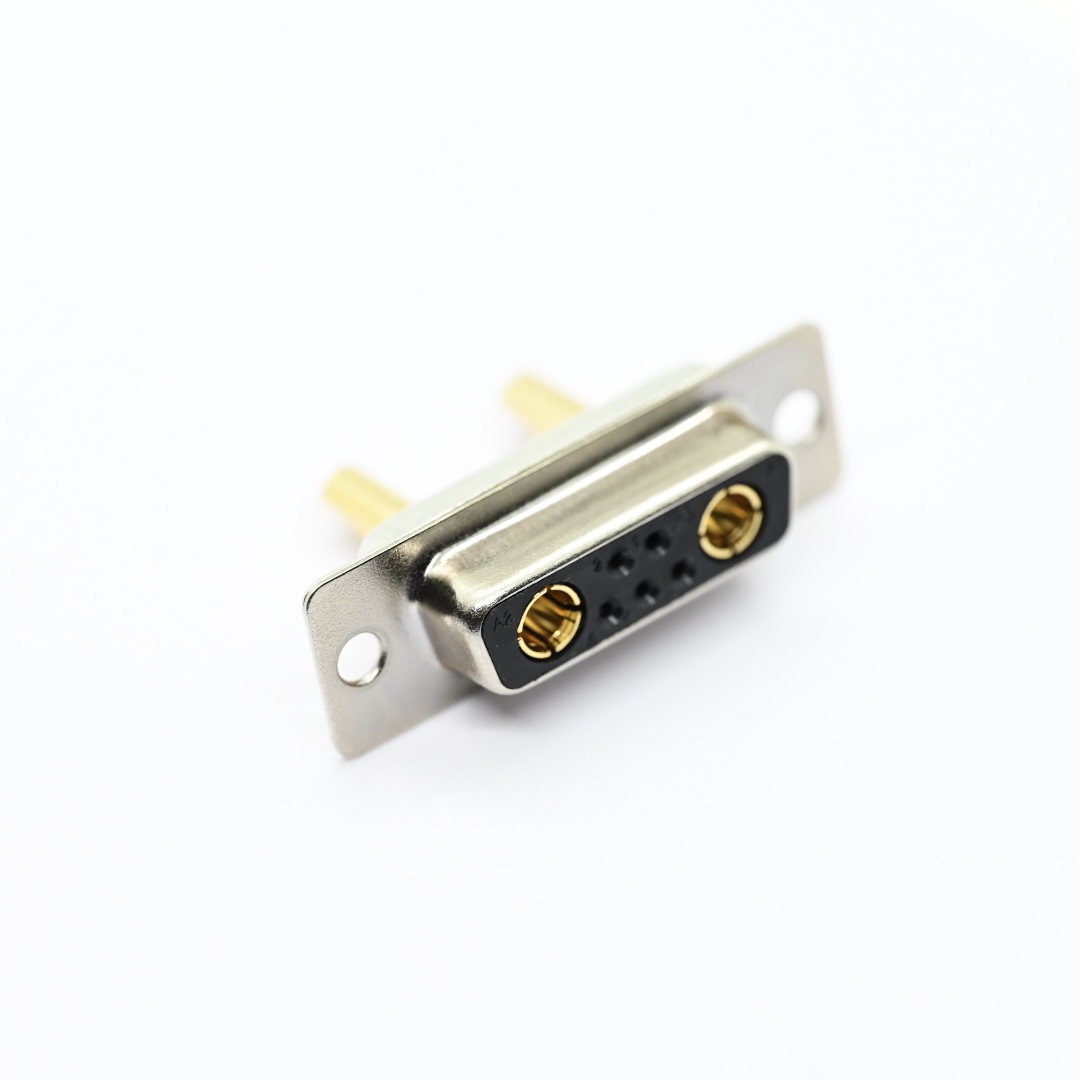

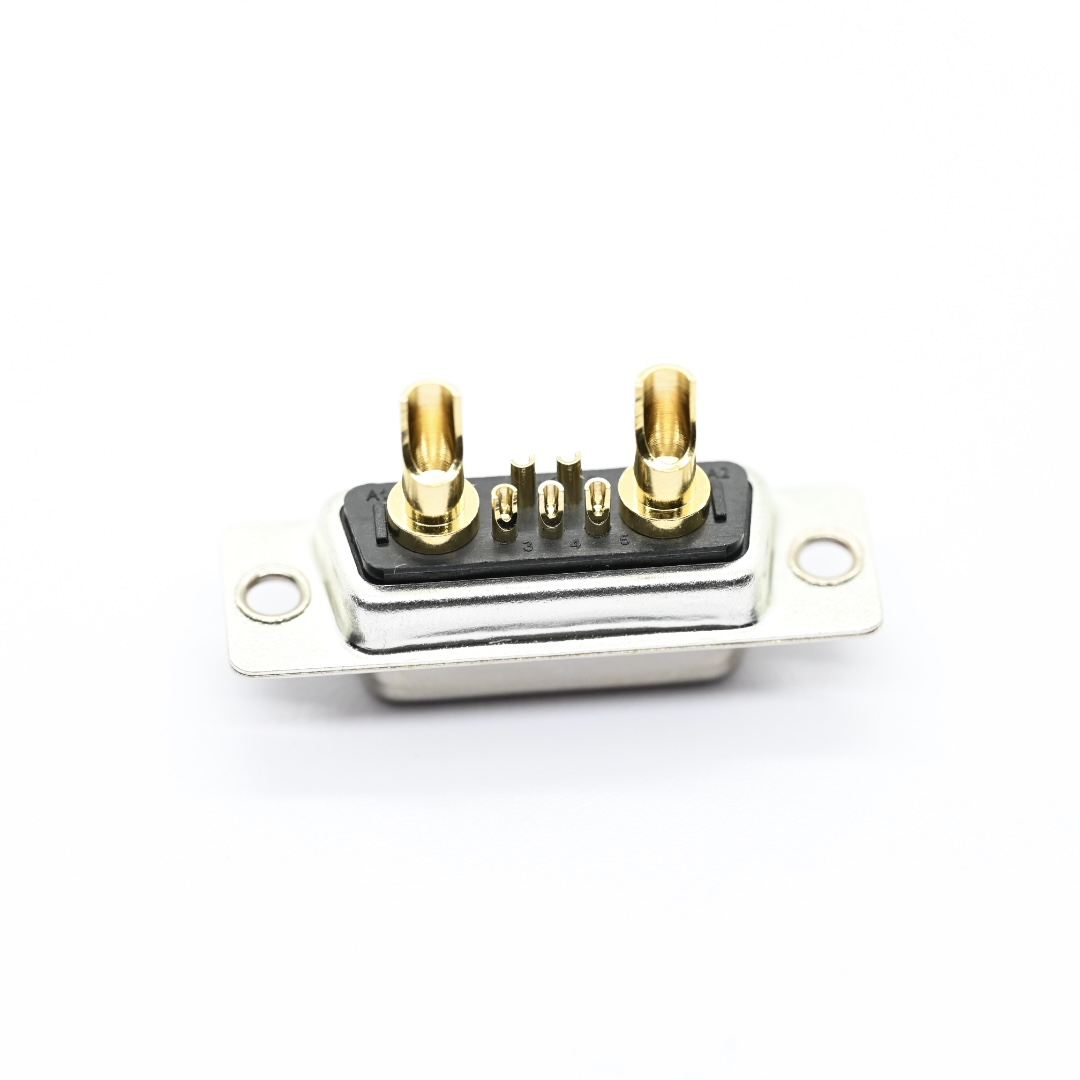

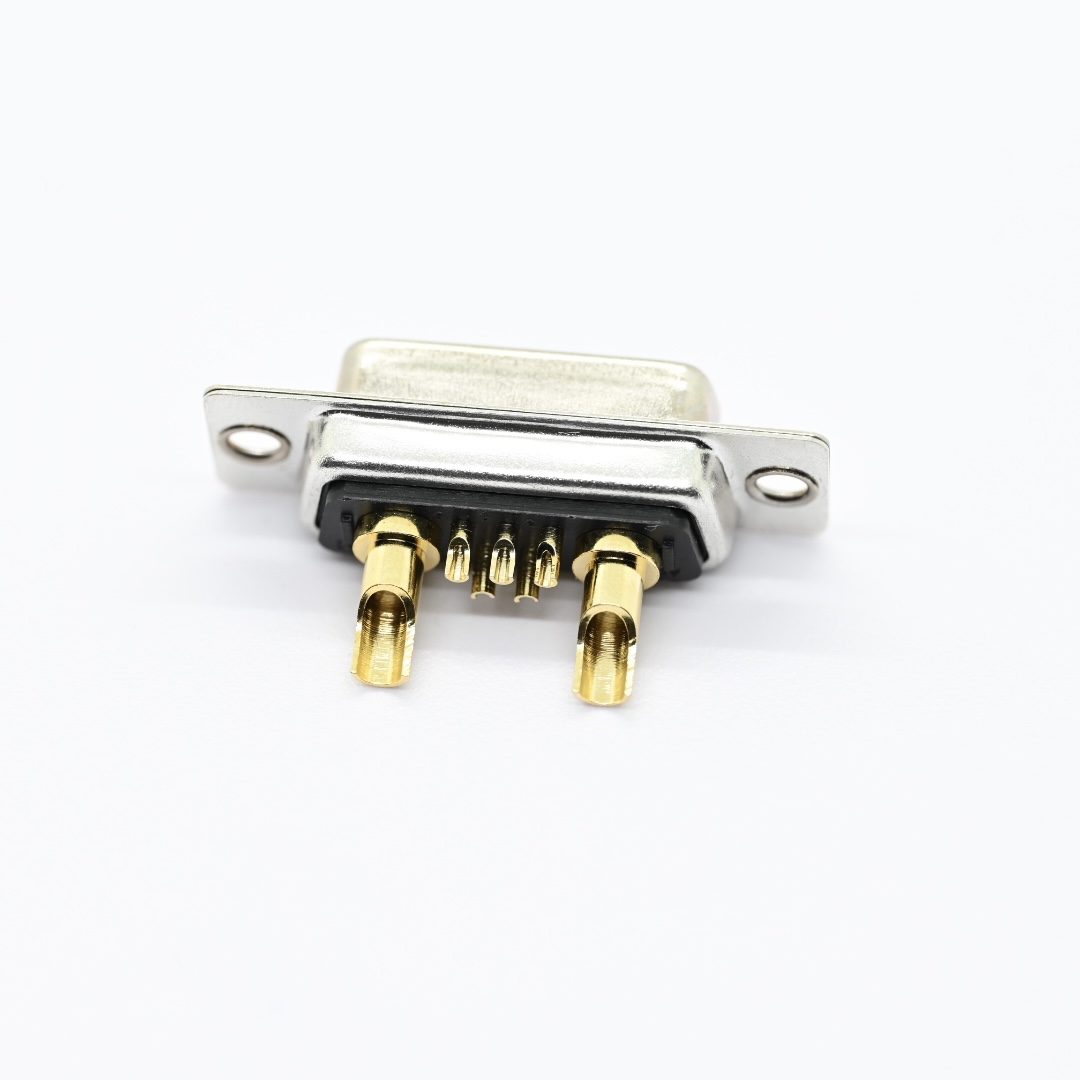

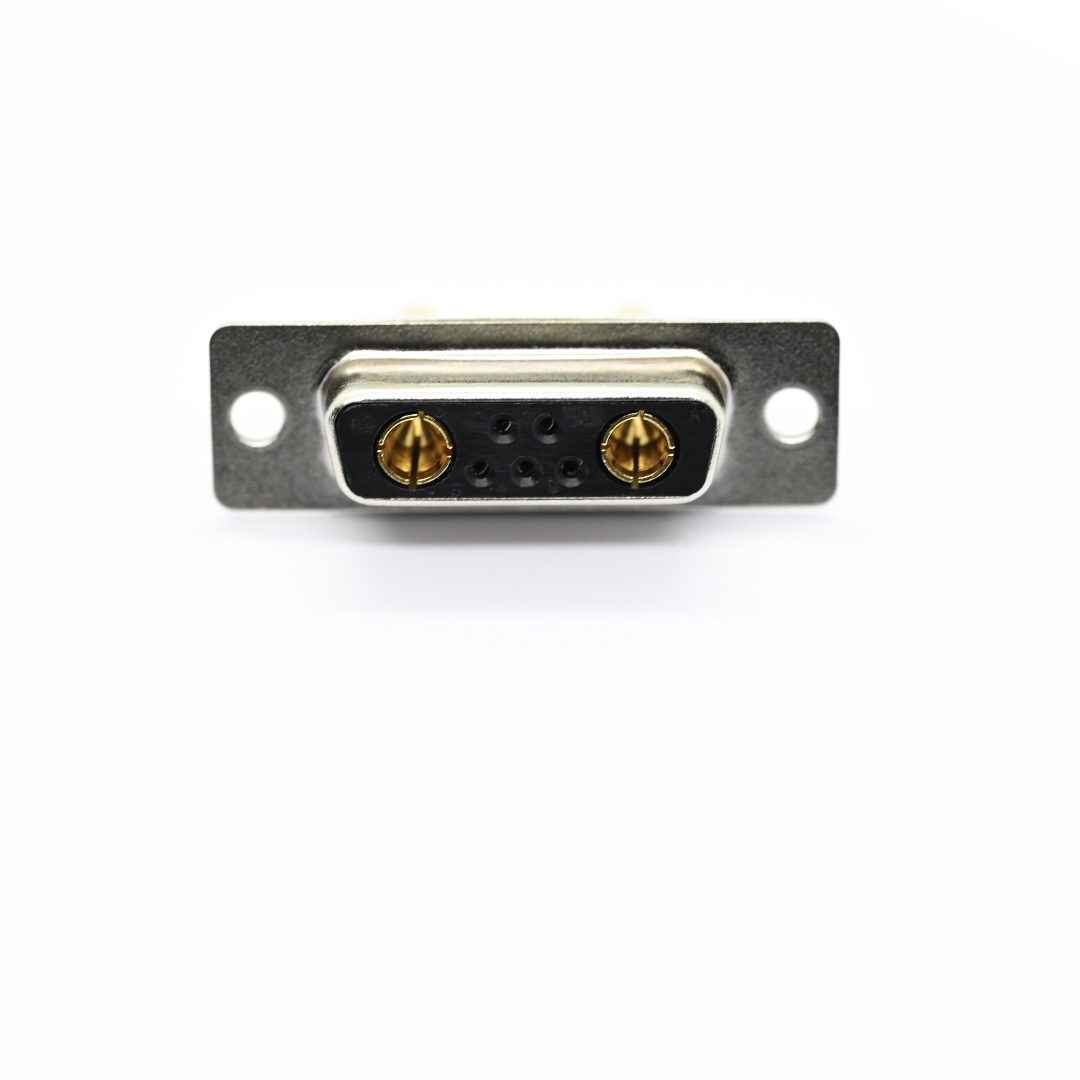

Manufactured by Huizhou Antenk Electronics Co., Ltd, the POWER D-SUB 7W2 SOLDER CUP-FEMALE is a heavy-duty mixed power and signal D-SUB female connector designed for simultaneous high-current power transmission and signal data communication. All manufacturing processes strictly comply with precise dimensional drawings and tolerance standards. The insulating body is made of UL94V-0 rated PBT material resistant to 230 degrees Celsius processing temperature. Conductive contact pins are brass with multi-thickness gold plating options ranging from 3 micro inches to 30 micro inches to meet different service life demands. The outer protective shell adopts steel with full nickel plating for anti-corrosion and shielding performance. This connector supports graded current loads including 10A, 20A, 30A and 40A, with clear pin diameter differences for power and signal terminals. Its insulation resistance reaches 5000 megohms minimum and dielectric withstand voltage hits 1000V alternating current, operating steadily between minus 55 degrees Celsius and 125 degrees Celsius. Our complete production workflow covers independent precision mold development, brass terminal stamping, selective gold electroplating, plastic injection molding, shell punching nickel plating and automatic contact preloading assembly. Advanced imported stamping and molding equipment ensures consistent dimensional accuracy, and all raw materials fully comply with EU RoHS and REACH environmental norms.

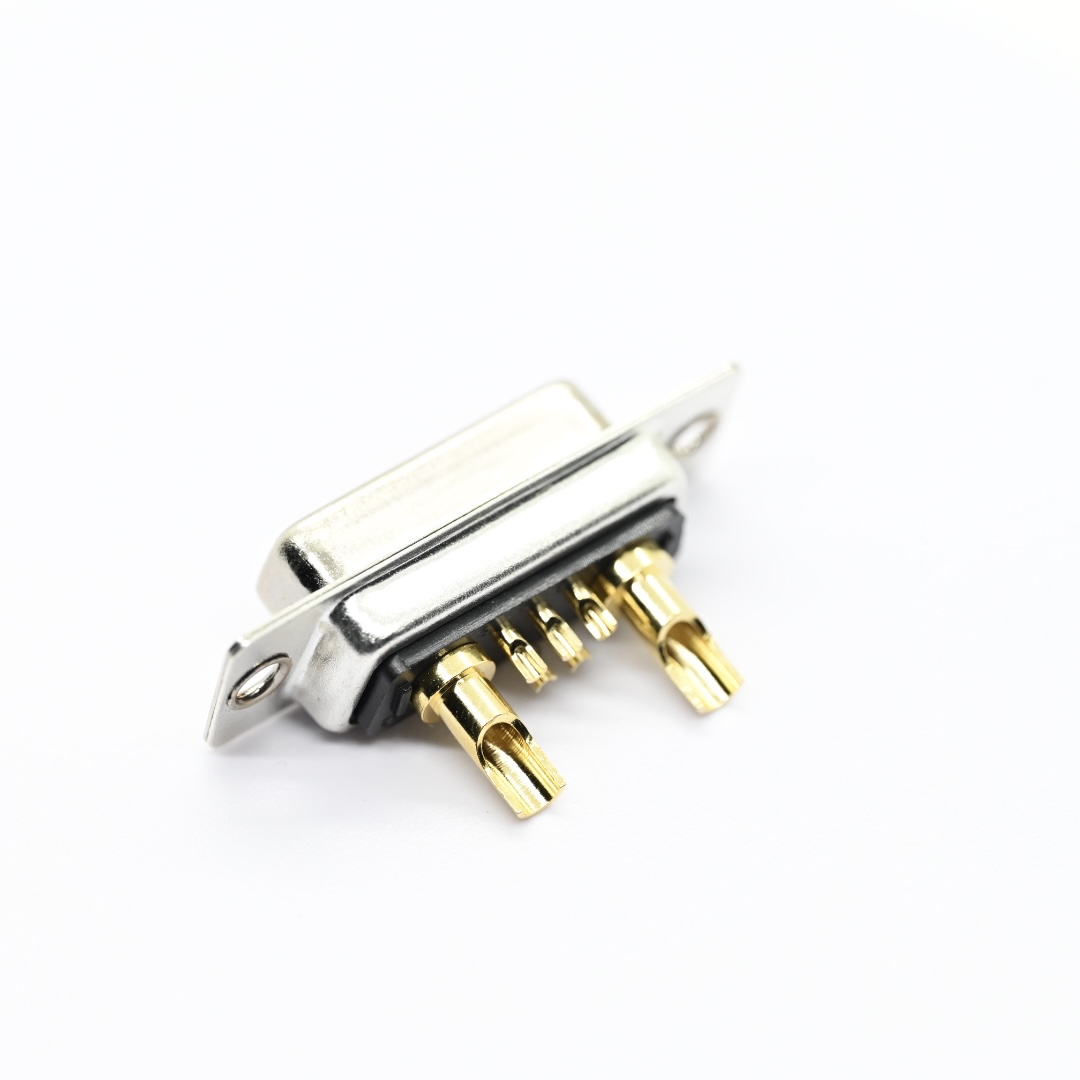

This solder cup female D-SUB connector adopts mature soldering assembly operation. Users strip wire ends, insert conductors into open solder cup terminals, apply soldering tin to fix wires firmly, then lock the connector onto equipment panels through mounting holes to realize stable separable electrical connection. Built-in pre-installed contacts simplify assembly work greatly. The integrated power plus signal design effectively saves equipment panel space, widely applied in industrial control equipment, power supply units, automation machinery, testing instruments, automotive electronic modules and communication base station devices. During usage, users must not exceed the selected rated current to avoid contact overheating and ablation. Excessive plugging force shall be avoided to prevent insulator cracking and contact displacement. Unused connectors need dry storage to protect gold plating and nickel shells from oxidation. Most specifications own UL certification numbered E472792, and our factory has passed ISO9001, ISO14001 and IATF16949 quality management certifications.
Compared with other D-SUB connector manufacturers in the industry, Antenk independently develops and owns over 250 sets of plastic molds and 180 sets of metal stamping molds, supporting customized gold plating thickness, shell color, pin current rating and insulation color for this 7W2 power D-SUB series. Our 10000 square meter production base with 250 skilled employees is equipped with more than 180 automatic assembly machines and 20 sets of professional electrical testing instruments, guaranteeing stable mass production and on-time delivery for large overseas export orders. As a brand awarded Guangdong Famous Trademark certification, more than 70 percent of our connectors are exported to Europe, America, Southeast Asia and South America worldwide. We accept small batch customized orders without extra expensive mold opening fees.
We implement full-process rigorous quality inspection for every batch of power D-SUB connectors, including incoming raw material testing, stamping and electroplating procedure monitoring, contact resistance testing, insulation voltage withstand testing, plug retention force testing and long-term salt spray anti-corrosion testing. Each finished batch retains complete production lot traceability records for quality tracking. Multi-layer strict inspection remarkably enhances long-term connection stability, electromagnetic shielding performance and anti-vibration capacity, reducing circuit faults caused by poor contact and signal interference. We provide free product samples, detailed engineering dimension drawings and 24-hour online technical support for all global purchasers, establishing long-term sincere cooperative partnerships with electronic manufacturers across the whole world.
High Current D-SUB Receptacles safely transmit large power loads alongside signal signals for industrial electronic equipment.
Gold Plated Brass Contacts deliver stable conductivity and outstanding oxidation resistance for long-term plug and play use.
Nickel Plated Steel Shells provide reliable electromagnetic shielding and durable anti-corrosion protection for D-SUB connectors.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

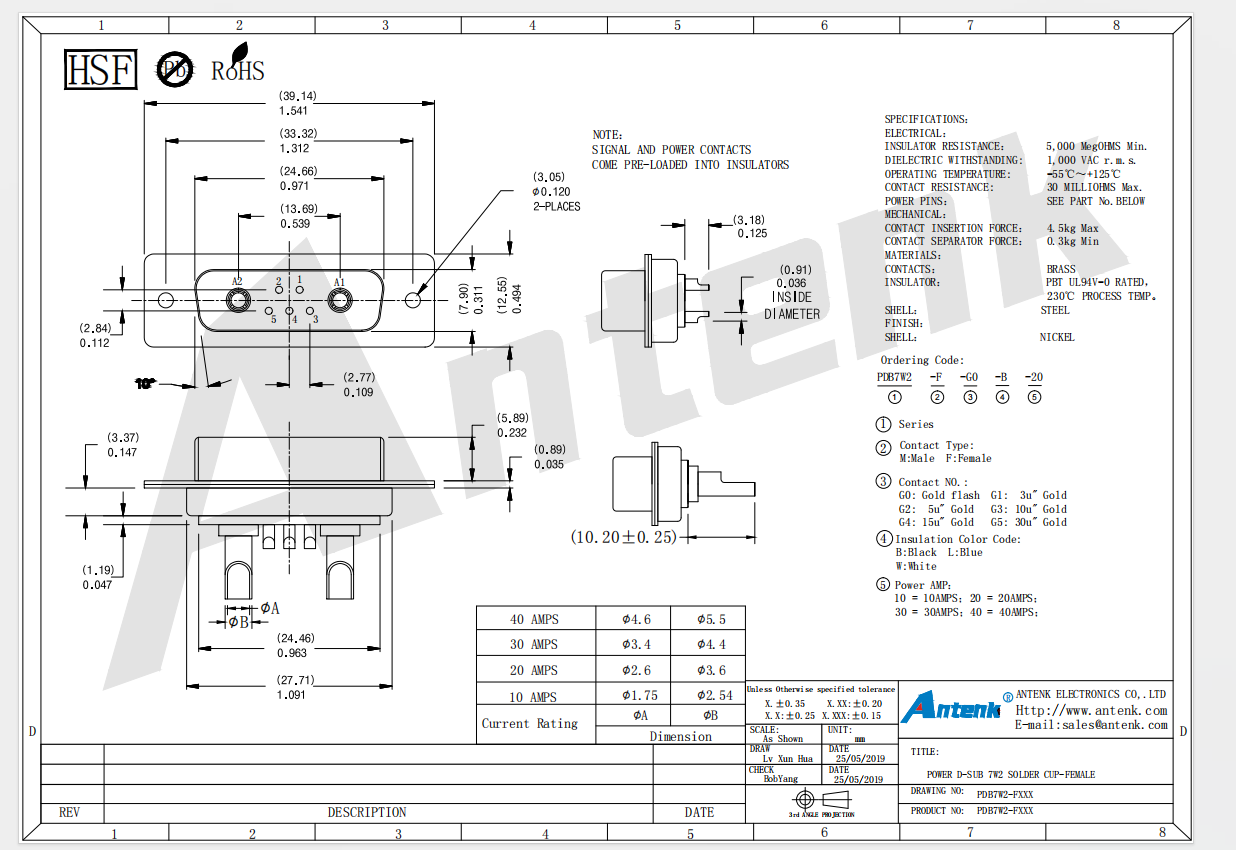

3、Product Drawing
