1、Product Description
Manufactured by Huizhou Antenk Electronics Co., Ltd, the AW2547V series 2.54mm pitch 180° Wafer Connector is straight vertical through-hole PCB socket designed for stable wire-to-board low-current signal and power connection. Entire production is carried out strictly in accordance with engineering drawing dimensional tolerances and specification parameters. The insulating housing is made of Nylon 66 material reaching UL94V-0 flame retardant grade, capable of enduring wide temperature fluctuations steadily. Conductive pins are brass with flash gold plating to lower contact resistance and resist surface oxidation. Rated electrical parameters cover 250V alternating and direct voltage with 3A rated current, boasting insulation resistance above 1000 megohms and 1500V withstand voltage per minute, working reliably within the temperature range of minus 25 degrees Celsius to 85 degrees Celsius. This series offers flexible pole options ranging from 2 pins up to 20 pins with matched standardized dimensions for each specification. Our complete production process includes independent precision mold development, high-speed brass terminal stamping, flash gold surface electroplating, nylon injection molding, automated pin insertion and finished dimensional inspection. Advanced Japanese and Taiwanese production equipment ensures unified pitch precision, and all raw materials comply fully with EU RoHS and REACH environmental directives.
This 180-degree straight wafer connector features convenient assembly operations. Users solder the vertical pins firmly onto printed circuit boards first, then insert the corresponding crimped wire housing into the wafer socket to form detachable wire-to-board connection circuits. Its standard 2.54mm universal pitch boasts great compatibility with mainstream electronic wire harnesses on the market. It is extensively applied in household digital appliances, display screens, industrial control panels, small power adapters, portable electronic devices and precision testing instruments. During application, users shall never exceed the rated 3A current to avoid pin overheating and insulation melting. Excessive repeated plugging should be avoided to prevent loose pins and housing damage. Unused connectors must be stored in dry sealed environments to preserve the gold plating layer. Most product specifications obtain UL certification numbered E472792, and our factory holds ISO9001, ISO14001 and IATF16949 quality management certifications.
Compared with other electronic connector suppliers, Antenk independently develops and owns over 250 sets of plastic injection molds and 180 sets of metal stamping molds, supporting customized pole counts, plating thickness and housing colors for this wafer connector series. Our 10000 square meter manufacturing workshop hires 250 professional staff members, equipped with more than 180 automatic assembly machines and 20 sets of professional electrical testing equipment, guaranteeing stable mass production and punctual shipment for large overseas export orders. As a brand awarded Guangdong Famous Trademark qualification, more than 70 percent of our connectors are exported to Europe, America, Southeast Asia and South America globally. We accept small batch orders for standard items without extra mold opening charges.
We execute strict full-process quality inspection for every batch of wafer connectors, covering incoming raw material inspection, real-time monitoring for stamping, electroplating and injection molding procedures, finished contact resistance testing, voltage withstand testing and plug life cycle testing. Each production batch retains complete lot traceability records for quality tracking. Multi-layer rigorous inspection greatly improves long-term connection stability and anti-vibration performance, effectively eliminating hidden circuit troubles caused by poor contact. We provide free product samples, detailed PCB layout drawings and 24-hour online technical support for all global buyers, building long-term trusted cooperative partnerships with electronic manufacturers worldwide.

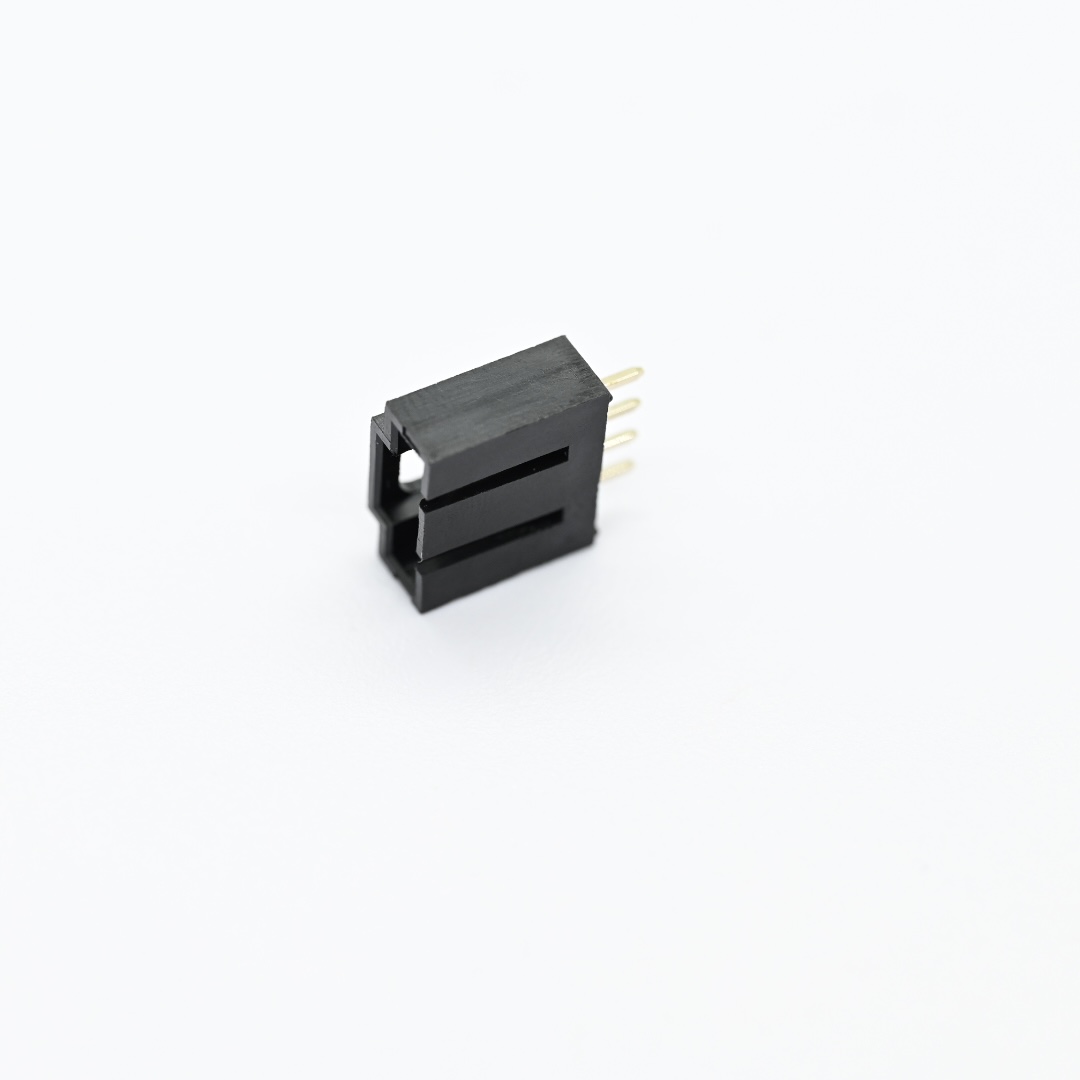

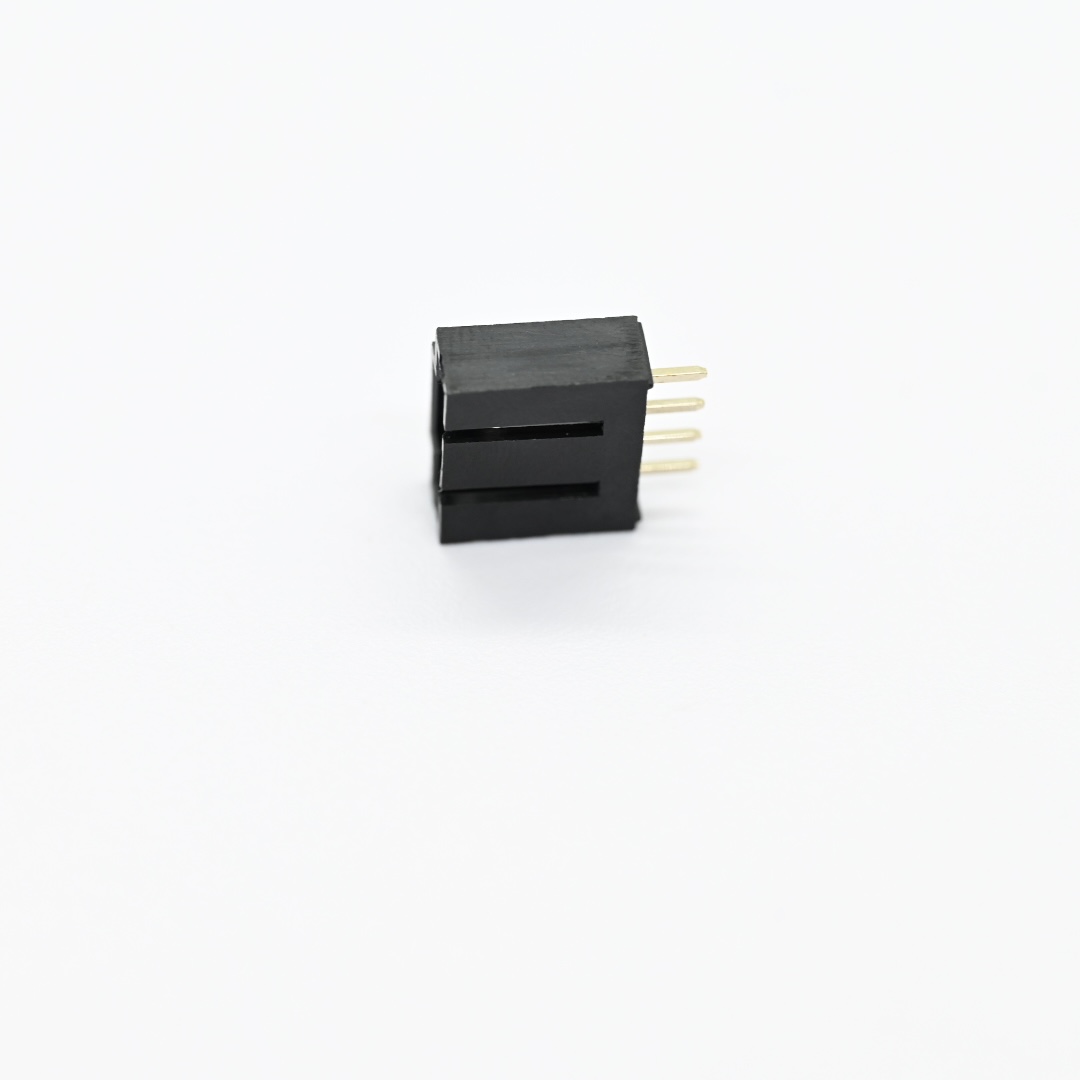

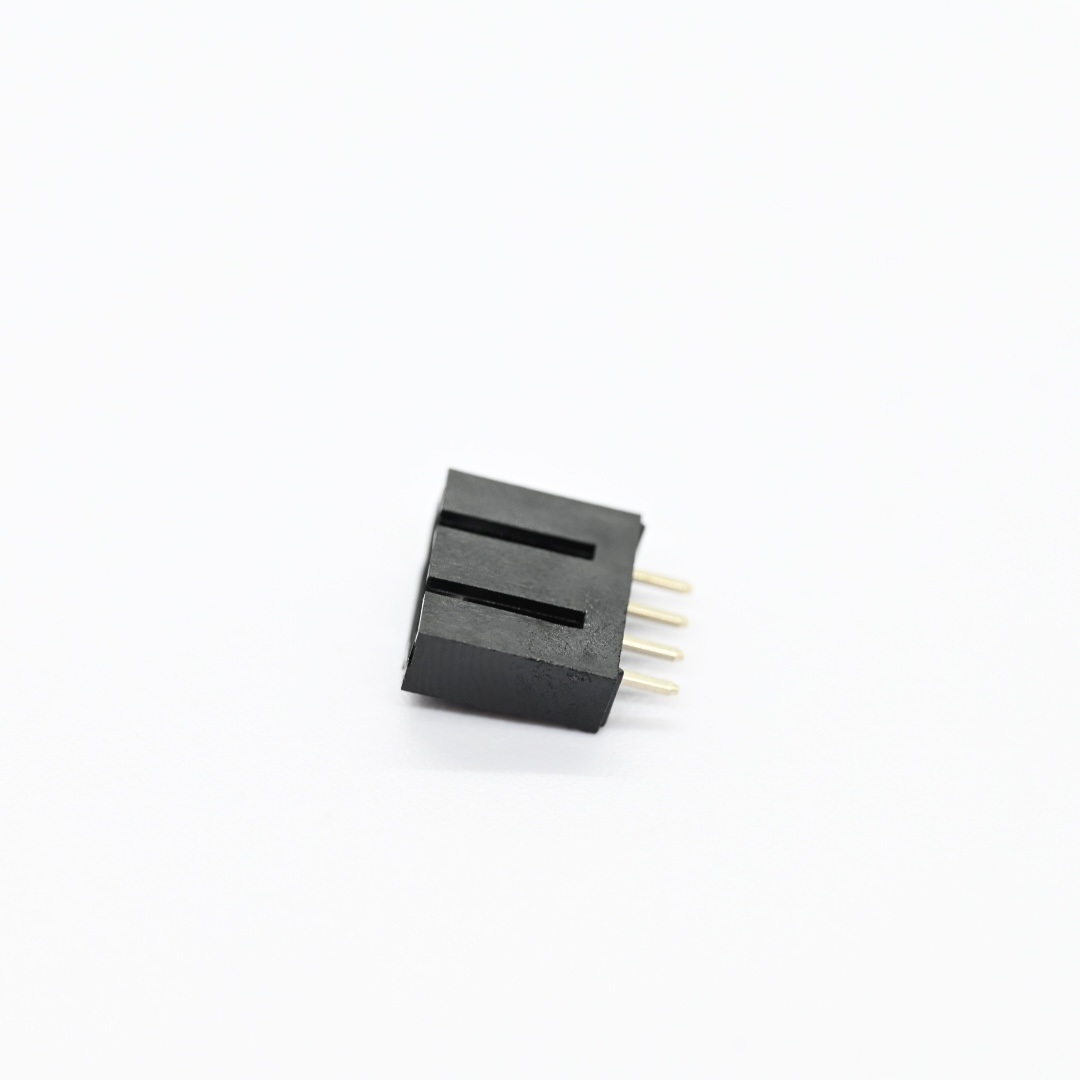

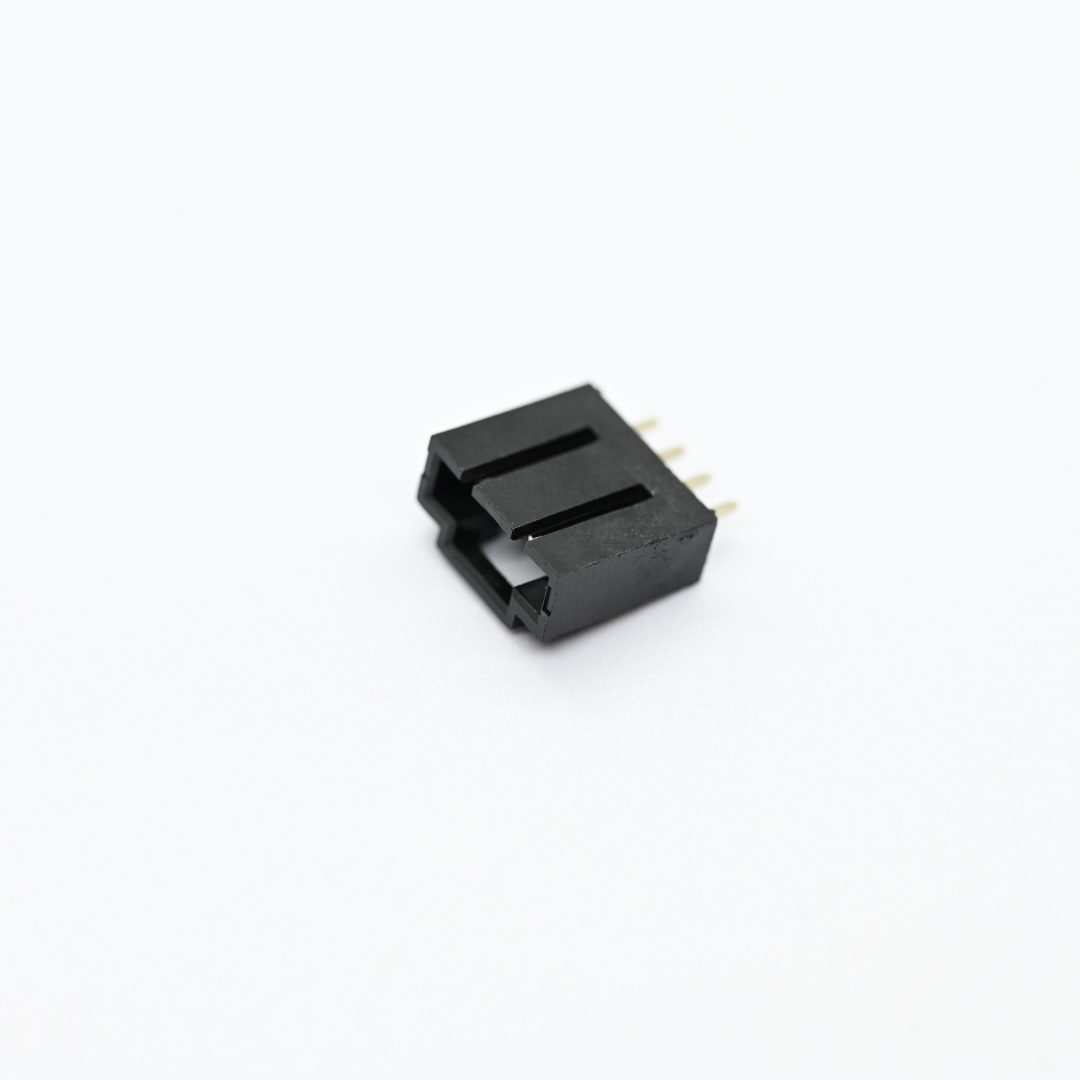

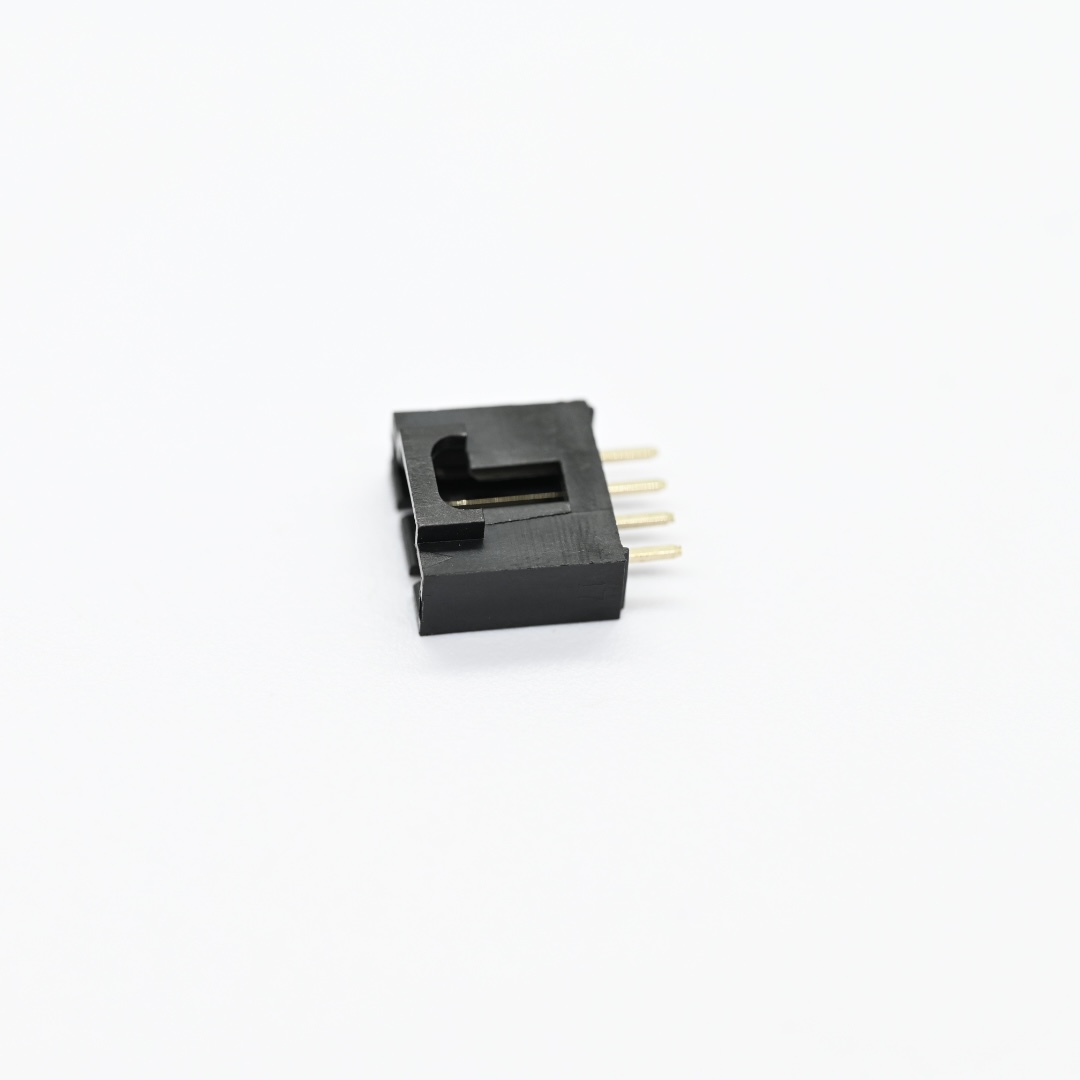

Straight Vertical Wafer Sockets adopt 180° upright structure to realize stable wire to board connection on various PCBs.
Gold Flash Brass Pins reduce contact resistance effectively and deliver reliable anti oxidation performance for long time service.
Nylon 66 Insulation Housings comply with UL94V 0 standard to offer safe insulation and high temperature resistance.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

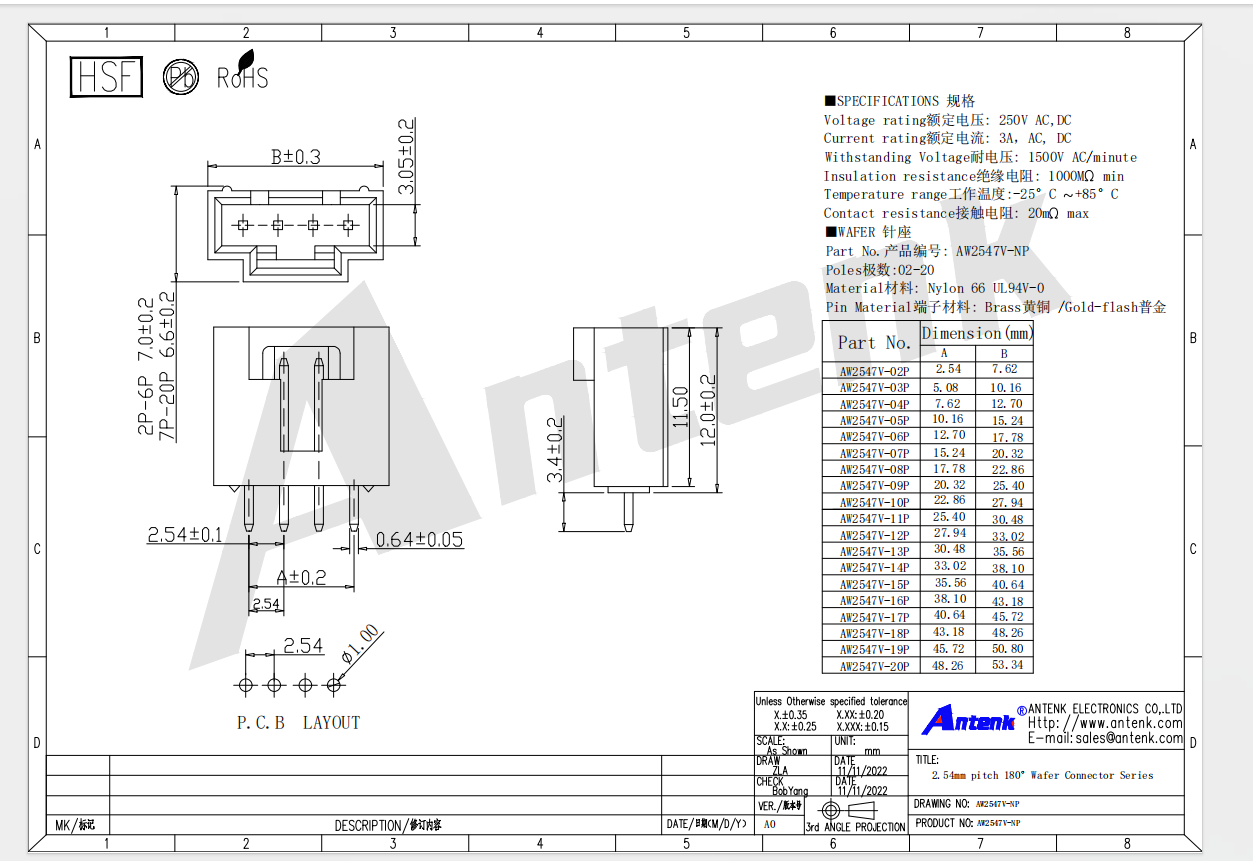

3、Product Drawing
