1、Product Description
Huizhou Antenk Electronics Co., Ltd. presents the AW2501V series 2.50mm pitch boss wafer connector, a professional wire-to-board interconnect component designed for stable low-power signal and electrical power transmission between cables and printed circuit boards. Produced strictly following official engineering drawing dimensions and tolerance standards, this wafer connector comes with comprehensive electrical specifications: rated voltage up to 250V AC/DC, rated current of 3A, dielectric withstand voltage of 800V AC per minute, and minimum insulation resistance of 1000 megaohms. Its operating temperature range spans from -40℃ to +105℃ to adapt to harsh working environments. Conductive pins are made of brass with full nickel plating to resist oxidation and reduce contact impedance, while the insulating housing adopts Nylon 66 material certified UL94 V0 for excellent flame retardancy and structural stability. Three structural types Type 1, Type 2 and Type 3 are available, with pin counts ranging from 2 pins to 20 pins. Six housing color options including white, blue, black, red, yellow and green are optional for customers, and all dimensional parameters are controlled within tiny precision tolerances. The whole product fully complies with RoHS and REACH environmental standards for global electronic application.
This wafer connector boasts simple and standardized operation procedures for industrial assembly. Users first solder the vertical pins onto PCB boards in accordance with designated PCB layout drawings, then match the male wafer pin header with the supporting AH2501 series female housing to complete wire-to-board locking connection. It is widely adopted in industrial control equipment, digital cameras, communication devices, smart home appliances, automotive electronics, precision measuring instruments, audio equipment and consumer electronic toys. For safe long-term use, operators shall never exceed the maximum rated 3A current and 250V voltage; severe bending of pins will destroy dimensional accuracy and electrical performance. The product should not be placed in environments with strong corrosive chemicals or temperatures beyond the defined range to prolong service lifespan effectively.
Antenk holds prominent competitive edges over ordinary connector manufacturers relying on complete automotive-grade quality management systems. Most rival manufacturers apply common non-flame-retardant plastic housings and tin-plated pins with poor anti-corrosion performance, while our UL94 V0 nylon insulator and nickel-plated brass pins deliver superior durability and stability under fluctuating temperatures. Our factory has obtained ISO9001, ISO14001 and IATF16949 certifications alongside UL approval with certificate No.E472792, implementing strict full-range batch inspection consistent with automotive electronic criteria. We support flexible customization with low minimum order quantities and no extra mold charges, unlike overseas suppliers who charge expensive tooling fees and have lengthy lead times. Ultra-precise stamping and injection molding technologies ensure tighter dimensional tolerances, and finished items pass 48-hour salt spray testing for outstanding anti-rust capacity.
Antenk carries out full closed-loop integrated production for this wafer connector with a 10,000-square-meter production base and 250 skilled staff. The whole manufacturing workflow begins with in-house precision mold development, supported by more than 250 plastic connector molds and 180 hardware terminal molds independently designed and produced. High-quality nylon pellets are processed by eight imported Japanese and Taiwanese injection molding machines to form insulating housings. Eleven high-speed precision stamping presses punch brass pins, followed by standardized nickel plating surface treatment. Automated assembly machines complete the combination of pins and plastic housings. Subsequently, 100% dimensional checking, contact resistance testing, dielectric strength detection, high-low temperature cycling tests and salt spray aging verification are finished in our professional laboratory equipped with over 20 sets of testing instruments. All finished goods are marked with unique batch codes for full traceability before delivery. We provide free samples, 2D & 3D CAD drawings and 24-hour global technical support, with over 70% of our products exported to Europe, America, Southeast Asia and other global markets, winning consistent trust from worldwide buyers.
High Temperature Wafer Connector works steadily between -40℃ and +105℃ for diverse electronic devices.
Nickel Plated Brass Pin effectively prevents oxidation and maintains stable electrical conduction long-term.
UL94 V0 Insulator provides reliable flame retardance and mechanical protection for the whole connector.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

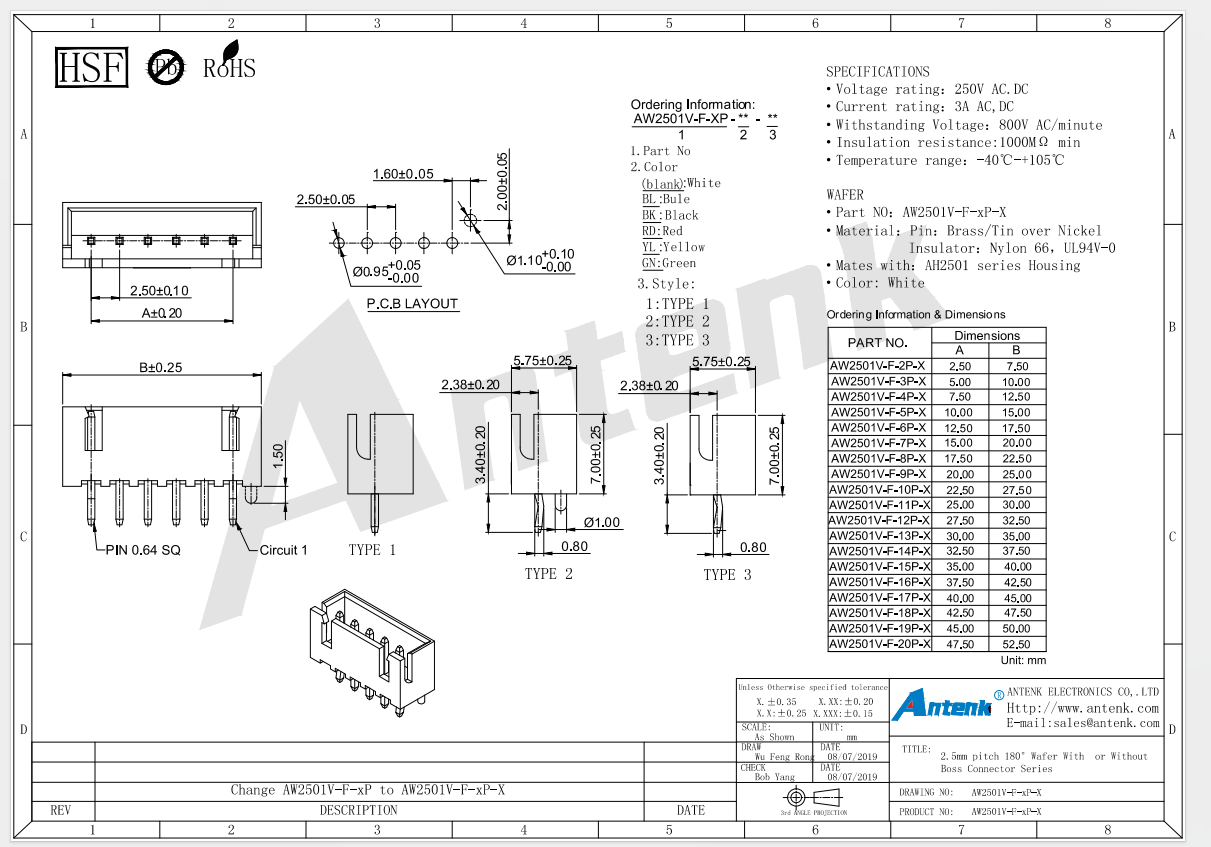

3、Product Drawing
