Product details

Product Advantages

CZ 1000 Cantilever Single Twister is a cable processing equipment designed for high efficiency and performance. The following are the main advantages of this equipment:

Suitable For： https://www.chuangzhanjixie.com/cable-stranding-and-cabling-equipment/68847070.html

Video： https://www.chuangzhanjixie.com/video/

1. Large capacity processing: Suitable for the stranding of large diameter cables to meet the needs of large-scale production.
2. Cantilever design: Provides a stable stranding process, reduces vibration, and improves product quality.
3. Efficient production: Optimized stranding speed and precise tension control to improve production efficiency.
4. Easy to operate: User-friendly operating interface simplifies the setting and monitoring process.
5. Easy maintenance: Easy to access mechanical parts to reduce maintenance time and cost.

The 1000 Cantilever Single Twister is an ideal choice for the cable manufacturing industry with its excellent performance and reliability, especially for production lines that require large diameter cable stranding.

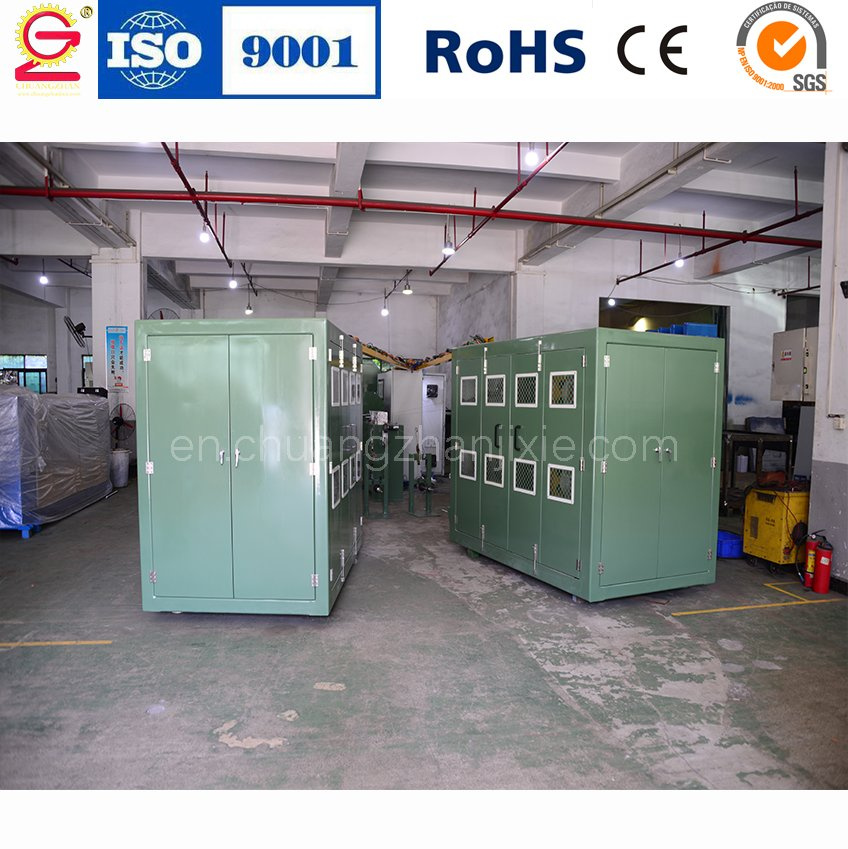

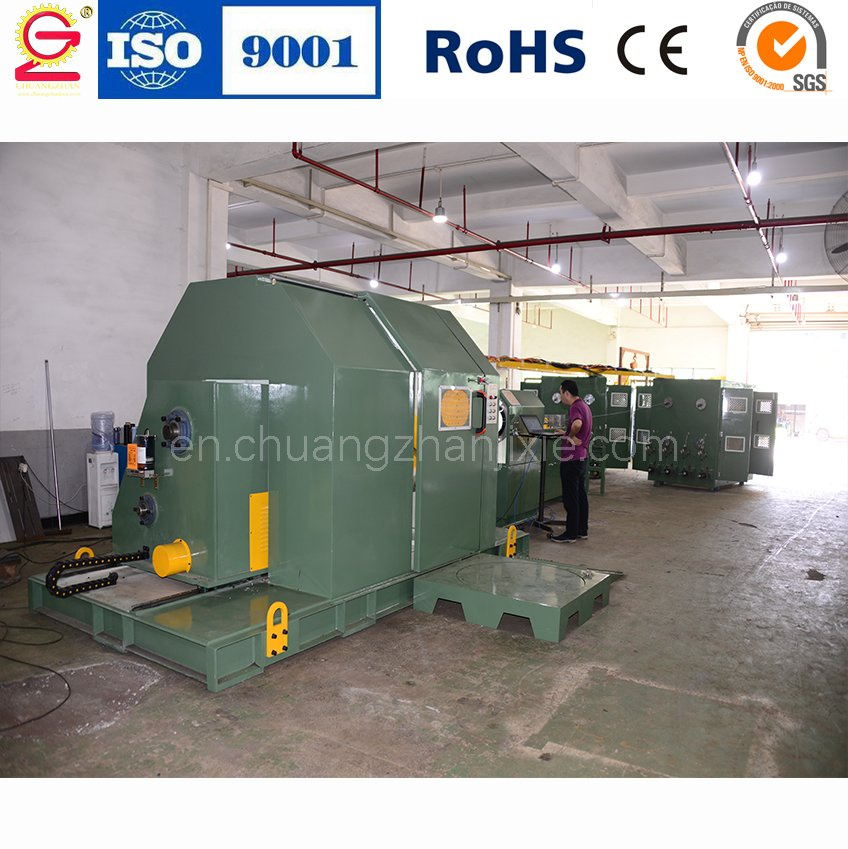

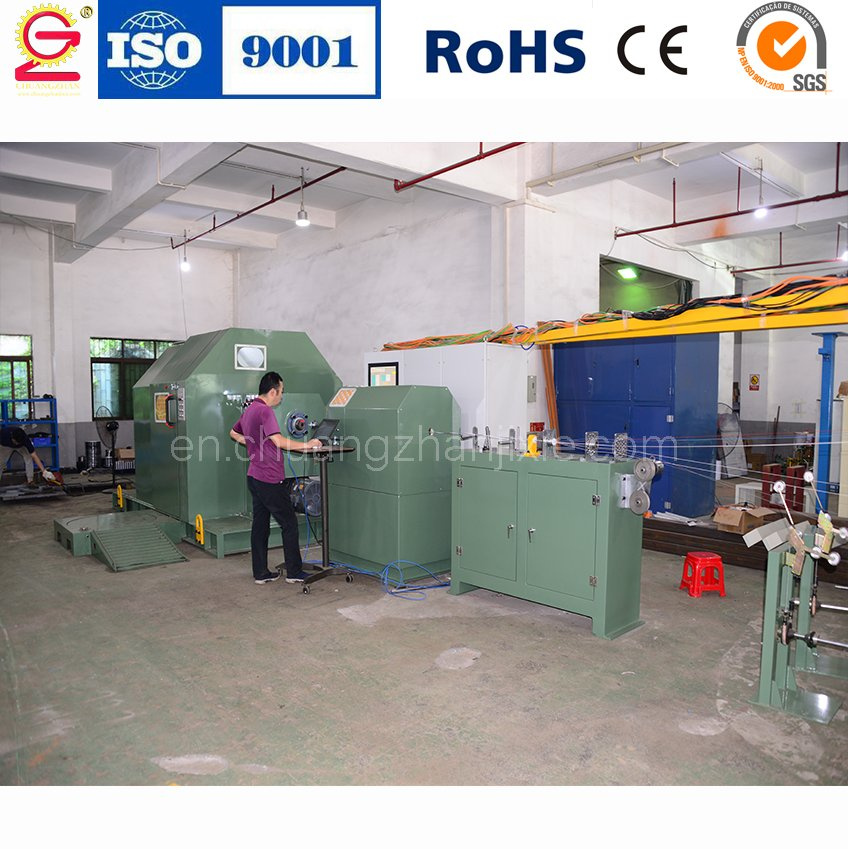

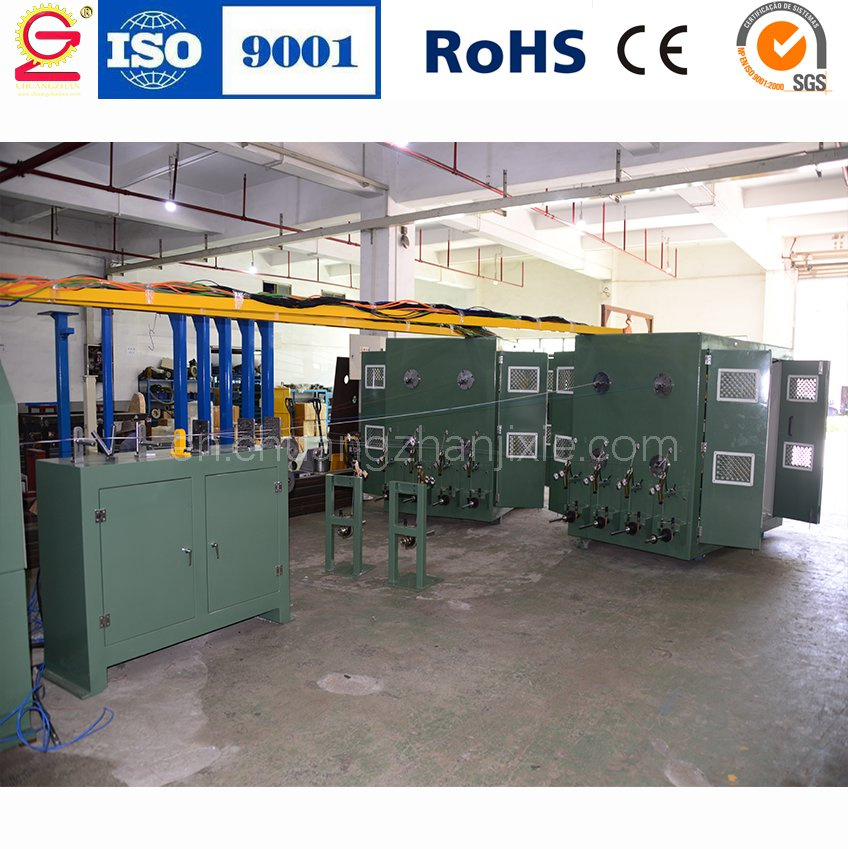

CZ 1000 Cantilever Single Twister

Applicable finished wire diameter range	φ0.4~35mm
Production line speed	0~300m/min
Cantilever speed	0~1200rpm
Twist range	3~600mm(Electronic twist distance can be set arbitrarily)
Pay-off tension	2~50N
Center taping machine tension range	±1(Including acceleration, deceleration and stop)
Center taping machine tape pitch accuracy	±150g
Twist	S, Z direction (electronic twist direction can be switched at will)
power	Siemens motor, Siemens servo, Yaskawa servo
Controller	Siemens, Yaskawa
Control System	Advantech Industrial Control, Siemens System
Automation	One-button start, full automatic cruising according to set parameters
Voltage	Applicable to your local voltage
Scope of application	Bus cables, drag chain cables, coaxial cables, optical fibers, electric vehicle charging cables, high-frequency data Taping and twisting of high-voltage cables, CAT5, CAT5E, CAT6, CAT6A, CAT7, CAT7A, CAT8 network cables and other multi-core high-end cables
Finished product performance	SIKORA,ZUMBACH,Proton,TAKIKAWA
Voltage	The twisted product has stable and reliable twist pitch and excellent impedance consistency.

Official Website： https://www.chuangzhanjixie.com/
