1、Product Description
Huizhou Antenk Electronics Co., Ltd. launches the AH2505 series 2.50mm pitch housing connectors, professional wire-to-board plastic housings perfectly matched with AT2505T terminals and AW2505 wafer connectors for stable signal and power transmission inside electronic equipment. The connector housing is injection molded from premium Nylon 66 material reaching UL94 V 0 flame retardant grade with beige standard color. It supports pin counts ranging from 2 pins up to 20 pins, with fixed 2.50mm center pitch and all overall dimensions precisely controlled within strict tolerance ranges. Standard electrical parameters include 3A rated current, 250V AC DC rated voltage, 1000V AC minute dielectric strength and minimum 1000 megohm insulation resistance, adapting to wide working temperature from minus 40 degrees Celsius to plus 105 degrees Celsius. The whole product fully complies with RoHS and REACH environmental regulations, free of harmful restricted substances to meet global green electronics standards. Built with anti misinsertion structural design, it effectively avoids reverse assembly damage during wiring operation.
This wafer housing connector adopts easy standardized assembly steps applicable for manual wiring and automated harness production lines. Users insert crimped AT2505T terminals with wires into corresponding housing cavities one by one until audible locking click appears to complete fixation, then mate the assembled housing with matched AW2505 series wafer headers mounted on printed circuit boards to form complete wire to board connection circuits. Widely used in digital consumer electronics, industrial control instruments, communication terminals, household appliances, automotive electronic accessories and precision testing devices for low voltage signal and small current power interconnection. For long term reliable performance, users shall strictly follow rated current and voltage limits during operation. Never apply excessive force to pull wires out without unlocking terminals, and avoid deploying the product in environments beyond specified temperature range or high humidity.
Antenk possesses prominent competitive strengths over common connector manufacturers supported by comprehensive automotive grade quality management systems. Most suppliers only provide limited pin count options and ordinary flame retardant plastic shells, while our series covers full 2P to 20P specifications and high temperature resistant Nylon 66 material for harsh working conditions. Our factory has passed ISO9001, ISO14001 and IATF16949 certifications together with UL safety approval, implementing 100 percent dimensional and appearance inspection for each production batch. Custom color and pin quantity customization is available with low minimum order quantities and no extra mold charges, whereas overseas competitors charge expensive tooling fees and have long lead times. Independent mold development ensures consistent dimensional accuracy and stable product consistency in mass production.
Antenk executes complete vertically integrated production workflow for these connector housings at its 10000 square meter manufacturing base with 250 experienced staff members. The entire production flow starts with in house precision mold development relying on more than 250 sets of self developed plastic connector molds. High temperature resistant Nylon 66 pellets are processed into finished housings via Japanese and Taiwanese injection molding machines, followed by burr trimming and surface finishing treatment. Afterwards, comprehensive tests including dimensional tolerance checking, flame retardant performance verification, insulation resistance and voltage withstand testing are carried out in our professional laboratory equipped with over 20 dedicated testing instruments. All qualified finished goods are labeled with exclusive batch codes for full production traceability before packaging and shipment. We offer free samples, detailed technical drawings and 24 hour global technical support, with more than 70 percent of our products exported worldwide and highly recognized by electronic purchasers across Europe, America, Southeast Asia and other international markets.
Nylon 66 Connector Housing features UL94 V-0 flame retardant property to resist high temperature deformation in various electronic working environments.
3A Rated Wafer Socket delivers stable small-current power and signal transmission for wire-to-board interconnection inside consumer and industrial devices.
RoHS Compliant Receptacle contains no hazardous substances and satisfies global environmental standards for cross-border electronic product export.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

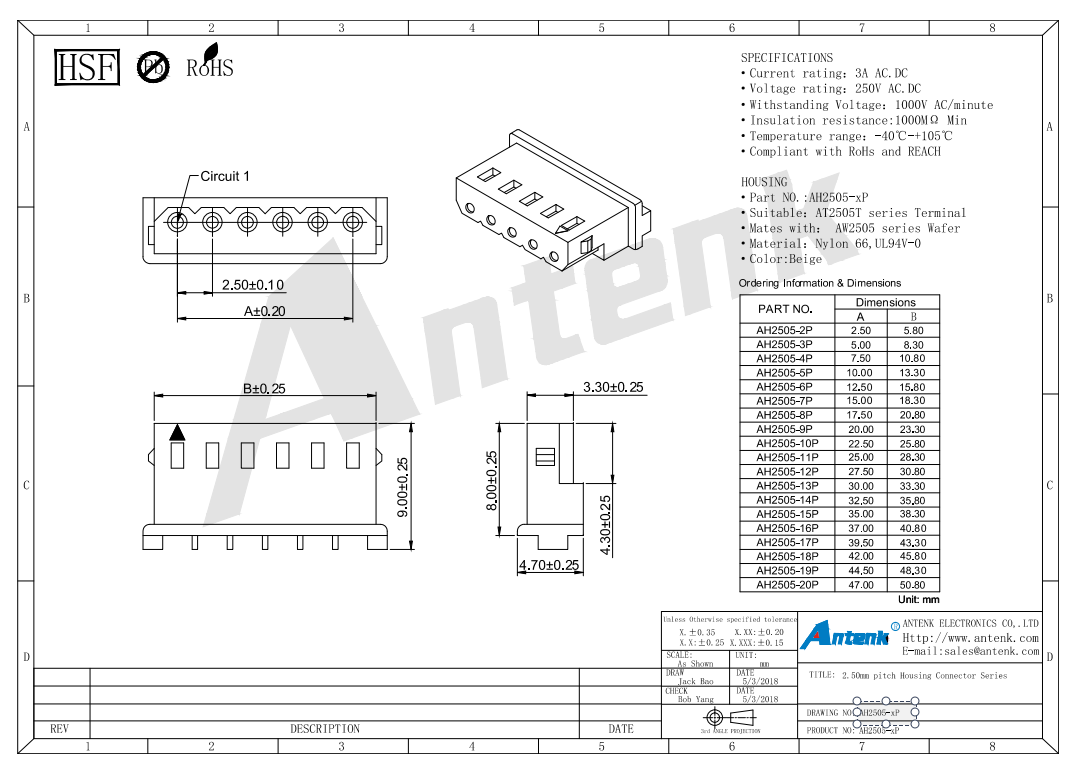

3.Product Drawing
