1、Product Description

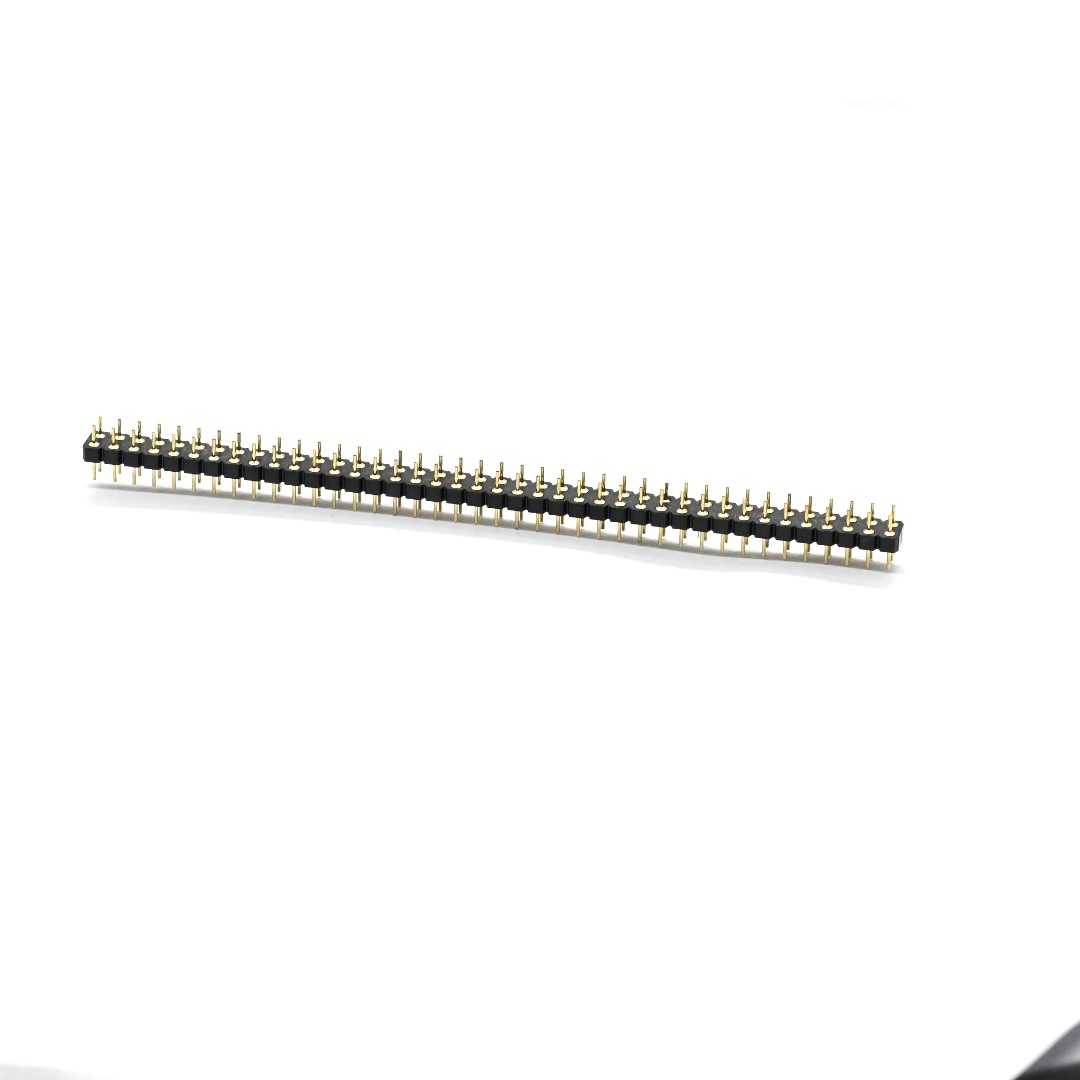

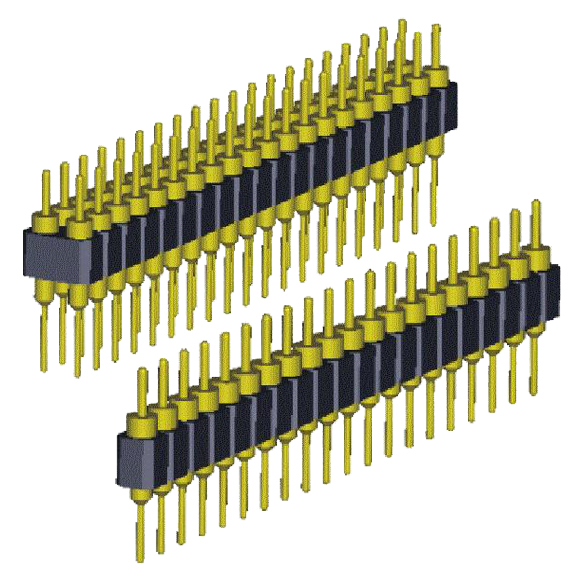

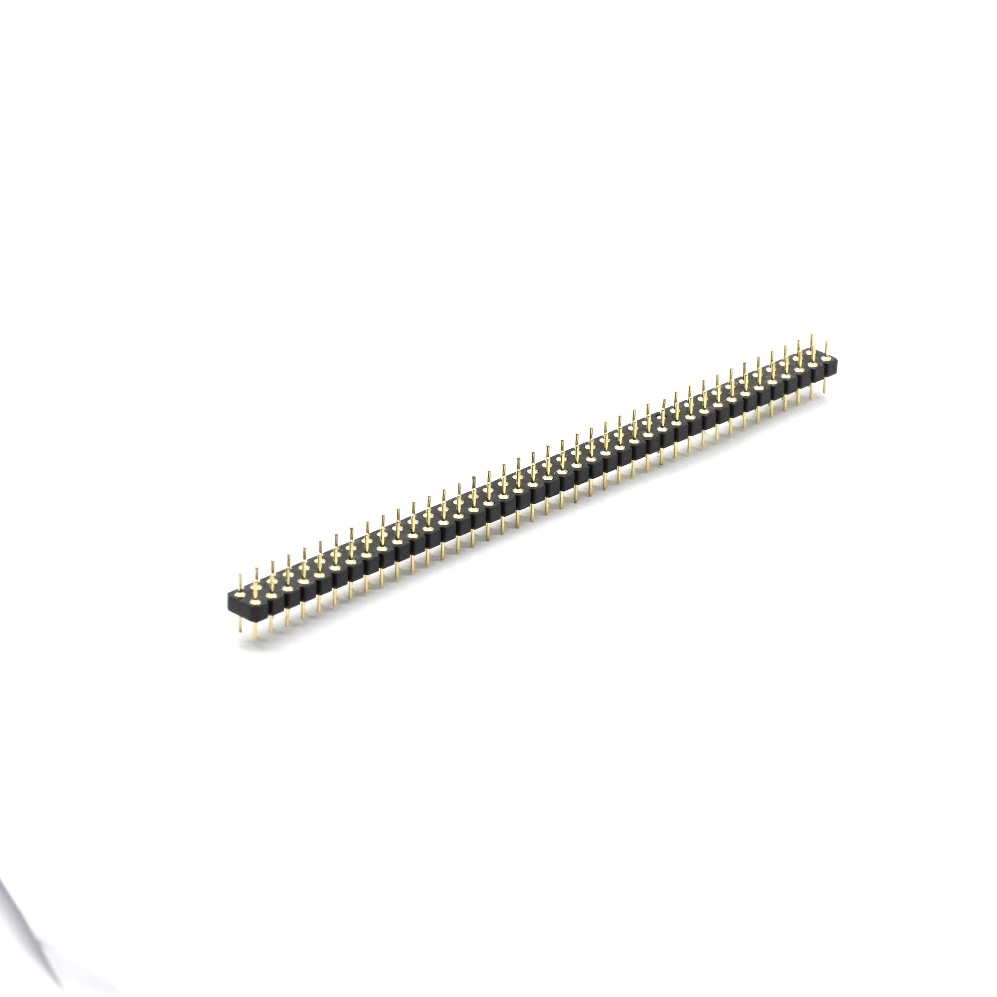

Huizhou Antenk Electronics Co., Ltd. independently develops and manufactures MPHES series 2.54mm machined pin connectors, ultra-low profile straight through-hole pin headers dedicated to stable board-to-board signal and low-current power transmission for compact electronic hardware. Per official product datasheet standards, the insulator is injection molded with high-performance PPS material that achieves UL94 V-0 flame retardant grade, delivering outstanding heat resistance and stable dimensional precision under fluctuating operating temperatures. The mating sleeves adopt solid brass with a fixed 0.41mm pin diameter, supporting diverse plating options including multi-thickness tin and gold layers to meet varied conductivity and anti-corrosion demands. This series covers four distinct structural types with two standard low-profile heights of 1.9mm and 2.16mm, supplying single-row layouts from 2 to 40 contacts and double-row versions ranging from 4 to 80 contacts. Core electrical parameters include 3A rated current, maximum 10 milliohm contact resistance, minimum 1000V RMS dielectric strength and over 500 mating cycles mechanical lifespan. All products comply with RoHS and REACH environmental regulations, and most specifications pass UL safety certification numbered E472792 to satisfy cross-border export requirements.
This low-profile machined pin header supports standardized operation suitable for manual wiring and automatic PCB assembly production lines. Operators solder the through-hole solder tails onto printed circuit boards securely, then mate the pins with matching female sockets to form complete inter-board electrical circuits. Its slim low-profile design effectively cuts down internal assembly space inside miniature devices. The product is widely deployed in liquid crystal display modules, digital cameras, communication terminals, industrial control instruments, digital household appliances, computer mainboards, automotive electronic modules and precision measuring equipment. During application, users must strictly follow rated current and voltage limits to avoid overload damage. Excessive plugging cycles and violent pulling are forbidden to prevent pin deformation and insulation cracking. Store the connectors in dry indoor environments away from moisture, dust and corrosive gas to sustain consistent electrical performance long-term.
Antenk possesses prominent competitive advantages compared with ordinary connector manufacturers supported by complete automotive-grade quality management systems. Most competitors only supply limited single-height pin headers with narrow pin count ranges and single plating choices, while the MPHES series integrates two low-profile heights, full single and double row contact options and customizable tin or gold plating solutions. Our factory holds ISO9001, ISO14001 and IATF16949 automotive quality certifications, equipped with over 20 professional testing instruments to implement 100% batch inspection for dimensional accuracy, electrical performance and plugging durability. Custom pin counts, plating thicknesses and packaging formats are available with low minimum order quantities and zero additional mold fees, unlike overseas manufacturers with high tooling charges and long lead times. In-house independent mold development guarantees consistent dimensional precision and stable mass production quality for both machined pins and PPS plastic housings.
Antenk operates full vertically integrated production workflows for MPHES machined pin connectors at its 10,000-square-meter manufacturing bases with 250 skilled professional staff. The whole manufacturing process starts with in-house precision mold design and fabrication relying on more than 250 sets of plastic connector molds and 180 sets of independent hardware terminal molds. Brass raw materials are processed into precise machined pins via eleven imported high-speed precision stamping machines; PPS plastic pellets are molded into insulating bodies through Japanese and Taiwanese 35–120 ton injection molding equipment. Subsequent trimming, plating and automatic assembly are completed in dedicated workshops, with multiple packaging alternatives including bag, tube and tape reel to fit automated assembly demands. All finished connectors pass comprehensive dimensional, electrical and environmental aging tests before shipment, and each batch carries unique batch codes for full production traceability. We provide free product samples, detailed 2D/3D CAD drawings and round-the-clock global technical support. Over 70% of Antenk’s connectors are exported worldwide, earning consistent trust from electronic purchasers across Europe, America, Southeast Asia and other global regions.
Multi-Height PPS Pin Header comes with 1.9mm and 2.16mm ultra-low profile options to fit different compact PCB layout demands.
Variable Gold Plating Pin provides multiple gold thickness selections for enhanced corrosion resistance and stable signal transmission.

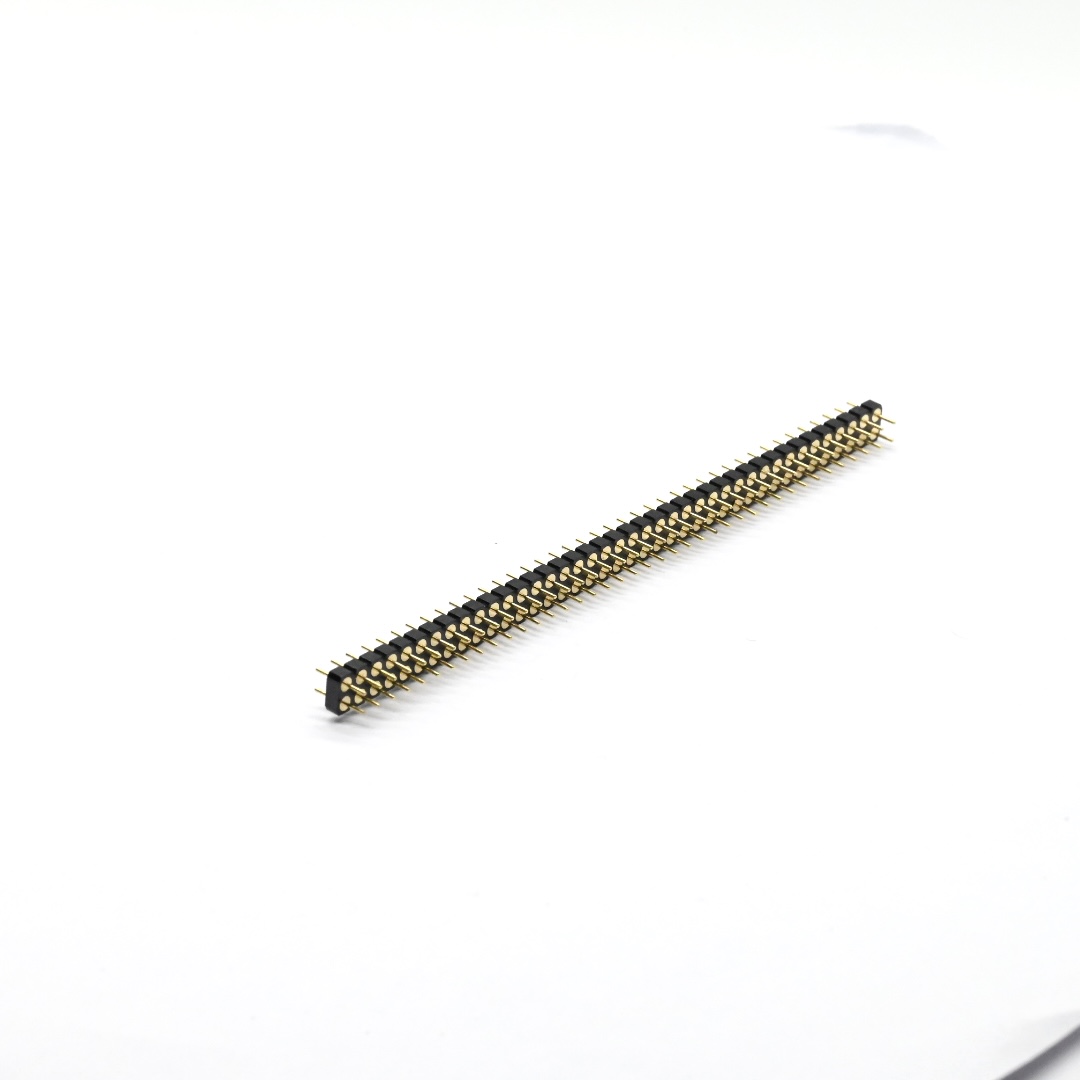

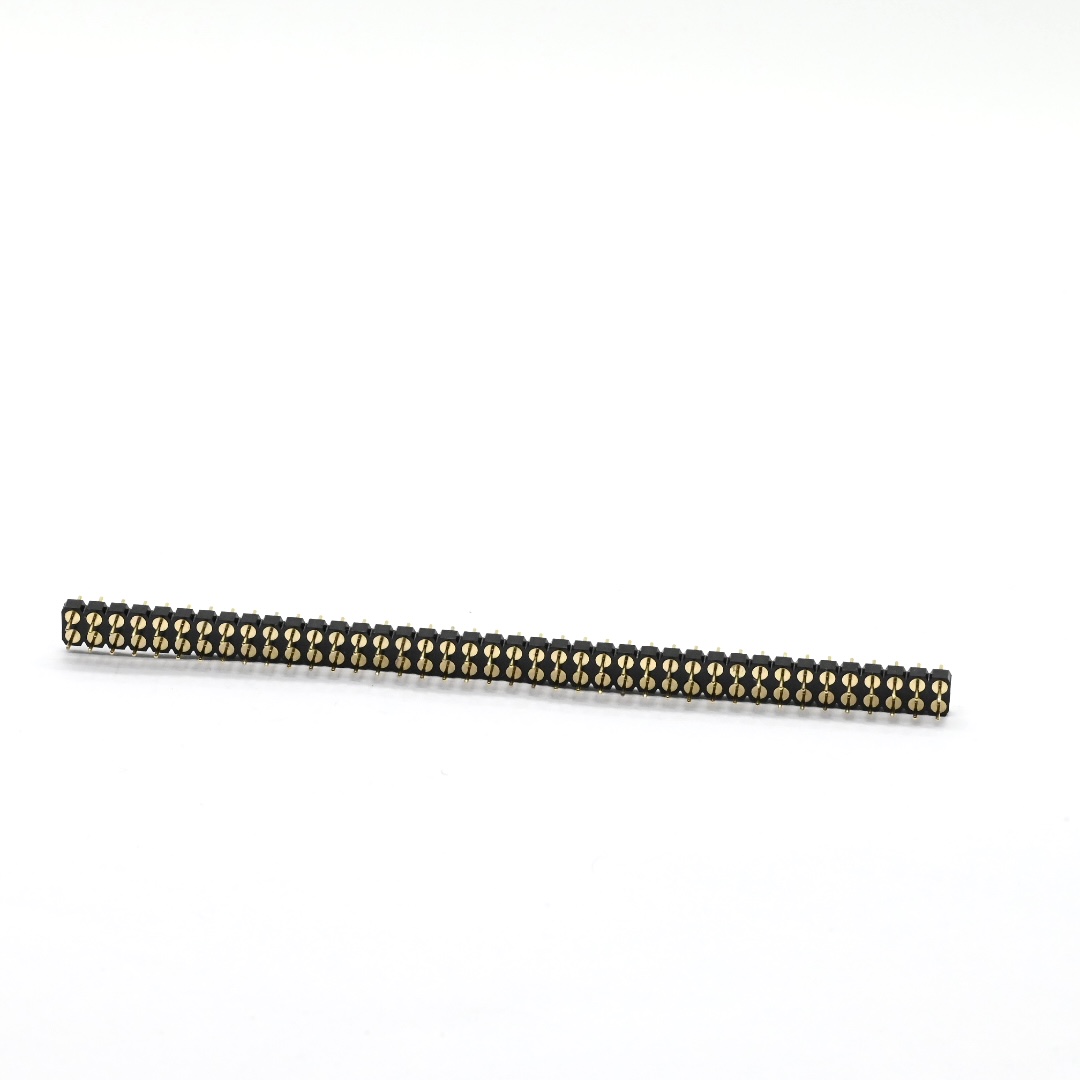

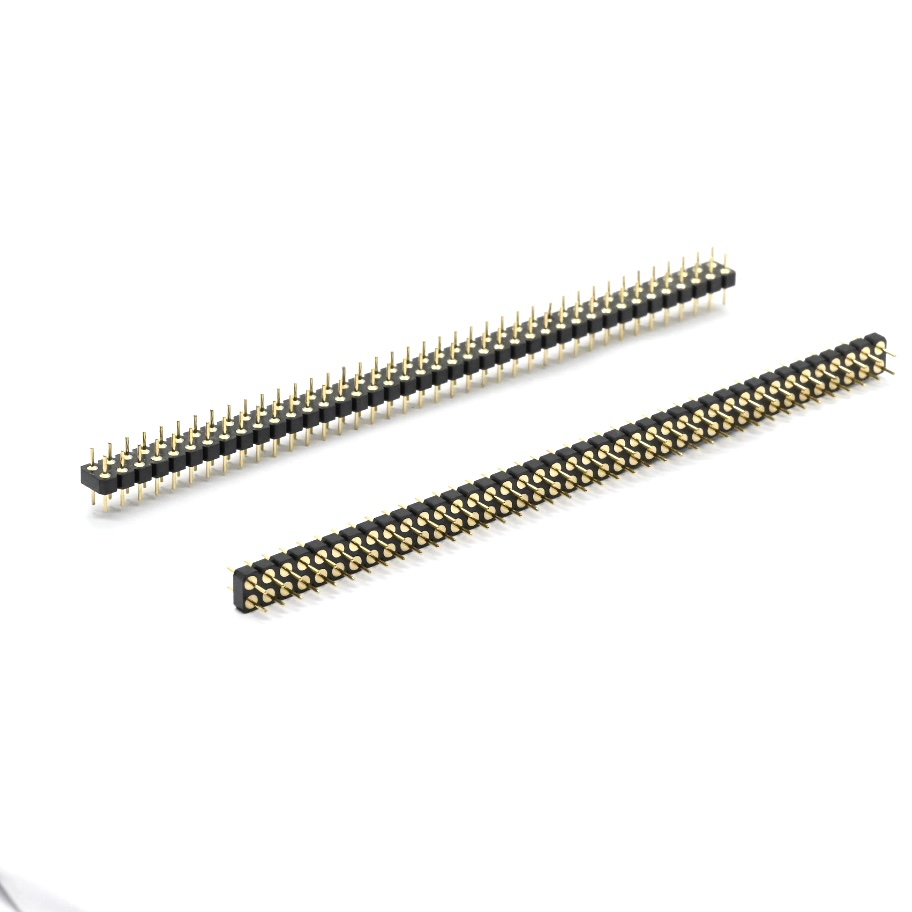

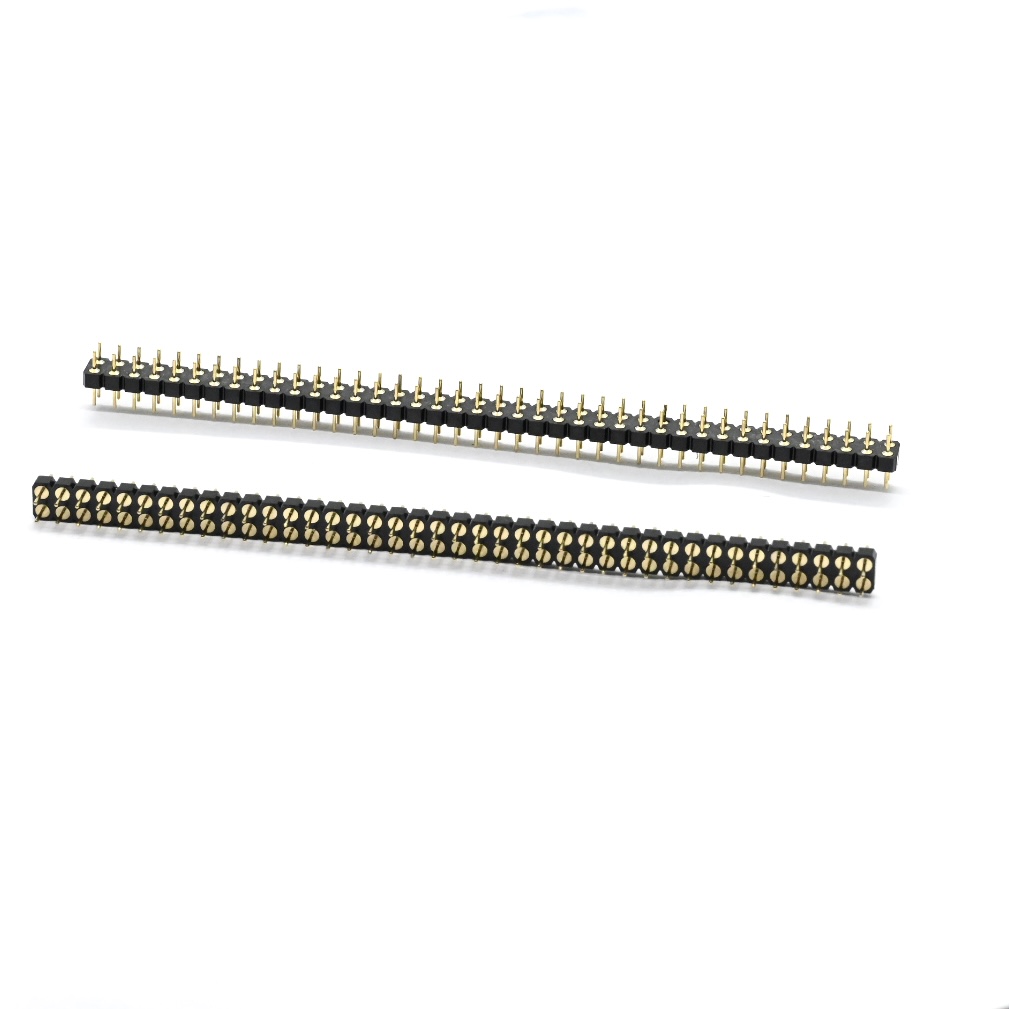

Dual Row Through Hole Header supports 4 to 80 pin configurations to realize multi-channel board-to-board connection for industrial devices.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
3、Pictures
