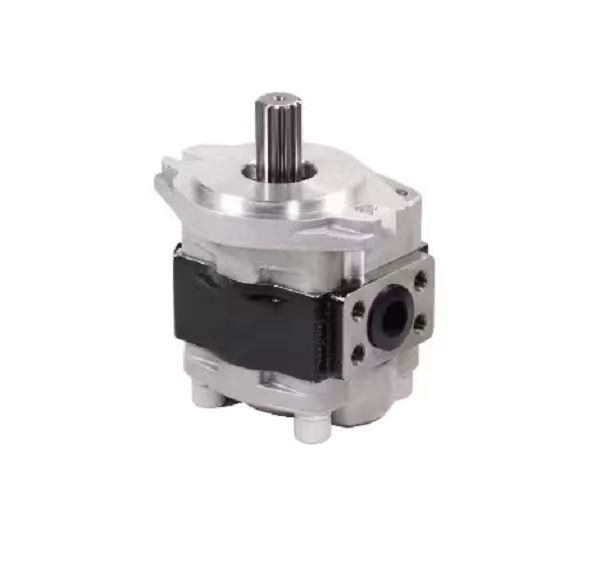

CBHZA-F External Meshing Gear Oil Pump

1. Product Overview

CBHZA-F external meshing gear oil pump is a fixed-displacement high-pressure hydraulic gear pump. The pump housing adopts high-strength ductile cast iron, equipped with asymmetric double-modulus gear pair, floating axial clearance compensation mechanism and radial pressure balance structure.

It maintains high volumetric efficiency under low-speed working conditions, featuring strong shock resistance, low noise and long service life. Multiple options are available for drive shaft form, mounting flange, oil port layout and rotation direction. Widely used as the power source of mobile machinery hydraulic system, it can serve as interchangeable spare parts for equipment maintenance.

Model Code Explanation

- CBHZA: Series code of heavy-duty external meshing gear pump

- F: Pressure grade code, rated working pressure 20 MPa

2. Main Technical Parameters

Item Specification

Pump Type Fixed displacement external meshing hydraulic gear pump

Rated Working Pressure 20 MPa

Maximum Peak Pressure 25 MPa

Operating Speed Range 600 ~ 2500 rpm

Volumetric Efficiency ≥92% under rated working condition

Housing Material High-strength ductile cast iron

Shaft Options Plain key shaft, rectangular spline shaft, SAE involute spline shaft

Oil Port Connection Thread connection / flange connection optional

Applicable Fluid ISO VG46, VG68 anti-wear hydraulic oil

Operating Temperature -20℃ ~ +80℃

Standard Seals NBR; FKM high-temperature seals optional

3. Working Principle

The driving shaft drives a pair of meshing gears to rotate inside the pump cavity. Vacuum forms on the suction side to suck hydraulic oil. The gears carry hydraulic oil to the pressure side and deliver pressurized oil into the hydraulic circuit.

The floating compensation plate automatically compensates axial clearance generated by friction wear. The radial balance structure reduces gear radial force, suppresses internal leakage and guarantees stable flow output under long-term heavy-load operation.

4. Core Advantages

1. Cast iron pump body, high structural rigidity, strong pressure resistance and impact resistance.

2. Axial automatic clearance compensation design, stable volumetric efficiency even under low-speed operation.

3. Optimized asymmetric double-modulus gears, low vibration and low operating noise.

4. Excellent anti-pollution performance, adaptable to harsh construction site environments.

5. Rich configuration combinations of shaft, flange and oil port to meet diverse installation requirements.

6. High cost performance, ideal aftermarket replacement spare part for engineering machinery.

5. Application Range

This hydraulic gear pump is widely applied in counterbalance forklifts, small loaders, road rollers, sanitation vehicles, agricultural machinery and other mobile construction machinery hydraulic systems.
