1、Product Description

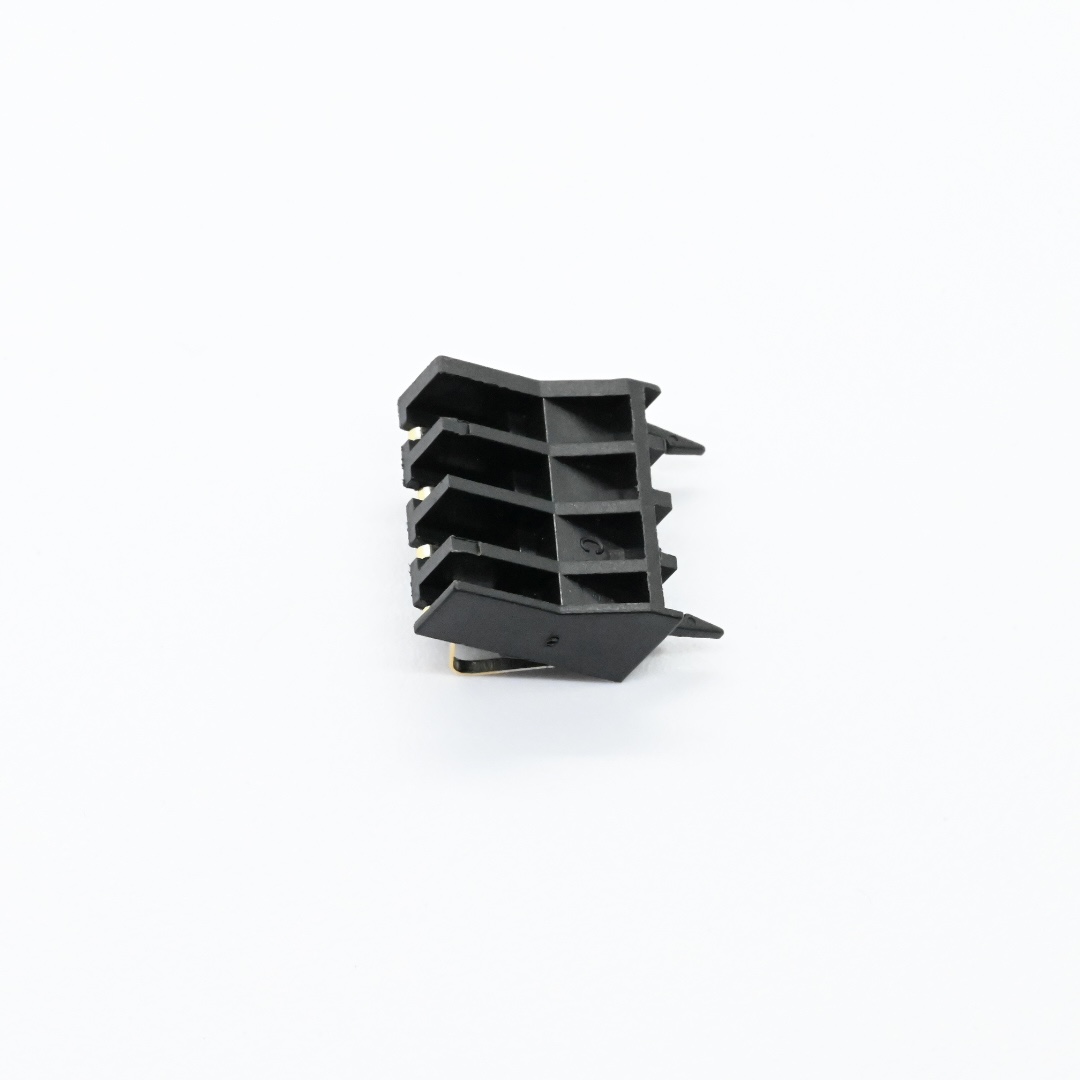

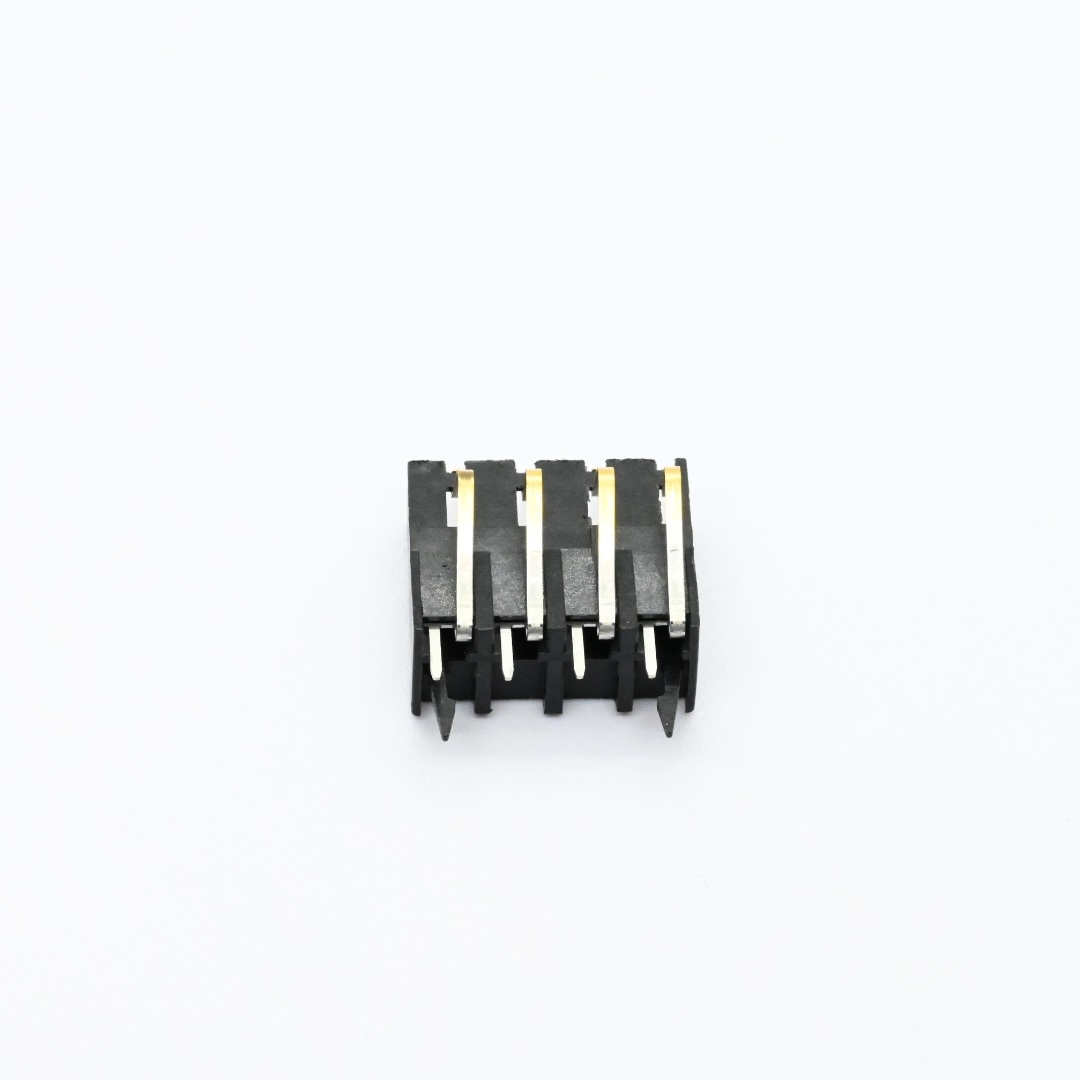

Huizhou Antenk Electronics Co., Ltd. develops ABT09-04LFXD 4.5mm pitch 4P SMT battery connectors, dedicated surface mount components for stable battery power and signal transmission between lithium cells and PCB circuits. The contact pins are made of high elasticity beryllium copper with multi optional gold plating grades from gold flash to 30 microinch gold, plus uniform nickel underplating to resist oxidation and lower contact resistance within 30 milliohm maximum. The black insulator adopts 30 percent glass filled LCP thermoplastic with UL94V-0 flame retardant rating, capable of enduring 260 degree Celsius reflow soldering for 10 seconds and steady operation from minus 55 degrees Celsius to 125 degrees Celsius. Electrical parameters cover 250V AC rated voltage, 2A minimum rated current, 1000 megohm minimum insulation resistance and 1000V AC one minute dielectric withstand voltage. Mechanically, it supports 5000 mating cycles with minimum 60g normal holding force and 100g full stroke force, and all dimensional sizes are produced under precise tolerance limits. Standard packaging options include tray, bag, tube and anti-static tape and reel for automatic SMT placement lines, fully complying with RoHS and REACH global environmental rules.
This SMT battery connector follows standard PCB layout design for automatic reflow soldering installation. Operators place the connector onto designated PCB pads via pick and place machines, then complete high temperature reflow welding to realize fixed mounting. It is widely applied in digital cameras, portable communication devices, industrial control instruments, digital home appliances, electronic toys, notebook computers, precision testing meters and automotive auxiliary electronic modules. During use, users must avoid overloading the 2A rated current and excessive soldering temperature to prevent LCP insulator deformation. Do not scratch the gold plated contact surfaces to maintain stable conductivity, and store spare connectors in dry anti-static packaging to avoid dampness and static damage.
Antenk possesses prominent competitive advantages over ordinary connector manufacturers supported by complete automotive grade international quality certifications. Most competitors adopt low elasticity brass terminals and ordinary PBT plastic unable to resist high reflow temperature, while our beryllium copper pins retain stable spring force after thousands of insertions and LCP housing adapts harsh high temperature production processes. Our factory holds ISO9001, ISO14001 and IATF16949 certifications, equipped with over 20 professional testing devices to conduct full batch inspection on plating thickness, elasticity fatigue, electrical performance and flame retardancy. Custom gold plating thickness, packaging and dimensional modification services are available with low minimum order quantity without extra mold fees, unlike overseas suppliers with expensive tooling charges and long delivery lead times. Independent in-house mold development ensures consistent precision and stable mass production quality for plastic shells and metal contacts.
Antenk implements full vertical integrated manufacturing workflows for this 4.5mm 4P battery connector at its 10000 square meter production bases with 250 experienced staff members. The whole production chain starts with self-developed precision hardware mold design and manufacturing relying on more than 180 sets of terminal stamping molds and 250 sets of plastic connector molds. Beryllium copper raw materials are stamped and formed via imported high-speed precision punching machines, while LCP pellets are injected into insulating bodies by Japanese and Taiwanese precision injection equipment. Subsequent electroplating, component assembly, trimming and visual inspection are finished in exclusive workshops. All finished connectors pass aging, temperature cycling and electrical performance tests before shipment, with unique batch codes assigned for full production traceability. We supply free samples, official PCB layout drawings and 24-hour global technical support. Over 70 percent of Antenk electronic components are exported worldwide, winning lasting trust from electronic purchasers across Europe, America, Southeast Asia and other international regions.

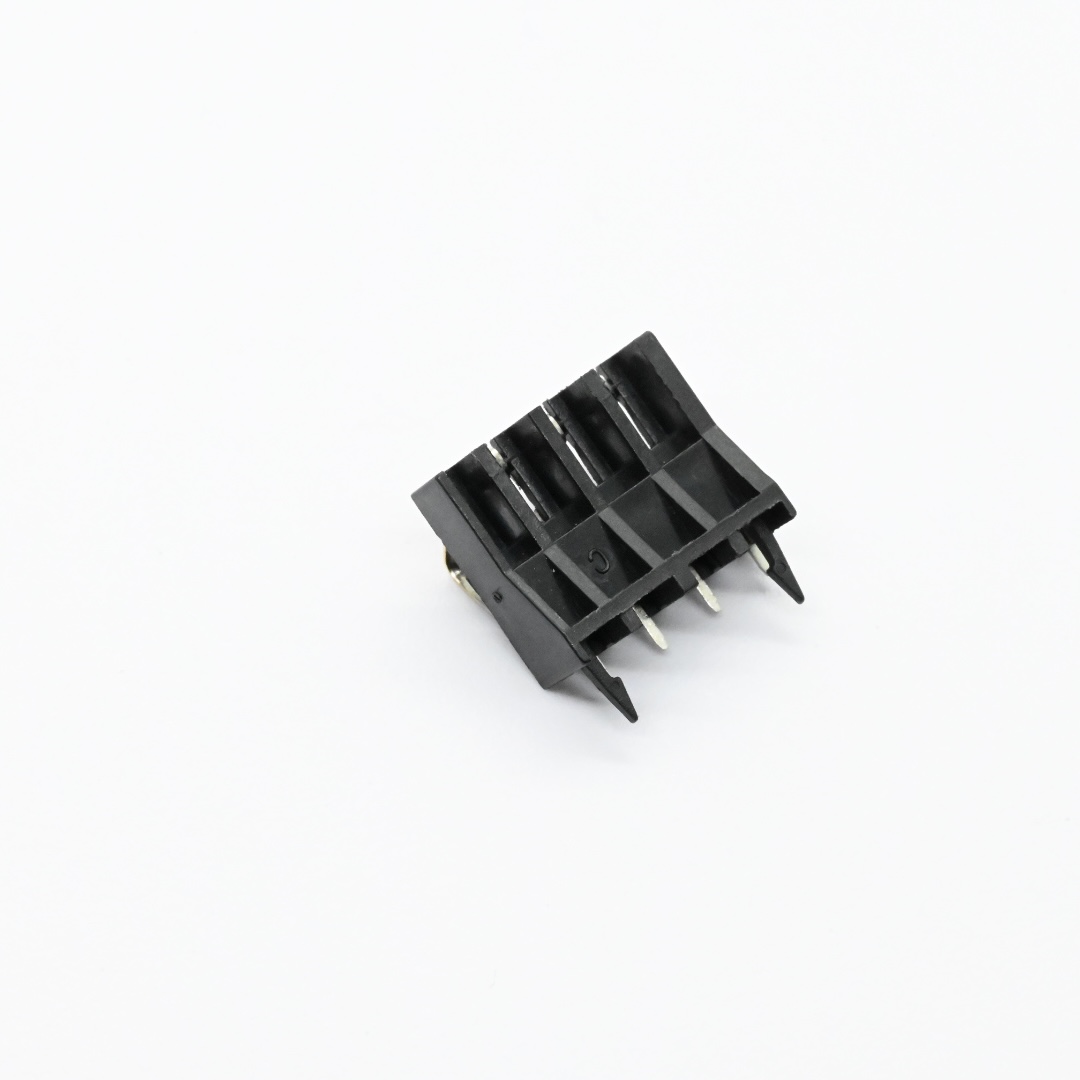

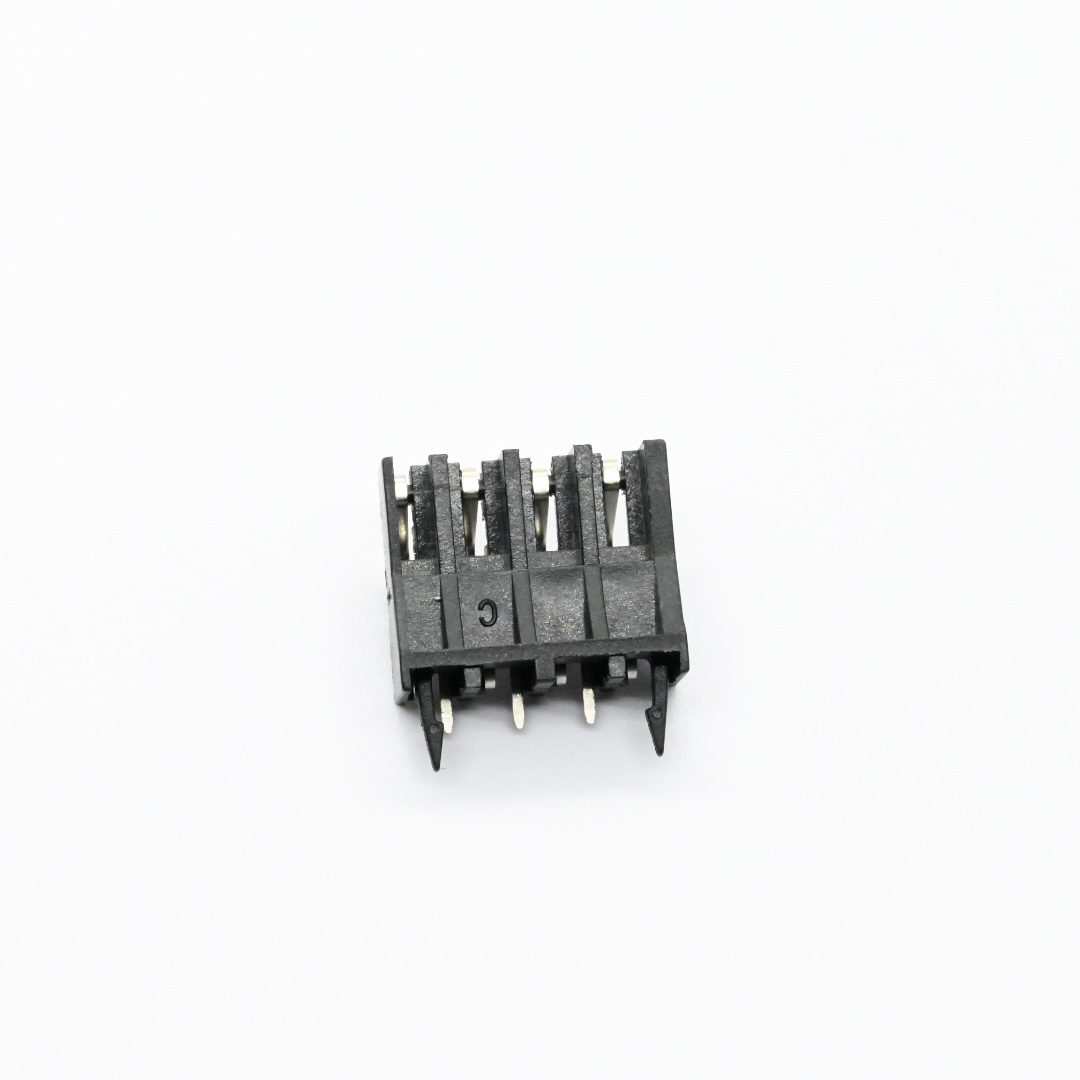

LCP High Temp Battery Socket can withstand 260°C reflow soldering temperature and maintain stable insulation performance under wide working temperature range.

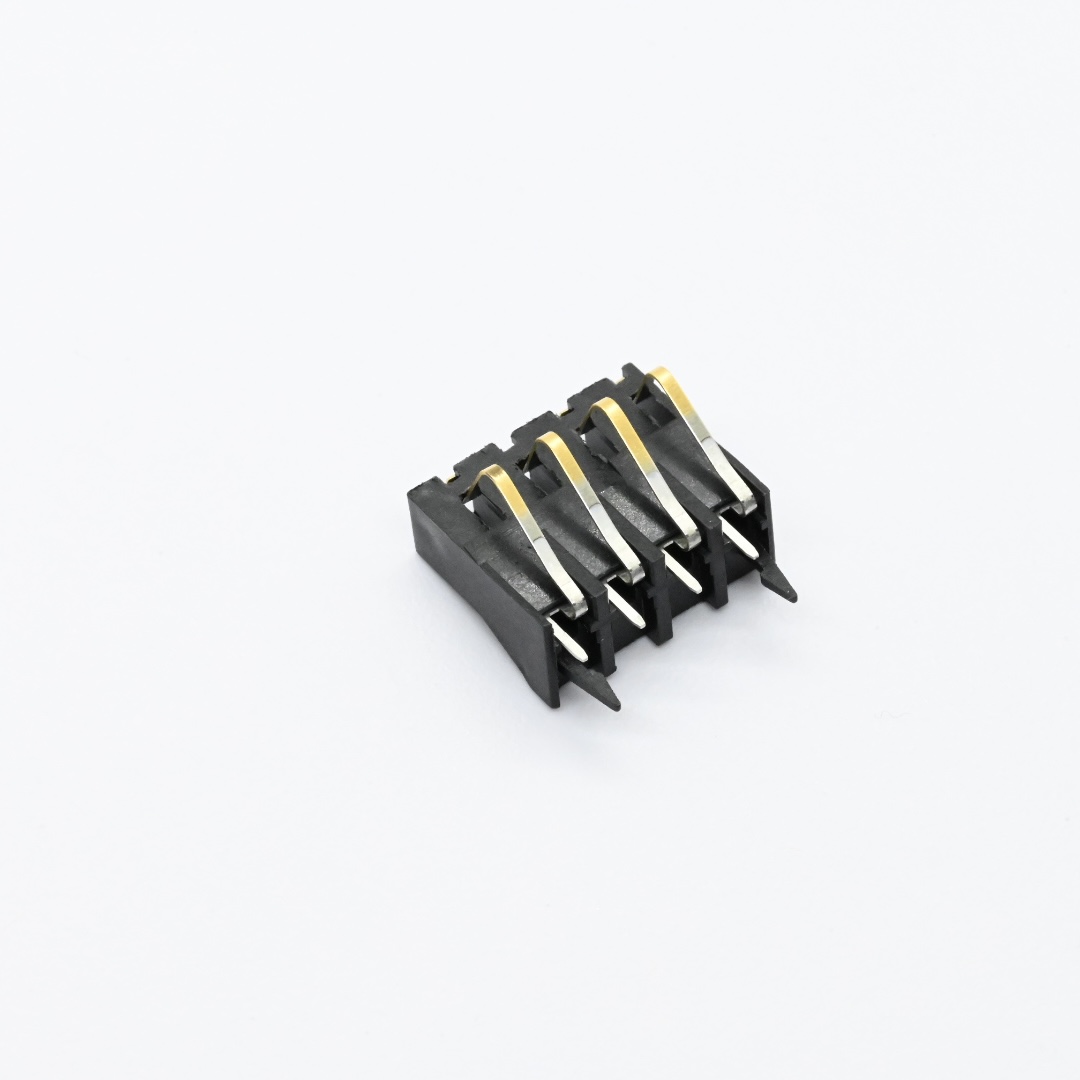

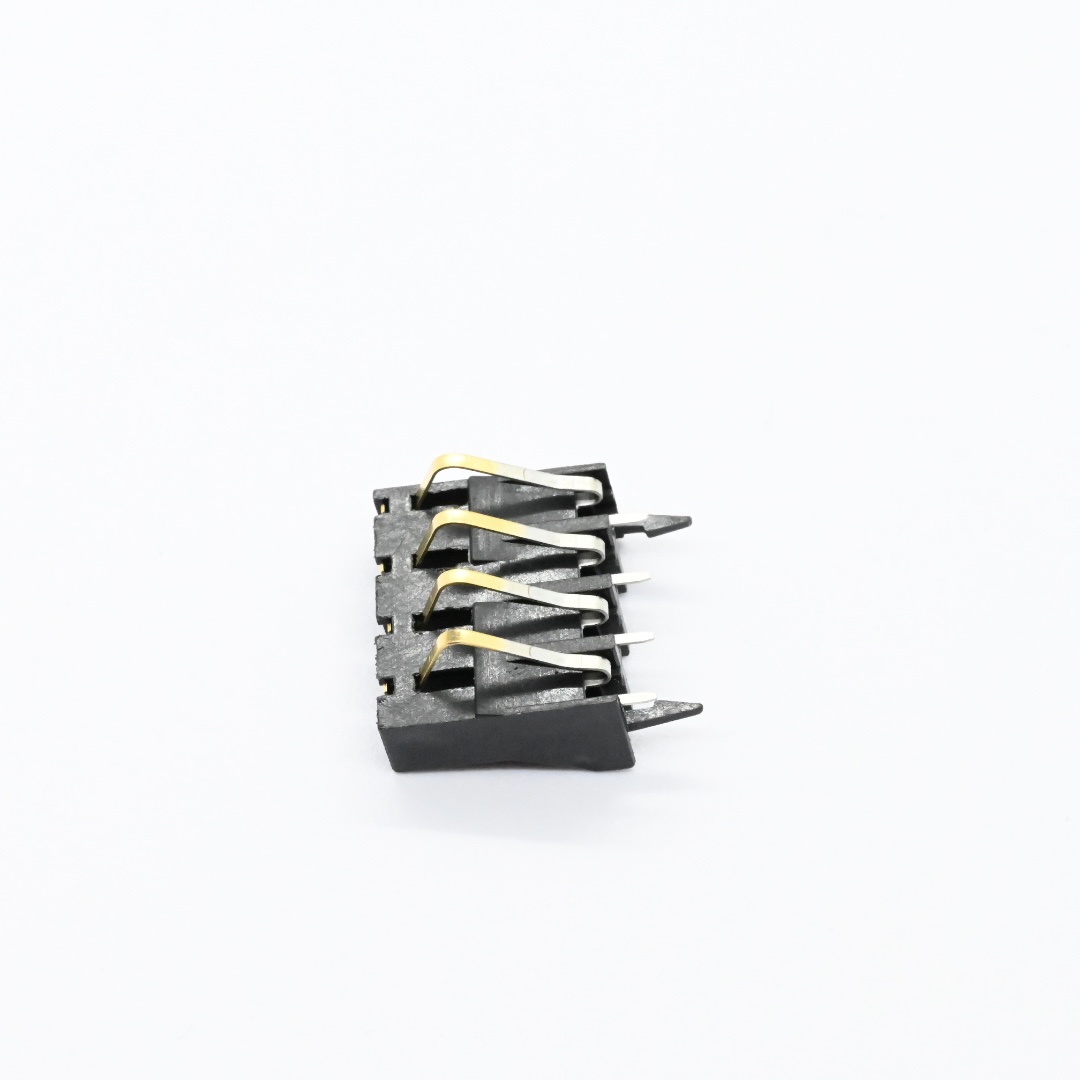

Beryllium Copper Contact Pin delivers lasting elastic clamping force and supports up to 5000 reliable mating cycles for battery connection.
Tape Reel SMT Battery Terminal matches automatic pick and place equipment to improve mass production efficiency for electronic assembly lines.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

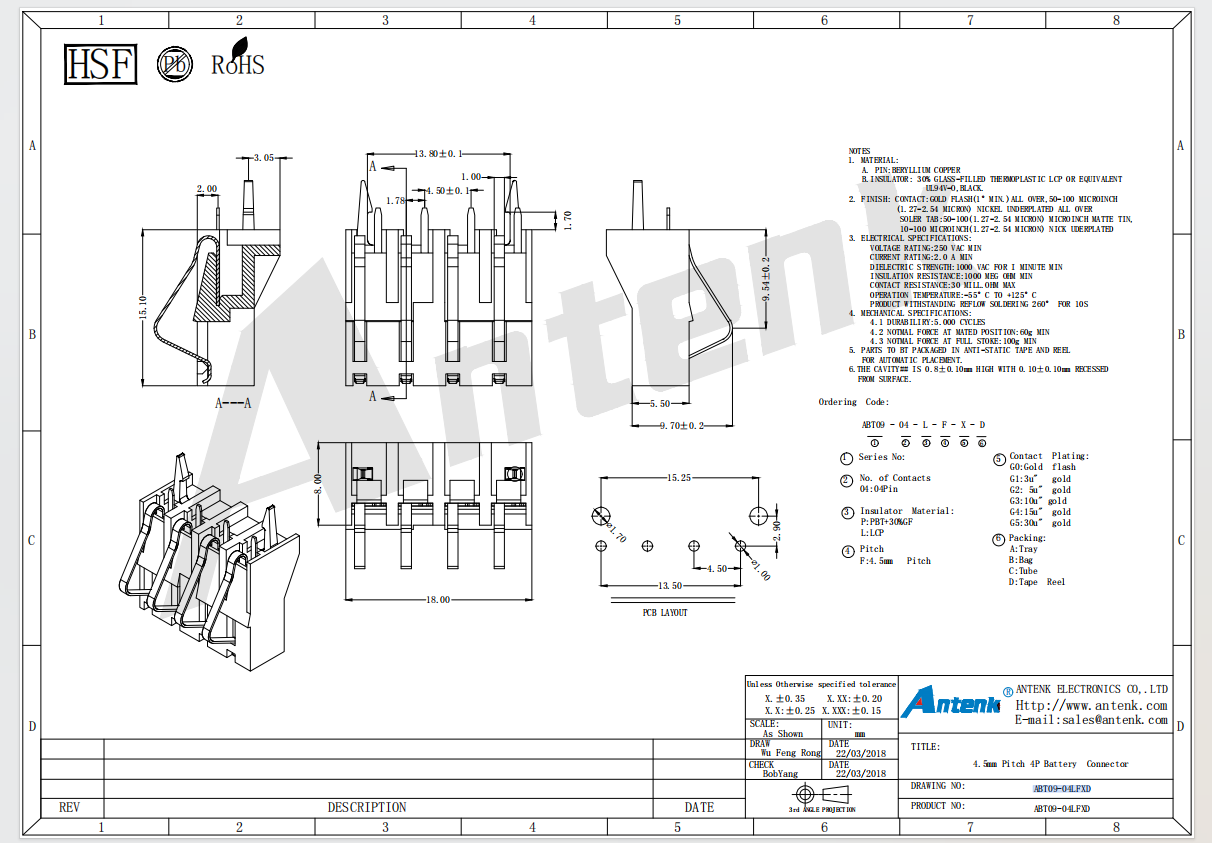

3、Product Drawing
