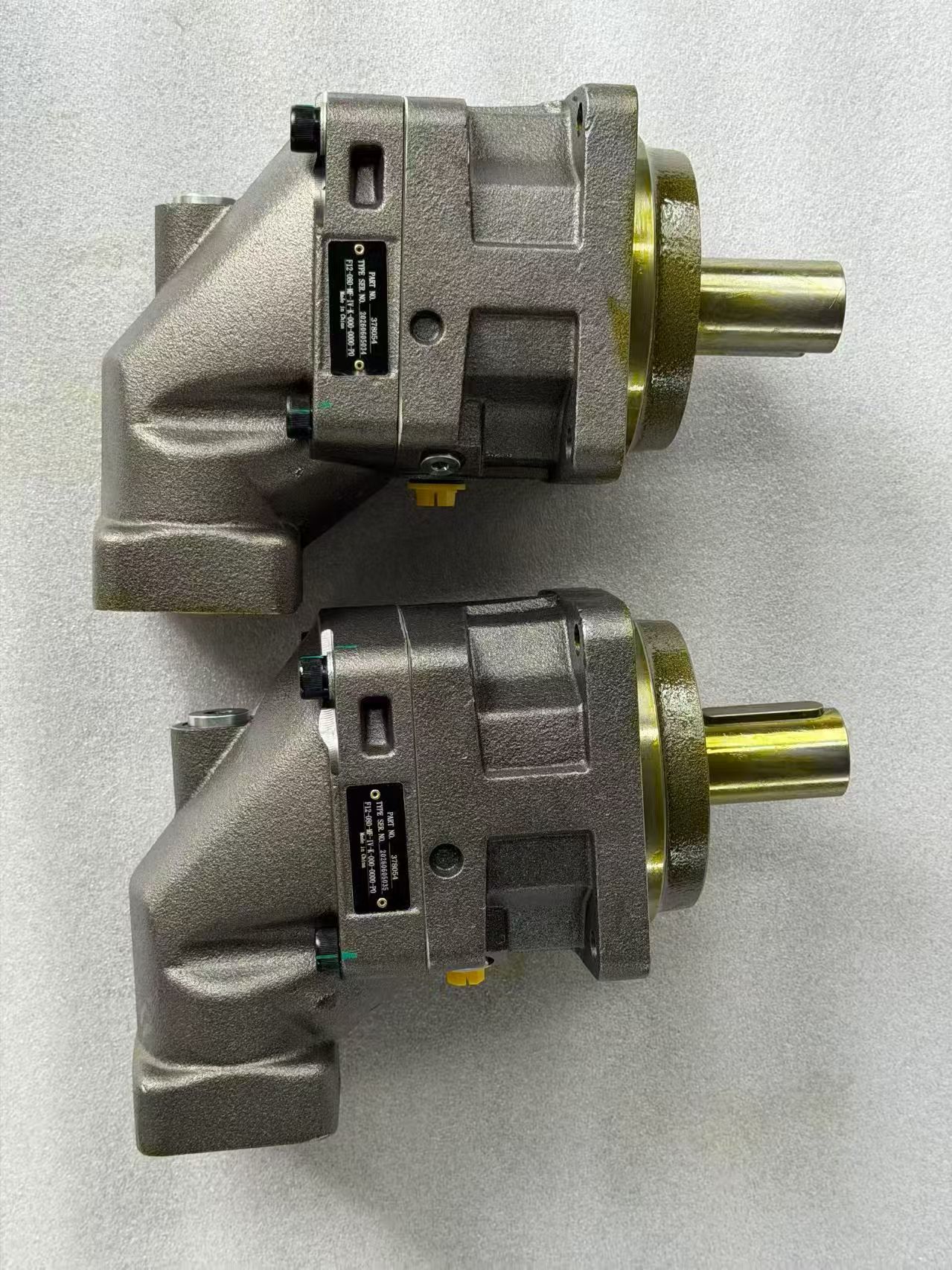

Replacement Hydraulic Motor for Parker F12-080, F12-110

1. Product Overview

This replacement hydraulic motor is designed as a direct interchange spare part for Parker F12-080 and F12-110 series fixed displacement bent axis piston motors. It adopts classic bent axis structure, fully consistent with original installation dimensions, spline shaft specifications, port layout and mounting interface of Parker F12 series.

It is an economical aftermarket substitute for original Parker motors, widely used for maintenance and renovation of mobile machinery hydraulic systems.

Model Code Explanation

- F12: Parker bent axis piston motor series

- 080 / 110: Nominal displacement 80cc/rev and 110cc/rev respectively

2. Main Technical Parameters

Item Specification

Motor Type Fixed displacement bent axis piston hydraulic motor

Displacement Option 80 cc/rev, 110 cc/rev

Rated Working Pressure 42 MPa

Maximum Peak Pressure 48 MPa

Permissible Speed Range 500 ~ 3500 rpm

Volumetric Efficiency ≥93% under rated working condition

Shaft Standard Spline shaft, interchangeable with original F12 series

Oil Port Form Thread connection, consistent with original layout

Applicable Fluid ISO VG46, VG68 anti-wear hydraulic oil

Operating Temperature -20℃ ~ +90℃

Standard Seals NBR; FKM high-temperature seals optional

3. Working Principle

High-pressure hydraulic oil enters the motor cylinder block and pushes pistons to generate axial thrust. The thrust acts on the inclined swashplate, producing torque to drive the output shaft rotation and convert hydraulic energy into mechanical energy.

The motor can realize forward and reverse rotation by switching the oil inlet and outlet directions. Optimized flow distribution structure reduces pressure loss and guarantees stable output torque under heavy load.

4. Core Advantages

1. Fully interchangeable with Parker F12-080 & F12-110; no modification required for pipelines, mounting base and control circuit during replacement.

2. Precisely matched internal friction pairs, low internal leakage and stable volumetric efficiency under long-term heavy-duty operation.

3. High pressure resistance, large starting torque, strong overload capacity.

4. Compact and lightweight structure, convenient for installation and field maintenance.

5. Stable performance at high rotating speed, low vibration and low noise.

6. Shorter delivery cycle and competitive cost compared with imported original Parker spare parts.

5. Application Range

This interchange bent axis piston motor is the core executing component of hydraulic systems. It is widely fitted on concrete mixer trucks, mining equipment, drilling rigs, construction machinery, marine hydraulic equipment and other mobile machinery originally equipped with Parker F12-080 or F12-110 motors.
