1、Product Description
Huizhou Antenk Electronics Co., Ltd. independently designs and manufactures the 1.27mm pitch dual row SMT female header with overall width 3.1mm and height 2.1mm, a compact board to board connection component dedicated to miniature electronic circuit signal and power transmission. This female header supports customizable pin counts ranging from 2 pins to 80 pins, with two structural versions available including type A without locating pegs and type B equipped with positioning pegs to guarantee accurate PCB mounting alignment. The conductive terminals are crafted from premium brass material with multiple surface plating selections such as gold flash, selective half gold and pure tin plating to satisfy different anti oxidation and conductive requirements. The insulating housing adopts PA6T thermoplastic material graded UL94 V 0 flame retardant, delivering stable performance within the operating temperature scope of minus 65 degrees Celsius to 125 degrees Celsius. Its core electrical specifications cover 1A rated current per contact, minimum 1000 megohm insulation resistance, maximum 20 milliohm contact resistance and 500V AC dielectric withstand voltage. All critical dimensions are produced under tight tolerance standards, and assorted packaging solutions including tape and reel, tray, tube and bag are offered to adapt to automated SMT assembly lines. The whole product strictly complies with RoHS and REACH EU environmental directives for global export trade.
This surface mount female header is designed for automatic PCB reflow soldering assembly. Production workers use SMT pick and place equipment to attach the connector to preset circuit board pads, then complete high temperature reflow welding to achieve firm fixation and reliable electrical connection. It is extensively adopted in liquid crystal display modules, digital cameras, portable communication devices, industrial control panels, digital household appliances, electronic toys, notebook peripherals and precision measuring instruments. During application, users must avoid long term current overload exceeding 1A per pin to prevent terminal heating and contact failure. Excessively high soldering temperature should be avoided to prevent deformation of the PA6T plastic insulator, and finished connectors need sealed dry storage to stop brass terminals from being oxidized by moisture and air.
Antenk boasts comprehensive competitive strengths compared with ordinary small scale connector manufacturers relying on complete industrial chains and authoritative global quality certifications. Most peer factories adopt common PA66 plastic and low precision stamped brass terminals with unstable dimensional consistency, while our PA6T housing features superior high temperature resistance and our precisely stamped brass contacts maintain lasting elastic clamping force after repeated plugging cycles. Our production base has obtained ISO9001, ISO14001 and IATF16949 automotive grade quality management certifications, furnished with over 20 sets of professional testing instruments to conduct full batch inspections on electrical performance, plating thickness, flame retardancy and dimensional accuracy. We provide flexible customization on pin number, plating type, structural style and packaging mode with favorable minimum order quantity, and in house mold development eliminates expensive external mold costs and long delivery cycles faced by overseas suppliers.
Antenk implements full vertical integrated production procedures for this dual row SMT female header across its 10000 square meter workshops staffed by more than 250 professional employees. The entire manufacturing process begins with self developed precision hardware mold design and fabrication supported by 180 sets of terminal stamping molds and 250 sets of plastic connector molds. Brass strips are punched and shaped by Taiwanese high speed precision stamping machines, meanwhile PA6T raw particles are injected into insulating shells via Japanese precision plastic injection molding machines. Subsequent surface electroplating, component assembly, clamping cap installation, visual sorting and standardized packaging are finished in dedicated workshops. Every batch of finished goods undergoes aging tests, temperature cycling experiments and electrical performance detection before shipment, with exclusive batch coding realized for full production traceability. We provide free product samples, official PCB layout drawings and round the clock overseas technical support. Over 70 percent of Antenk connectors are exported worldwide, earning consistent trust from electronic industry clients across Europe, Southeast Asia, North America and other global regions.
PA6T High Temp Socket Header features UL94 V0 flame retardant performance and works stably between -65°C and 125°C for high-temperature SMT production.
Brass Plated SMT Terminal supports multiple plating options including gold flash and tin to lower contact resistance and resist long-term oxidation.
Dual Row PCB Female Connector comes with optional locating pegs and customizable pin counts from 2P to 80P for compact miniature circuit interconnection.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

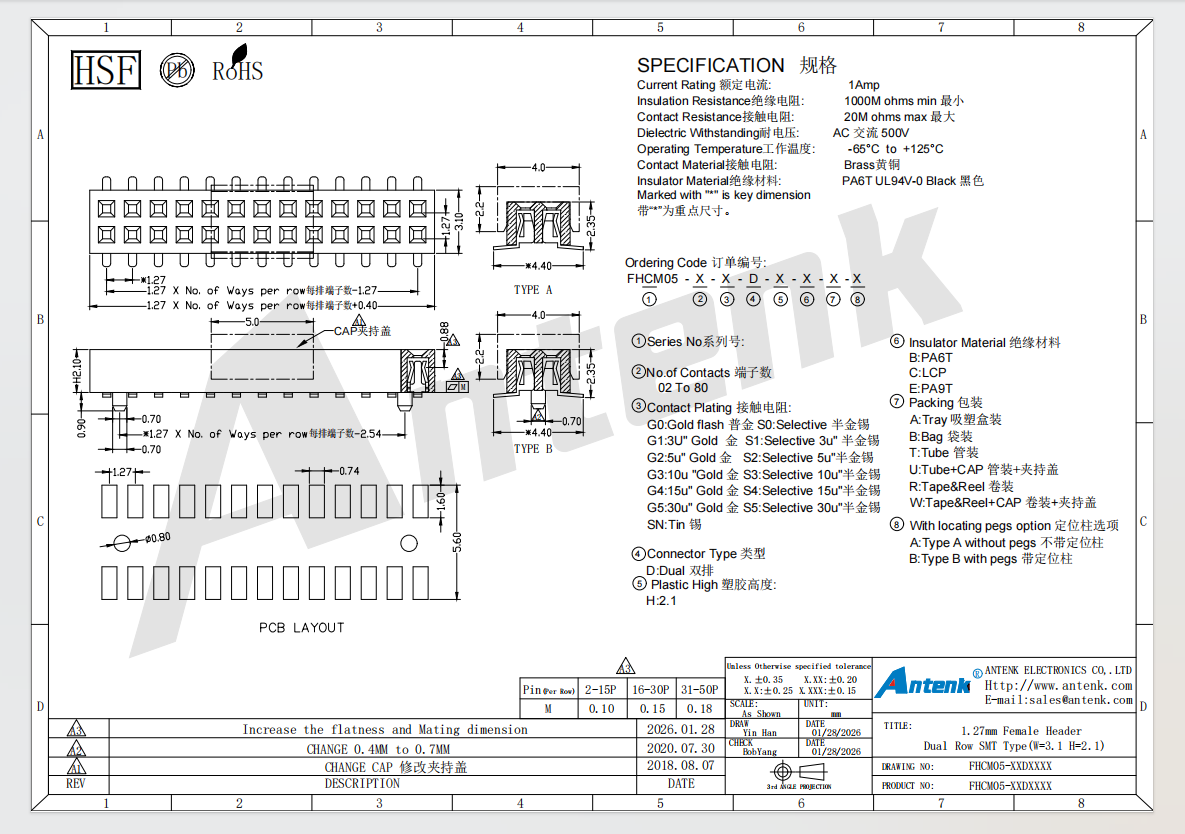

3、Product Drawing
