1、Product Description

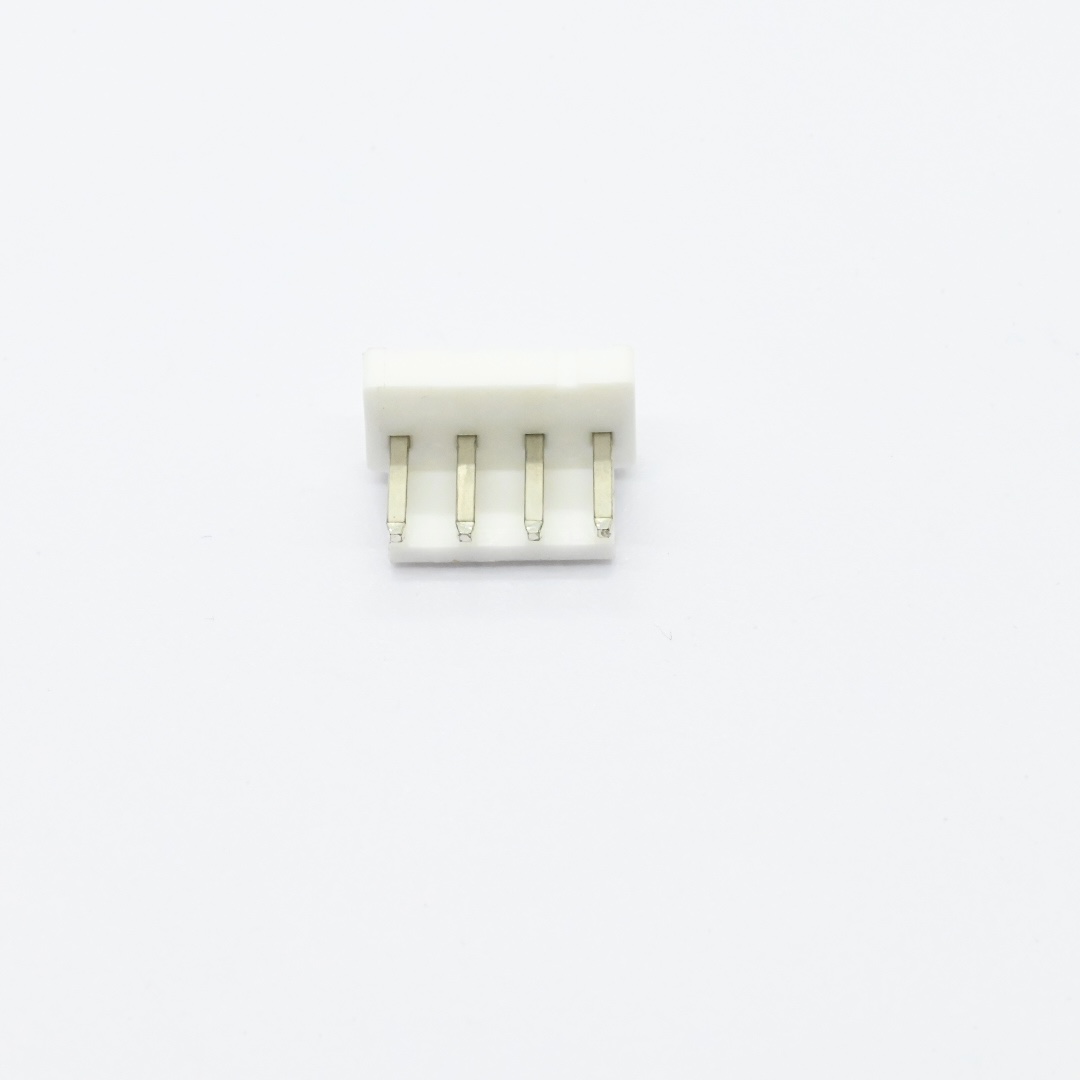

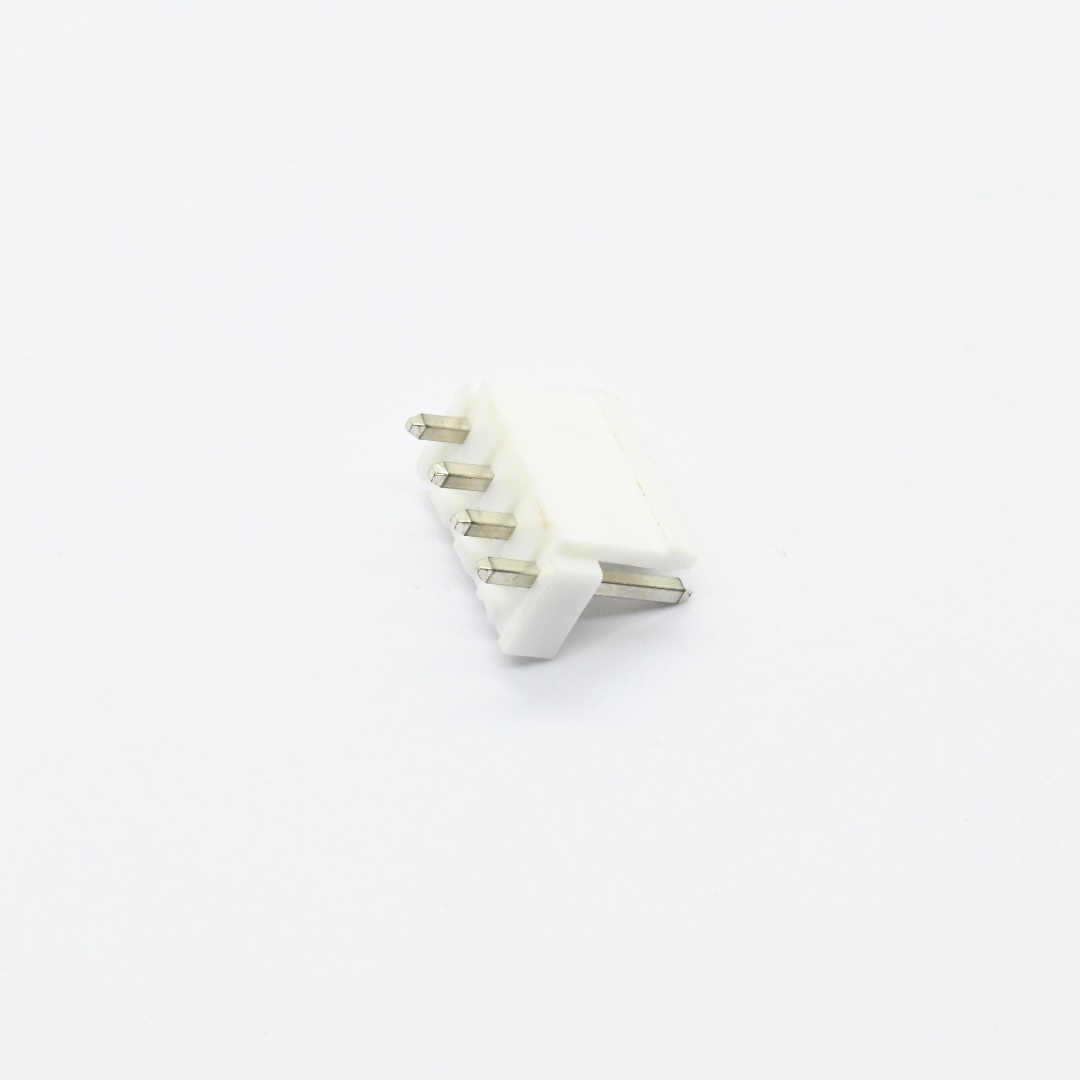

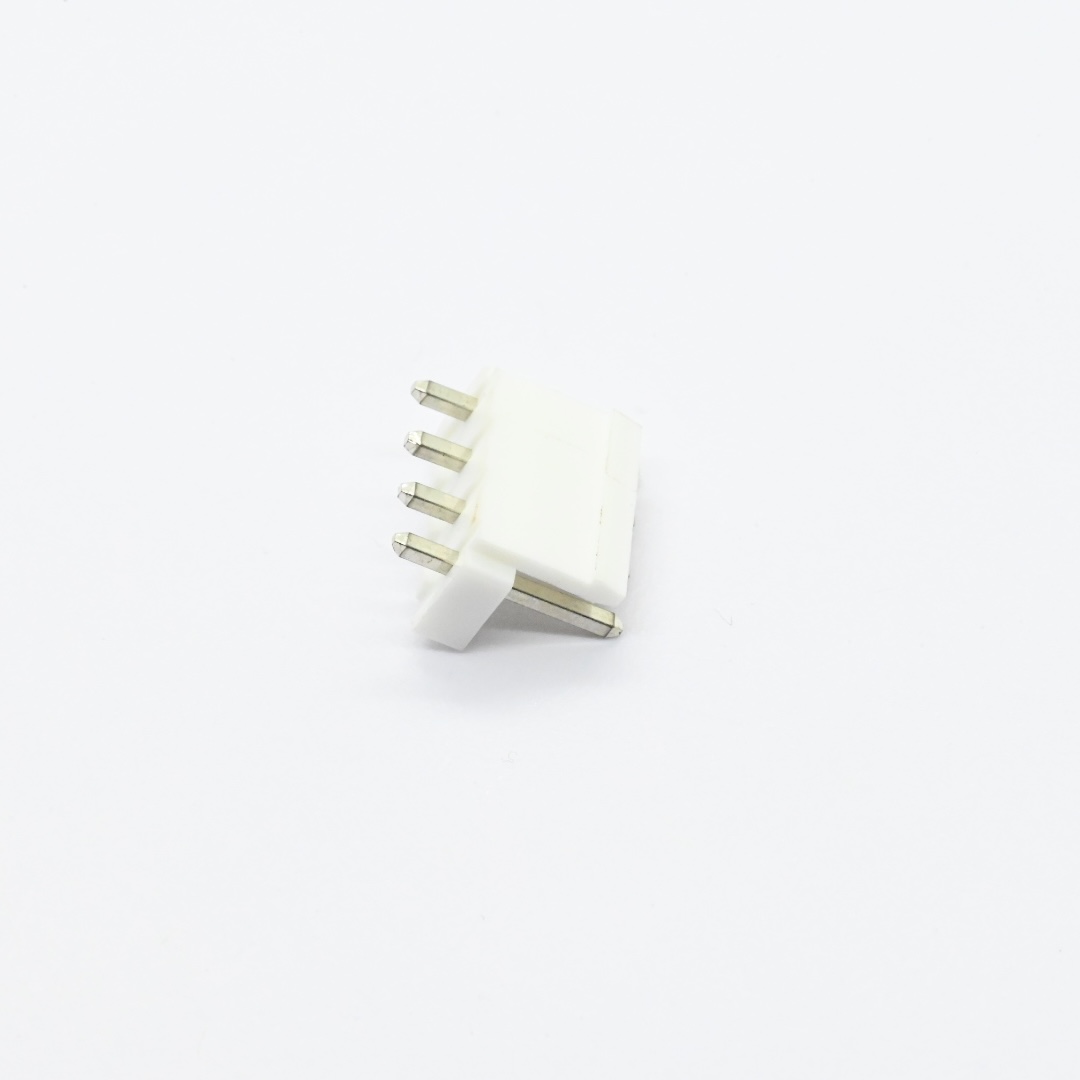

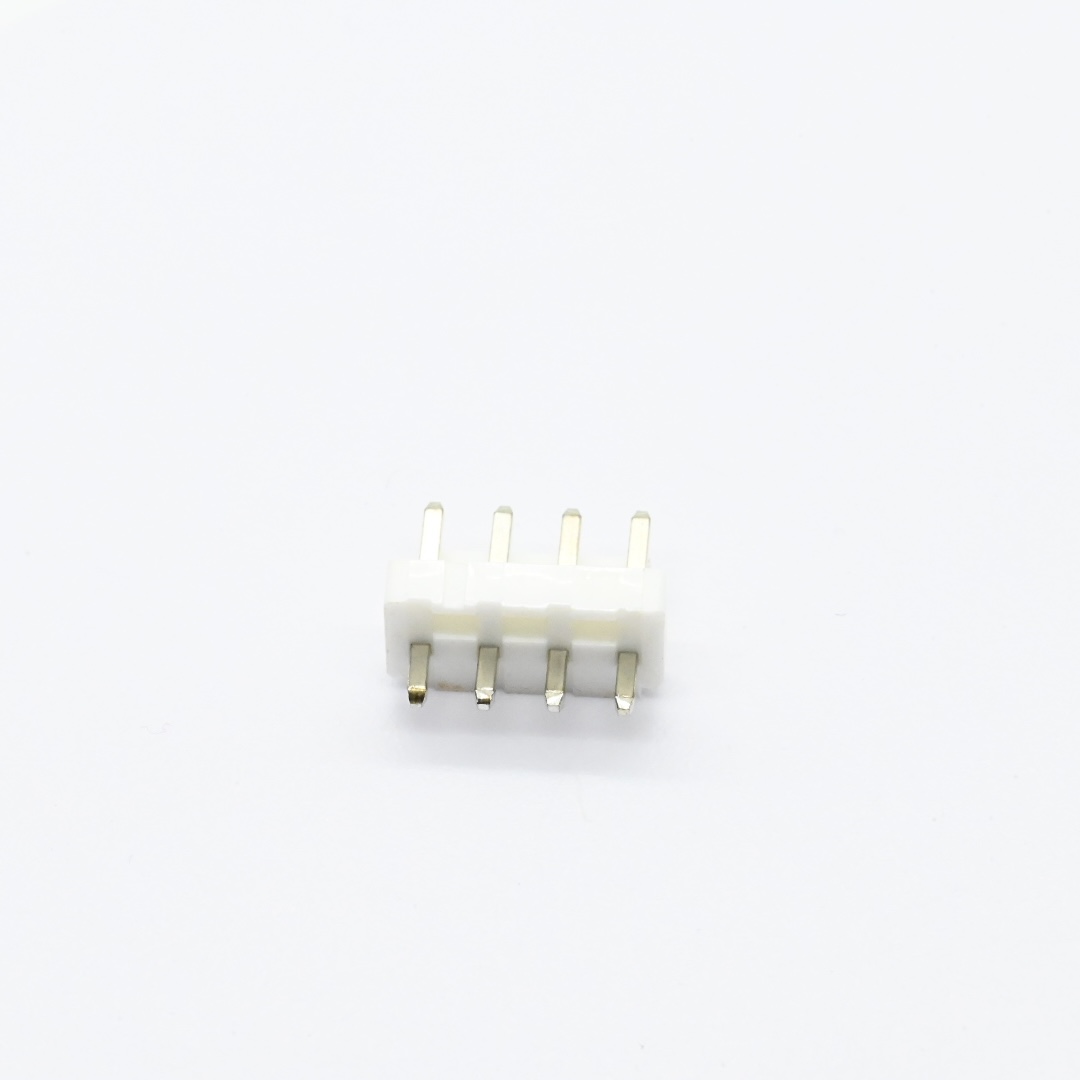

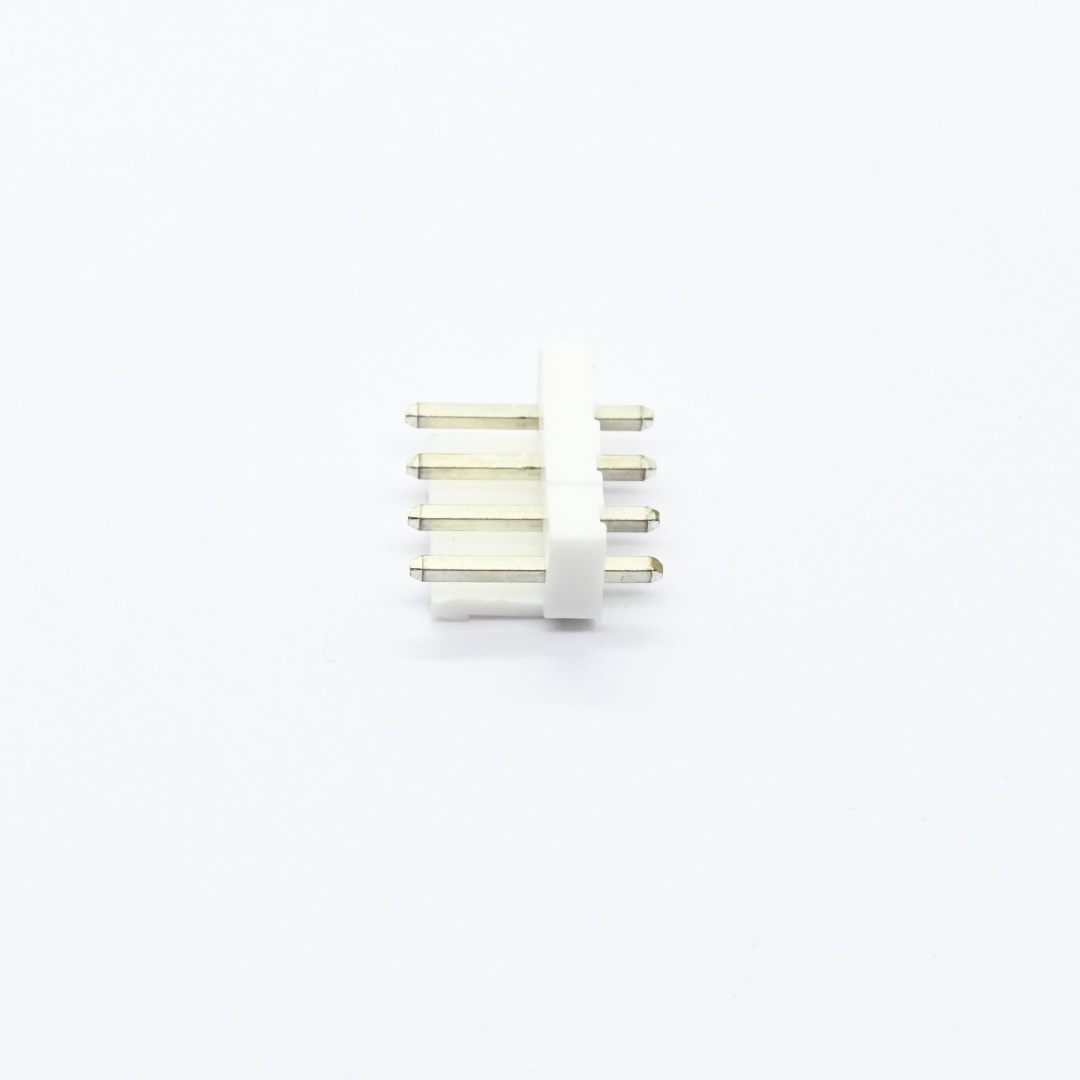

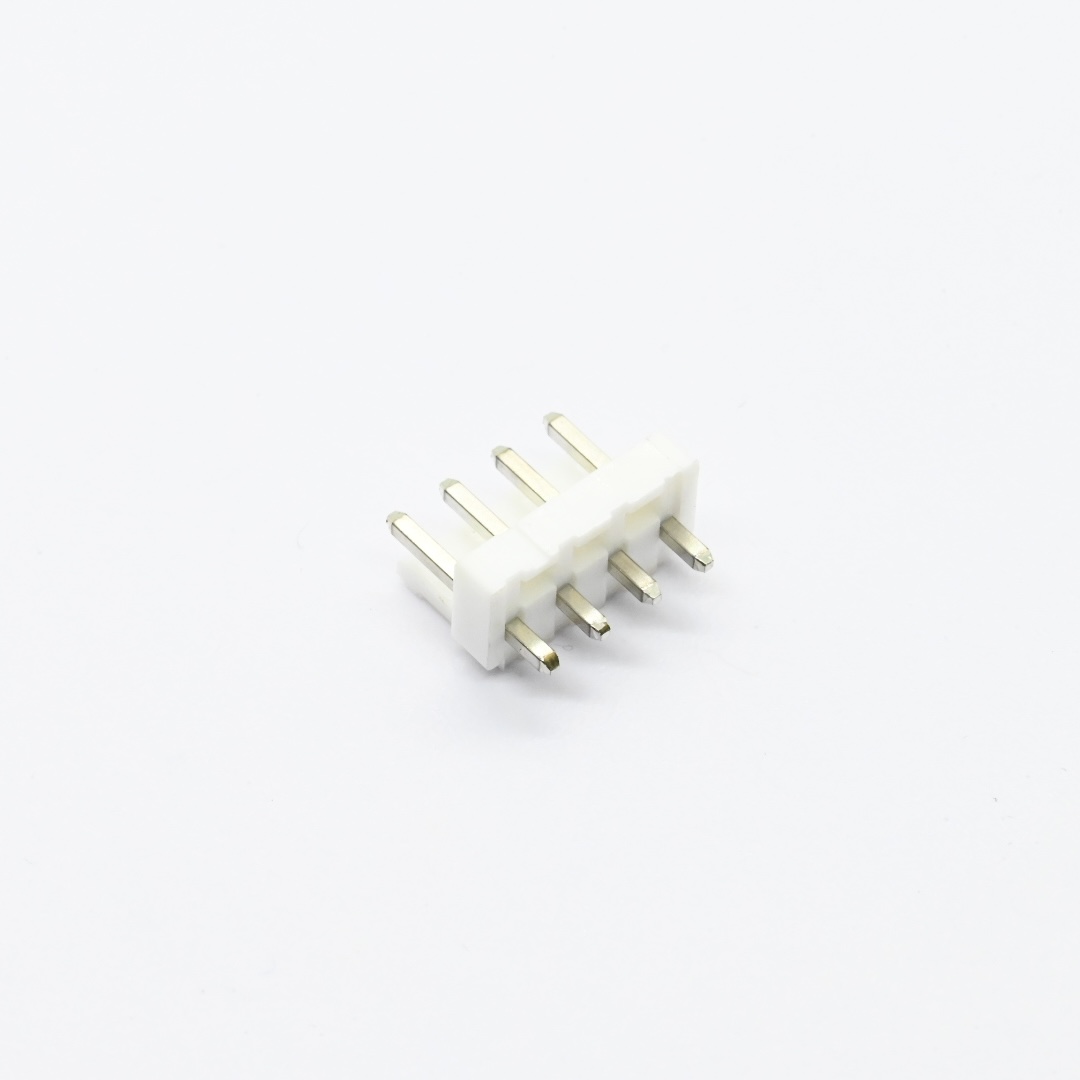

Huizhou Antenk Electronics Co., Ltd. independently develops and produces the 3.96mm pitch 180 degree VH Wafer Connector Series, a classic wire to board connector dedicated to stable power and signal transmission between wiring harnesses and printed circuit boards. This series supports adjustable pin counts ranging from 2 pins to 16 pins with unified 3.96mm pitch standard, all key dimensions are manufactured under strict tolerance specifications to guarantee precise mating consistency. The conductive pins are made of high quality brass with full tin plating treatment, effectively preventing oxidation and limiting maximum contact resistance to 20 milliohms. The insulating shell adopts UL94 V0 flame retardant nylon 66 material, enabling stable continuous operation within the temperature range of minus 25 degrees Celsius to 85 degrees Celsius. Excellent electrical performances include rated voltage of 250V AC DC, 7A rated current per circuit, minimum 1000 megohm insulation resistance and 1500V AC one minute dielectric withstand voltage. All finished products fully comply with RoHS and REACH European environmental regulations, suitable for bulk export to global electronic markets. Multiple packaging choices such as tube, tray and bulk bag are available to satisfy manual assembly and automated production demands respectively.
This straight through hole wafer connector is installed via through hole soldering on PCB boards. Operators insert the connector pins into reserved PCB holes then complete soldering to achieve firm mechanical fixation and reliable electrical connection, and it can be perfectly matched with corresponding VH series wire harness plugs for quick plug and unplug assembly. Widely applied in household air conditioners, washing machines, audio devices, industrial control equipment, digital cameras, communication modules, electronic toys, computer peripherals and precision testing instruments. During daily application, users shall never exceed the rated 7A current and 250V voltage to avoid terminal overheating and burnout. Excessively high soldering temperature is forbidden to prevent nylon housing deformation, and unused connectors need to be stored in dry environment to avoid tin plated terminals rusting under damp conditions.
Antenk owns prominent competitive advantages over small connector manufacturers relying on full vertical production system and complete international quality certifications. Most competitors use recycled nylon and low precision stamped brass terminals with unstable electrical performance, while our virgin UL94V0 nylon housing delivers reliable flame retardancy and our precisely stamped brass pins maintain stable elastic force after frequent mating cycles. Our factory has passed ISO9001, ISO14001 and IATF16949 automotive grade quality certifications, equipped with over 20 sets of professional testing machines to conduct comprehensive inspections on voltage resistance, insulation property, dimensional accuracy and flame retardancy for each batch. We provide customized pin quantity and packaging solutions with flexible MOQ, and self owned mold development avoids expensive external mold fees and long delivery lead times for overseas buyers.
Antenk carries out the whole manufacturing process of this 3.96mm wafer connector in its 10000 square meter production base with more than 250 professional staff. The complete workflow starts with independent precision mold design and production, supported by 180 sets of metal terminal molds and 250 sets of plastic connector molds. Brass raw materials are punched and shaped by Taiwan high speed precision stamping equipment, and nylon pellets are injected into insulating housings through Japanese precision plastic injection machines. Subsequent tin electroplating, automatic assembly, appearance sorting and standardized packaging are finished in dedicated workshops. Every batch undergoes aging and electrical performance tests before shipment, with exclusive batch coding to realize full production traceability. We offer free samples, official PCB layout drawings and 24 hour global technical support. More than 70 percent of Antenk connectors are exported worldwide, winning lasting trust from electronic manufacturers across Europe, Southeast Asia, North America and other international regions.
Tin Plated Brass Wafer Pin effectively resists oxidation and keeps contact resistance below 20 milliohms for long-term stable circuit conduction.
Nylon UL94V0 Connector Housing features outstanding flame retardancy and stable performance between minus 25°C and 85°C for household and industrial devices.
7A High Current PCB Wafer supports 250V AC DC voltage and delivers reliable wire-to-board connection for air conditioners, controllers and digital equipment.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

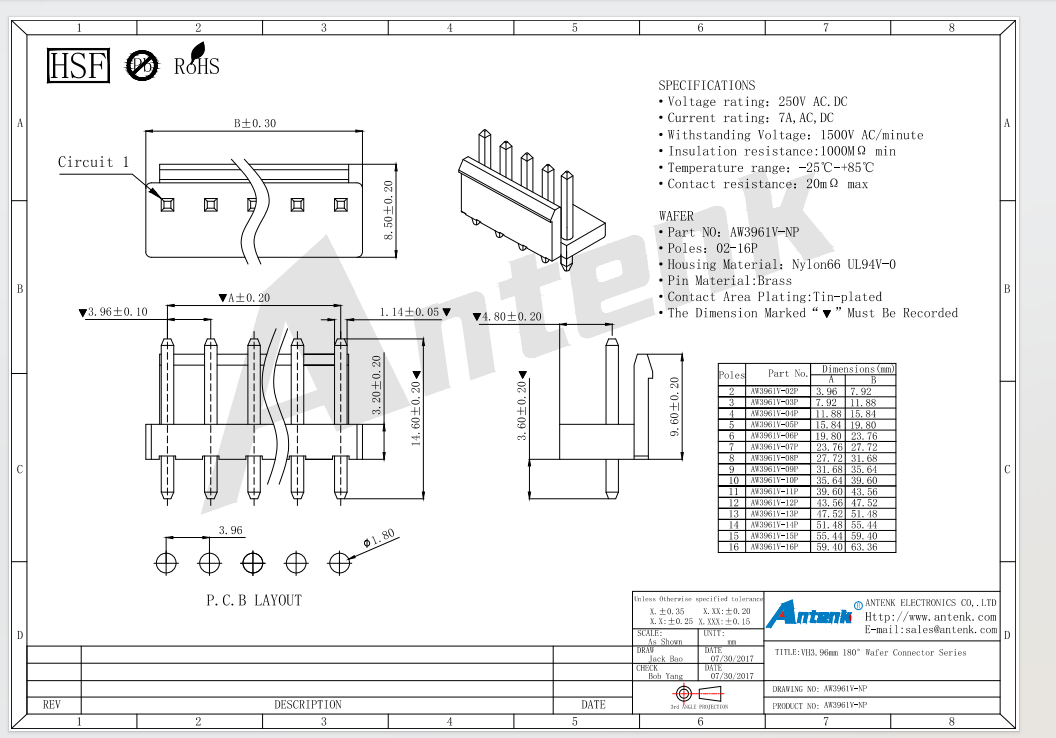

3、Product Drawing
