1、Product Description

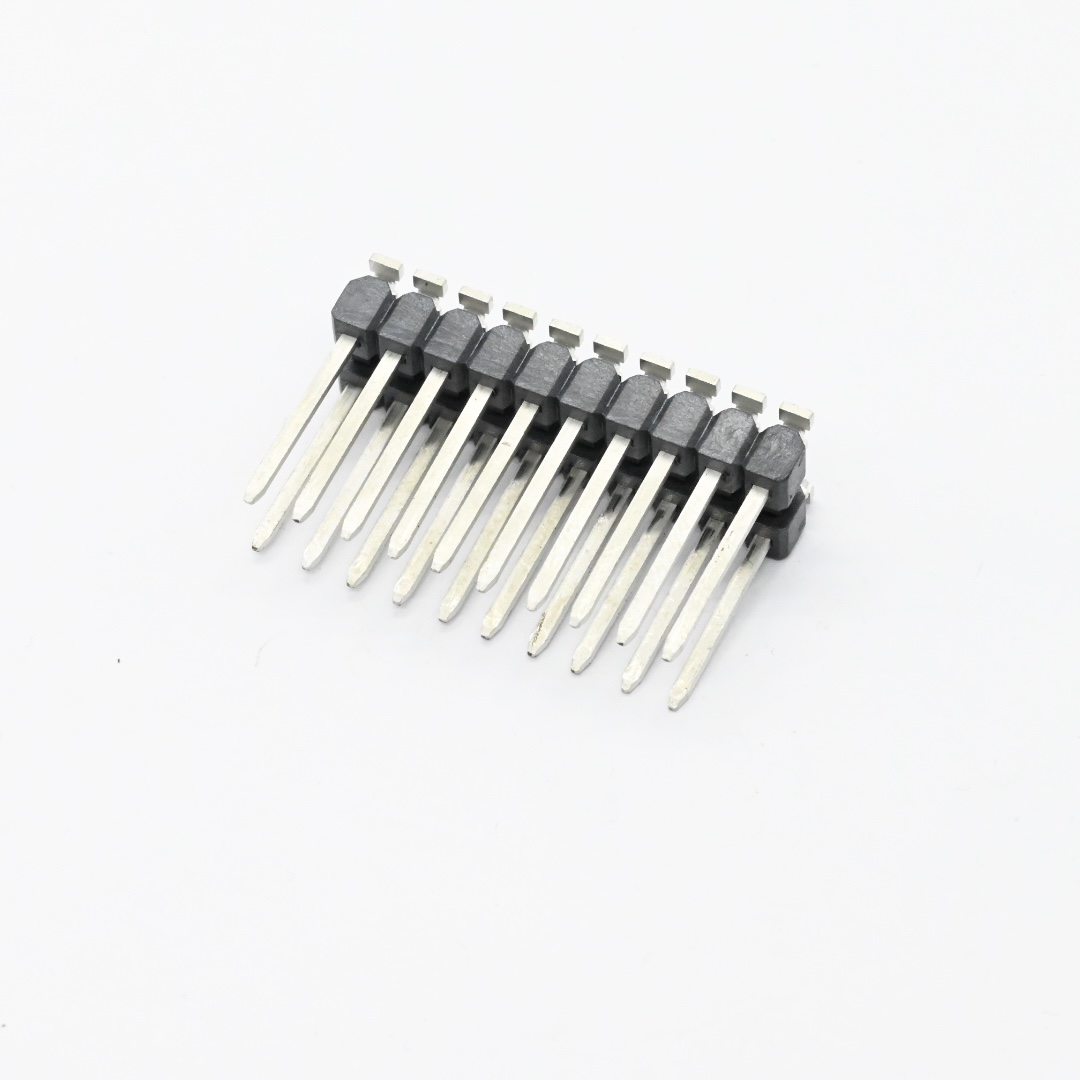

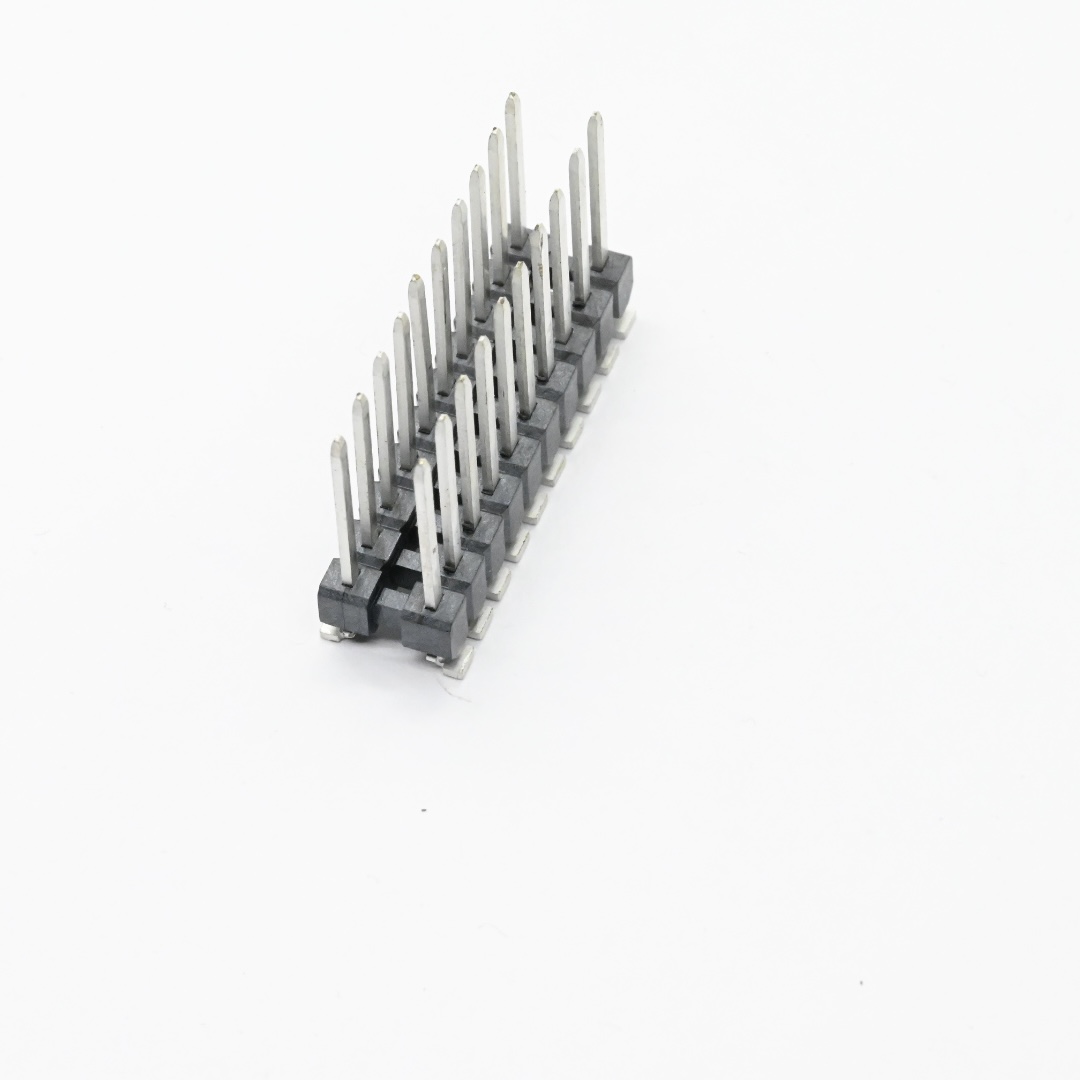

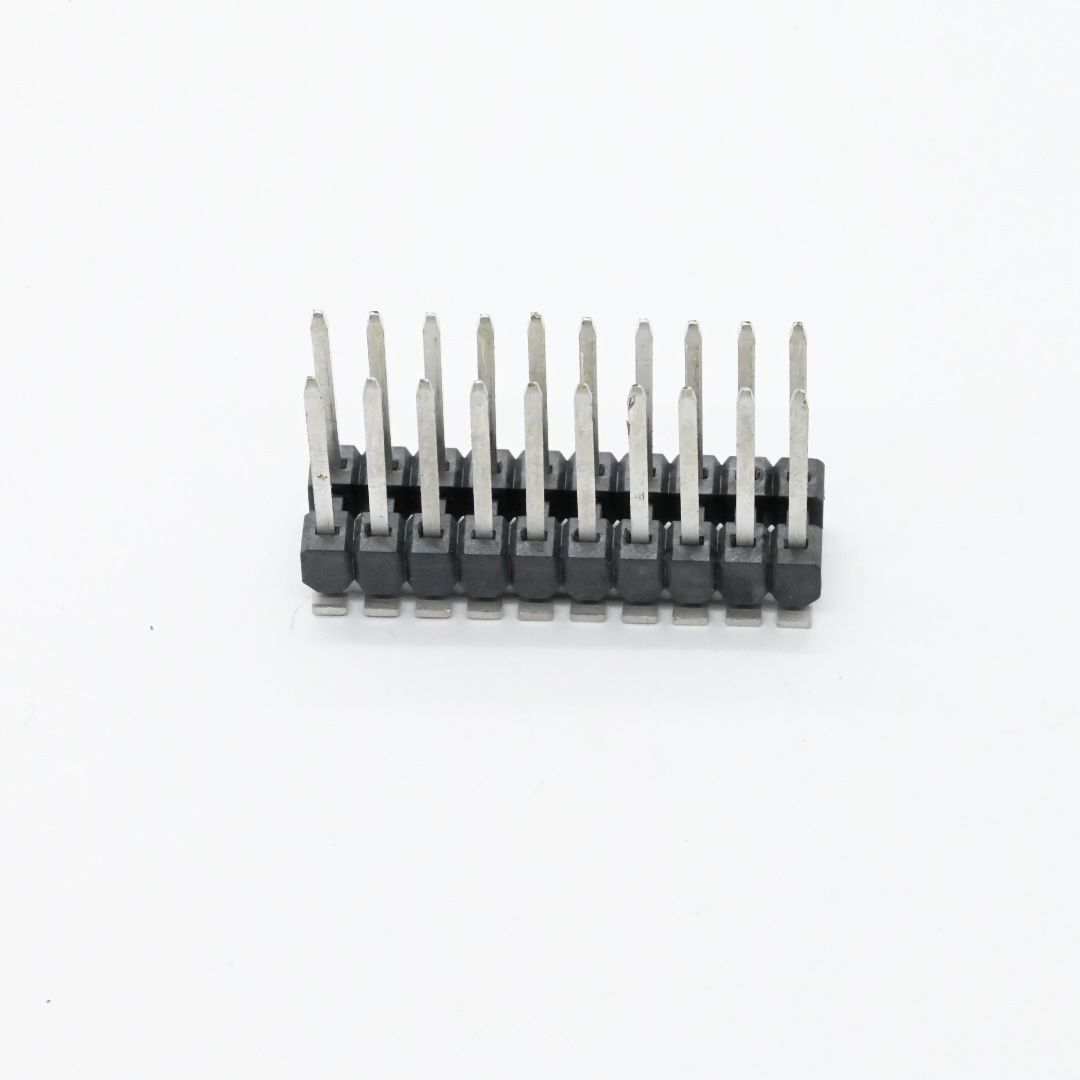

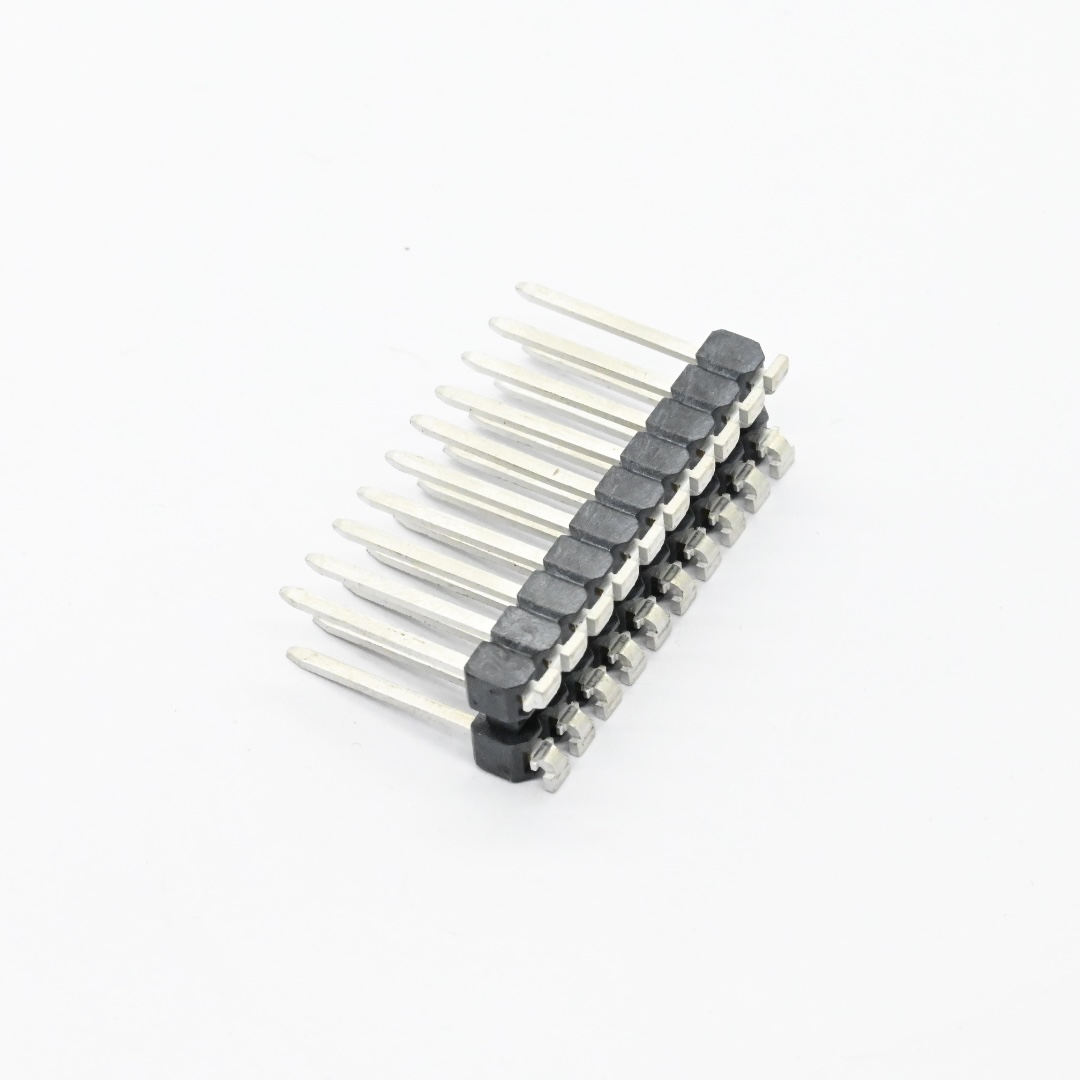

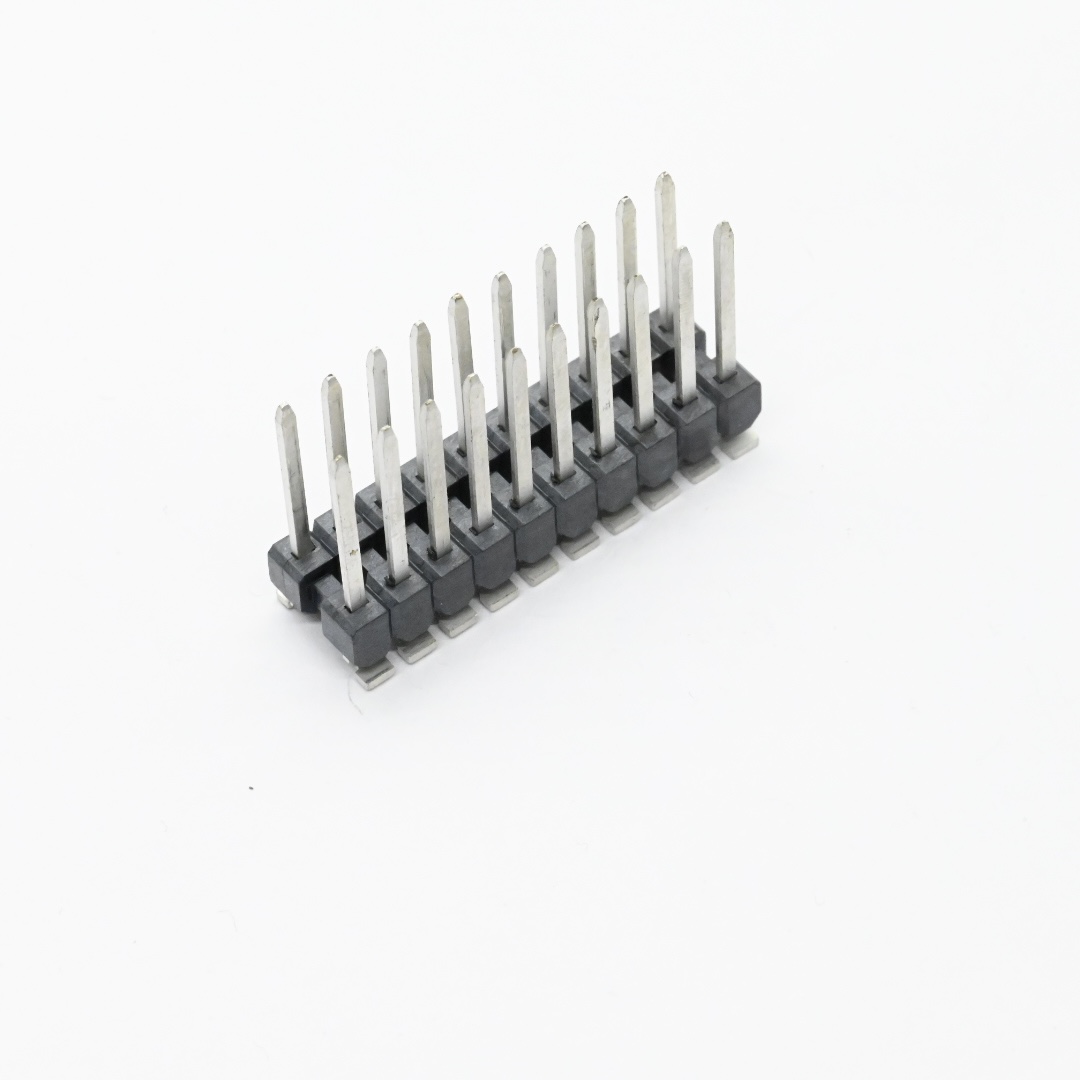

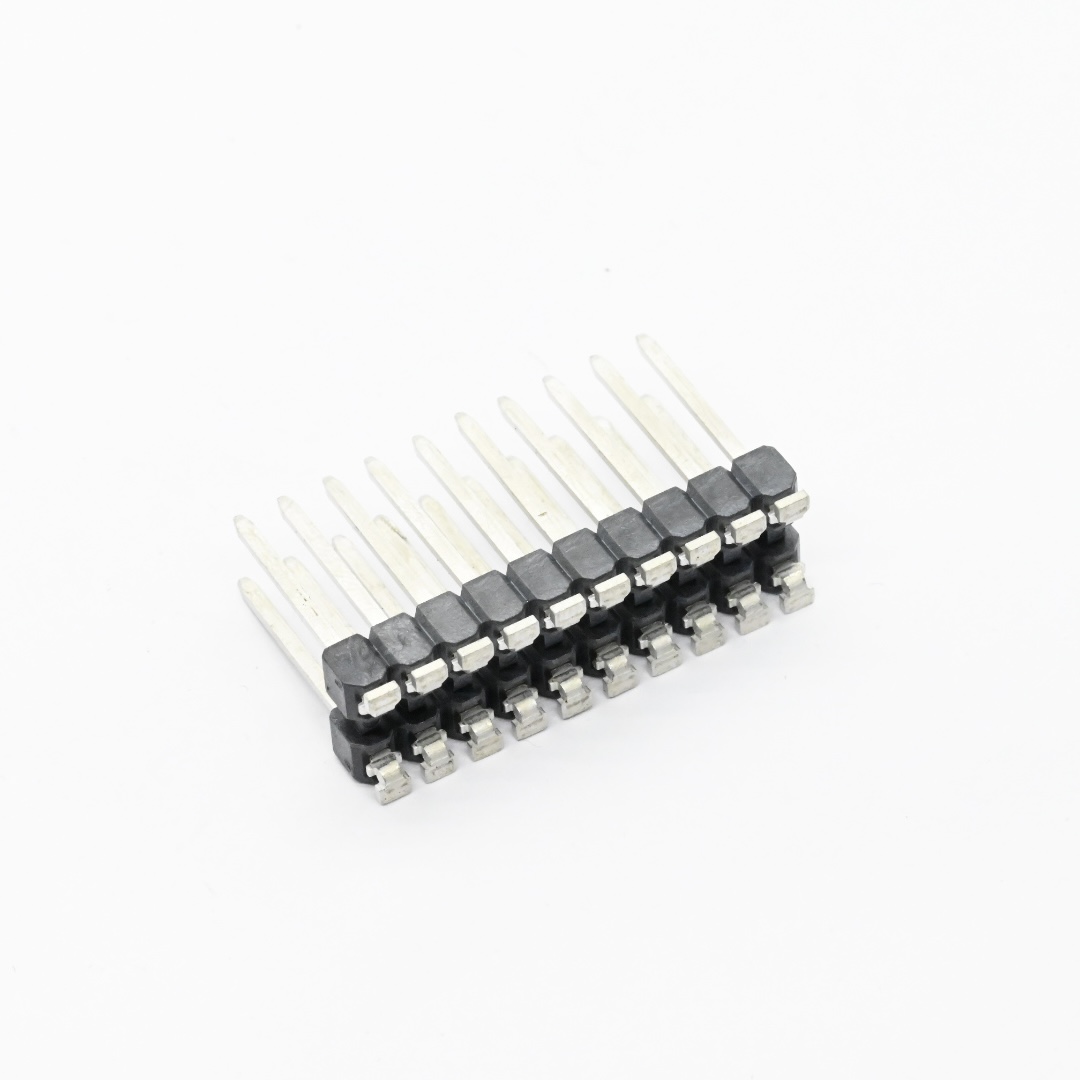

Huizhou Antenk Electronics Co., Ltd. independently develops the 3.5mm Pin Header Dual Row Straight SMT Type, a reliable connecting component for stable board-to-board and wire-to-board electrical transmission. This series adopts standard 3.5mm pitch with dual row configuration, supporting customizable pin counts ranging from 2 to 40 pins to match diverse circuit layout demands. The insulating housing is molded from UL94 V-0 high-temperature PBT material, capable of withstanding 260°C reflow soldering without warpage. Contacts are stamped from high-quality phosphor bronze, with optional gold or tin plating to meet different anti-oxidation requirements. Key specifications include 5A rated current per contact, 20mΩ max contact resistance, 1000MΩ min insulation resistance and 500V AC dielectric strength, with operating temperature from -40℃ to 125℃. All items comply with RoHS, REACH and UL certification E472792 for global export.
This straight SMT header is designed for automated surface mount assembly, supplied in standard tape and reel packaging to fit automatic pick-and-place machines. Users can mount it on PCB following the official recommended land pattern, then complete soldering via standard reflow process to achieve firm fixation and stable conduction. It is widely applied in automotive electronics, industrial control equipment, household appliances, communication devices, power modules and other mid-size electronic products. During usage, avoid exceeding the 5A rated current per contact to prevent terminal overheating, do not perform excessive reflow cycles to avoid plastic housing deformation, and store idle products in dry sealed surroundings to prevent terminal oxidation.
Antenk owns distinct competitive edges against ordinary small connector manufacturers backed by complete vertical production chain and authoritative certifications. Most rivals use low-grade plastic and impure terminals with unstable tolerance, while our precision processing ensures coplanarity within 0.05mm for reliable solder joints. Our factory has passed ISO9001, ISO14001 and IATF16949 automotive quality certifications, equipped with 20+ professional testing machines to inspect each batch. We support customized pin counts, plating options and packaging solutions with flexible MOQ, and independent mold development eliminates extra tooling fees and shortens delivery lead time for overseas buyers, which small factories cannot provide.
The whole production workflow is completed in-house in our 10000 square meter production base with 250+ professional staff. It starts with independent precision mold design, followed by high-speed terminal stamping via Taiwan precision punches, surface electroplating, PBT injection molding, automated assembly, strict performance testing and standardized packaging. Every batch undergoes reflow simulation, contact resistance testing and salt spray test before shipment, with unique batch coding for full production traceability. We provide free samples, 2D/3D CAD drawings and 24-hour global technical support. Over 70% of our products are exported worldwide, winning long-term trust from electronic manufacturers across Europe, Southeast Asia, North America and other global markets.
High Temp SMT Header is constructed with UL94 V-0 PBT insulator that maintains stable shape under 260°C reflow soldering environment.
3.5mm Header offers dual row structure and adjustable pin counts from 2 pins to 40 pins to satisfy various circuit layout requirements.
Straight SMT Connector supports tape and reel packaging for automatic pick and place equipment to boost mass production assembly efficiency.
2、FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How any different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

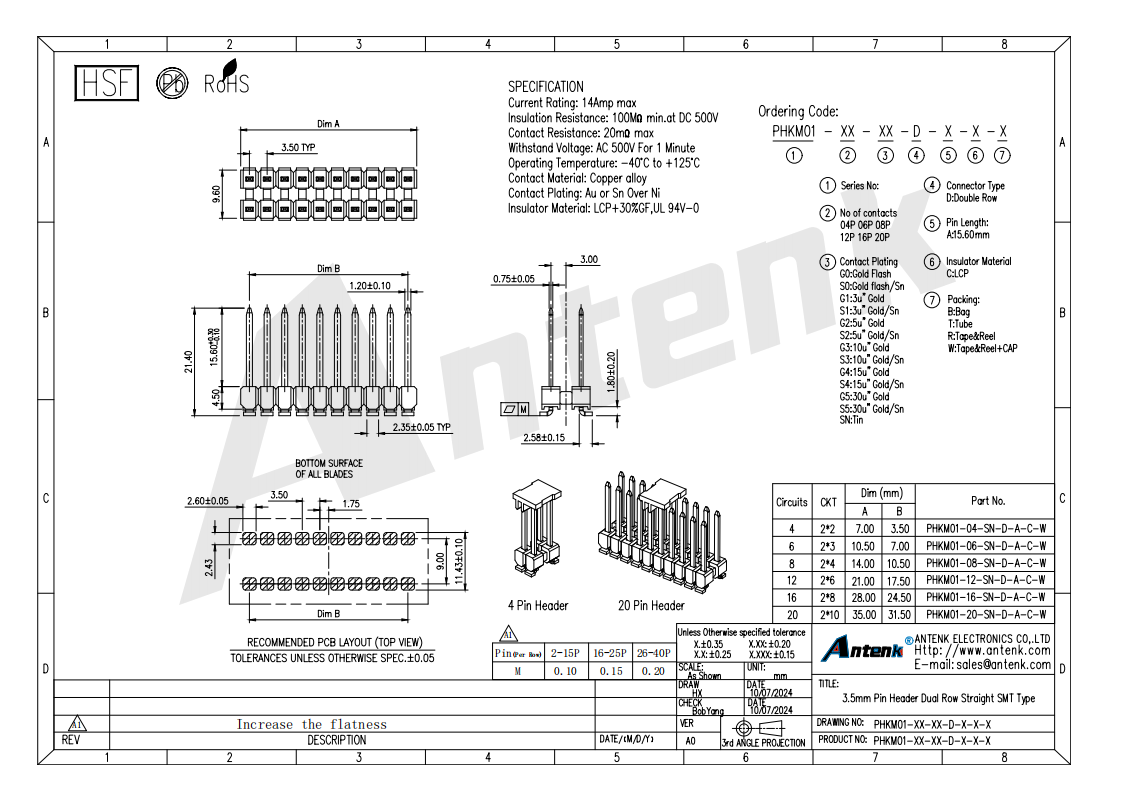

3、Product Drawing
