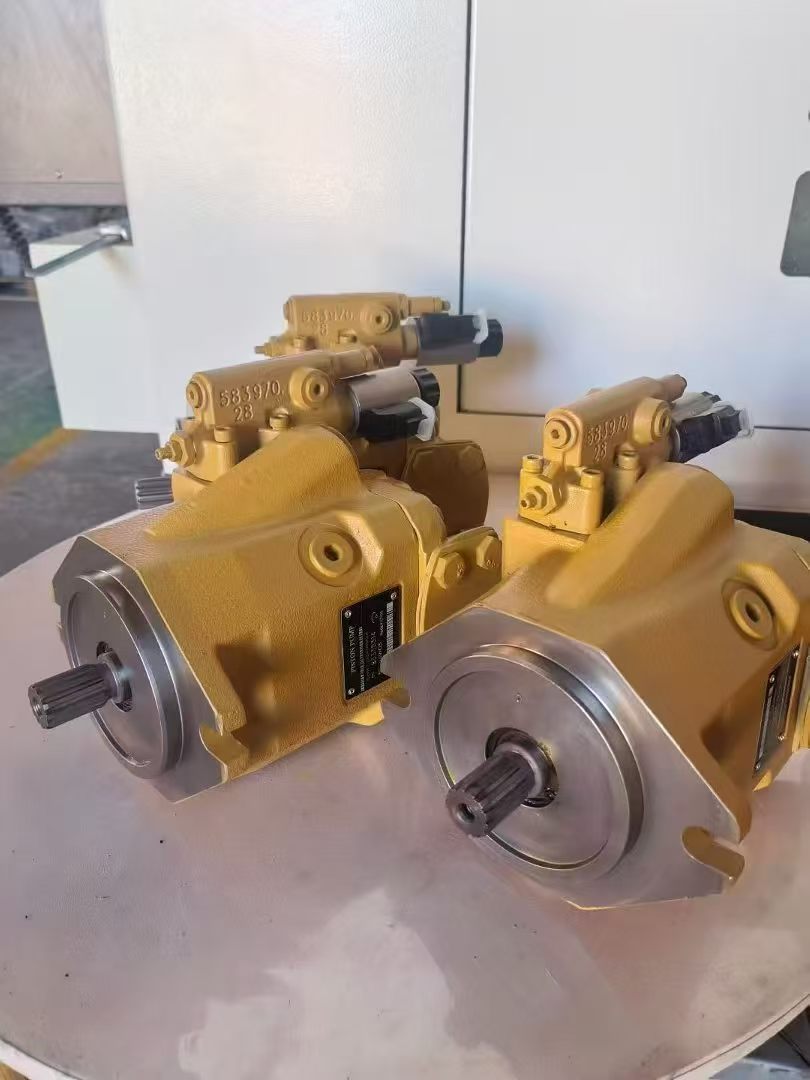

Fan Pump for CAT 336GC / 345GC / 349GC

1. Product Overview

This hydraulic fan pump is an aftermarket replacement component designed for Caterpillar 336GC, 345GC and 349GC excavators equipped with the C9.3B engine.

As the power supply unit of the hydraulic cooling system, the fan pump delivers pressurized hydraulic oil to drive the cooling fan motor. It cooperates with the fan motor to adjust fan speed and control the engine cooling temperature. High-quality interchangeable aftermarket fan pumps can be adopted for equipment maintenance and overhaul to replace the original Caterpillar pump assembly directly.

2. Main Technical Parameters

Item Specification

Product Name Hydraulic Fan Pump

Applicable Engine CAT C9.3B Diesel Engine

Suitable Excavator Models CAT 336GC, 345GC, 349GC

Pump Type Variable displacement axial piston pump

Control Method Electronic proportional control

Working Voltage 24 VDC

Working Pressure Consistent with OEM standard specifications

Standard Seal Material NBR; FKM high-temperature sealing kit optional

Operating Temperature -20℃ ~ +95℃

3. Working Principle

The fan pump is driven by the engine. It absorbs hydraulic oil and outputs high-pressure oil flow to the fan motor.

The machine ECU continuously monitors engine coolant temperature and hydraulic oil temperature, and transmits control signals to the proportional solenoid valve mounted on the fan pump. The pump changes its displacement to adjust output flow, thereby regulating the rotation speed of the fan motor.

The system achieves intelligent temperature control: the fan runs faster under high temperature and reduces speed at low temperature, avoiding excessive power consumption and lowering fuel consumption.

4. Core Advantages

1. Produced in strict accordance with original dimension standards. Mounting flange, spline shaft and oil port layout are identical to OEM pumps, supporting plug-and-play replacement without pipeline modification.

2. Precisely machined internal components feature low internal leakage and stable performance during long continuous operation.

3. Sensitive proportional control realizes stepless adjustment of fan speed, effectively preventing engine overheating failure.

4. Robust cast pump body, excellent vibration resistance, suitable for heavy-load and harsh construction site conditions.

5. Perfectly matched with corresponding CAT fan motor assembly with part numbers 505-5179, 598-7826, 564-9801, 564-9802 and other interchange models.

6. Competitive price and short delivery lead time compared with genuine Caterpillar spare parts.

5. Application Range

Caterpillar large crawler excavators equipped with C9.3B engine:

CAT 336GC, CAT 345GC, CAT 349GC

Function: Provide hydraulic power for cooling fan hydraulic circuit, matched with hydraulic fan motor.

6. Common Faults & Replacement Suggestion

Typical faults: Fan speed insufficient, engine high-temperature alarm, abnormal knocking noise of pump body, shaft seal oil leakage, insufficient output pressure.

Fully flush all hydraulic pipelines and replace hydraulic filter elements before installation. Strictly guarantee hydraulic oil cleanliness to prevent impurities from damaging internal friction pairs. Replace the complete fan pump assembly once serious internal abrasion occurs.
