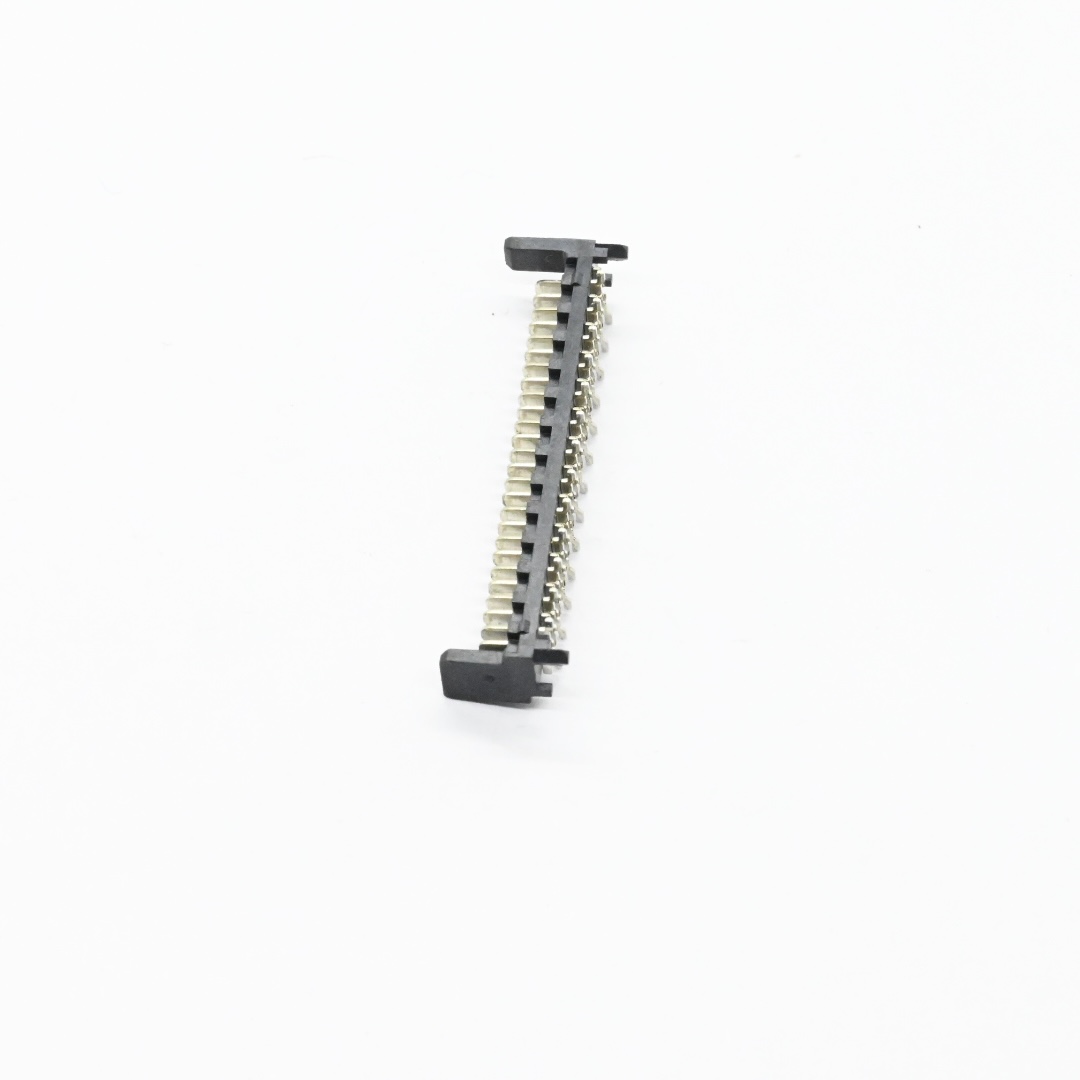

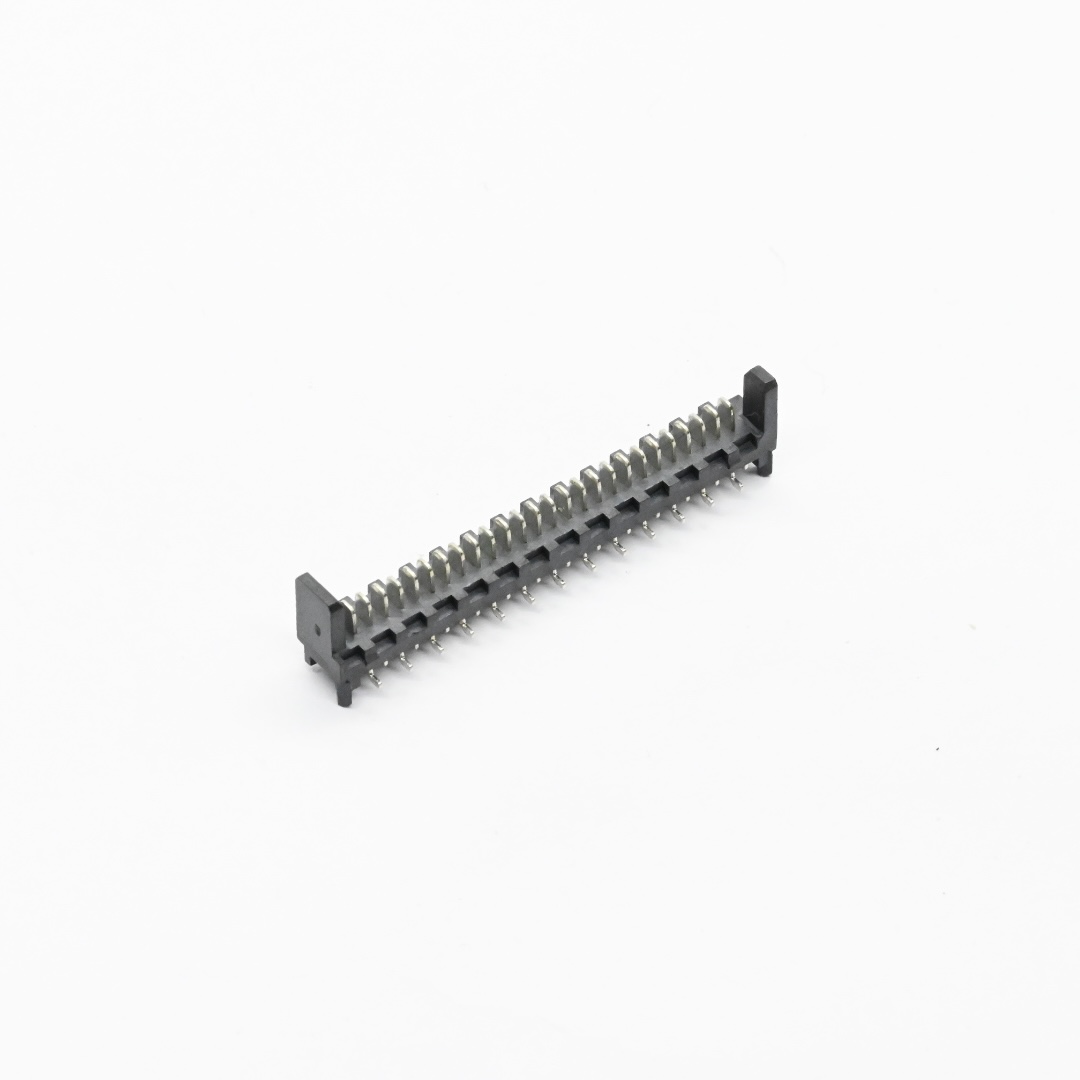

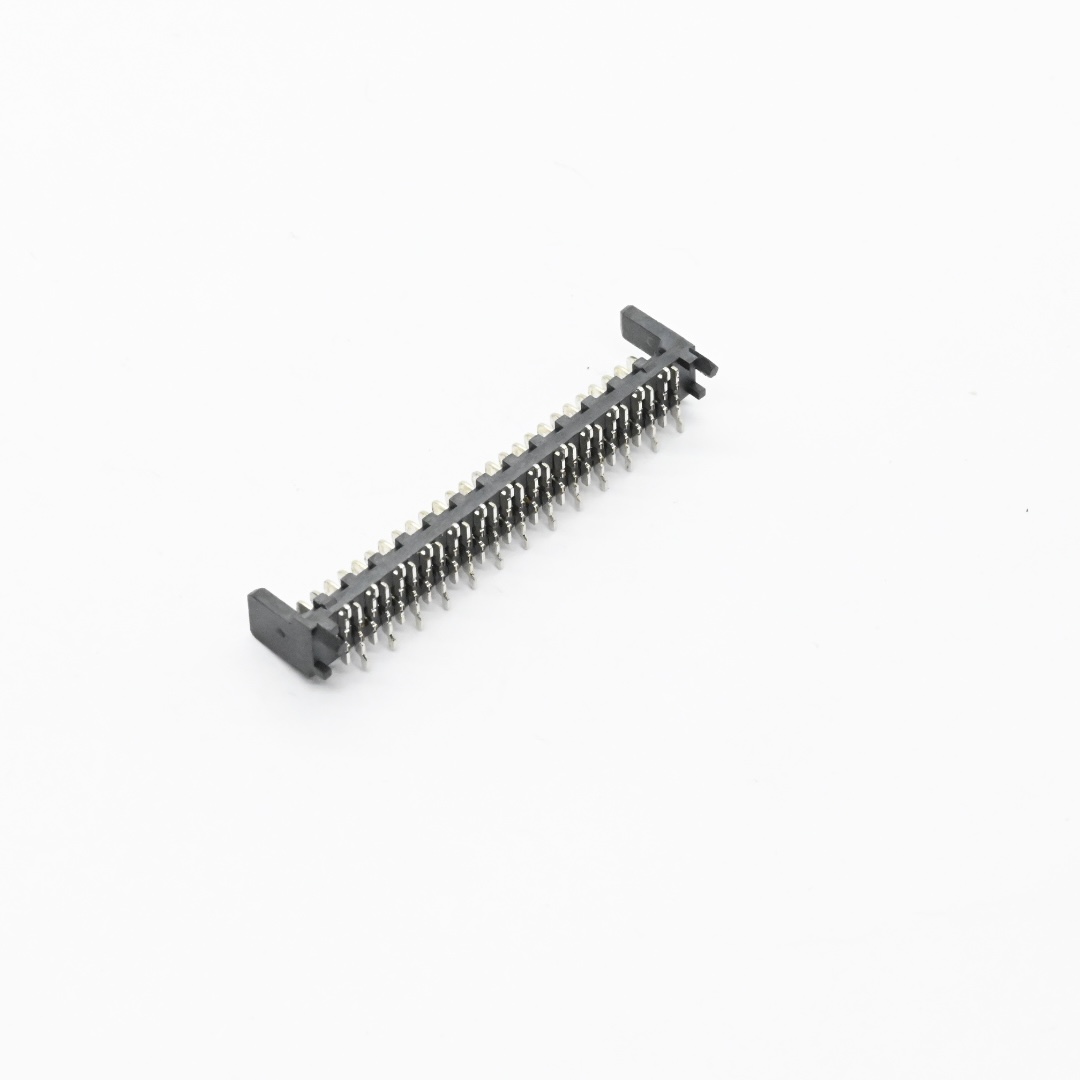

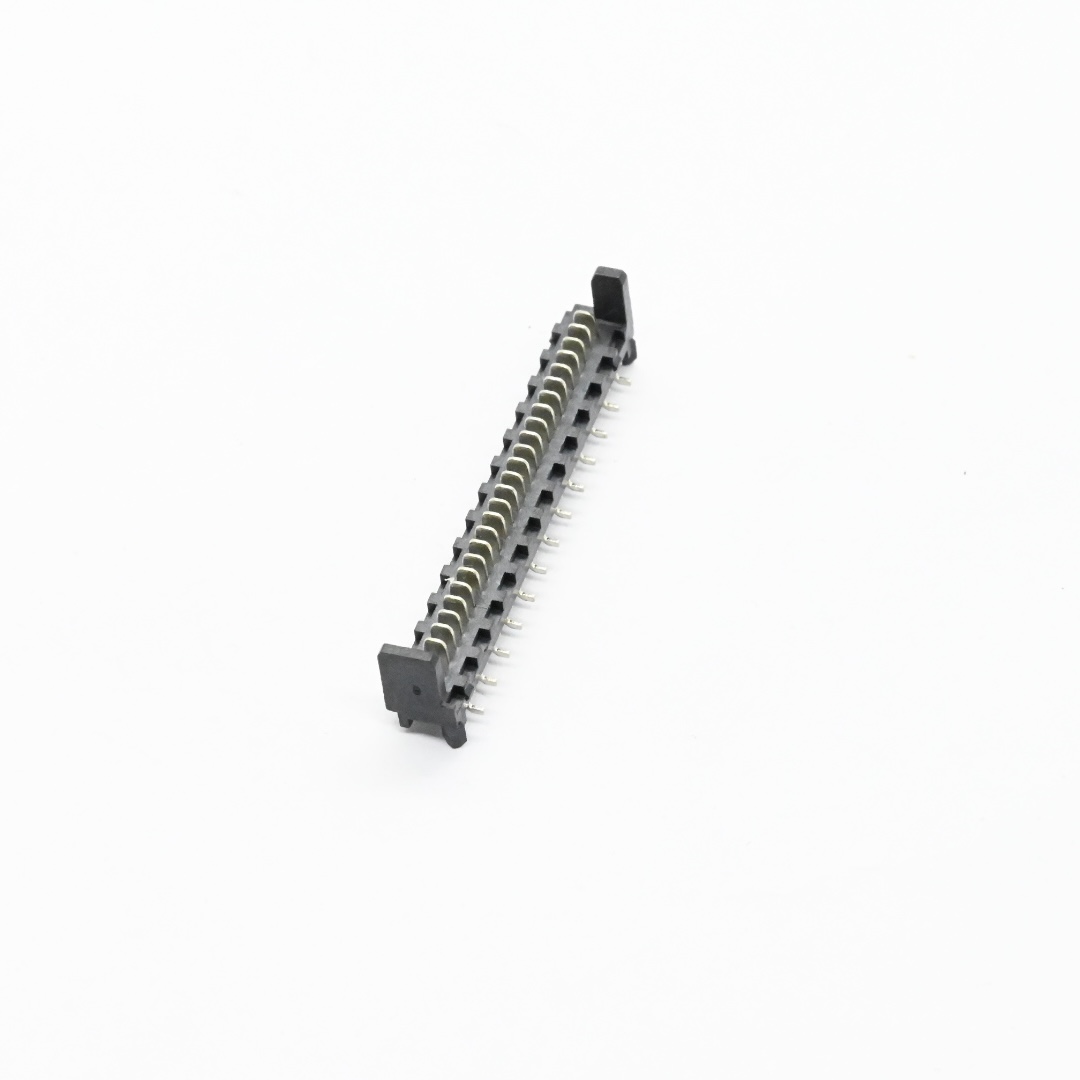

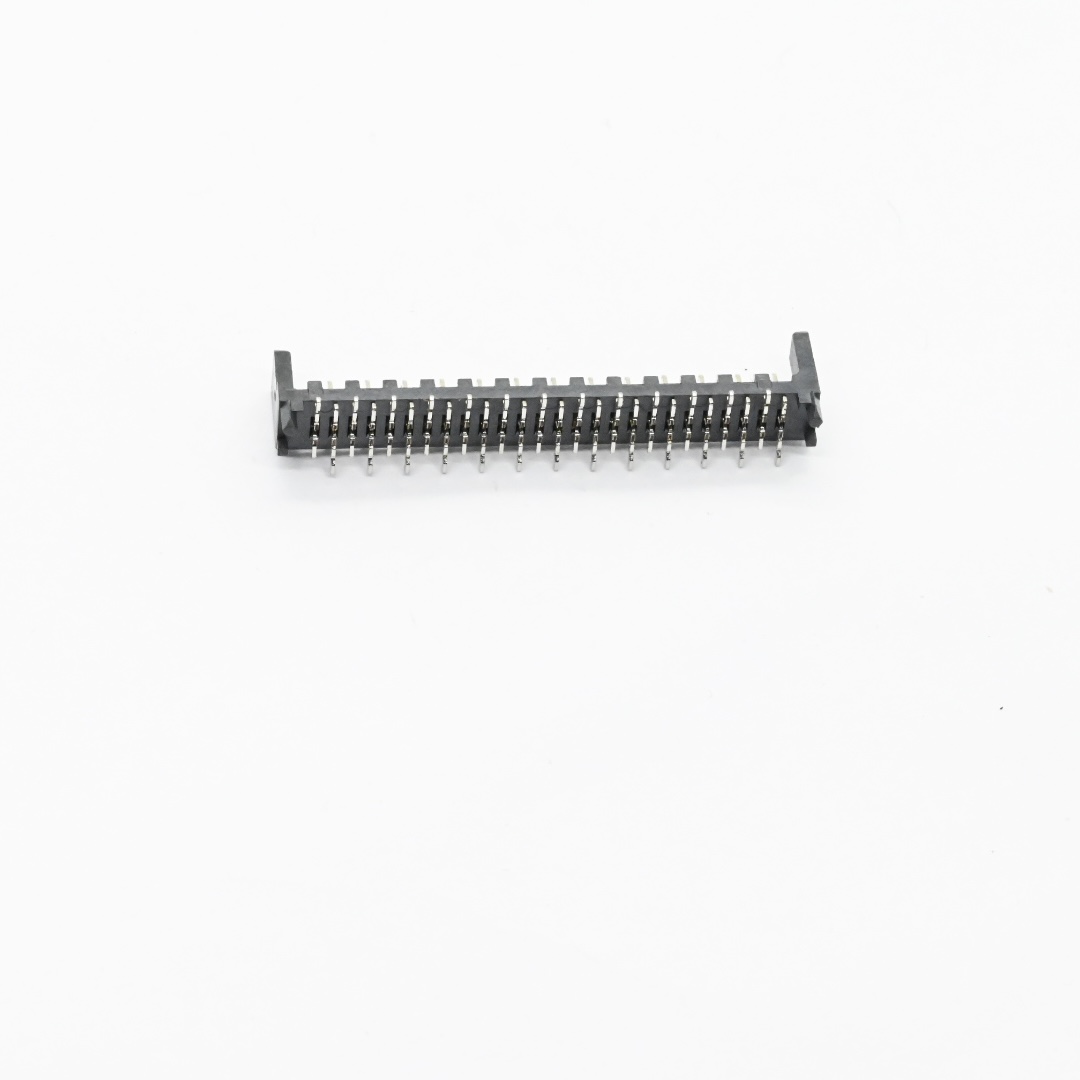

Huizhou Antenk Electronics Co., Ltd. manufactures the PFCM01 1.27mm white IDC type SMT connector with optional locating pegs or peg-free structure for reliable PCB signal transmission in compact electronic assemblies. This connector uses UL94 V-0 LCP high temperature thermoplastic white housing and brass terminals finished with matte tin over nickel, with multiple customizable gold plating grades from gold flash to 30u gold to match different anti oxidation demands. It supports maximum 2.4A rated current, 500V AC dielectric voltage, 1000 megohms minimum insulation resistance and stable working temperature ranging from minus 40 degrees Celsius to 105 degrees Celsius, pin counts adjustable from 4 pins to 26 pins with unified 1.27mm pin pitch and standard PCB pad layout for automatic reflow soldering, supplied in tray bag tube tape reel or tape reel with cap packaging options. This component fits communication equipment liquid crystal displays digital home appliances industrial control modules and portable precision instruments. Operators must avoid exceeding rated electrical parameters, follow official PCB layout drawings and store goods in dry environments to prevent terminal corrosion. Compared with ordinary manufacturers Antenk realizes full in house production covering independent mold development brass terminal high speed stamping LCP plastic injection molding automatic assembly and complete laboratory electrical performance testing, backed by ISO9001 ISO14001 IATF16949 and UL E472792 certifications, RoHS and REACH compliant. We provide flexible customization free samples and 24 hour professional technical support, more than seventy percent of our connectors are exported worldwide relying on our self owned Guangdong Famous Trademark ANTENK and complete precision mold production capacity to deliver consistent stable batch quality with shorter lead times.
Detailed Product Specifications for PFCM01 1.27mm White IDC Type SMT Connector
1 Material
1.1 Insulator housing: White LCP high-temperature thermoplastic, UL94 V-0 flame retardant
1.2 Contact terminals: Brass
1.3 Standard plating: Matte tin over nickel
1.4 Optional plating: Gold flash, 3μ", 5μ", 10μ", 15μ", 30μ" gold with or without nickel base
2 Electrical Performance
2.1 Max rated current: 2.4A
2.2 Max contact resistance: 20 milliohms
2.3 Min insulation resistance: 1000 Megohms
2.4 Dielectric Withstanding Voltage: 500V AC
2.5 Operating temperature range: -40°C ~ +105°C

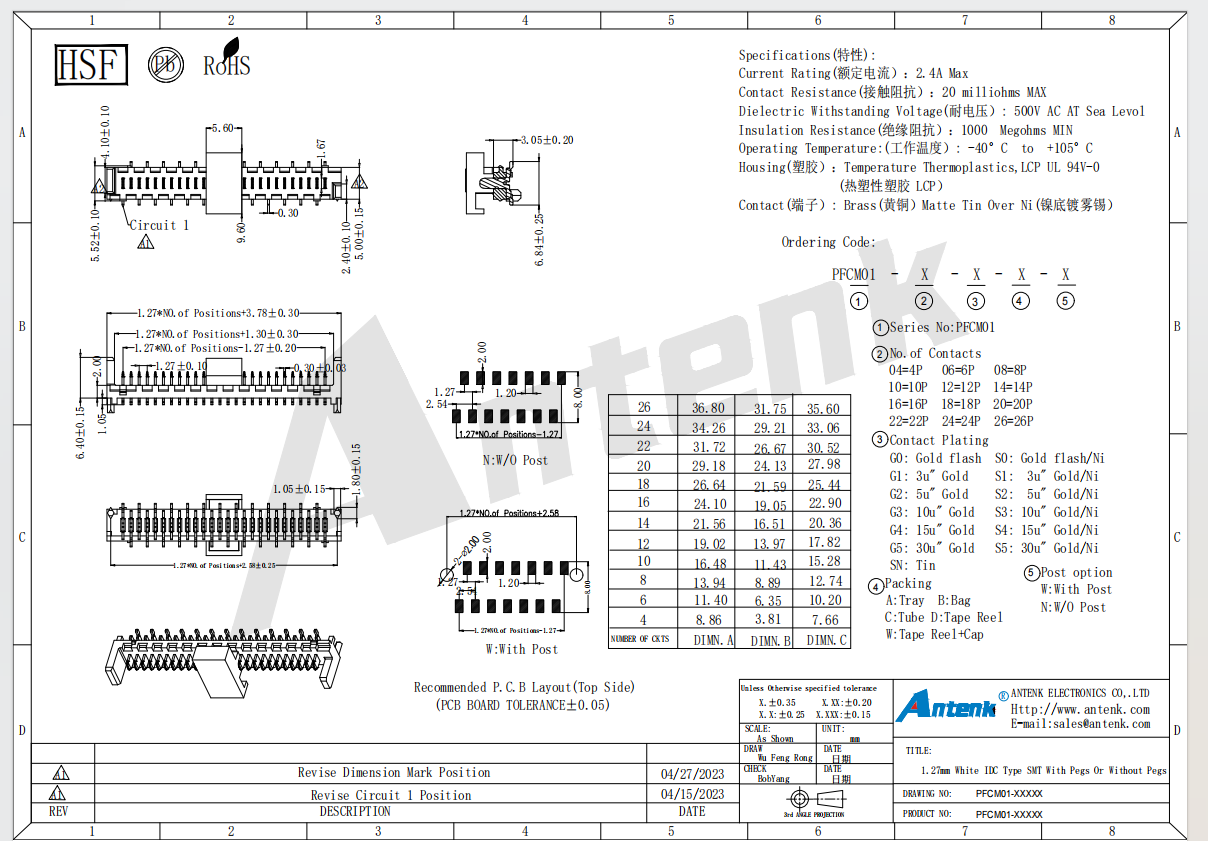

3 Core Dimensions (Unit: mm)
3.1 Pitch: 1.27mm single row layout
3.2 Pin count options: 4P, 6P, 8P, 10P, 12P, 14P, 16P, 18P, 20P, 22P, 24P, 26P
3.2.1 Two structural versions:
3.2.1.1 W: With locating pegs
3.2.1.2 N: Without locating pegs
3.3 Standard dimensional tolerances:
3.3.1 X. ±0.35; X.X ±0.25; X.XX ±0.20; X.XXX ±0.15
3.4 Matching PCB tolerance: ±0.05
4 Packaging Types
4.1 A: Tray
4.2 B: Bag
4.3 C: Tube
4.4 D: Tape Reel
4.5 W: Tape Reel with protective cap
5 Application Scenarios
5.1 Communication equipment
5.2 Liquid crystal display devices
5.3 Digital home appliances
5.4 Industrial control modules
5.5 Portable precision electronic instruments
6 Usage Precautions
6.1 Do not exceed the rated 2.4A current and 500V AC voltage to avoid electrical damage
6.2 Strictly follow the official recommended PCB layout for SMT reflow soldering
6.3 Select peg-equipped model to prevent position offset during welding if positioning is required
6.4 Store finished connectors in dry environments to avoid oxidation of brass terminals
6.5 Choose appropriate plating according to service environment to extend service life
6.6 All applications must comply with RoHS environmental standards
