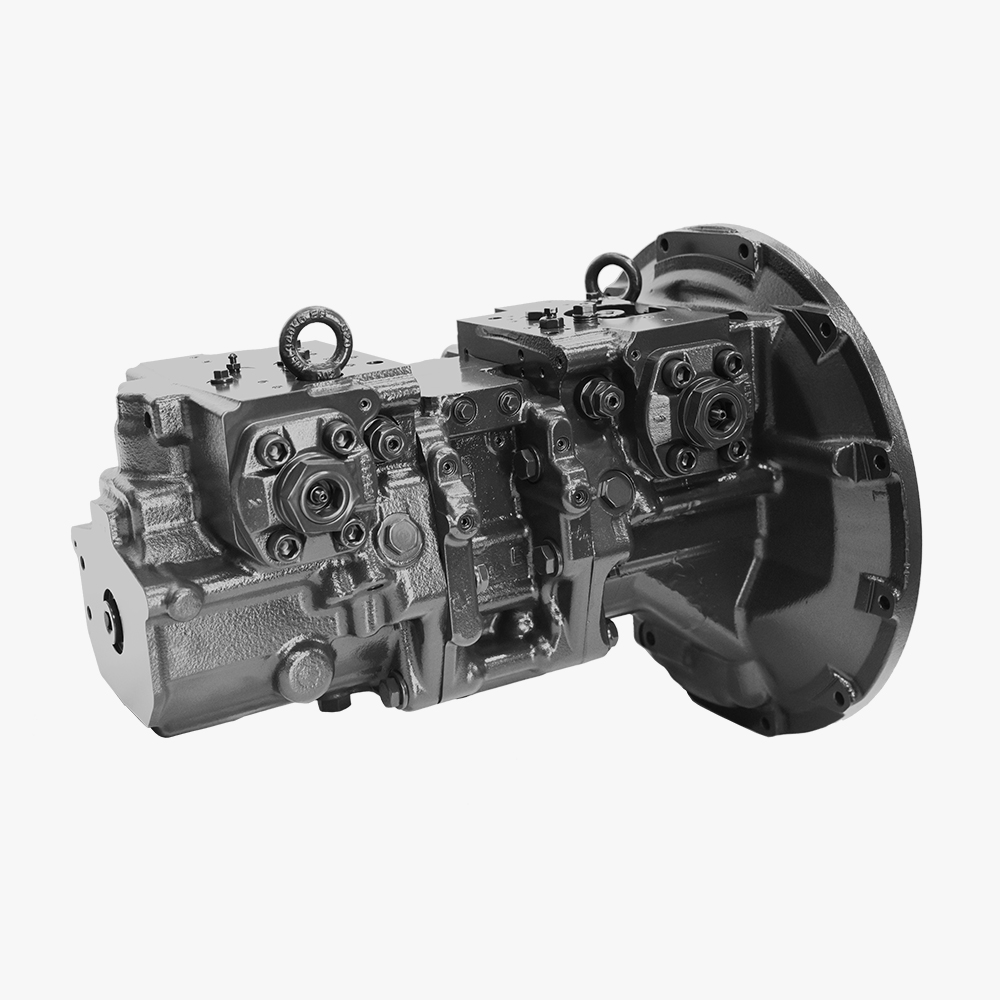

HPV95 Hydraulic Pump Used For PC200-7
1. Product Overview
HPV95 is a swashplate tandem variable axial piston pump, serving as the core hydraulic power assembly for Komatsu PC200-7 medium crawler excavator.
This dual-pump integrated structure adopts negative flow control with built-in pilot gear pump, matched for Komatsu PC200-7 hydraulic system. It delivers high-pressure hydraulic oil to drive boom, arm, bucket, slewing and travelling hydraulic actuators of excavator. High-quality interchange aftermarket pump assembly can directly replace OEM pump for equipment maintenance and overhaul.
OEM Part No.:708-2L-00300,708-2L-00112
Model Code Explanation
- HPV：Komatsu dedicated series variable axial piston pump for excavators
- 95：Single pump displacement specification:95 cc/rev
- Application: Komatsu PC200-7 excavator, also compatible with PC210-7, PC220-7, PC230-7 series
2. Main Technical Parameters
Item Specification
Pump Type Tandem Variable Displacement Axial Piston Pump
Control Mode Negative flow control (EPC electronic proportional control)
Rated Working Pressure 34.3 MPa
Maximum Peak Pressure 37.3 MPa
Rated Rotating Speed 1950 rpm
Maximum Operating Speed 2150 rpm
Rotation Direction Clockwise (viewed from shaft end)
Spline Shaft 16 teeth
Built-in Accessory Integral pilot gear pump
Applicable Hydraulic Oil ISO VG46 anti-wear hydraulic oil
Operating Temperature -20℃ ~ +90℃
Seal Material NBR; FKM high-temperature sealing kit optional
Approximate Weight 156 kg
Compatible Machine Komatsu PC200-7 Excavator
3. Working Principle
The engine drives the main shaft and cylinder block to rotate synchronously. The reciprocating motion of pistons forms continuous oil suction and high-pressure discharge circulation.
The EPC proportional regulator automatically adjusts the tilt angle of the swashplate according to the load signal, changes pump displacement and adjusts output flow to match real-time load demand. Optimized power matching reduces overflow loss, lowers fuel consumption and stabilizes hydraulic oil temperature.
The complete hydraulic system realizes all composite operations including excavation, lifting, travelling and slewing of medium excavator.
4. Core Advantages
1. Specially calibrated for Komatsu PC200-7 excavator; mounting flange, spline shaft and oil port layout fully consistent with original pump, supporting direct plug-and-play replacement.
2. Precisely machined internal friction pairs, low internal leakage, maintaining stable volumetric efficiency under long-term continuous heavy-load earthmoving operation.
3. Mature EPC negative flow control system, excellent power matching with Komatsu SAA6D102E engine, effectively reducing system heat generation and fuel consumption.
4. High-strength cast pump housing, outstanding shock and vibration resistance, suitable for earthwork, municipal construction, pipeline engineering and loading operations.
5. Stable flow output, small flow pulsation, smooth compound movement and comfortable operating feel.
6. Reliable aftermarket replacement assembly with shorter delivery lead time compared with original genuine hydraulic pump.
5. Application Range
Main hydraulic pump for Komatsu medium crawler excavator:
Komatsu PC200-7, interchangeable for PC210-7, PC220-7, PC230-7 series excavators.
Widely used in earthmoving, municipal construction, pipeline laying, stockyard loading and general infrastructure projects.
6. Common Faults & Replacement Suggestion
Typical failures: Insufficient digging force, slow compound movements, excessive hydraulic oil temperature, abnormal knocking noise, shaft seal leakage.
Thoroughly flush all hydraulic pipelines and replace all hydraulic filter elements before installation. Strictly ensure hydraulic oil cleanliness to prevent impurities from scratching cylinder block, piston shoes and valve plate. Fill pump housing with clean hydraulic oil before startup to avoid dry grinding damage. Replace complete pump assembly if serious internal abrasion occurs.
