Specification: Pneumatic-Hydraulic Intensifier Cylinder, YTA63/50-5, 3 Ton, Dual-Stage Air Drive (booster cylinder, air-over-oil intensifier)

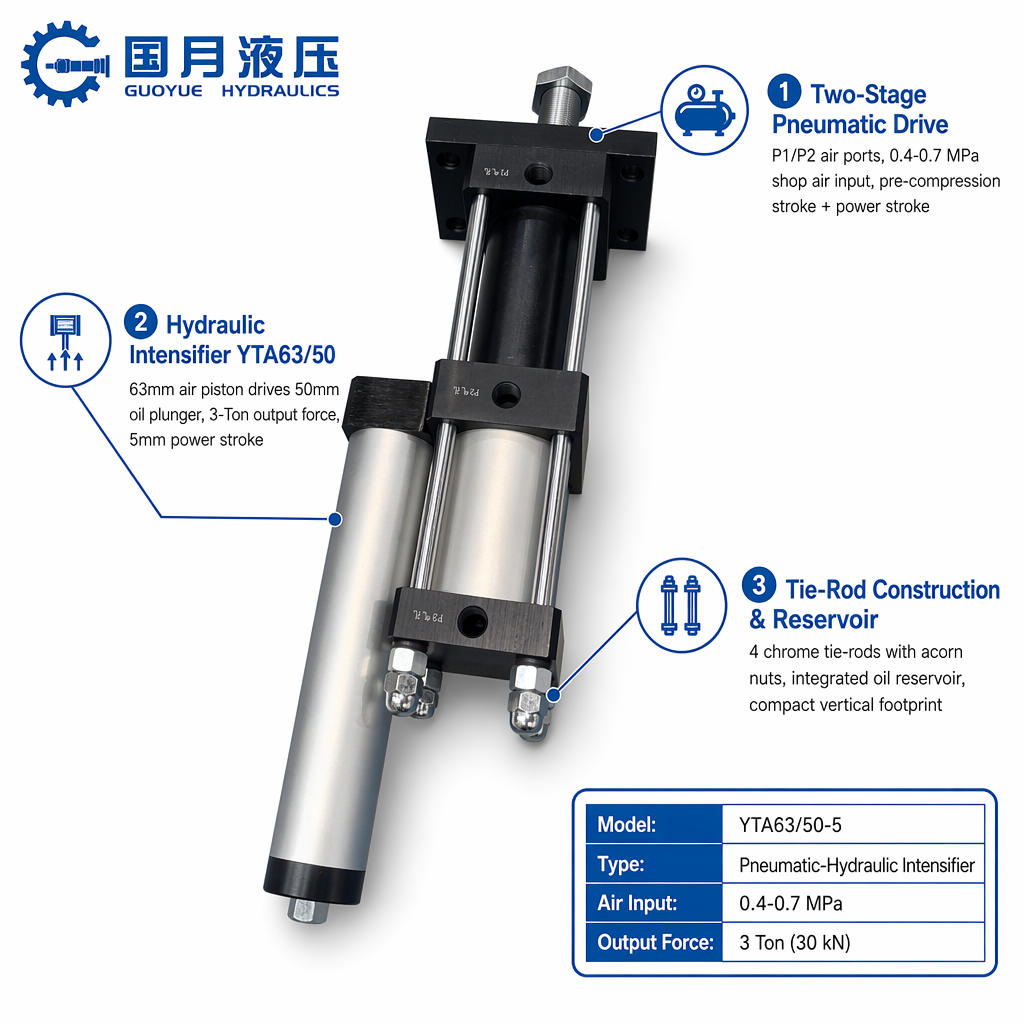

Two-stage pneumatic drive with P1/P2 air ports. P1 delivers rapid pre-compression stroke (low-pressure, high-speed approach), P2 engages power stroke for force multiplication. Runs on standard 0.4–0.7 MPa shop air — no hydraulic power unit required.
Intensification ratio derived from 63 mm air piston driving 50 mm oil plunger, yielding 3 Ton (30 kN) output force at 5 mm power stroke. Total cycle time < 2 seconds depending on tool volume. Hydraulic section pre-filled with ISO VG 32 / 46 mineral oil.
Tie-rod construction: 4× chrome-plated steel tie rods with acorn dome nuts, field-serviceable seal replacement. Integrated side-mount oil reservoir with transparent level sight. Compact vertical footprint saves machine space versus traditional hydraulic power pack.
Seals: NBR / PU combination for pneumatic section, PTFE step seal for high-pressure oil section. Operating temperature -10°C to +60°C. Mounting via top-plate flange with 4× through-bolt pattern.
Typical applications: pneumatic press tooling, riveting / staking / crimping stations, spot welding clamp actuation, sheet metal punching, assembly bench jigs requiring high force from plant air only.
| Parameter | Specification |
| Model | YTA63/50-5 |
| Type | Pneumatic-Hydraulic Intensifier |
| Air Input | 0.4–0.7 MPa |
| Air Piston Ø | 63 mm |
| Oil Plunger Ø | 50 mm |
| Output Force | 3 Ton (30 kN) |
| Power Stroke | 5 mm |
| Total Stroke | ~100 mm (pre-compression + power) |
| Oil Type | ISO VG 32 / 46 |
| Seals | NBR / PU / PTFE |
| Mounting | Top flange, 4× bolt pattern |
| Operating Temp | -10°C to +60°C |
