1.Advantages:High mechanical strength, good dimensional stability, excellent electrical insulation, low cost, and good processability.
2.Typical Applications: Consumer electronics (mobile phones, computers, home appliances), industrial controls, automotive electronics (excluding high-frequency core modules), communication equipment, LED power supplies, and the vast majority of low-to-medium frequency circuits.
3.Limitations: High dielectric loss in high-frequency (GHz range and above) or high-speed signal scenarios, requiring a switch to specialized high-frequency materials like PTFE or PPE; requires high-Tg modified FR-4 for extreme high-temperature environments.
**High-Tg FR-4:** Tg ≥ 150°C or 170°C; suitable for lead-free soldering and high-temperature operating environments.
**Low-Loss FR-4:** Features an optimized resin formulation to reduce dielectric loss (Df); used for slightly higher frequency ranges.
**Halogen-Free FR-4:** Free of halogenated flame retardants; meets stringent requirements for medical and environmental standards.
Due to its excellent balance of overall performance and cost, FR-4 has long dominated the rigid copper-clad laminate market; however, with the development of 5G and high-speed digital technologies, some high-end sectors are gradually transitioning to specialized high-frequency substrate materials.

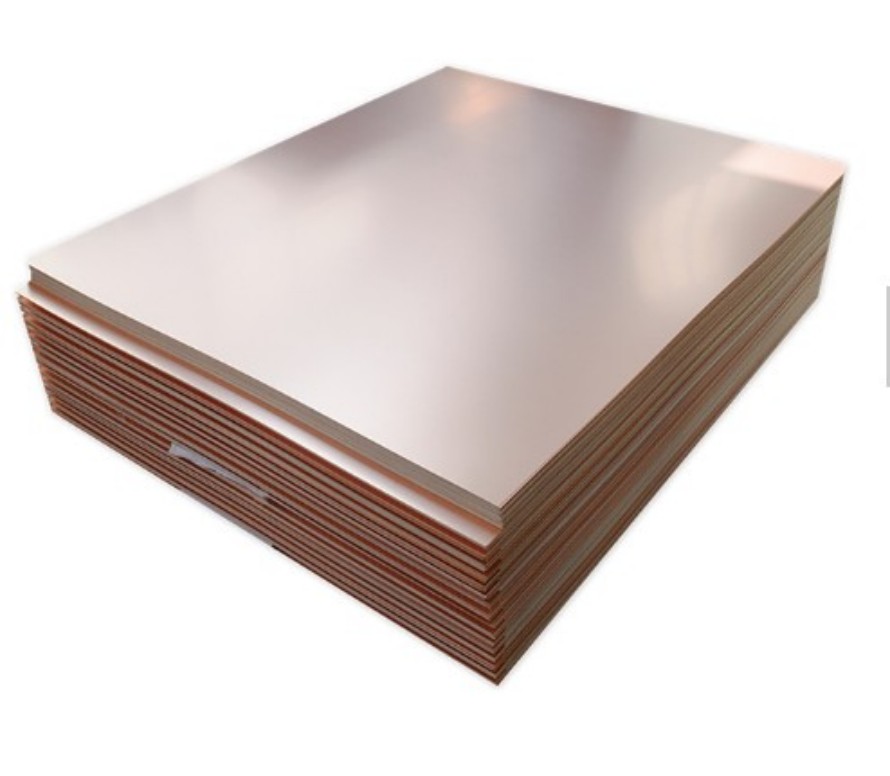

FR-4 copper-clad laminate is a rigid laminated substrate composed of epoxy resin and alkali-free fiberglass cloth. Its core characteristics include flame retardancy (UL94 V-0), high mechanical strength, excellent electrical insulation, and low cost, making it the most widely used substrate in the PCB industry.
Key Characteristic Parameters
(1)Composition/Structure: Alkali-free fiberglass cloth reinforcement + epoxy resin binder + double-sided or single-sided copper foil, formed via heat-press curing; "FR" stands for Flame Retardant, and "4" is the specific grade code defined by NEMA.
(2)Electrical Properties: Typical dielectric constant (Dk) of 4.2–4.5 (at 1 GHz) and dissipation factor (Df) ≤ 0.020; high volume resistivity makes it suitable for low-to-medium frequency signal transmission, though higher losses at high frequencies make it unsuitable for high-speed circuits operating above the GHz range.
(3)Thermal Properties:Distinct Glass Transition Temperature (Tg) categories: Low Tg (130–140°C), Medium Tg (150–160°C), and High Tg (≥170°C); standard types have a long-term operating temperature ≤ 120°C, while High Tg types can withstand temperatures above 140°C.

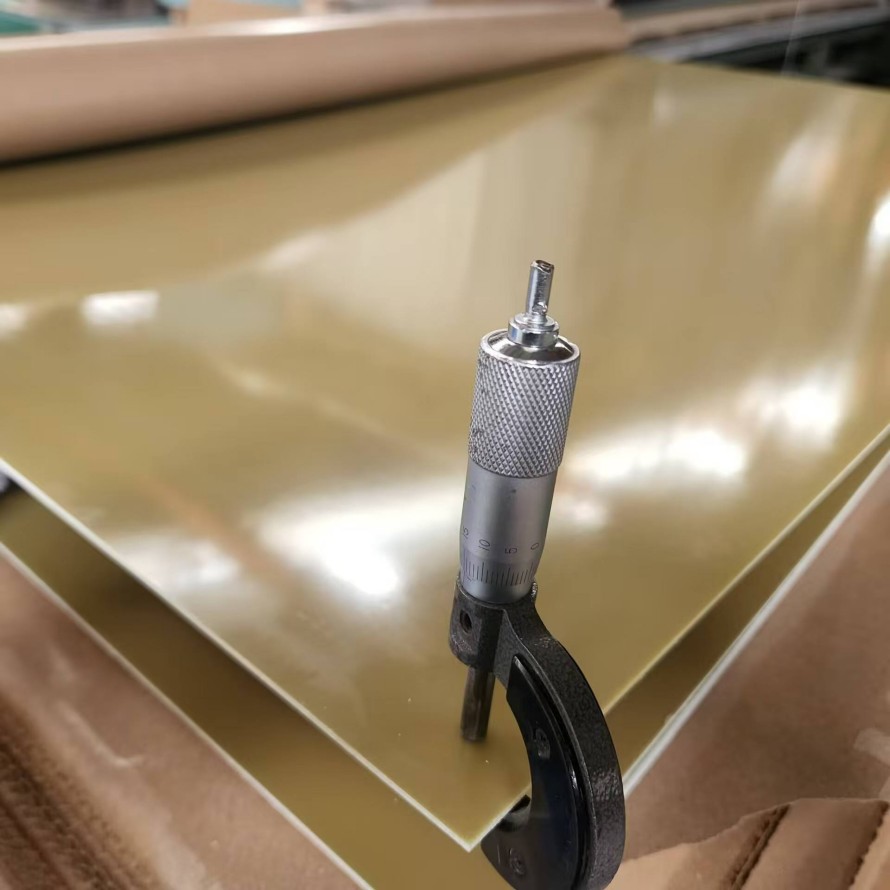

(4)Mechanical & Physical Properties:Good dimensional stability, low warpage, and high flexural strength; water absorption is typically ≤ 0.10% (24h), density is approximately 1.70–1.90 g/cm³, and it offers excellent resistance to dip soldering.
(5)Safety & Environmental:Standard UL94 V-0 flame retardancy rating (self-extinguishing within 10 seconds of vertical ignition); while traditionally containing bromine-based flame retardants, halogen-free versions have been developed to meet RoHS standards and environmental export requirements.
FR4 copper-clad laminate is a core substrate material used in the manufacture of printed circuit boards (PCBs). It serves primarily as an insulating structural support and a carrier for signal conduction in electronic devices. Thanks to its excellent mechanical strength, electrical insulation properties, flame retardancy, and cost-effectiveness, it is widely used across the vast majority of standard electronics sectors.
Key Application Scenarios

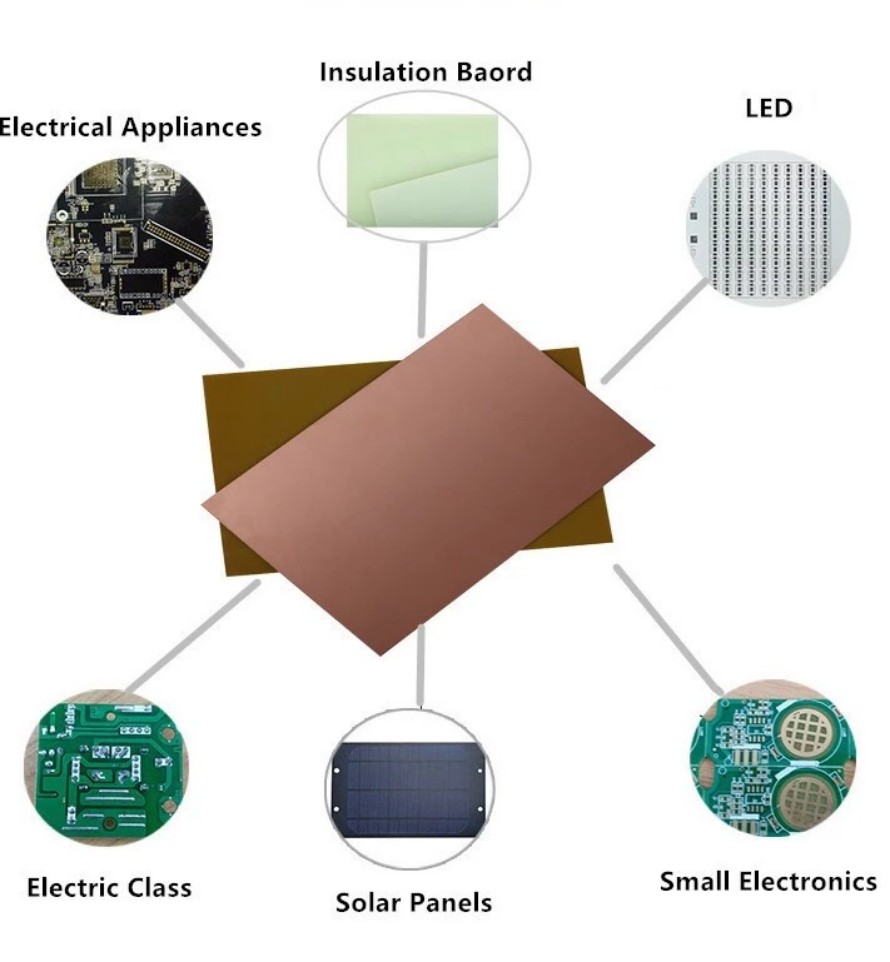

(1)Consumer Electronics: Mobile phones, computer motherboards, home appliance control boards, remote controls, toys, LED lighting drivers, etc.;
(2)Communication Equipment: Standard routers, network switches, non-high-frequency base station modules, wired communication terminals;
(3)Industrial Control: Industrial instruments, power supply modules (low-to-medium power), automation control boards, sensor interfaces;
(4)Automotive Electronics: Body control modules, lighting control systems, infotainment systems, non-safety-critical electronic units;
(5)Computers and Peripherals: Desktop/server motherboards (excluding high-speed signal areas), graphics card auxiliary circuits, monitor driver boards;
(6)Other Uses: Transformer insulation structures, electrical jigs/test fixtures, general electrical insulation components.
Scope of Application
Suitable for: Scenarios involving lower operating frequencies (typically <1 GHz), where signal loss requirements are not stringent, and where robust mechanical support and flame retardancy are required.
Not suitable for: 5G high-frequency millimeter-wave applications, ultra-high-speed digital circuits (e.g., GPU core interconnects), applications requiring extreme heat dissipation, or critical aerospace components; such scenarios require low-loss materials (e.g., PTFE, hydrocarbon resins) or high-Tg/metal-based substrates.
