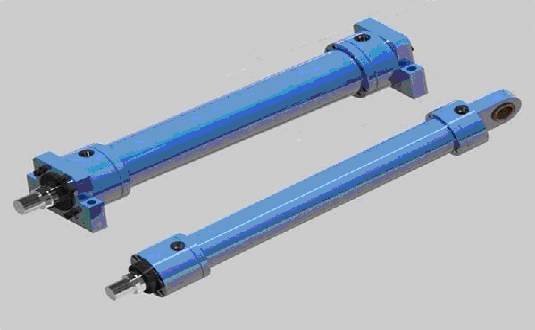

JB ZQ4395-86 Heavy-Duty Hydraulic Cylinders for Metallurgical Equipment
1. Product Overview
JB ZQ4395-86 heavy-duty hydraulic cylinder is designed in accordance with Chinese industry standard JB/ZQ4395-86, the installation dimensions comply with German SMS SN806 specification.
This is a high-pressure single-rod double-acting piston cylinder specially developed for heavy metallurgical production lines. The cylinder integrates built-in adjustable buffer valve, quick-start check valve and air vent valve on both end caps. It supports multiple hydraulic media including mineral hydraulic oil, water-glycol and emulsion, suitable for high temperature, heavy load, frequent impact metallurgical working environment. Standard and customized cylinders are available for new equipment assembly and maintenance replacement of rolling mills, continuous casting machinery and heavy metallurgical auxiliary equipment.
JB ZQ4395‑86 Heavy‑Duty Hydraulic Cylinders are heavy‑load industrial Hydraulic Cylinder designed according to metallurgical machinery standard . As the key actuating component of the hydraulic system, it converts hydraulic pressure energy into powerful linear thrust and pulling force for heavy‑duty Machine. Featuring high pressure resistance, robust structure and multiple installation forms, this series Hydraulic Cylinder is widely used for new equipment supporting as well as overhaul replacement of metallurgy, mining and heavy‑industry facilities.
Standard & Model Code Description
- Standard Code: JB/ZQ4395-86 (retained unchanged in international quotation documents)
- Mounting Forms:
S1/S2: Rear trunnion suspension type; B1: Head trunnion; B2: Center trunnion; B3: Rear trunnion;
G: Foot mounting; F1: Front flange; F2: Rear flange
- Working medium: Standard mineral oil; Optional S(water-glycol), R(emulsion)
2. Main Technical Parameters
Item Specification
Executive Standard JB/ZQ4395-86, consistent with SMS SN806 installation dimension
Nominal Working Pressure 25 MPa
Test Pressure 31.5 MPa
Applicable Hydraulic Medium ISO VG46/VG68 anti-wear hydraulic oil; Optional water-glycol, fire-resistant emulsion
Operating Temperature Range -30℃ ~ +80℃; High temp sealing version up to 120℃
Bore Size Range 40 mm ~ 320 mm (13 standard bore specifications)
Speed Ratio Options 1.4 / 2.0
Stroke Customized stroke within allowable maximum travel of each mounting form
Cylinder Barrel Material 27SiMn seamless steel tube, precision deep hole honing
Piston Rod Material 42CrMo alloy steel, medium frequency quenching + thick hard chrome plating
Sealing Options NBR, PU composite seals; FKM fluorine rubber high-temperature sealing assembly optional
Built-in Configuration Adjustable buffer valve, air vent valve, quick-start check valve at both ends
3. Working Principle
Pressure hydraulic oil enters rodless chamber or rod chamber to drive piston and piston rod for linear reciprocating movement, to complete clamping, pushing, lifting, turnover and shearing actions of metallurgical machinery.
Built-in adjustable buffer structure effectively absorbs mechanical impact at stroke ends; integrated check valve realizes rapid startup; air vent valve discharges trapped air inside cylinder to eliminate crawling and unstable movement.
Multiple medium-adapted sealing solutions ensure stable operation even when using fire-resistant hydraulic fluid in metallurgical workshops.
4. Core Advantages
1. Implement JB/ZQ4395-86 standard, installation dimensions consistent with SMS SN806 standard, strong interchangeability for imported metallurgical equipment retrofitting;
2. Max working pressure up to 25MPa, heavy load resistance, adapt to continuous impact load of rolling and continuous casting equipment;
3. Complete built-in functions: adjustable buffer, exhaust valve, quick-start check valve, simplify external piping layout;
4. Compatible with multiple fire-resistant hydraulic media, ideal for high-temperature safety requirements inside metallurgical plants;
5. Alloy steel piston rod with thick chrome coating, excellent wear and corrosion resistance, adapt to dusty metallurgical workshop environment;
6. Eight standard mounting types for flexible layout; support non-standard stroke, special sealing configuration customized production.
5. Application Range
JB ZQ4395-86 heavy-duty hydraulic cylinders are widely applied in heavy metallurgical production equipment:
Hot rolling mill, continuous casting machine, steel billet conveying mechanism, furnace door drive, shearing equipment, clamping device, turnover machinery, heavy-duty lifting platform.
Also applicable for heavy mining machinery, large forging equipment and other heavy industry equipment with similar harsh working conditions.
