16mm SMT Phosphor Bronze Coin Cell Clip

16mm SMT Phosphor Bronze Coin Cell Clip

5 day ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

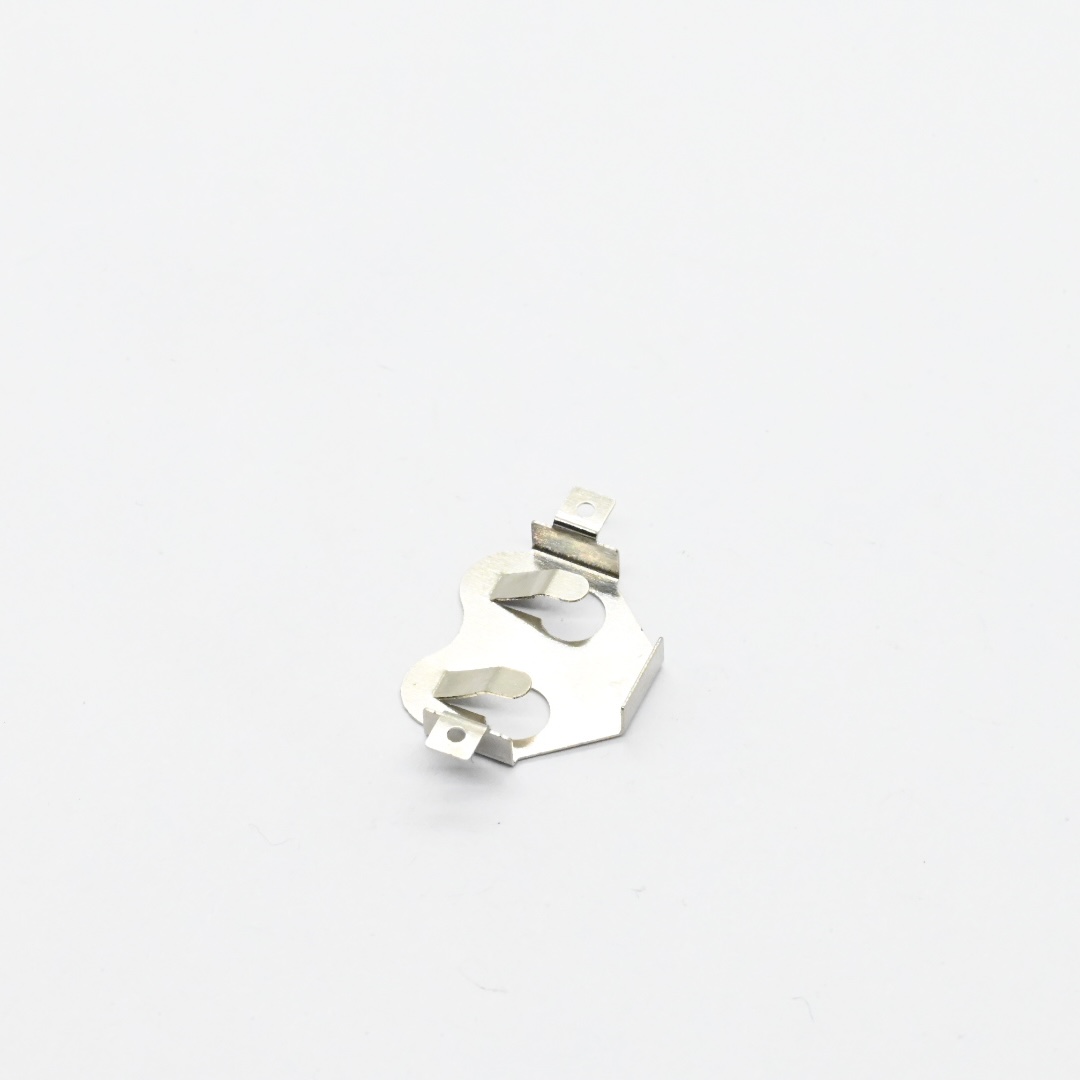

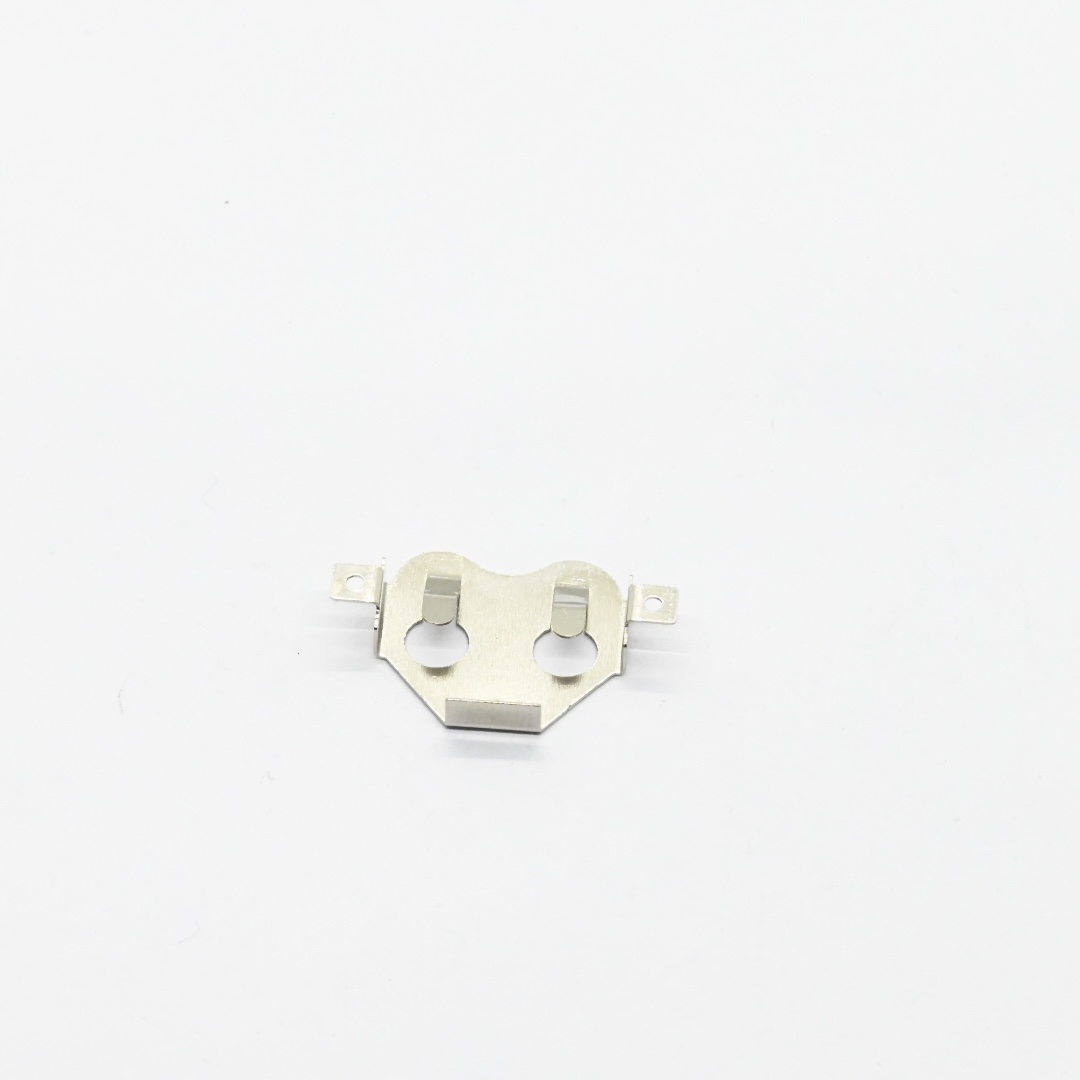

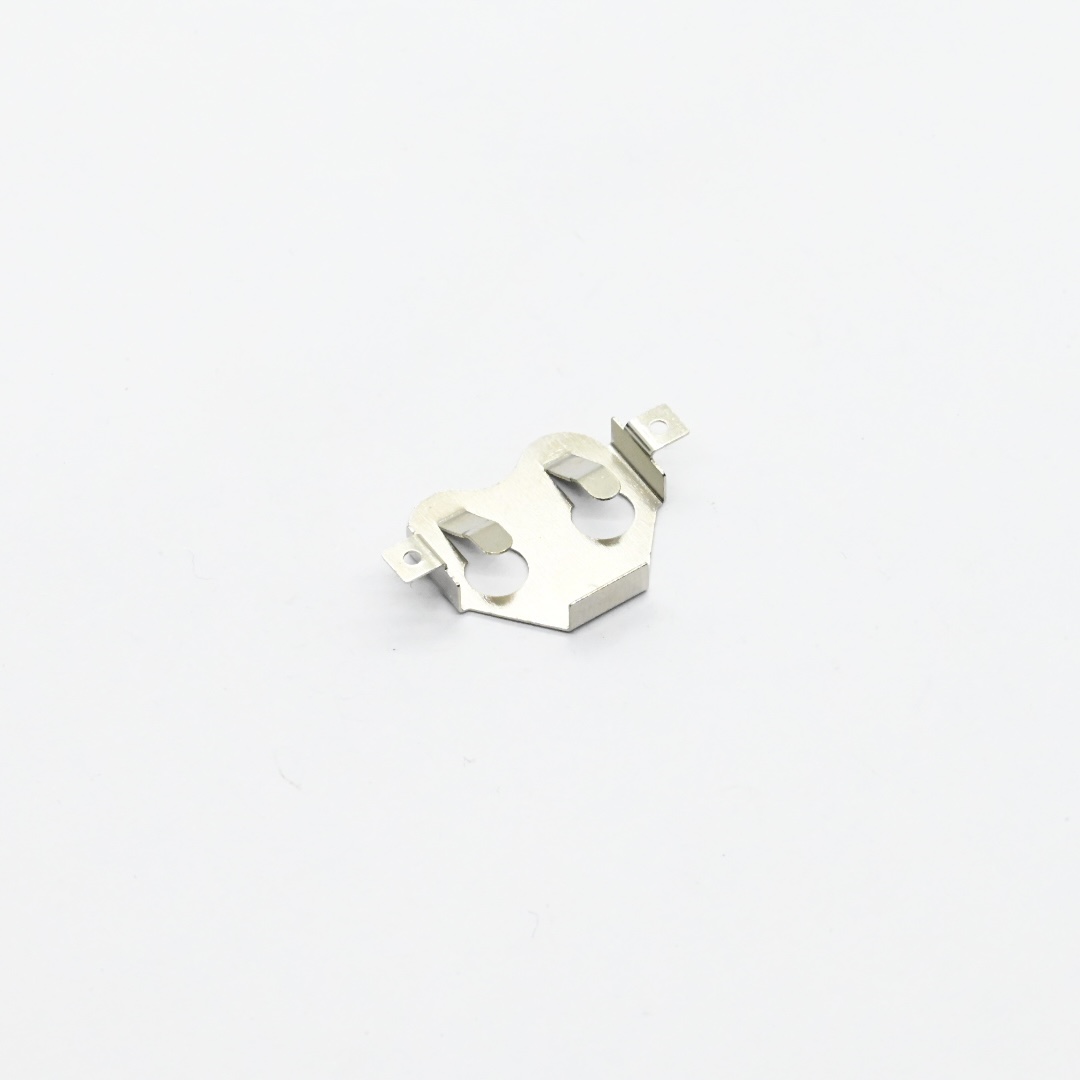

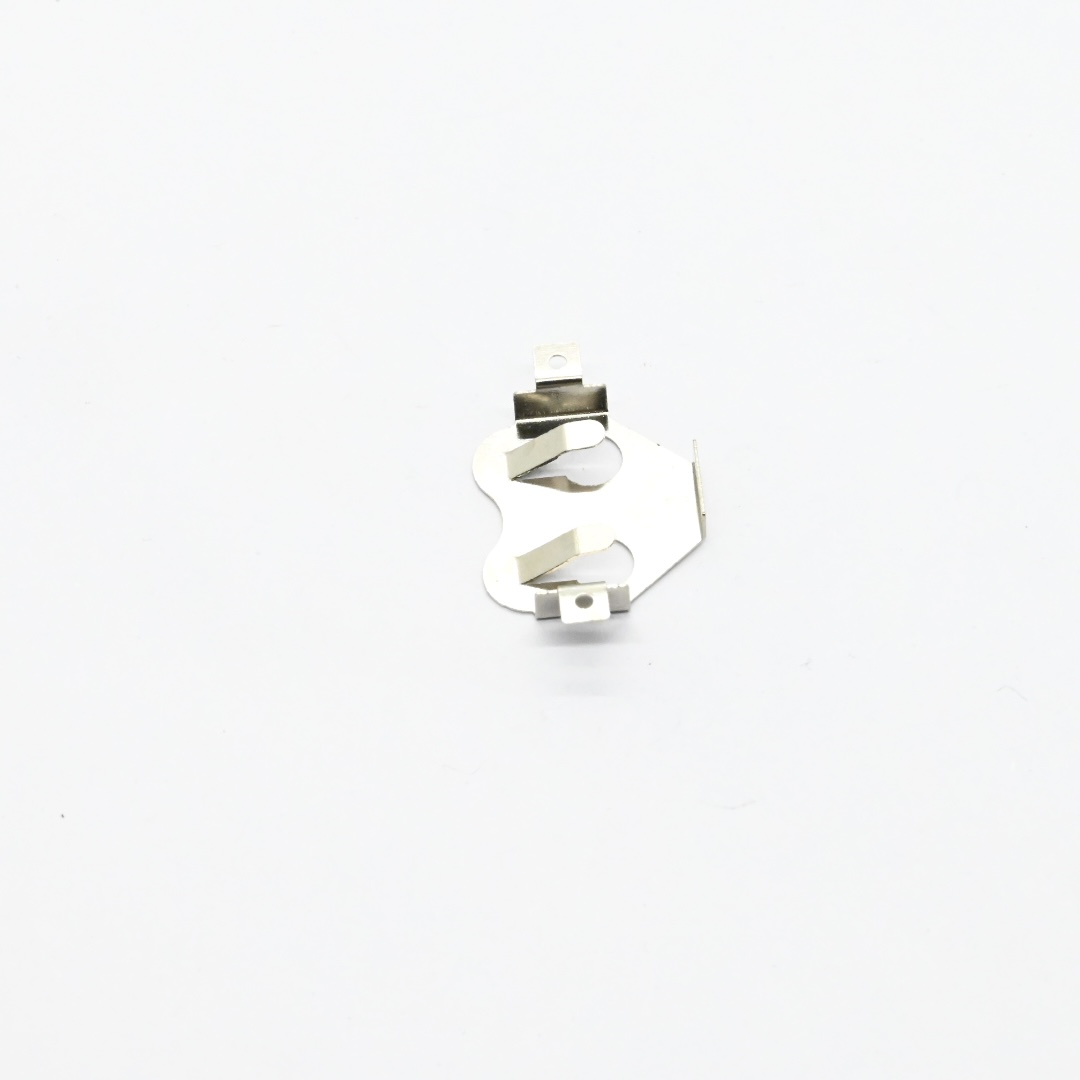

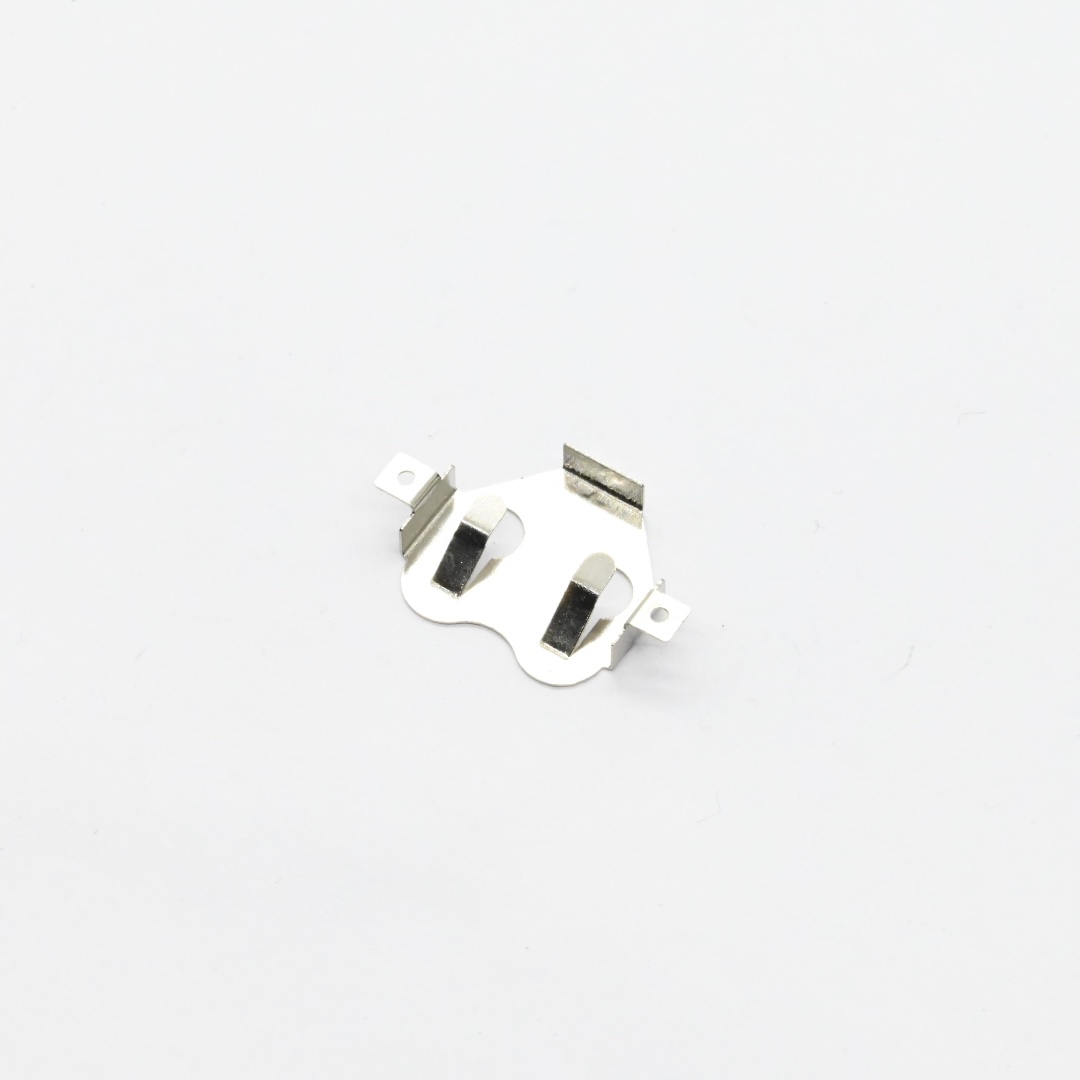

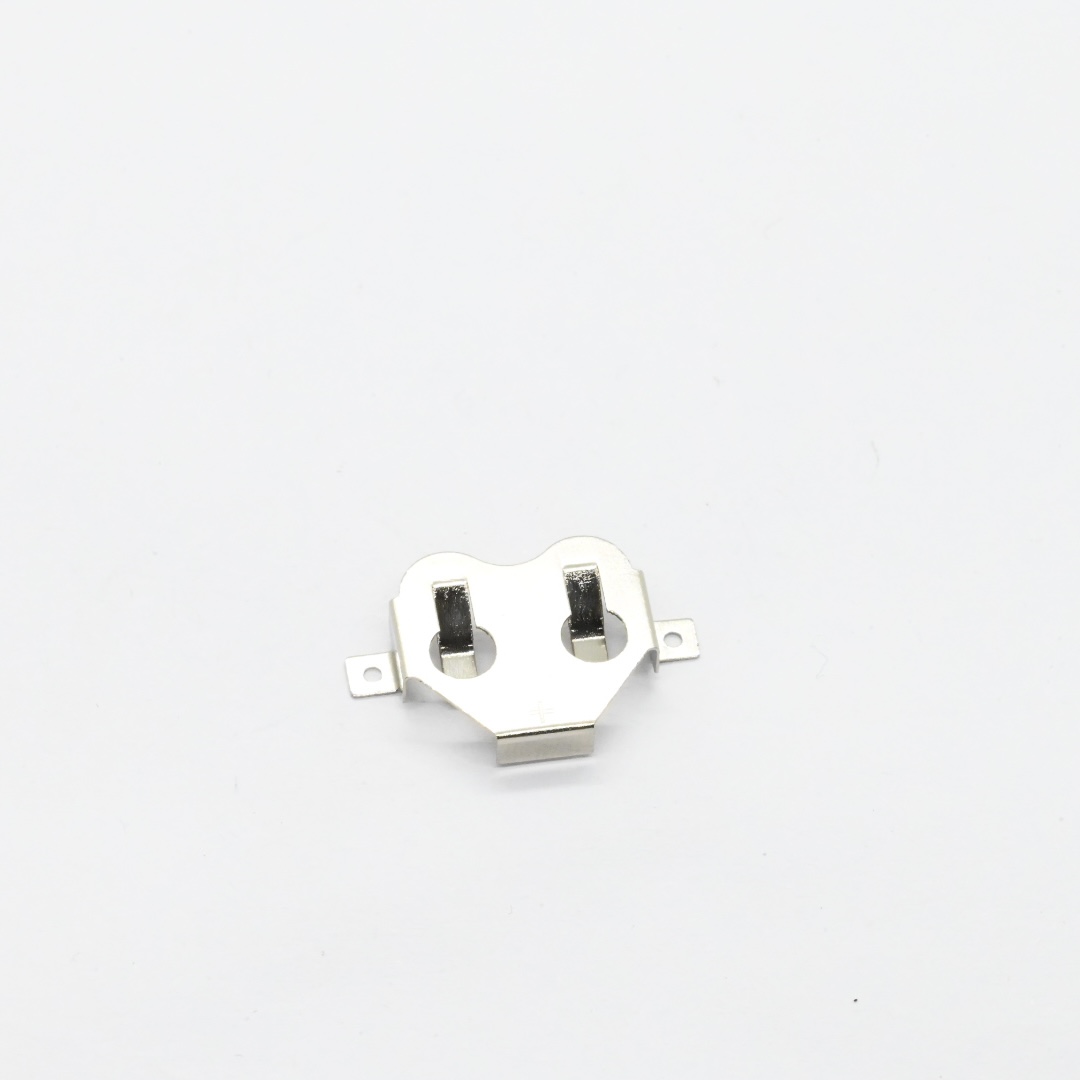

Huizhou Antenk Electronics Co., Ltd. manufactures BS-M-NI-R-3012 16mm SMT coin cell clip specially designed to hold and conduct power for 24mm coin batteries on PCB circuits. This cell clip is made of 0.25mm thick phosphor bronze with dual plating structure including minimum 50 micro inch nickel base layer and minimum 80 micro inch overall tin coating, and customers can also choose gold flash 3u to 30u gold plating grades for stronger anti oxidation performance. It adopts SMT surface mount installation matching standard PCB mounting pad layout, and supports bag or tape and reel packaging to adapt manual assembly and automatic high speed SMT production lines. This metal battery clip is widely applied in digital cameras communication equipment industrial control sensors smart home appliances electronic toys and precision measuring instruments. Operators must strictly follow official PCB pad dimensions during reflow soldering, avoid excessive bending force to prevent phosphor bronze spring deformation and store clips in dry warehouse to stop plating layer corrosion. Unlike small manufacturers with outsourced stamping and plating processes Antenk completes full in house production including independent mold development high speed metal stamping electroplating surface treatment and laboratory electrical reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and fully complying with RoHS environmental rules. We own abundant self developed precision metal molds, offer personalized plating and packaging customization, provide 24 hour professional technical support, and over seventy percent of our battery contacts are exported globally relying on our Guangdong Famous Trademark ANTENK and stable consistent mass production quality.

Thin Phosphor Bronze Clip is crafted from 0.25mm thick phosphor bronze to maintain stable elastic clamping force for 24mm coin batteries without fatigue after long-term use.

Nickel-Tin Plated Battery Contact features a 50μ" nickel underlayer plus 80μ" tin outer plating to boost electrical conductivity and resist oxidation in daily electronic working environments.

Tape Reel SMT Cell Clip adopts tape and reel packing mode to perfectly match automated SMT reflow soldering production lines for large-volume PCB assembly.

1. Material Information

1.1 Base raw material: Phosphor Bronze, thickness 0.25mm

1.2 Standard plating structure: Min 50μ" nickel underlayer + Min 80μ" overall tin plating

1.3 Optional plating types: Nickel, tin, gold flash, 3μ",5μ",10μ",15μ",30μ" gold

2. Size & Structural Parameters (Unit: mm)

2.1 Compatible battery: 24mm coin battery

2.2 Mounting type: SMT surface mount structure

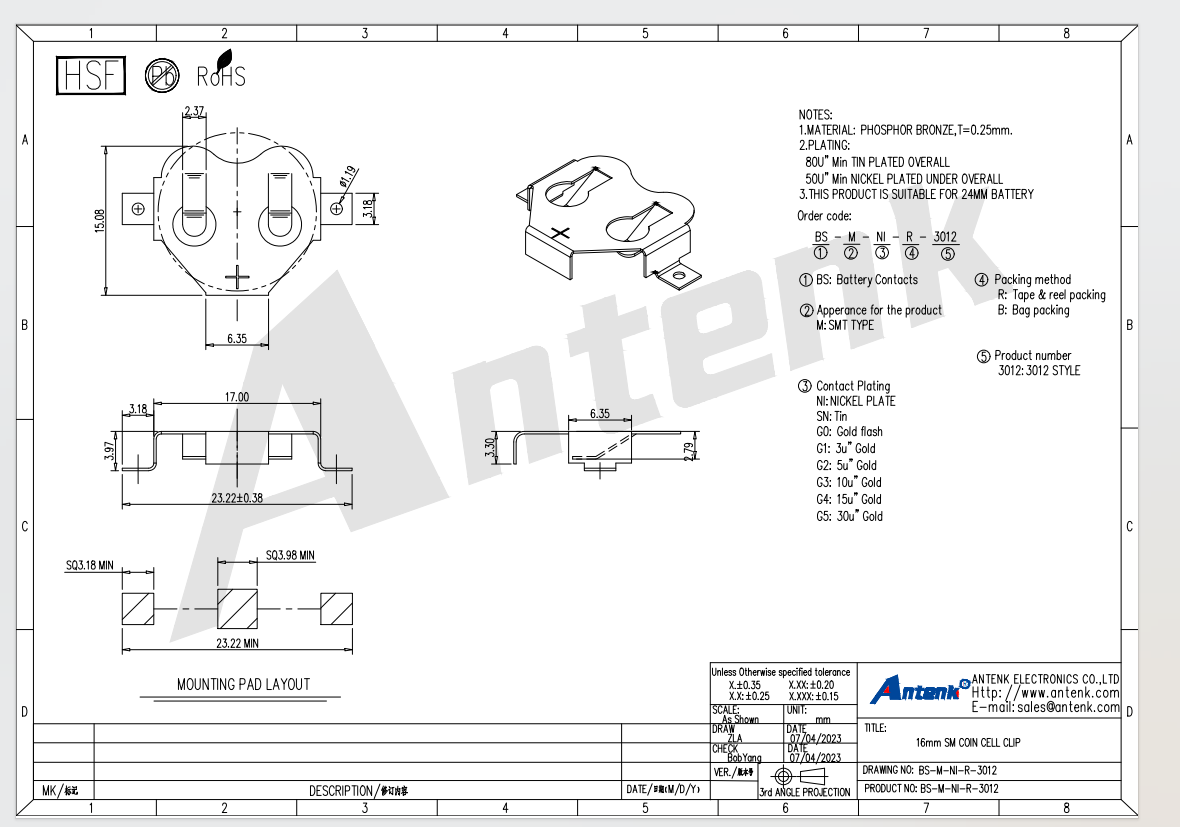

2.3 Key outline dimensions: 15.08, 17.00, 23.22, 6.35, 2.37, 3.18, Φ1.19

2.4 PCB pad requirement: SQ3.18 minimum, SQ3.98 minimum

2.5 Dimensional tolerance standard: X. ±0.35; X.X ±0.25; X.XX ±0.20; X.XXX ±0.15

3. Order Code & Packaging Options

3.1 Series prefix: BS (Battery Contacts)

3.2 Structure code: M = SMT Type

3.3 Plating code: NI = Nickel plate, SN = Tin

3.4 Style number: 3012

3.5 Packing modes

3.5.1 B: Bag packing

3.5.2 R: Tape & reel packing

4. Application Scenarios

4.1 Digital cameras

4.2 Communication equipment

4.3 Industrial control sensors

4.4 Smart home appliances

4.5 Electronic toys

4.6 Precision measuring instruments

5. Usage Precautions

5.1 Only match 24mm coin batteries; incompatible battery sizes are forbidden

5.2 Follow the official PCB mounting pad layout strictly during SMT reflow soldering

5.3 Avoid excessive bending force to prevent permanent deformation of phosphor bronze spring structure

5.4 Store finished clips in dry storage space to prevent oxidation of plating layers

5.5 All end applications must comply with RoHS environmental standards

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
