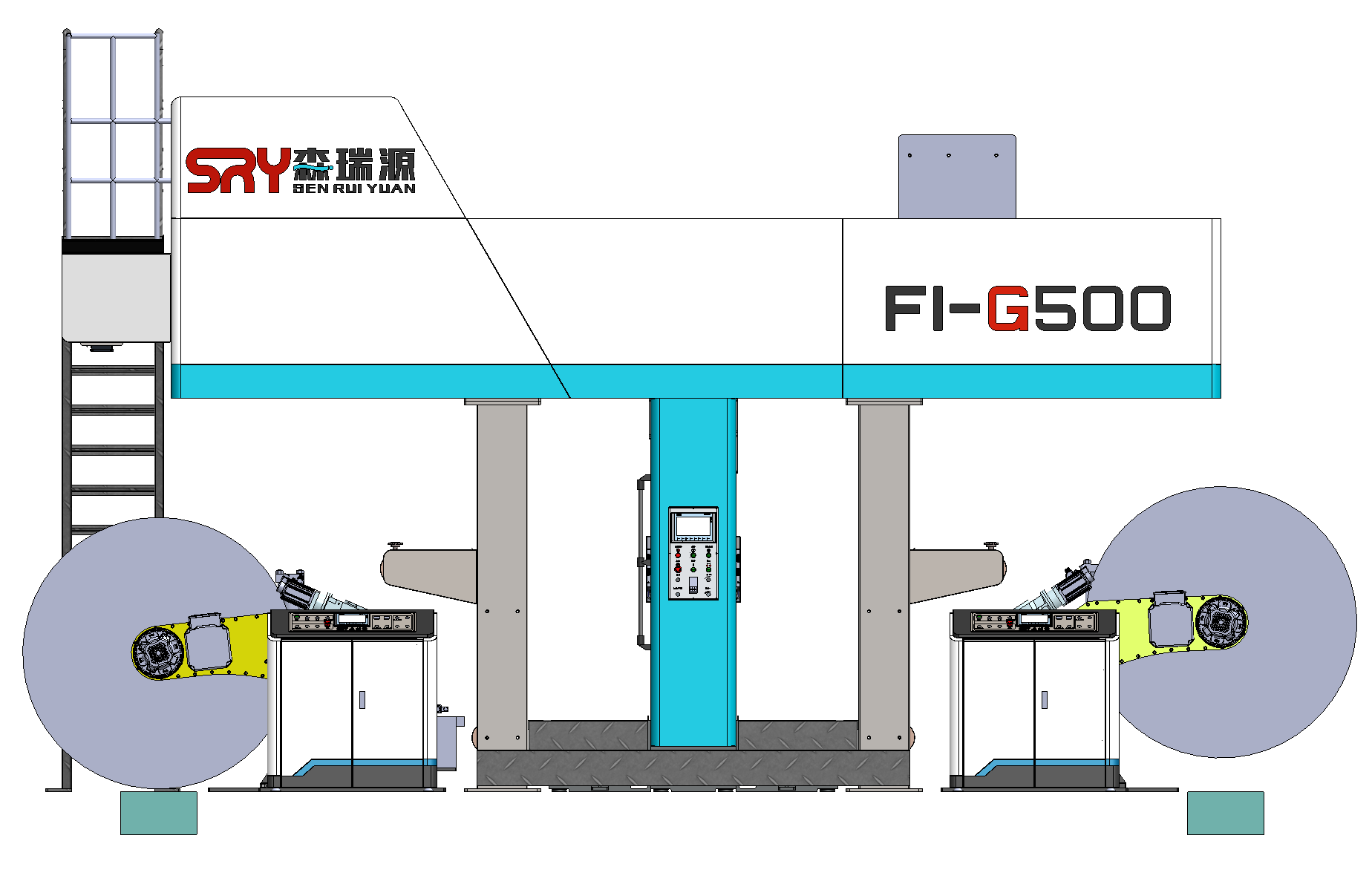

Unwinding Unit
•Zero-speed splice dual-station unwinding device with high-speed non-stop roll change and zero-speed docking functions •Automatic full-cutting during unwinding. Residual web loss during unwinding < 15 m.
•Maximum unwinding roll diameter: 1500 mm.
Pulling Unit
Compensates for minor deviations that may occur during printing to ensure overprint accuracy between color units. Effectively suppress tension fluctuations arising from paper roll distortion.
Non-contact tension detection system with stable control and high precision.
Dual counter-rotating rollers with rigid-flex construction guarantee reliable tension zone division.
Preheating function eliminates paper deformation.
Printing Unit
High-rigidity stable frame ensures equipment rigidity and long-term operation stability.
High-precision full-servo drive, independent servo control for impression roller, plate cylinder and anilox roller, featuring high transmission accuracy and quicker response.
Shaftless plate mounting, convenient operation and high plate change efficiency.
Intelligent plate cylinder flexibly adapts to multi-specification printing. High-definition anilox roller with intelligent algorithms enables high-definition seven-primary color printing.
Enclosed doctor blade with quick-change system for easy blade replacement and cleaning.
Flexible ink supply system, optional viscosity detection.
Dryer Unit
Intelligent constant temperature control for single-color unit, convenient and precise operation.
Secondary air recycling for high efficiency and energy saving
3D Vertical 1600mm-Long Oven, integrated internal micro-negative pressure design, high wind speed and large air volume.
Rewinding Unit
High-efficiency rewinding, taper tension with tight inside and loose outside to prevent core telescoping; maximum rewinding diameter: 1500 mm.
Siemens servo drive, dual oil cylinders for roll lifting.
PLC logic control ensures operational safety.
Supports non-stop continuous printing with lower energy consumption.
Non-stop roll change.
Control System
Adopts ABB servo systems, integrating tension control and color register pressure systems into one integrated control system.
Historical orders can directly retrieve phase and printing pressure data of original orders to reduce waste loss; One-key startup, up to 10,000 orders can be stored.
Equipped with energy consumption monitoring function.
Vision inspection system enables real-time monitoring of pattern register and printing color effect.
It can seamlessly connect with MES and ERP systems and supports remote equipment monitoring.
