Huizhou Antenk Electronics Co., Ltd. manufactures BT-S-SN-A-CR2032E coin cell holder tailored exclusively for CR2032 button batteries to supply consistent backup power for PCB electronic circuits. This battery holder adopts black UL VO PA6 plastic reinforced with 30 percent glass fiber as housing and C2680-EH copper contacts finished with standard 100 micro inch tin plating, with multiple optional gold plating grades from gold flash to 30 micro inch gold to enhance anti oxidation and conductive performance. It features 180 TYPE structural design with dedicated matched PCB layout for welding assembly, supporting tray bag and tape reel three packaging modes to fit manual operation and automated high speed SMT production lines. The product operates steadily between minus 55 degrees Celsius and 105 degrees Celsius, holding maximum 30 milliohms contact resistance, minimum 1000 megaohms insulation resistance and 500V AC dielectric withstand voltage, widely deployed in digital cameras communication devices industrial control modules smart home appliances electronic toys and precision measuring instruments. Operators must follow official PCB dimension standards during soldering, avoid excessive extrusion to prevent permanent deformation of copper contacts and store finished holders in dry warehouse to avoid tin coating corrosion. Different from manufacturers outsourcing stamping and molding processes Antenk realizes full in house production covering independent mold development copper terminal high speed stamping glass filled PA injection molding electroplating and complete laboratory electrical reliability testing, owning ISO9001 ISO14001 IATF16949 and UL E472792 certifications and fully complying with RoHS and REACH environmental standards. We possess abundant self developed precision plastic and metal molds, offer customized plating and packaging solutions, provide round the clock professional technical support, and more than seventy percent of our battery holders are exported worldwide relying on our Guangdong Famous Trademark ANTENK and stable uniform mass production quality.

Black Reinforced PA Shell is made of UL VO PA6 material filled with 30% glass fiber to resist high soldering temperature and deliver excellent flame retardant performance.

C2680-EH Copper Contact provides stable elastic pressure for CR2032 batteries and maintains low contact resistance in wide temperature range from -55℃ to 105℃.

100u Tin Coated Terminal effectively prevents oxidation of copper base and ensures long-term stable electrical conduction under daily electronic working conditions.

1. Material Parameters

1.1 Housing: Black UL VO PA6 with 30% glass fiber reinforcement

1.2 Contact material: C2680-EH copper alloy

1.3 Standard surface plating: 100μ" tin plating

1.4 Optional plating types: Gold flash, 3μ", 5μ", 10μ", 15μ", 30μ" gold plating

2. Electrical Performance Index

2.1 Max contact resistance: 30 milliohms

2.2 Minimum insulation resistance: 1000 megaohms

2.3 Dielectric withstand voltage: 500V AC for one second at sea level

2.4 Operating temperature range: -55°C ~ +105°C

3. Structure, Size & Tolerance

3.1 Applicable battery: CR2032 coin cell

3.2 Appearance type: 180 TYPE

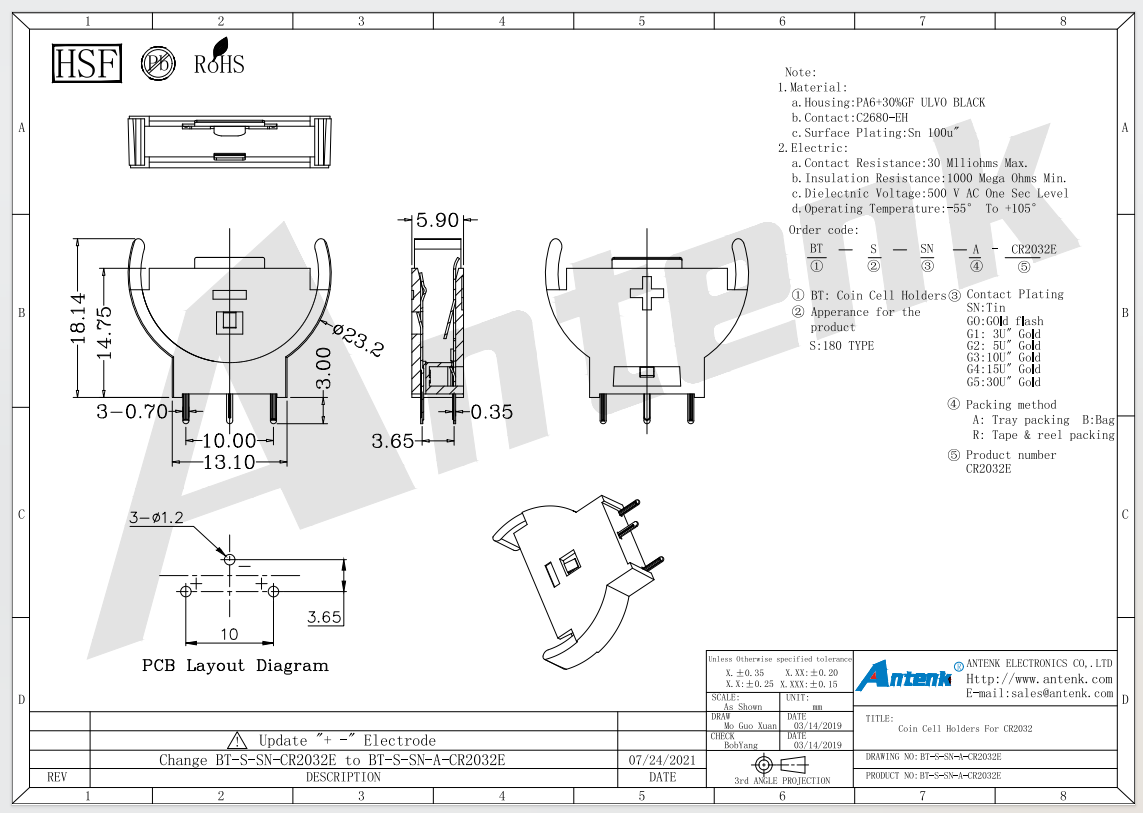

3.3 Supporting drawing: Exclusive matched PCB layout drawing

3.4 Dimensional tolerance standards

3.4.1 Single integer digit (X.): ±0.35 mm

3.4.2 One decimal place (X.X): ±0.25 mm

3.4.3 Two decimal places (X.XX): ±0.20 mm

3.4.4 Three decimal places (X.XXX): ±0.15 mm

4. Order Code Definition & Packaging Options

4.1 Code breakdown: BT=Coin Cell Holders, S=180 TYPE, SN=Tin plating, A=Tray packing, CR2032E=product model

4.2 Three available packaging modes

4.2.1 A: Tray packing

4.2.2 B: Bag packing

4.2.3 R: Tape & reel packing

5. Application Fields

5.1 Digital cameras

5.2 Communication equipment

5.3 Industrial control modules

5.4 Digital home appliances

5.5 Electronic toys

5.6 Precision measuring instruments

6. Usage Precautions

6.1 Only compatible with CR2032 coin batteries, other battery sizes are forbidden

6.2 Complete PCB soldering operation strictly following the official PCB layout diagram

6.3 Avoid heavy squeezing force to prevent irreversible deformation of C2680-EH copper contacts

6.4 Store finished holders in dry storage space to prevent oxidation of tin plating layer

6.5 All finished products meet RoHS environmental compliance standards for export
