6.35mm Offset SMT Manganese Steel Battery Contact

6.35mm Offset SMT Manganese Steel Battery Contact

5 day ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. produces BS-M-SN-R-FTM880 offset 6.35mm SMT battery contact designed to realize stable conductive connection between coin batteries and PCB circuits. This metal contact adopts 0.3mm thick G65 manganese steel as raw material with dual 10 micron nickel and tin composite plating layer to enhance oxidation resistance and consistent elastic clamping force for long-term service. It is an SMT surface mount type with 6.35mm offset structural design, supporting bulk bag and tape and reel two packaging modes to match manual assembly and automatic SMT mass production lines. This battery contact is widely applied in digital cameras communication equipment industrial control sensors smart home appliances electronic toys and precision measuring instruments. Operators must follow standard PCB pad layout during reflow soldering, avoid excessive bending force to prevent manganese steel spring fatigue deformation and store finished contacts in dry warehouse to protect the nickel tin plating from corrosion. Unlike small manufacturers that outsource stamping and electroplating processes Antenk completes full independent production flow covering mold research and development manganese steel high-speed stamping nickel tin electroplating and strict laboratory reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and fully complying with RoHS and REACH environmental standards. We own abundant self-developed precision metal terminal molds, provide customized plating and packaging services, offer 24-hour professional technical support, and over seventy percent of our battery contacts are exported globally supported by our Guangdong Famous Trademark ANTENK and stable uniform batch production quality.

0.3mm G65 Manganese Strip serves as the base raw material of this SMT battery contact to deliver durable elastic clamping force for coin batteries without easy fatigue.

10um Nickel-Tin Plated Tab forms a double anti-corrosion coating that reduces contact resistance and prevents rust under long-term electronic operating environments.

Offset 6.35mm SMT Contact features a special offset structural size to perfectly match dedicated PCB pad layout for smooth automated reflow soldering assembly.

1. Material Information

1.1 Base material: G65 manganese steel, sheet thickness 0.3mm

1.2 Standard plating: 10um nickel-tin composite plating

1.3 Optional plating: Nickel plating (SI)

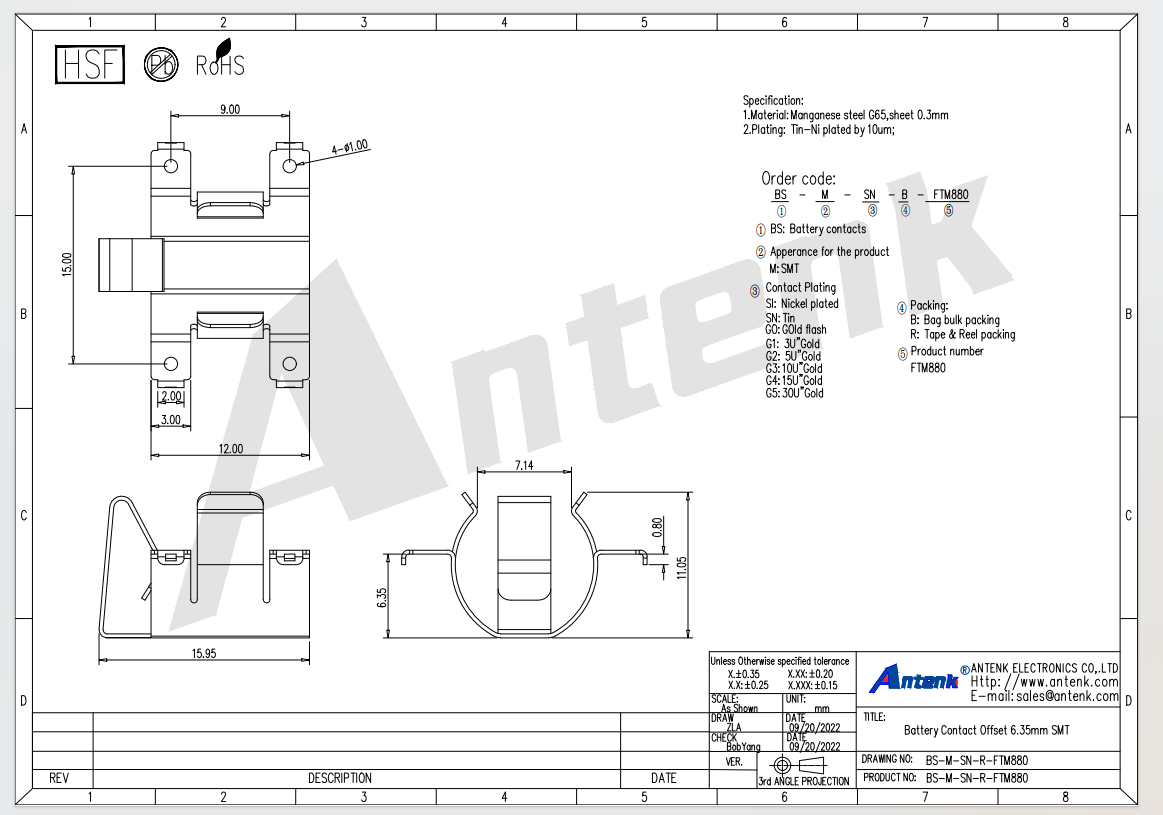

2. Dimension & Tolerance Standard (Unit: mm)

2.1 Core structural feature: Offset 6.35mm SMT design

2.2 Marked outline dimensions: 15.95, 12.00, 9.00, 3.00, 1.00

2.3 Dimensional tolerance rules

2.3.1 Single integer (X.): ±0.35

2.3.2 One decimal digit (X.X): ±0.25

2.3.3 Two decimal digits (X.XX): ±0.20

2.3.4 Three decimal digits (X.XXX): ±0.15

3. Order Code & Packaging Mode

3.1 Code definition: BS=Battery Contact, M=SMT Type, SN=Tin-nickel plating, R=Tape & reel, FTM880=product style

3.2 Two available packaging options

3.2.1 B: Bulk bag packing

3.2.2 R: Tape & reel packing

4. Product Type & Compliance

4.1 Mounting form: SMT surface mount contact

4.2 Environmental standard: Fully RoHS compliant

5. Application Scenarios

5.1 Digital cameras

5.2 Communication equipment

5.3 Industrial control sensors

5.4 Smart home appliances

5.5 Electronic toys

5.6 Precision measuring instruments

6. Usage Precautions

6.1 Conduct reflow soldering strictly in accordance with matched PCB pad layout

6.2 Avoid excessive bending force to prevent permanent deformation of manganese steel spring structure

6.2 Store contacts in dry environment to prevent oxidation and corrosion of nickel-tin plating layer

6.3 Only apply this SMT contact to matching coin battery PCB circuit design

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you

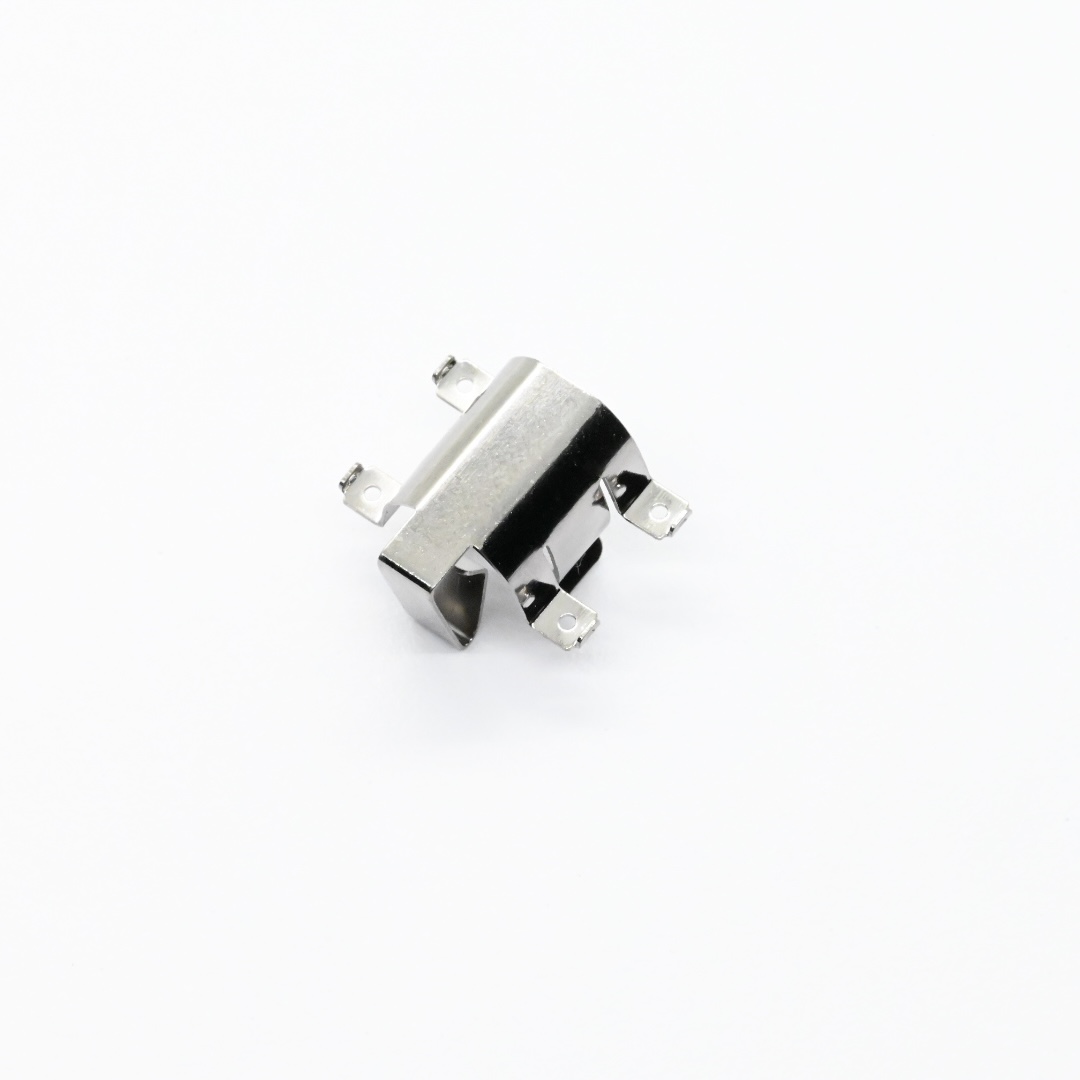

BS-M-SN-R-FTM880+Battery Contact Offset 6.35mm SMT（5）

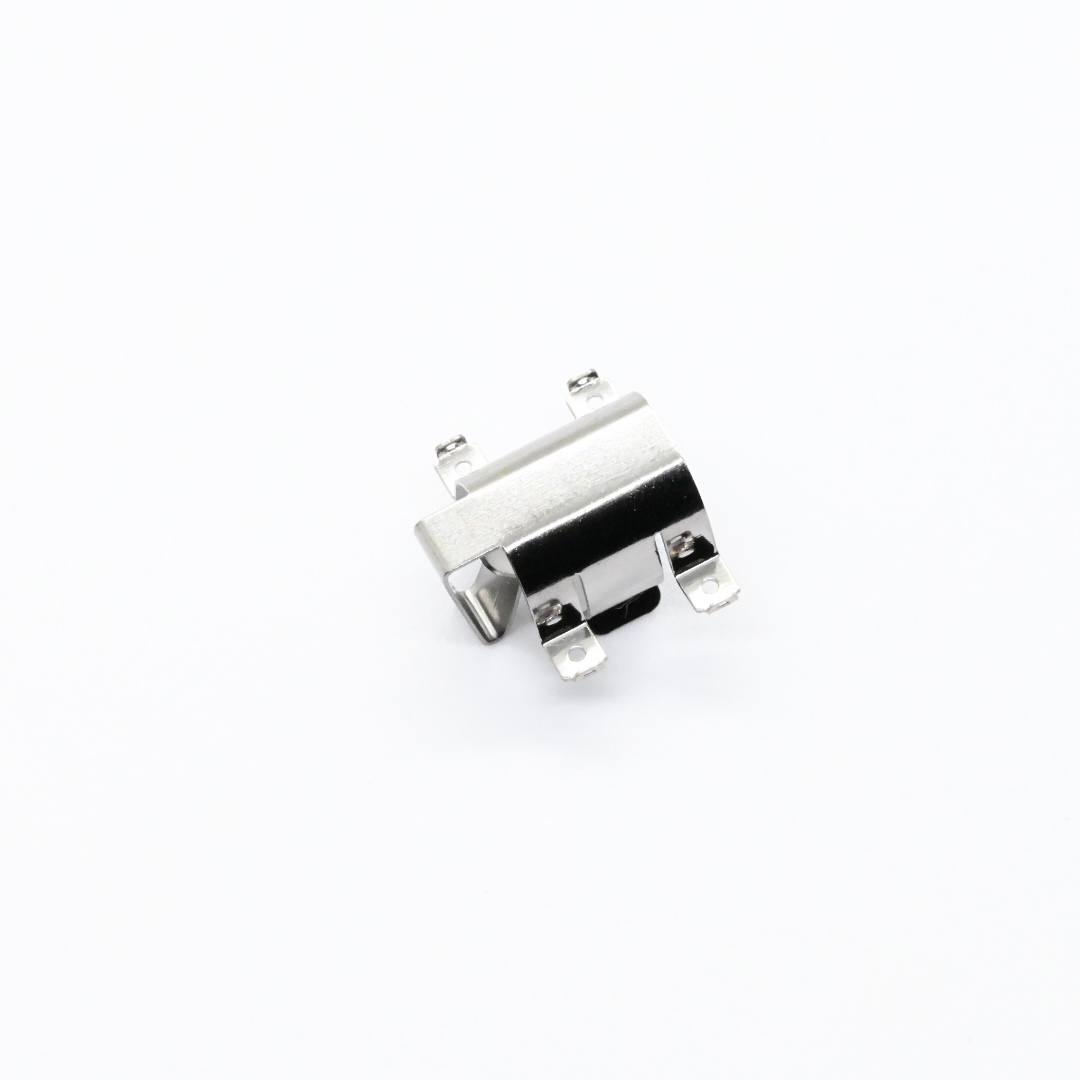

BS-M-SN-R-FTM880+Battery Contact Offset 6.35mm SMT（4）

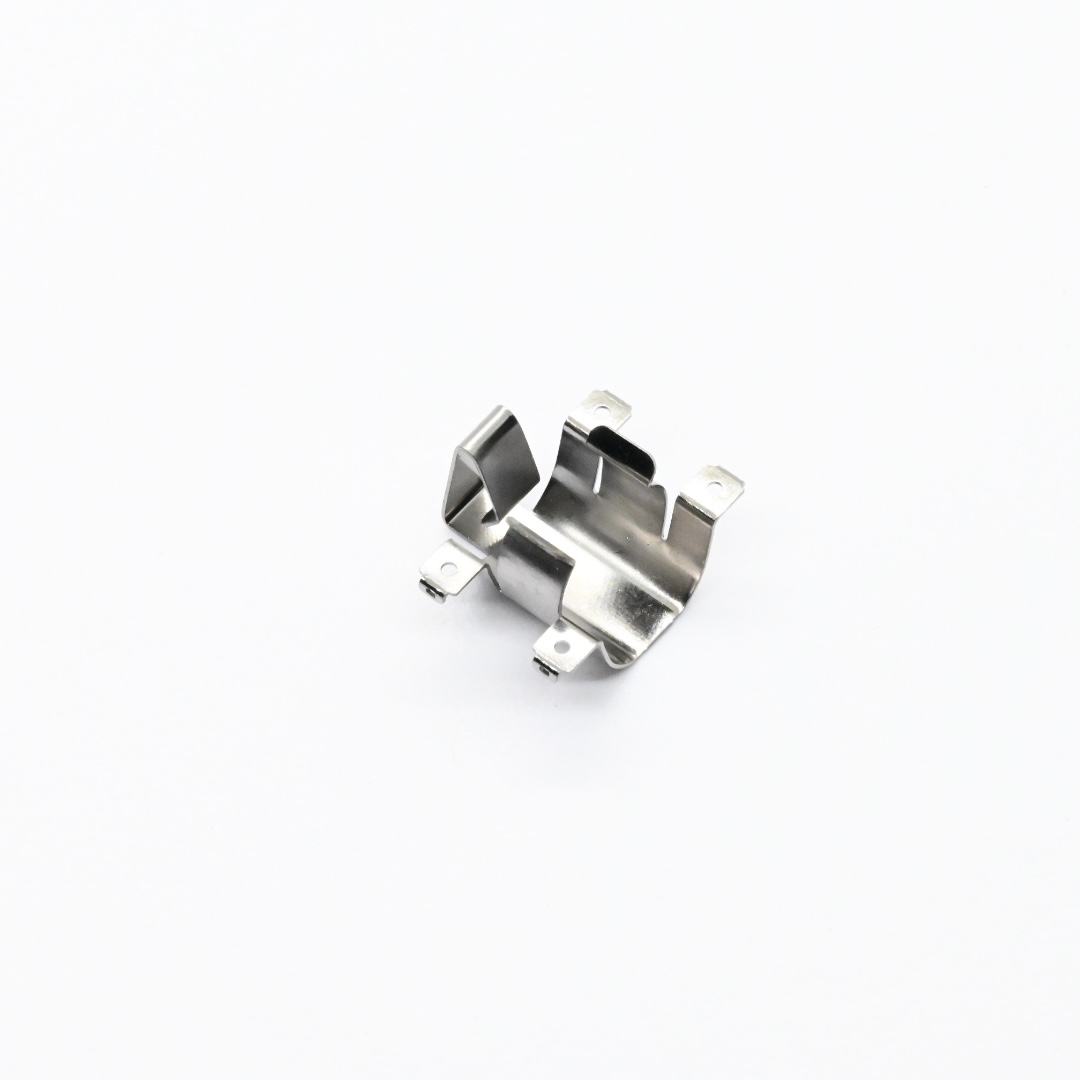

BS-M-SN-R-FTM880+Battery Contact Offset 6.35mm SMT（2）

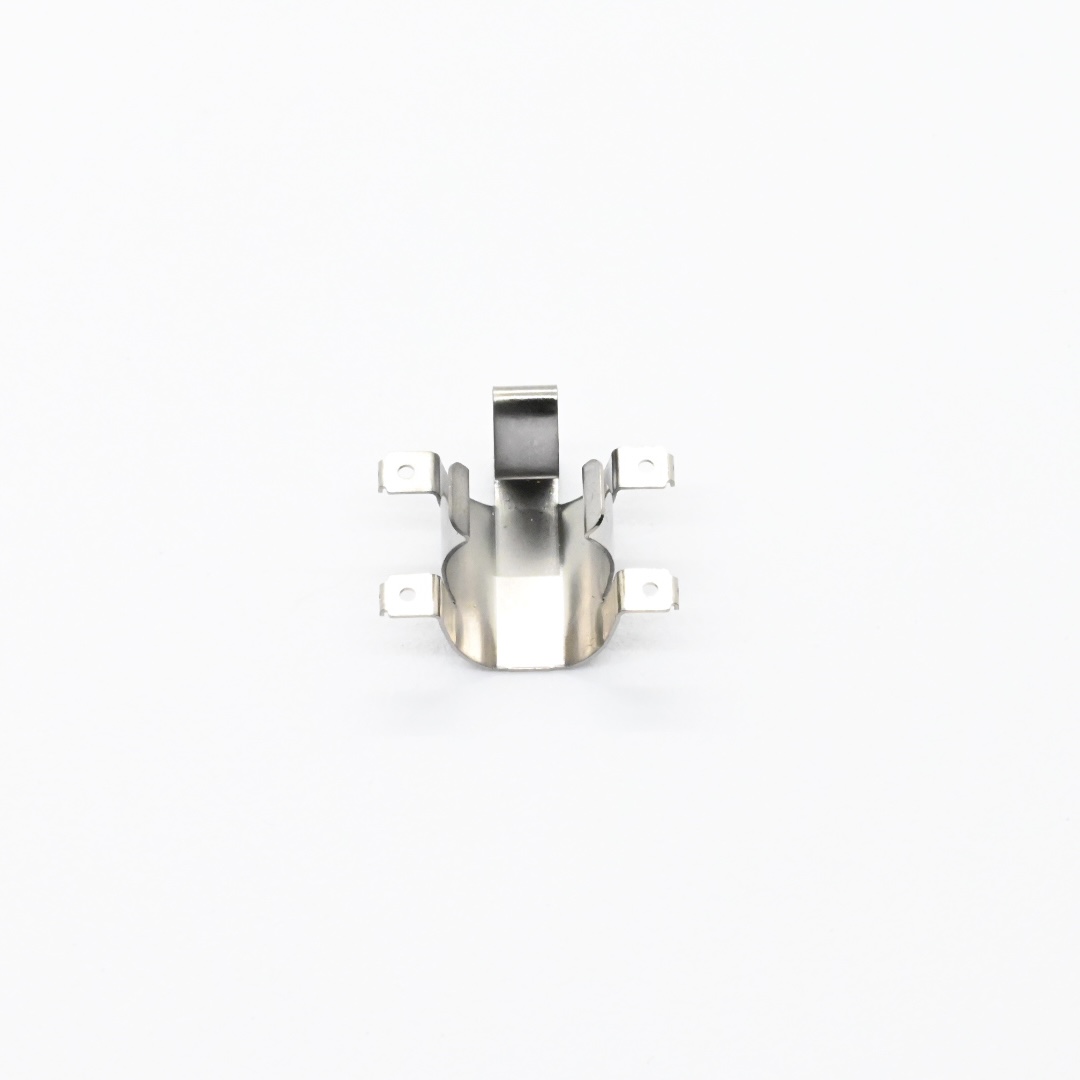

BS-M-SN-R-FTM880+Battery Contact Offset 6.35mm SMT（1）

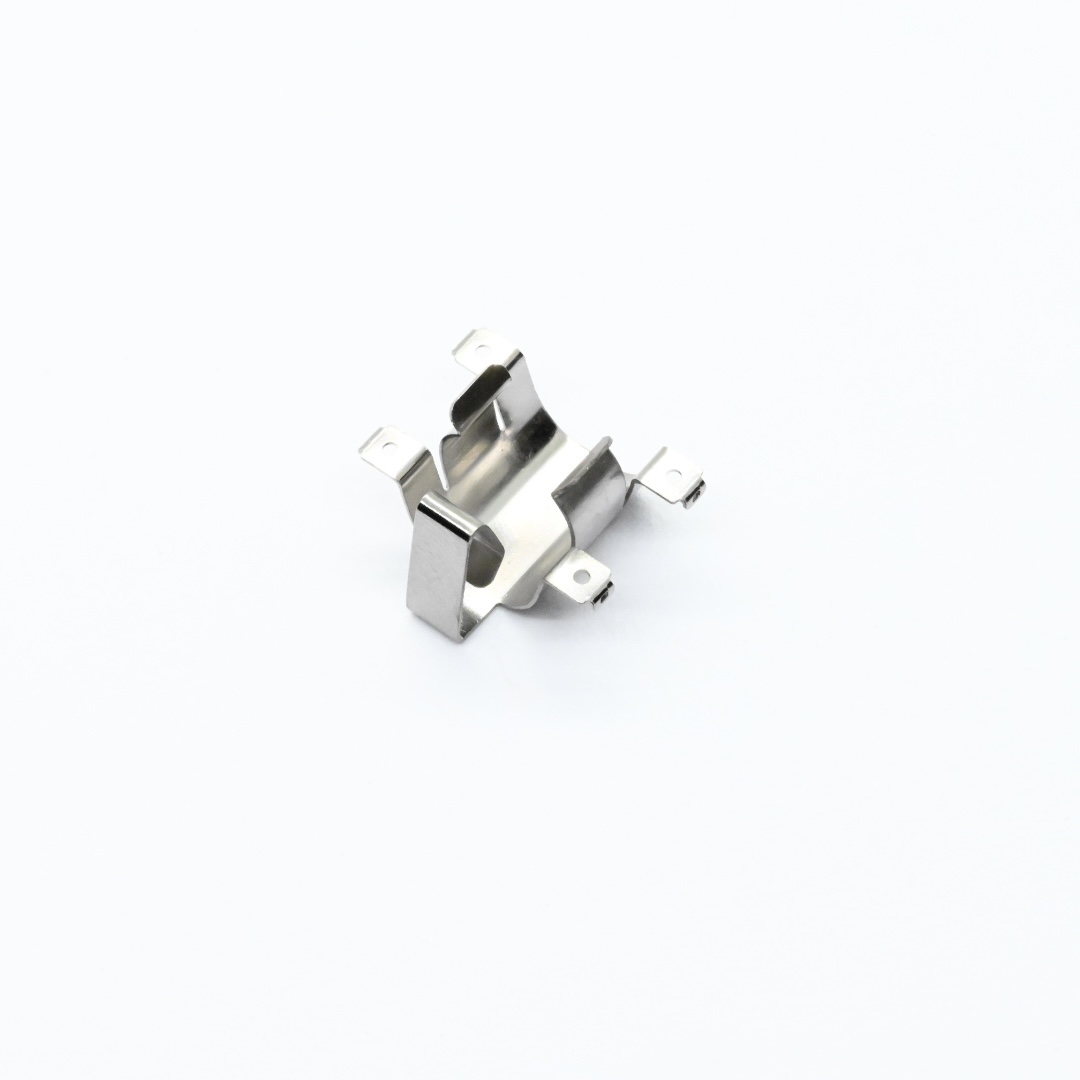

BS-M-SN-R-FTM880+Battery Contact Offset 6.35mm SMT（3）

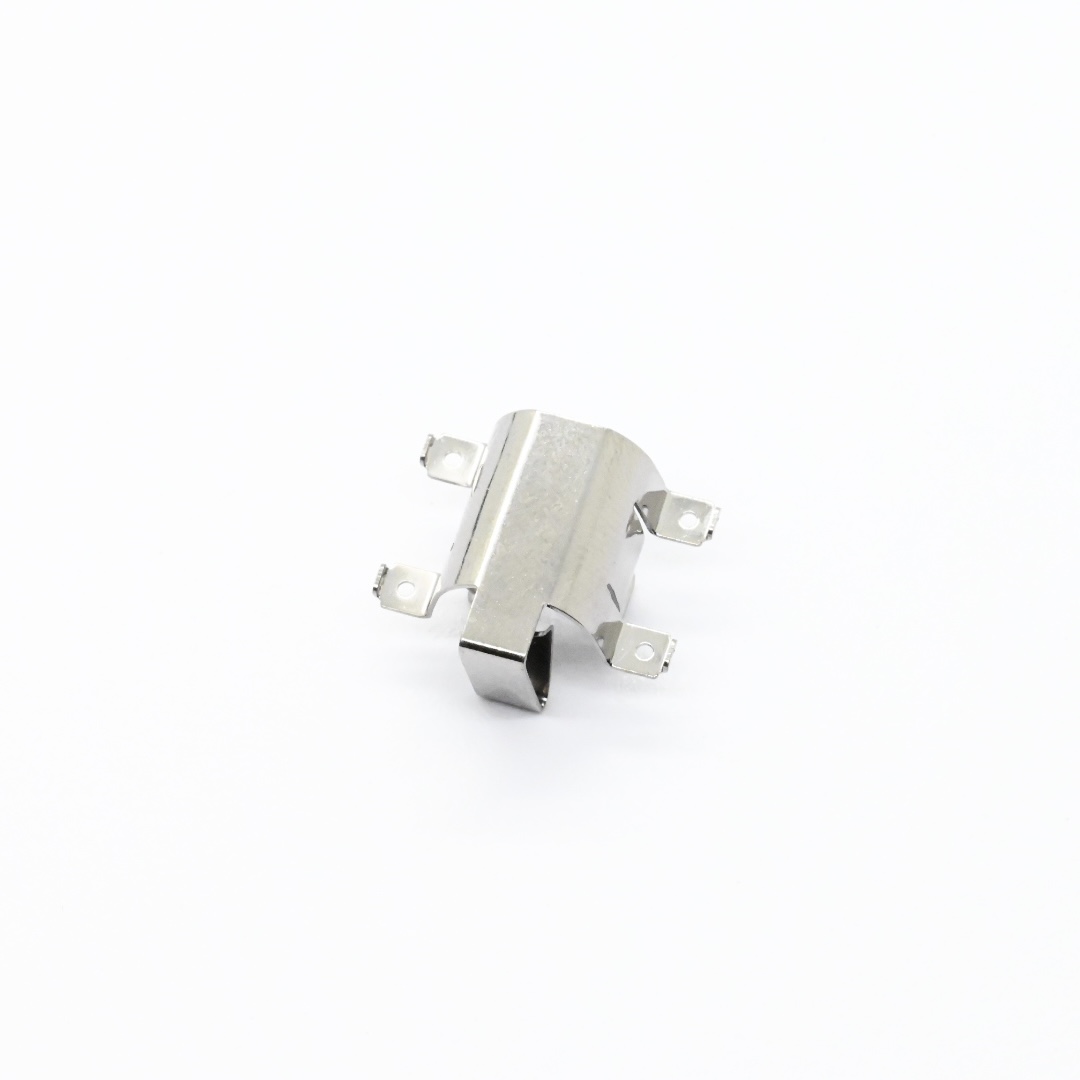

BS-M-SN-R-FTM880+Battery Contact Offset 6.35mm SMT（6）
