Product details

Huizhou Antenk Electronics Co., Ltd. produces BS-M-SI-A-CR2032A SMT battery contact designed to deliver stable elastic conductive connection for CR2025 and CR2032 coin batteries on PCB circuit boards. This metal contact is manufactured from 0.25mm thick phosphor bronze with standard 4 micro inch uniform nickel plating, and customers can pick multiple alternative plating finishes ranging from gold flash to 30 micro inch gold to strengthen anti-corrosion performance and consistent electrical conductivity. It is an SMT surface mount style with standardized PCB matching dimensions, supporting tray packing and tape reel packing two packaging options to fit manual assembly and high-speed automatic SMT mass production lines. This battery contact operates reliably within the temperature range of minus 40 degrees Celsius to 270 degrees Celsius and withstands 270V voltage, widely adopted in digital cameras communication devices industrial control modules smart home appliances electronic toys and precision measuring instruments. Operators must follow official PCB dimension specifications during reflow soldering, avoid excessive bending force to prevent irreversible phosphor bronze spring deformation and store finished contacts in dry storage space to protect nickel coating from oxidation. Unlike competitors that outsource stamping and electroplating processing Antenk realizes full independent production workflow including self-developed mold design phosphor bronze high-speed stamping nickel gold electroplating and complete laboratory electrical performance testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and fully complying with RoHS HSF and REACH environmental standards. We own hundreds of self-developed precision metal terminal molds, supply customized plating and packaging solutions, offer 24-hour professional technical support, and over seventy percent of our battery contacts are exported worldwide supported by our Guangdong Famous Trademark ANTENK and stable uniform batch production quality.

0.25mm Thin Phosphor Bronze Tab serves as the core elastic conductive part of this SMT battery contact and maintains steady clamping force for CR2025 and CR2032 coin cells.

4um Uniform Nickel Coated Tab forms a complete anti-rust barrier on the phosphor bronze substrate to reduce contact resistance and extend product service life.

Wide Temp SMT Coin Cell Spring keeps stable elastic and conductive performance under operating temperature from -40℃ to 270℃ for diverse electronic equipment.

1. Material & Electroplating Info

1.1 Base material: 0.25mm thick phosphor bronze

1.2 Standard plating: 4um nickel plating

1.3 Optional plating finishes: Tin, gold flash, 3μ",5μ",10μ",15μ",30μ" gold plating

2. Applicable Battery & Mounting Type

2.1 Matching coin cells: CR2025, CR2032

2.2 Structure type: M = SMT surface mount type

3. Electrical & Thermal Performance

3.1 Operating temperature range: -40℃ ~ 270℃

3.2 Withstand voltage: 270V

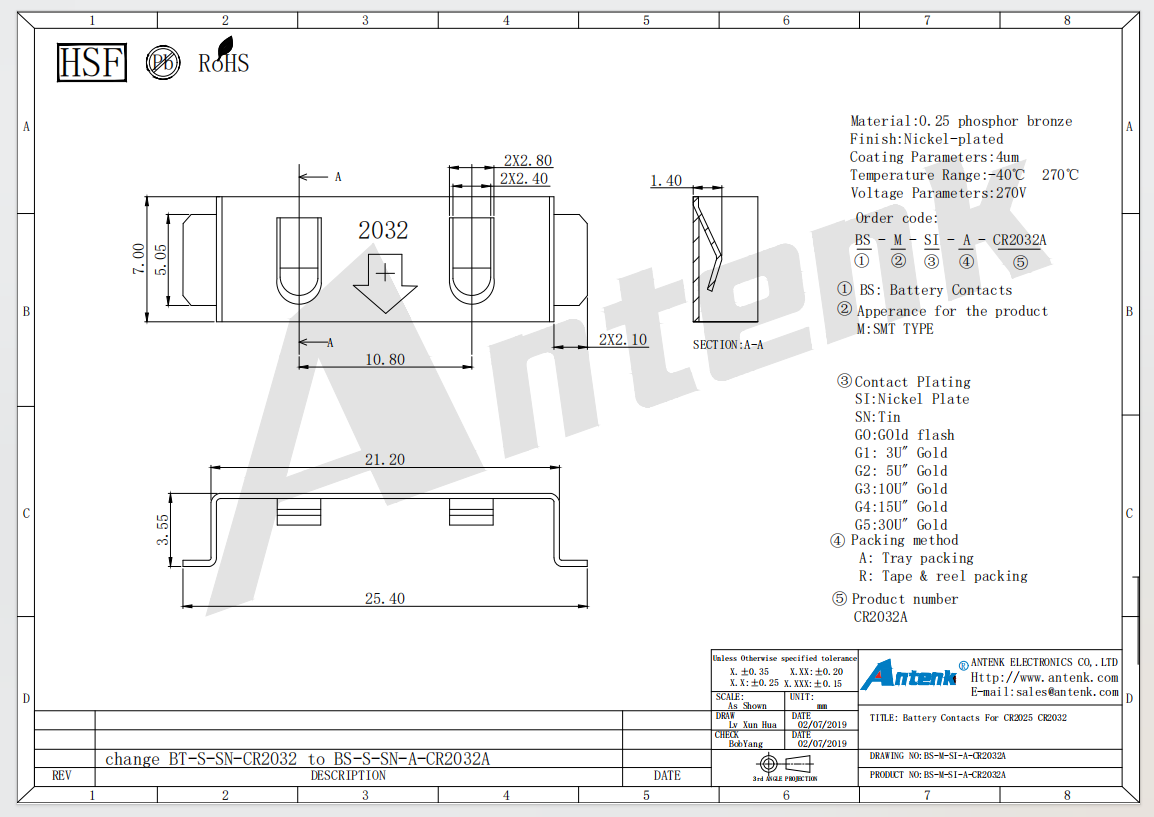

4. Dimension & Tolerance Standard (Unit: mm)

4.1 Key outline dimensions: 25.40, 21.20, 10.80, 7.00, 5.05, 3.55, 1.40; mounting hole sizes 2X2.10, 2X2.40, 2X2.80

4.2 General dimensional tolerance rules

4.2.1 Integer size X. : ±0.35

4.2.2 One decimal X.X : ±0.25

4.2.3 Two decimals X.XX : ±0.20

4.2.4 Three decimals X.XXX : ±0.15

5. Order Code Definition & Packaging Options

5.1 Code breakdown: BS=Battery Contacts, M=SMT TYPE, SI=Nickel plated, A=Tray packing, CR2032A=product model

5.2 Two available packaging modes

5.2.1 A: Tray packing

5.2.2 R: Tape & reel packing

6. Environmental Compliance

6.1 Comply with Pb-free, RoHS and HSF standards

7. Application Scenarios

7.1 Digital cameras

7.2 Communication equipment

7.3 Industrial control sensors

7.4 Smart home appliances

7.5 Electronic toys

7.6 Precision measuring instruments

8. Usage Precautions

8.1 Perform reflow soldering strictly following the official PCB pad layout drawing

8.2 Avoid excessive bending force to prevent permanent elastic deformation of phosphor bronze spring

8.3 Store finished contacts in dry warehouse to avoid oxidation and corrosion of 4um nickel coating layer

8.4 Only install matched CR2025 or CR2032 coin batteries for stable conductive performance

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

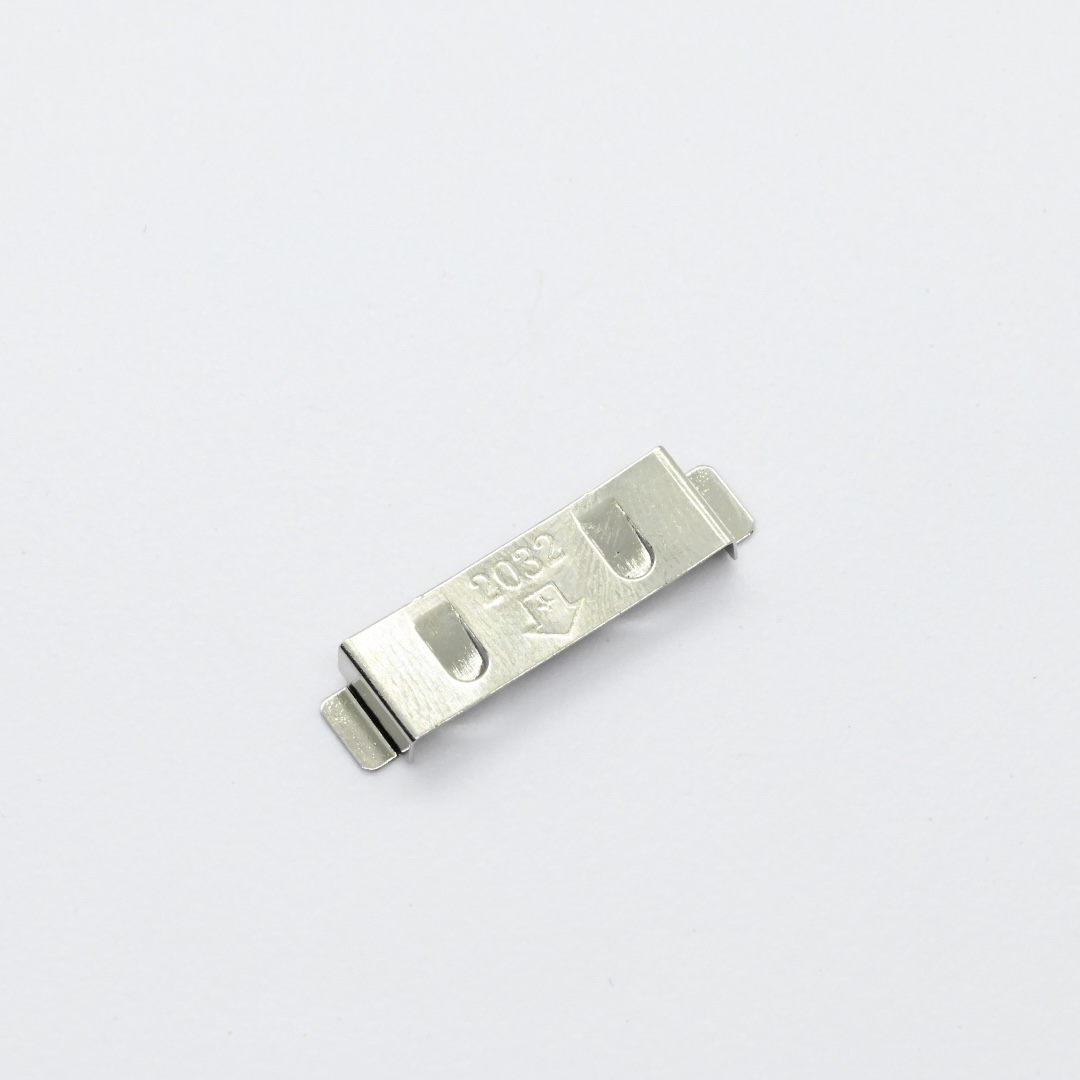

BS-M-SI-A-CR2032A+Battery Contacts For CR2025 CR2032（5）

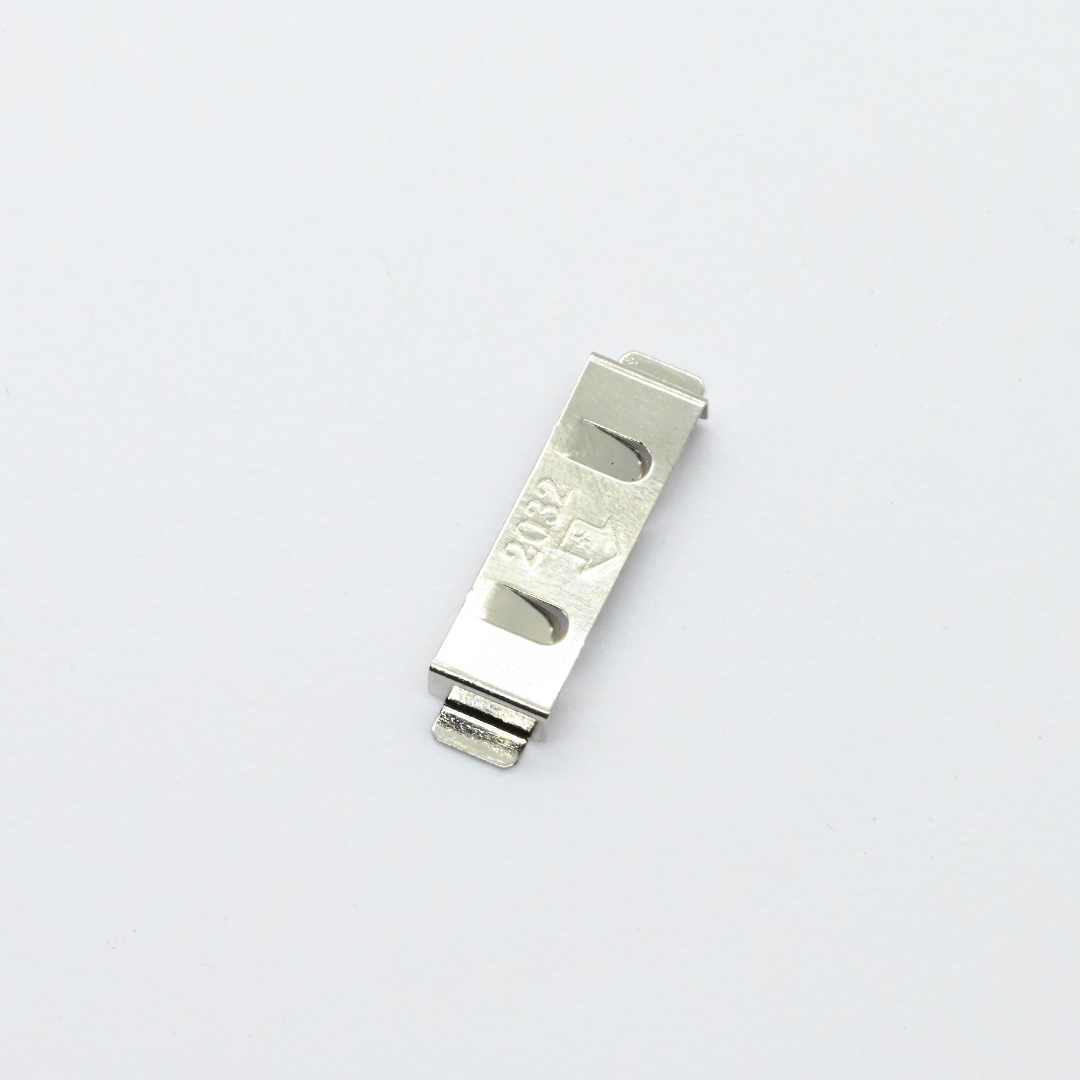

BS-M-SI-A-CR2032A+Battery Contacts For CR2025 CR2032（6）

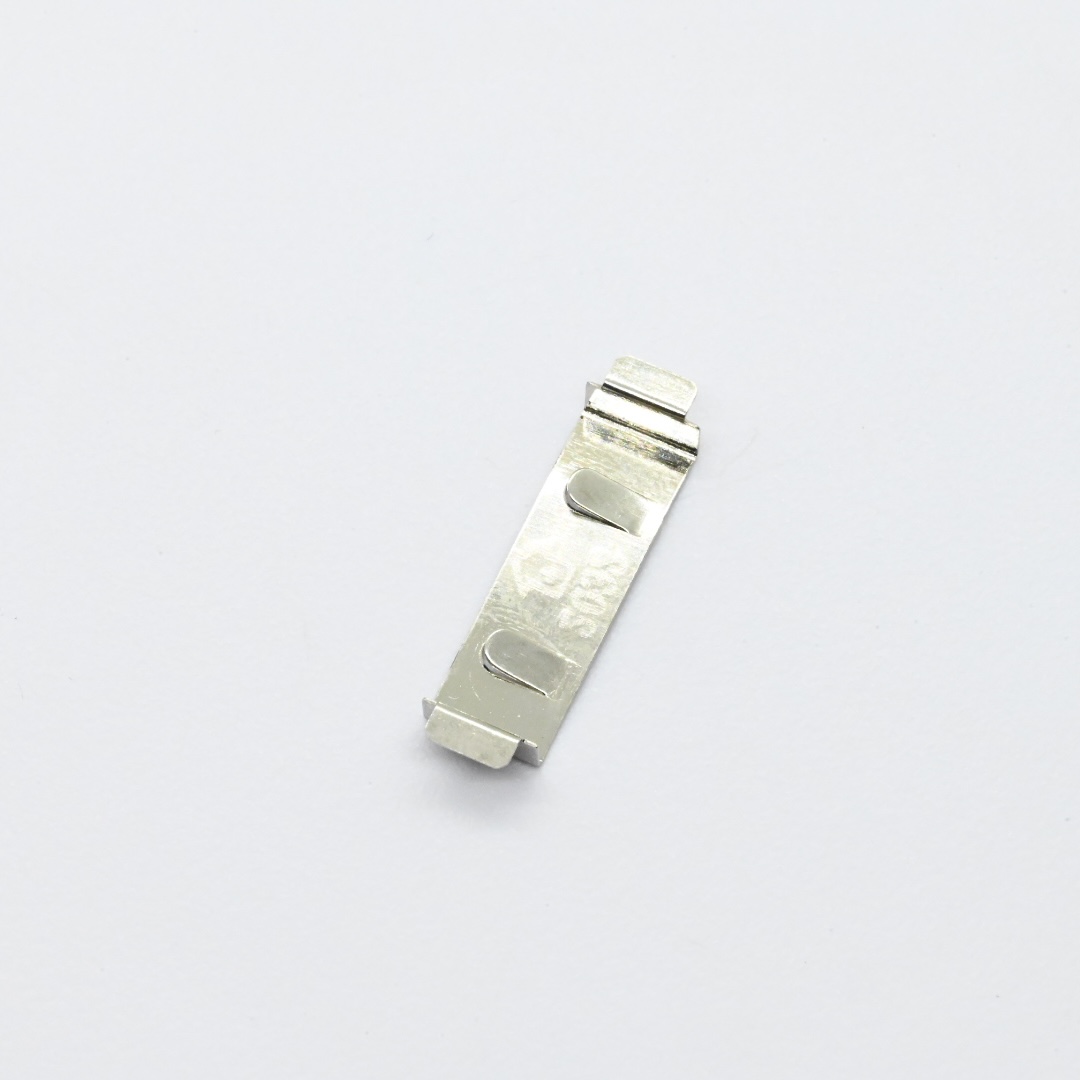

BS-M-SI-A-CR2032A+Battery Contacts For CR2025 CR2032（3）

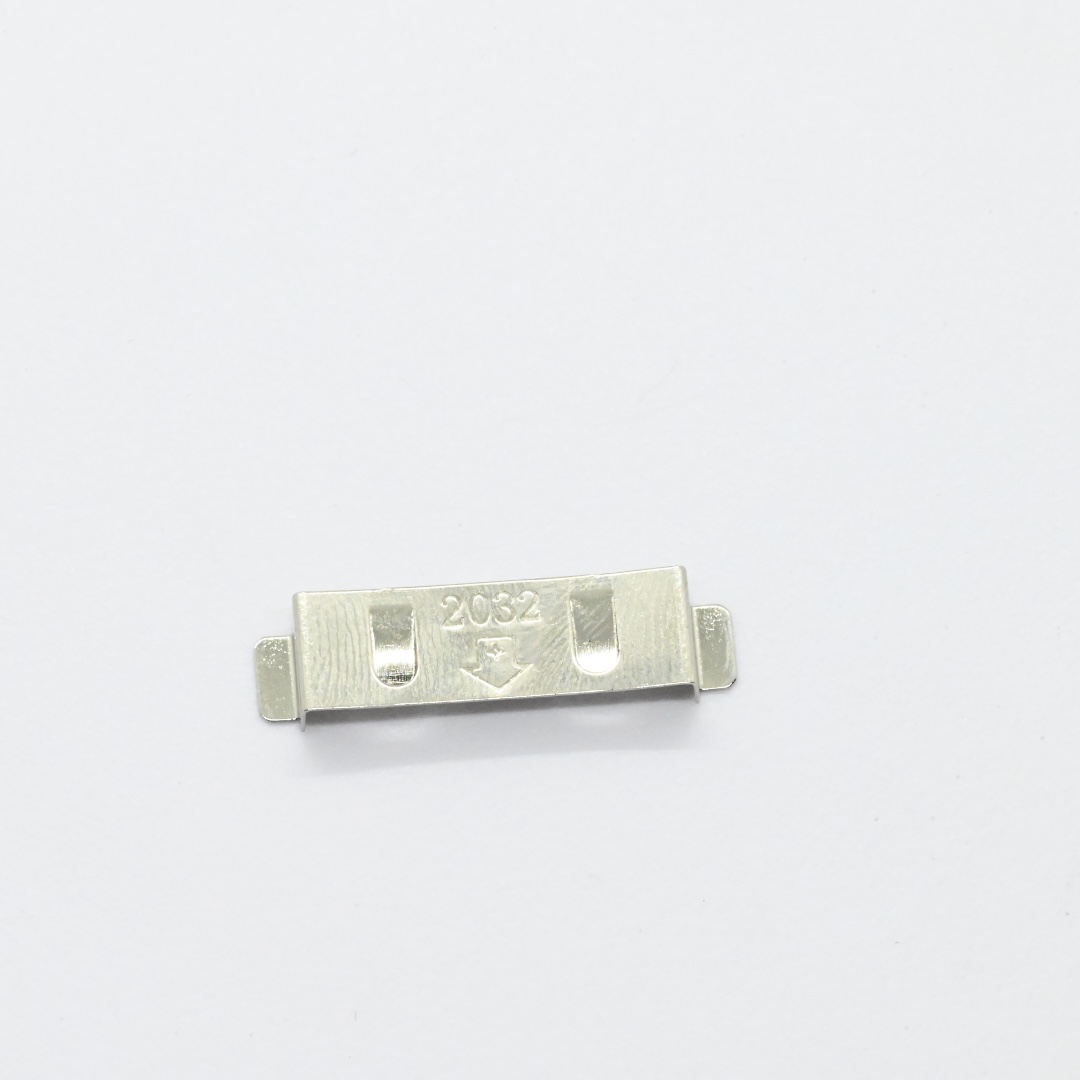

BS-M-SI-A-CR2032A+Battery Contacts For CR2025 CR2032（4）

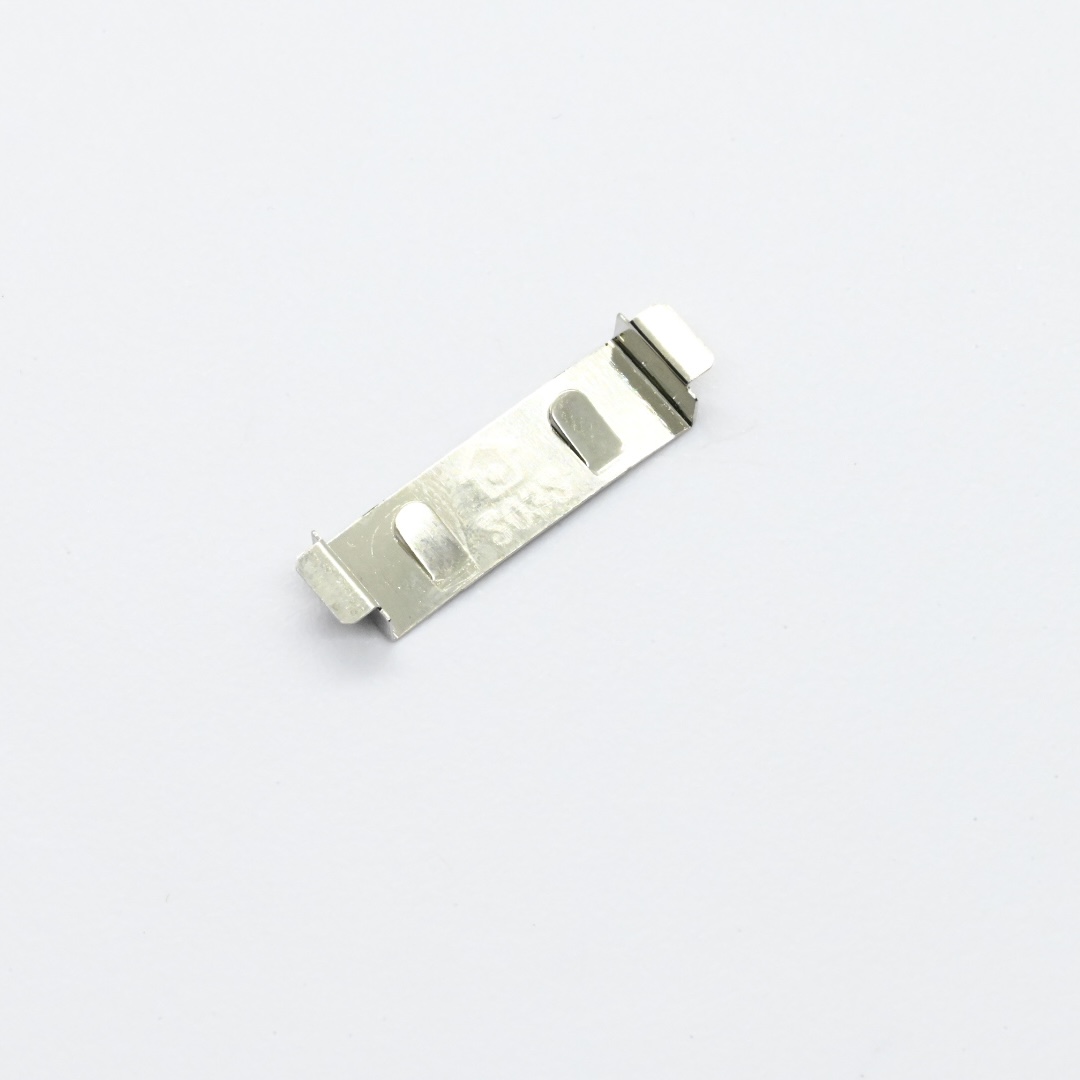

BS-M-SI-A-CR2032A+Battery Contacts For CR2025 CR2032（2）

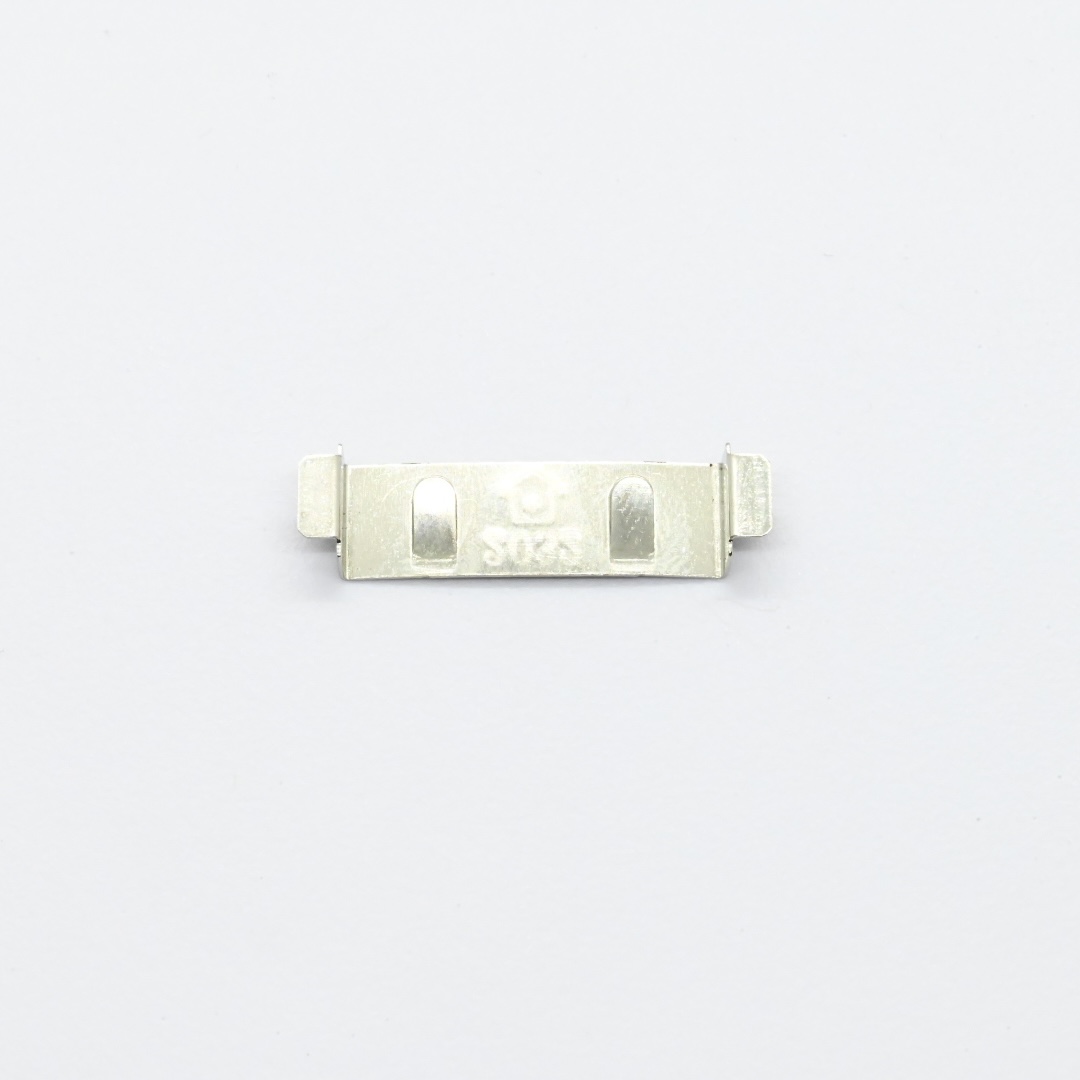

BS-M-SI-A-CR2032A+Battery Contacts For CR2025 CR2032（1）
