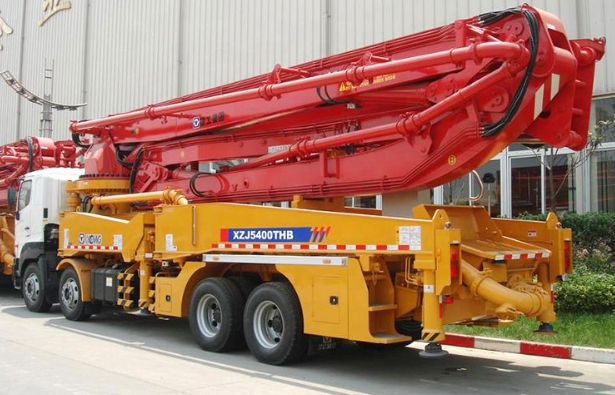

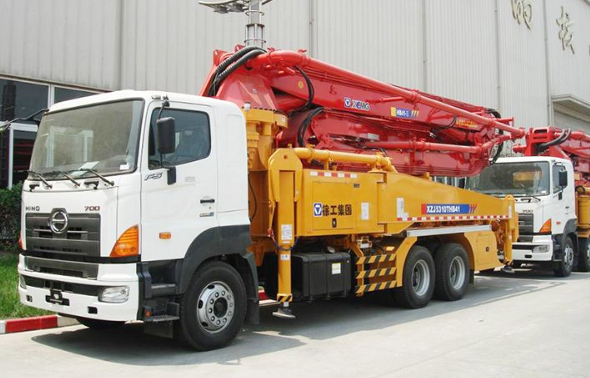

The XCMG HB43K Truck Mounted Concrete Pump is a high-performance concrete pumping solution developed by XCMG based on advanced technology from SCHWING Germany. Designed for medium and large-scale construction projects, the HB43K combines strong pumping capacity, reliable operation, and flexible mobility to meet the demands of modern concrete construction.
Equipped with a durable Sinotruk chassis and a powerful diesel engine, the HB43K delivers excellent driving performance, high torque output, and strong adaptability on different job sites. The machine adopts an advanced pumping system with Rock Valve technology, full hydraulic reversing, and optimized hydraulic control, ensuring smooth concrete delivery, fast response, and reduced component wear for longer service life.

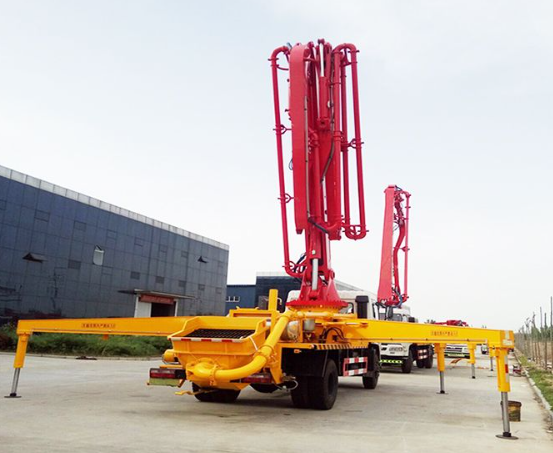

The HB43K features a five-section Z-type boom design, providing excellent flexibility and a wider working range. With a maximum reach height of 43 meters, a theoretical pumping capacity of 170 m³/h, and a pumping pressure of 8 MPa, it is capable of efficiently handling continuous concrete pouring operations.
The high-rigidity stabilizer structure, intelligent control system, and reliable hydraulic technology improve overall safety, stability, and operating efficiency. The HB43K is widely used in high-rise buildings, bridges, tunnels, commercial construction, and infrastructure projects, making it an ideal choice for contractors seeking a durable and efficient concrete pumping machine.
| Product Parameter | Specification |
| Model Number | HB43K |
| Brand | XCMG |
| Chassis Model | ZZ5347V4847C1 |
| Overall Dimension | 11260×2500×3990 mm |
| Overall Weight | 31000 kg |
| Max. Speed | 90 km/h |
| Max. Gradeability | 40% |
| Wheelbase | 4600+1350 mm |
| Tire | 1200R20 |
| Engine Model | D12.42-30 |
| Max. Power | 278 kW |
| Max. Torque | 1820 N·m/(1100–1500 r/min) |
| Engine Displacement | 10.837 L |
| Emission Standard | Euro III |
| Theoretical Pumping Capacity | 170 m³/h |
| Concrete Pumping Pressure | 8 MPa |
| Theoretical Pumping Times | 23–26 times/min |
| Delivery Cylinder Diameter × Stroke | φ260×2000 mm |
| Max. Aggregate Diameter | ≤40 mm |
| Filling Height | 1580 mm |
| Concrete Slump Range | 8–23 cm |
| Reach Height | 43 m |
| Reach Depth | 29 m |
| Slewing Radius | 37.3 m |
| Slewing Angle | ±270° |
| Stabilizer Longitudinal Span | 7700 mm |
| Front Stabilizer Transverse Span | 7300 mm |
| Rear Stabilizer Transverse Span | 7740 mm |
