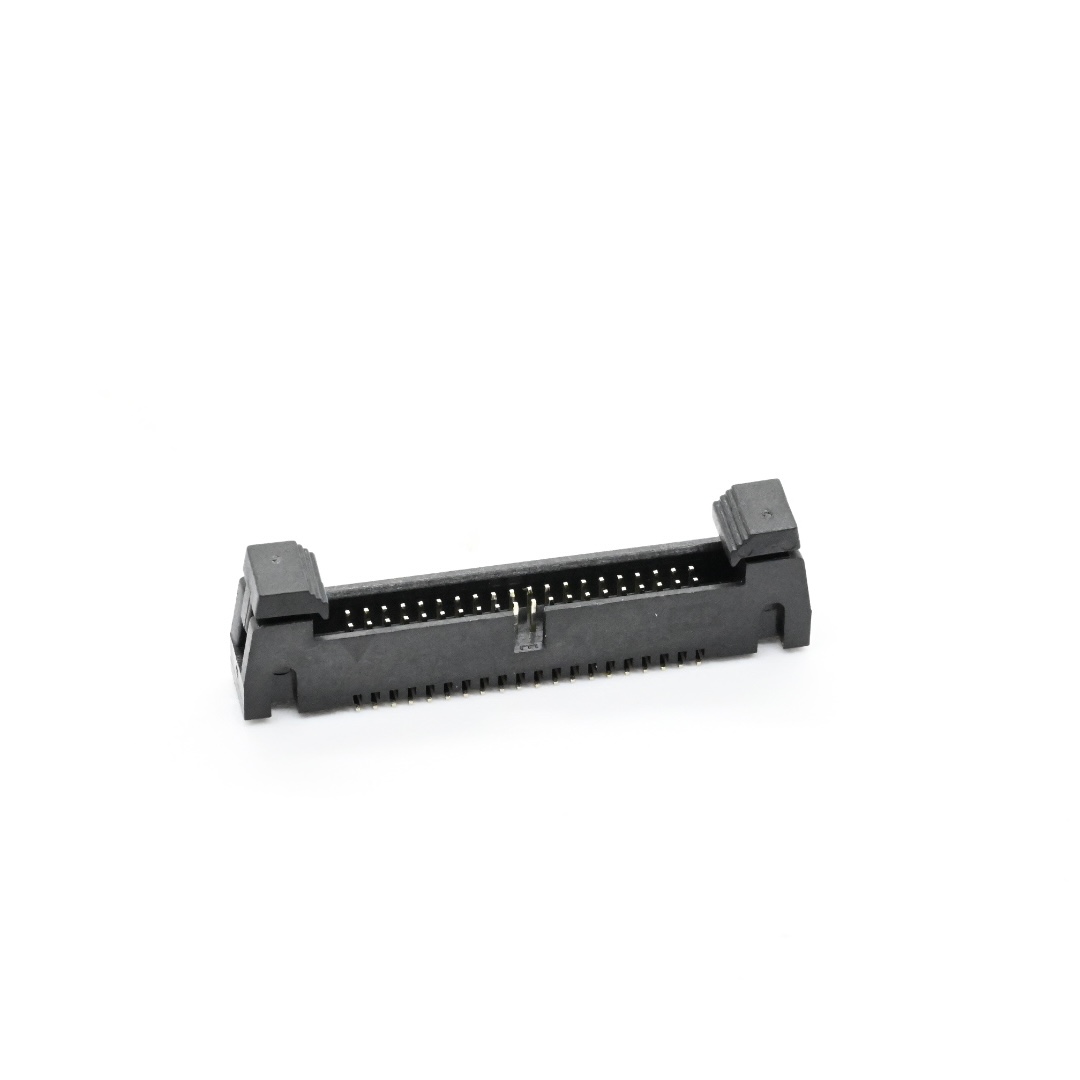

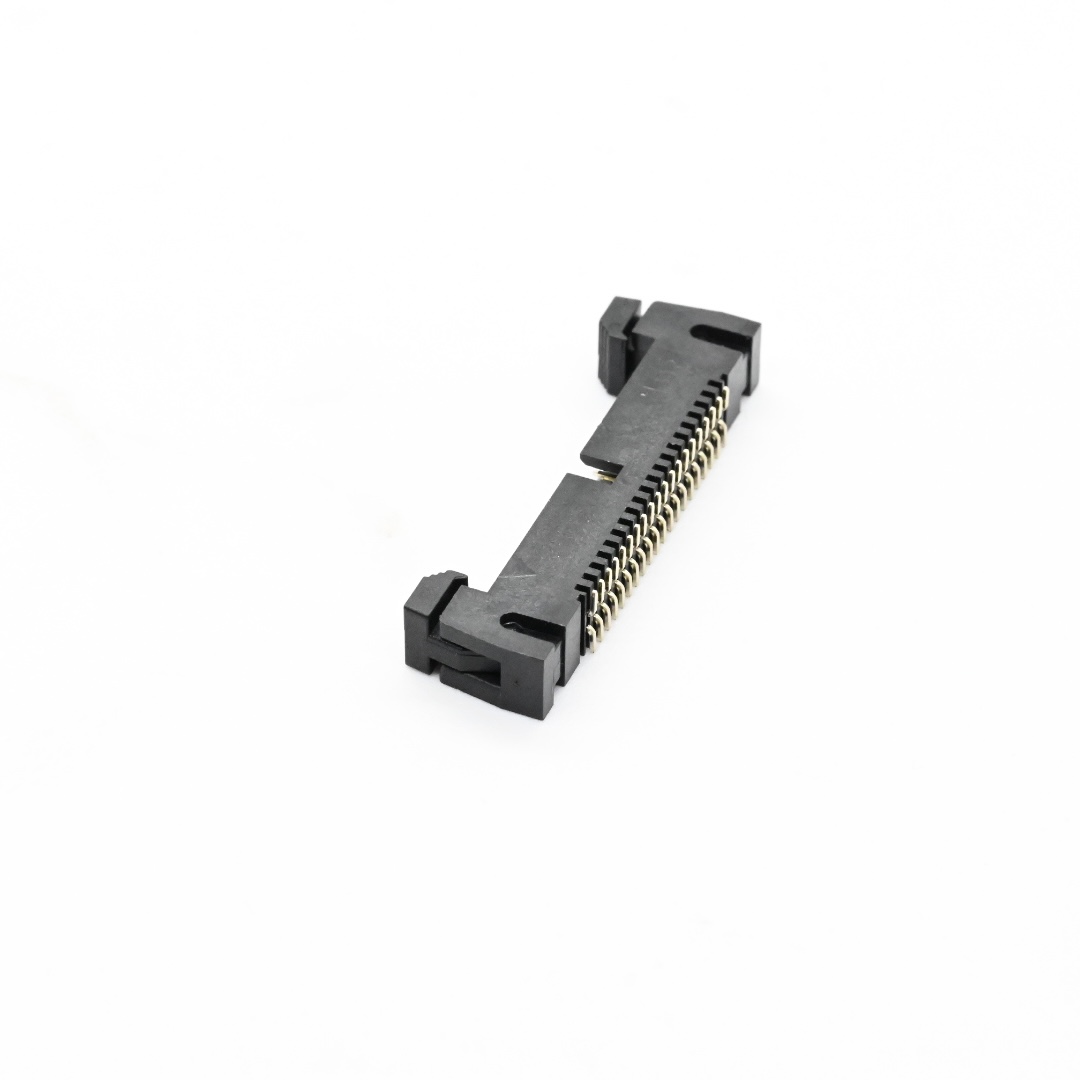

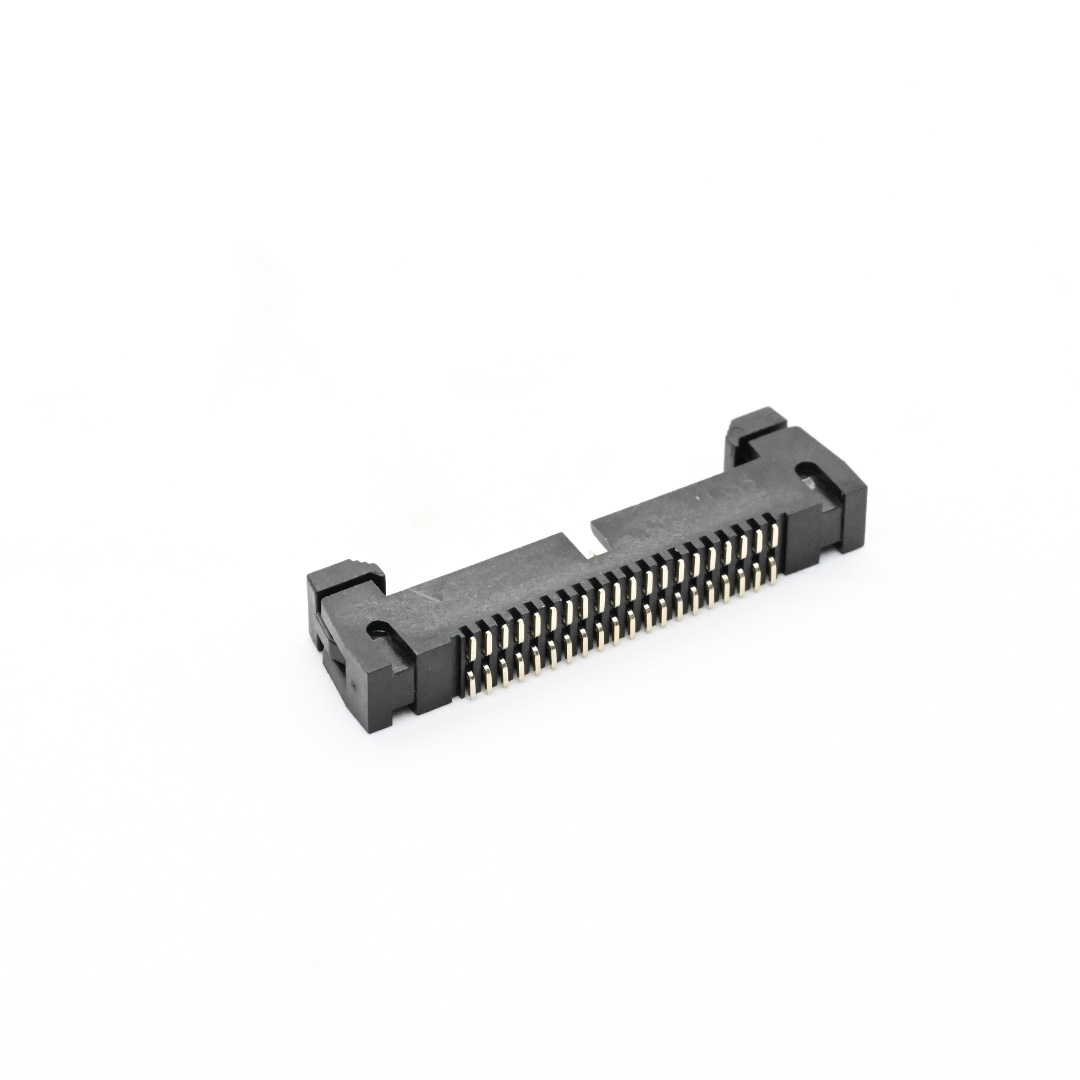

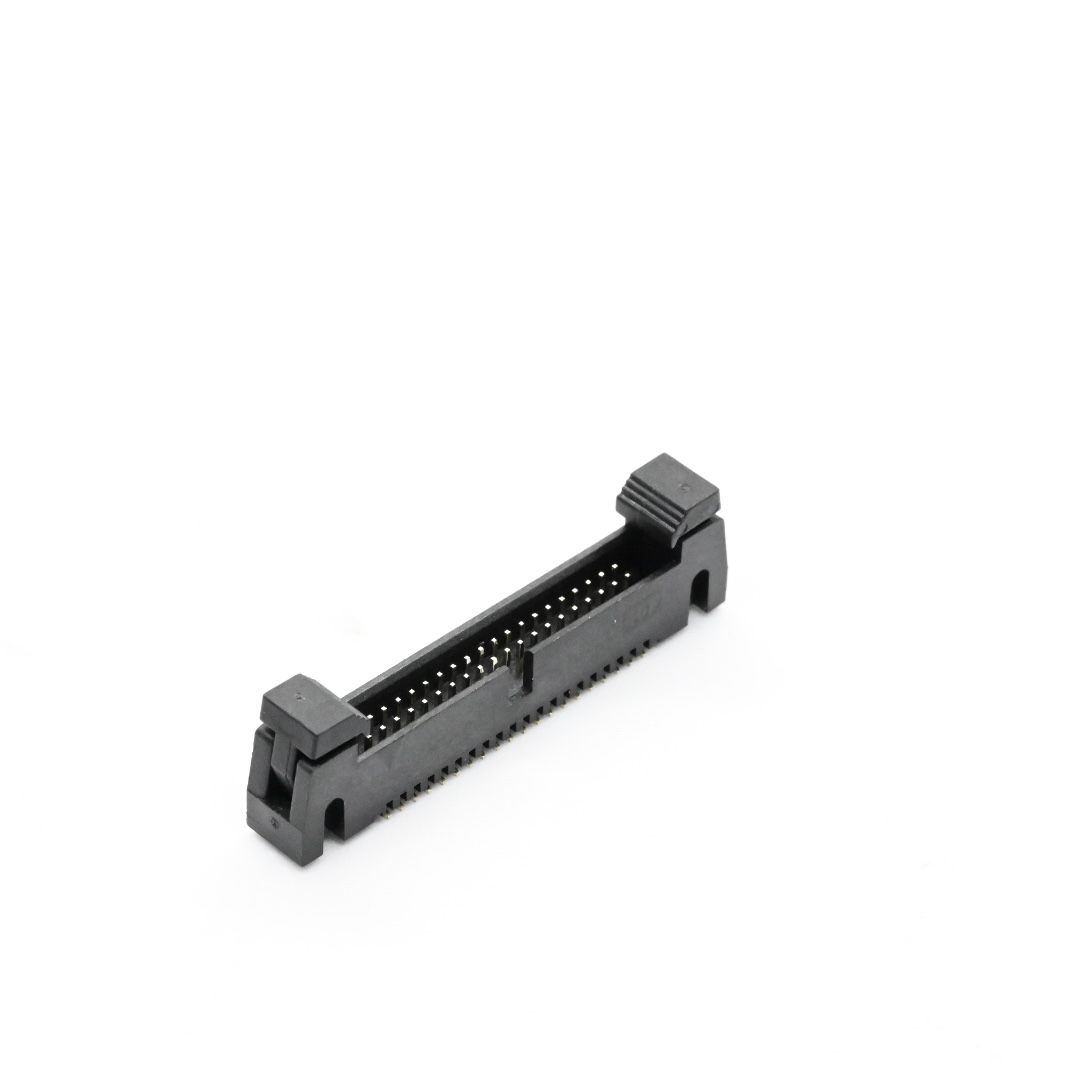

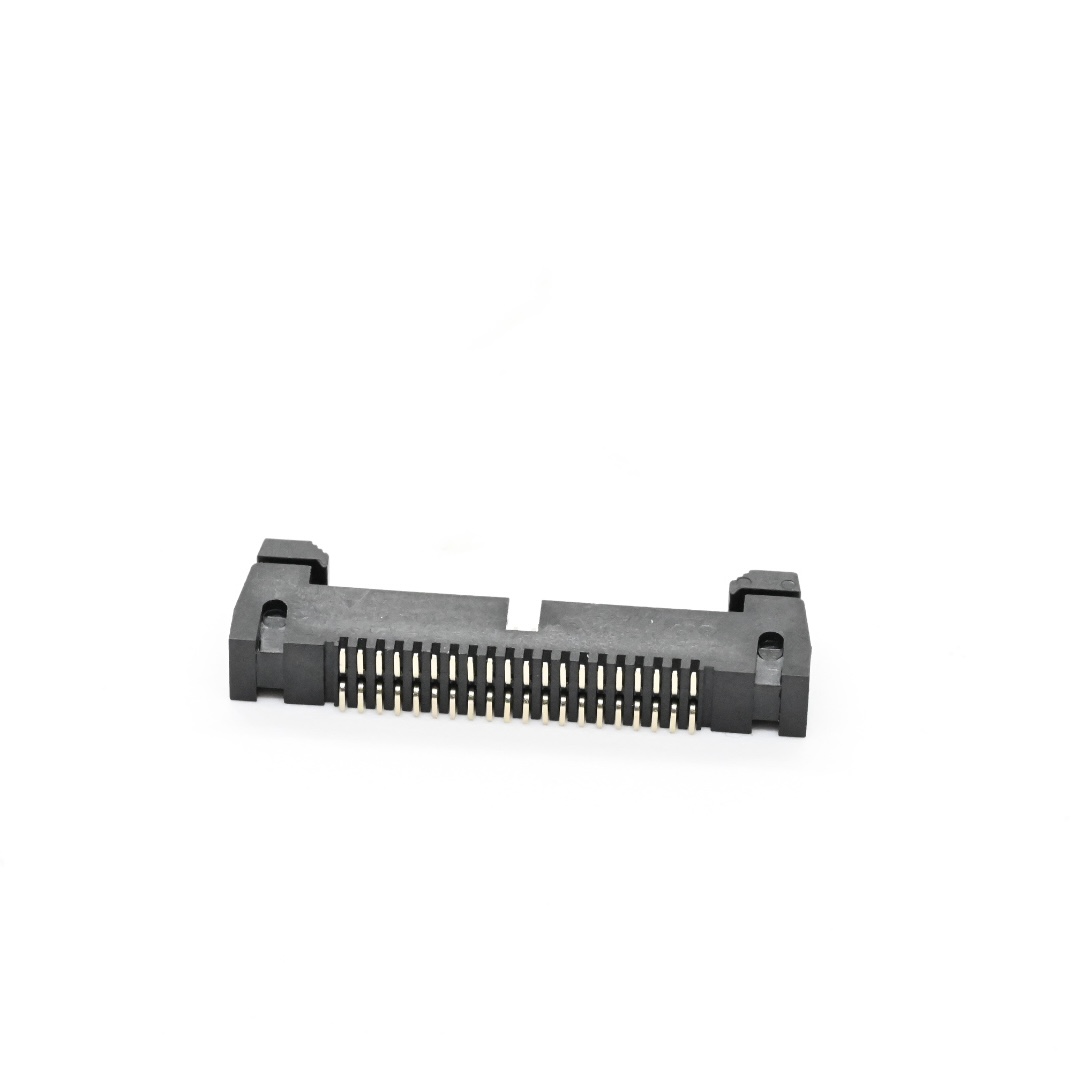

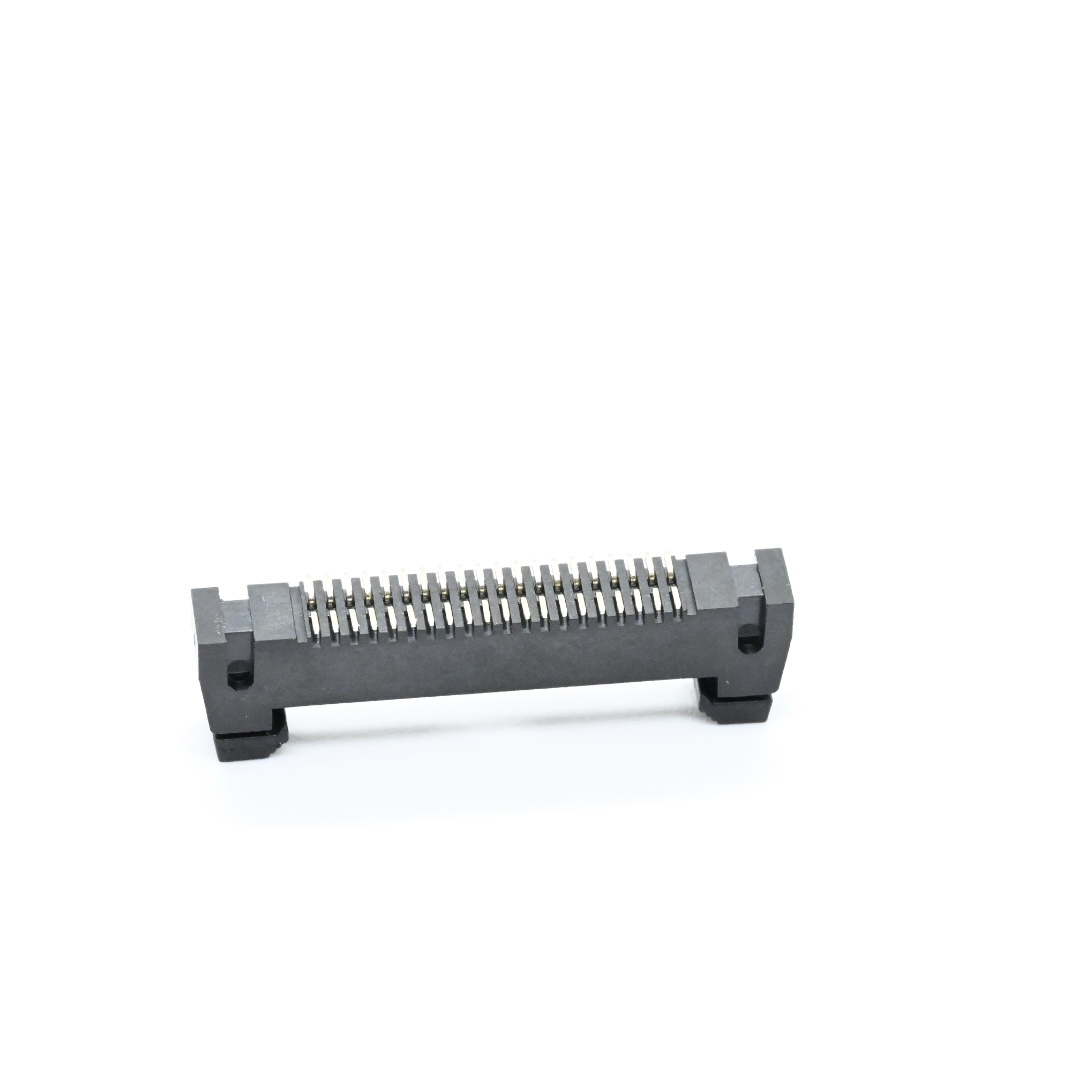

Huizhou Antenk Electronics Co., Ltd. manufactures LHAM01 series 1.27mm pitch SMT ejector header designed to realize compact high-density board-to-board signal connection for miniature PCB electronic modules with convenient ejector disassembly structure for fast plug and unplug operation. This SMT ejector header adopts PA6T with 30 percent glass fiber reinforced UL94V0 flame retardant plastic as main insulator, alternative LCP and PA9T housing materials and three optional colors black blue gray, matched with brass contact pins finished with nickel base layer plus diversified plating options including tin gold flash and selective gold plating from 3 micro inch to 30 micro inch to stabilize contact resistance within 20 milliohm maximum and deliver 1.0 Amp rated current under wide operating temperature range of minus 40 degree Celsius to plus 105 degree Celsius withstanding 500V AC DC voltage and maintaining insulation resistance above 1000 megaohm. It features standard 1.27mm pin pitch, customizable contact counts from 10 pins to 60 pins and multiple packaging solutions tray bag tube tape and reel with cap to fit manual assembly and fully automatic SMT reflow production lines. This mini SMT ejector header is widely applied in digital cameras communication equipment industrial control sensors smart home appliances portable storage devices computer peripherals and precision miniature measuring instruments. Operators must follow official PCB layout dimensional tolerance standards strictly during SMT soldering, avoid heavy extrusion to prevent ejector structure fracture and brass pin deformation and store finished connectors in dry dust-free storage environment to prevent plating layer oxidation and plastic aging. Unlike competitors outsourcing plastic injection molding and terminal stamping Antenk implements full independent production workflow covering self-developed precision plastic and metal mold fabrication brass high speed stamping glass fiber plastic injection molding multi-layer electroplating and full laboratory electrical high-low temperature and dimensional reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while fully complying with RoHS HSF and REACH international environmental protection standards. We own hundreds of self-developed precision molds, provide customizable pin count plating housing material color and packaging schemes, offer round the clock professional engineering technical support, and more than seventy percent of our miniature pin headers are exported globally supported by our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

GF Reinforced UL94V0 PA6T Insulator delivers outstanding high temperature resistance and flame retardancy for compact SMT connector assembly.

Selective Gold Plated Brass Contact Pin keeps low stable contact resistance and cuts material cost for high-density miniature circuit connection.

Low Temperature Resistant SMT Ejector Header maintains stable plug-and-disconnect performance in working environments ranging from -40°C to +105°C.

1. Material & Plating Options

1.1 Insulator base materials

1.1.1 Standard: PA6T + 30% glass fiber, UL94V-0 flame retardant

1.1.2 Optional substitutes: LCP, PA9T

1.2 Insulator color options: Black, Blue, Gray

1.3 Contact raw material: Brass

1.4 Contact surface plating types

1.4.1 Tin plating (SN)

1.4.2 Gold flash (G0/S0 selective)

1.4.3 Selective/Full gold: 3μ",5μ",10μ",15μ",30μ" gold

2. Electrical & Temperature Performance

2.1 Rated current: 1.0 Amp

2.2 Max contact resistance: 20 mΩ

2.3 Min insulation resistance: 1000 MΩ

2.4 Withstand voltage: 500V AC/DC

2.5 Operating temperature range: -40°C ~ +105°C

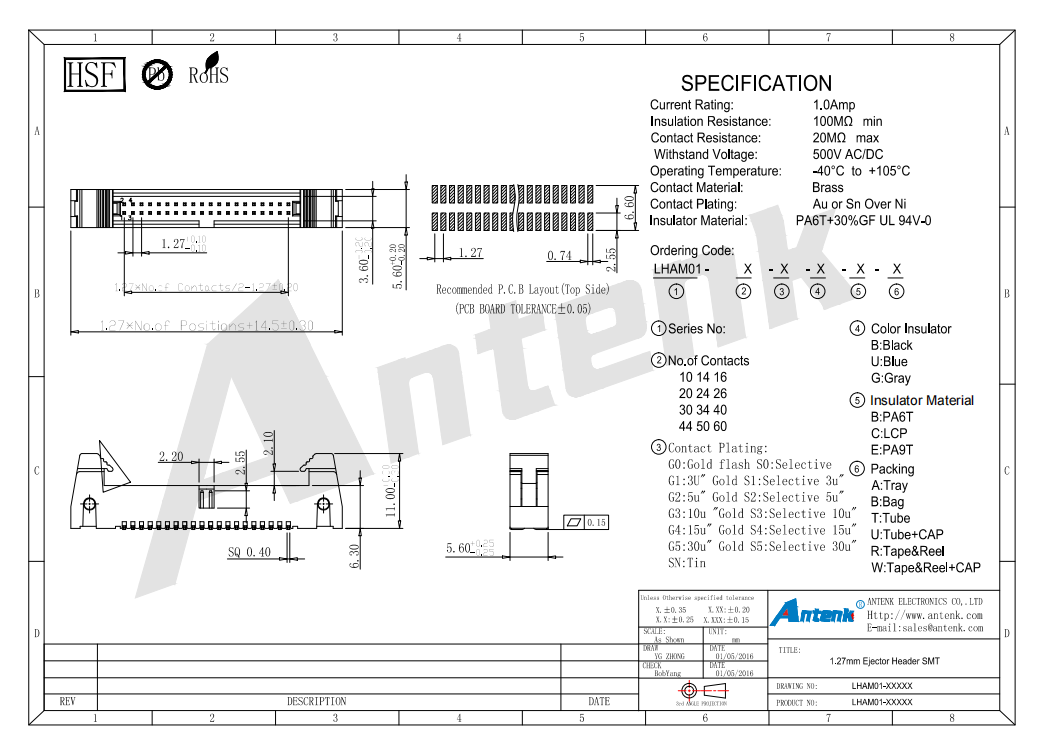

3. Dimension & Structural Rules (Unit: mm)

3.1 Core pitch: 1.27mm SMT surface mount ejector type

3.2 Custom contact pin count: 10 / 14 / 16 / 20 / 24 / 26 / 30 / 34 / 40 / 44 / 50 / 60 pins

3.3 Standard dimensional tolerance

3.3.1 Integer X. : ±0.35

3.3.2 Single decimal X.X : ±0.25

3.3.3 Two decimals X.XX : ±0.20

3.3.4 Three decimals X.XXX : ±0.15

4. Packaging Selection

4.1 A: Tray packing

4.2 B: Bag packing

4.3 T: Tube packing

4.4 U: Tube + CAP

4.5 R: Tape & Reel

4.6 W: Tape & Reel + CAP

5. Environmental Compliance

5.1 Meet HSF and RoHS lead-free environmental standards

6. Application Scenarios

6.1 Miniature industrial control modules

6.2 Portable communication equipment

6.3 Digital cameras & portable storage devices

6.4 Smart home mini appliances

6.5 Precision miniature measuring instruments

6.6 Laptop and computer peripheral circuit boards

7. Usage Precautions

7.1 Complete SMT reflow soldering strictly following official PCB layout drawing

7.2 Avoid strong impact or extrusion to prevent ejector mechanism damage and brass pin deformation

7.3 Store finished headers in dry dust-free warehouse to avoid oxidation of nickel/gold plating layers

7.4 Match pin count, plating, insulator material and packaging according to actual circuit design requirements
