2.0-6.0mm Wire | 25x25-200x200mm Mesh | 1.0x2.0m-2.4x3.0m Panel | HDG / Electro-Galvanized | ISO 9001
ANJIA Group supplies galvanized welded steel wire mesh panels – rigid grid panels manufactured from low carbon steel wire with a hot-dipped or electro-galvanized finish. Used for perimeter fencing, machine guards, storage cages, concrete reinforcement and general partitioning. Panels can be cut, bent or supplied with frame tubes. Custom sizes, wire diameters and mesh openings are available.
CNC-controlled welding lines produce uniform mesh panels with consistent joint strength. All panels are checked for dimensional accuracy and weld integrity before surface treatment.

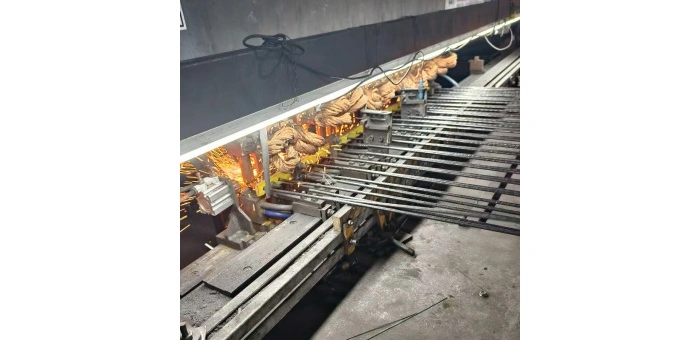

Automated panel welding – 72,000m² production facility
| Parameter | Standard Options |
|---|---|
| Product Type | Galvanized Welded Steel Wire Mesh Panel |
| Material | Low carbon steel wire (Q195/Q235) |
| Wire Diameter | 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 5.0mm, 6.0mm |
| Mesh Opening | 25x25mm, 50x50mm, 50x100mm, 75x150mm, 100x100mm, 200x200mm (custom) |
| Standard Panel Size | 1.0x2.0m, 1.2x2.4m, 1.5x2.5m, 1.8x3.0m, 2.0x3.0m, 2.4x3.0m (fully customizable) |
| Surface Treatment | Hot-dipped galvanized (HDG), electro-galvanized, PVC coated |
| Frame Options | Unframed panel, angle iron frame, square tube frame (20x20-40x40mm) |
| Packing | Pallets with protective separators, steel strapping, moisture-proof wrap |
Every production batch undergoes dimensional inspection. Mesh opening, wire diameter and panel dimensions are measured with calibrated instruments to ensure conformance to the confirmed specification.

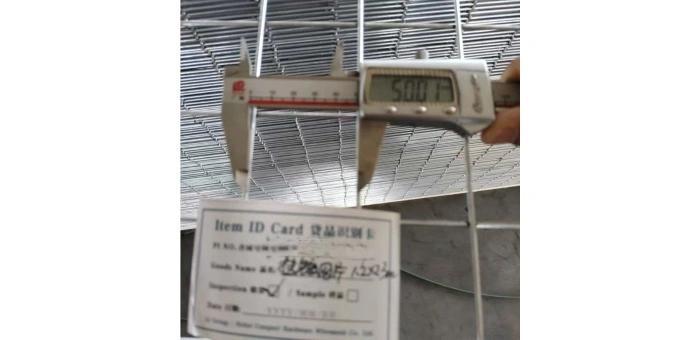

Mesh opening inspection with digital caliper
Electric resistance-welded at every intersection for consistent strength and clean, uniform appearance.
Hot-dipped galvanized coating provides durable outdoor corrosion resistance for long service life.
Panels can be produced to exact dimensions. Wire diameter and mesh opening matched to application.
Suitable for fencing, caging, machine guards, concrete reinforcement and partitioning projects.
Panels are stacked on steel pallets with protective separators between layers. Corner protectors, moisture-proof film and steel strapping are applied for sea freight protection. Custom packing marks and labels provided.

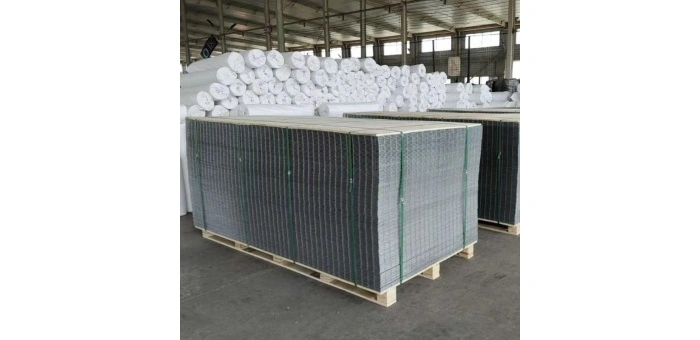

Welded mesh panels on pallet – export packing
Wire grade, diameter, zinc coating
Joint strength, mesh uniformity
Panel size, diagonal accuracy
Pallet integrity, labeling
Welded Wire Mesh Rolls | Chain Link Fence | 3D Welded Mesh Fence | Temporary Fence | Gabion Boxes
Hot-dipped galvanized offers a thicker zinc coating (80-300g/m2) for outdoor use. Electro-galvanized provides a smoother, brighter finish suitable for indoor applications.
Yes. Panels can be supplied unframed, or welded into angle iron or square tube frames. Frame dimensions and hole positions can be confirmed according to your drawing.
50x50mm and 50x100mm are common for general perimeter fencing. 25x25mm provides higher security and anti-climb properties. Selection depends on the security level and visibility required.
Yes. Panels can be produced to your exact dimensions. For small quantity custom cuts, panels can also be sheared from standard sizes.
Stacked on steel pallets with protective separators, corner protectors, moisture-proof film and steel strapping. Loading plan provided before shipment.
Hebei Conquer Hardware Wire Mesh Co., Ltd., a subsidiary of Anjia Group, operates a 72,000m2 ISO 9001:2015 certified facility in Anping, China. Over 30 years of manufacturing experience with integrated wire drawing, CNC welding and galvanizing lines. Welded mesh panels exported to 80+ countries. Mill certificates and third-party inspection available.
