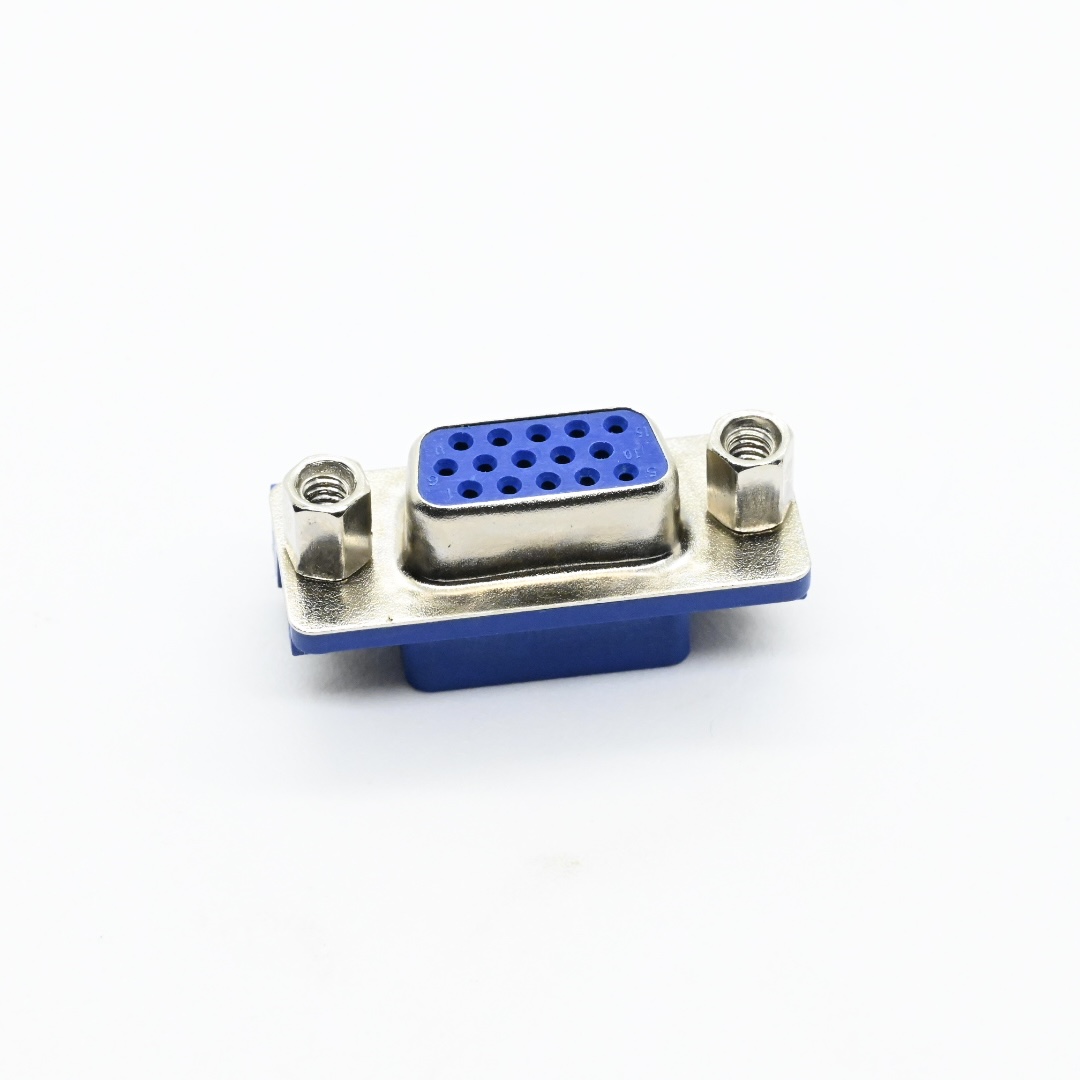

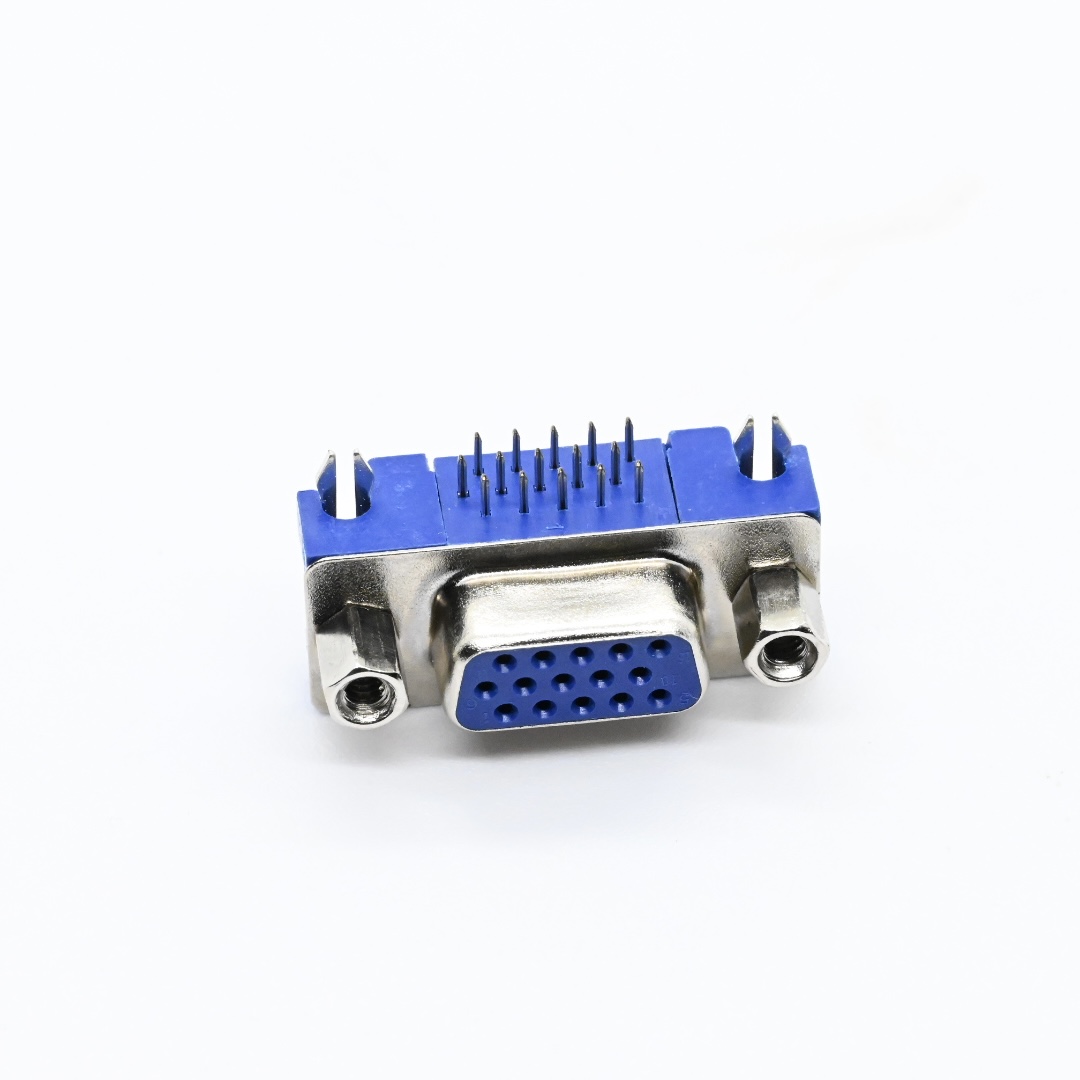

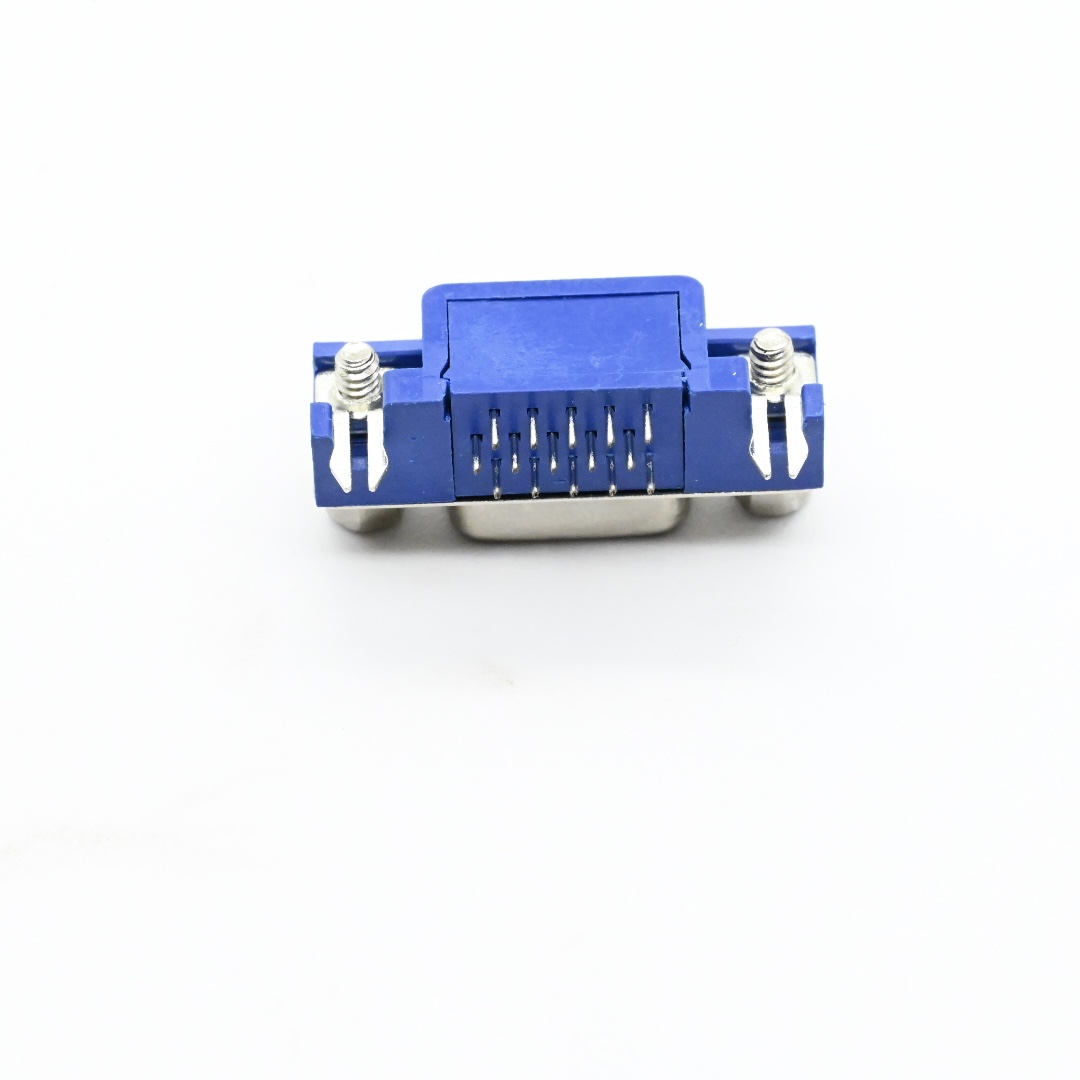

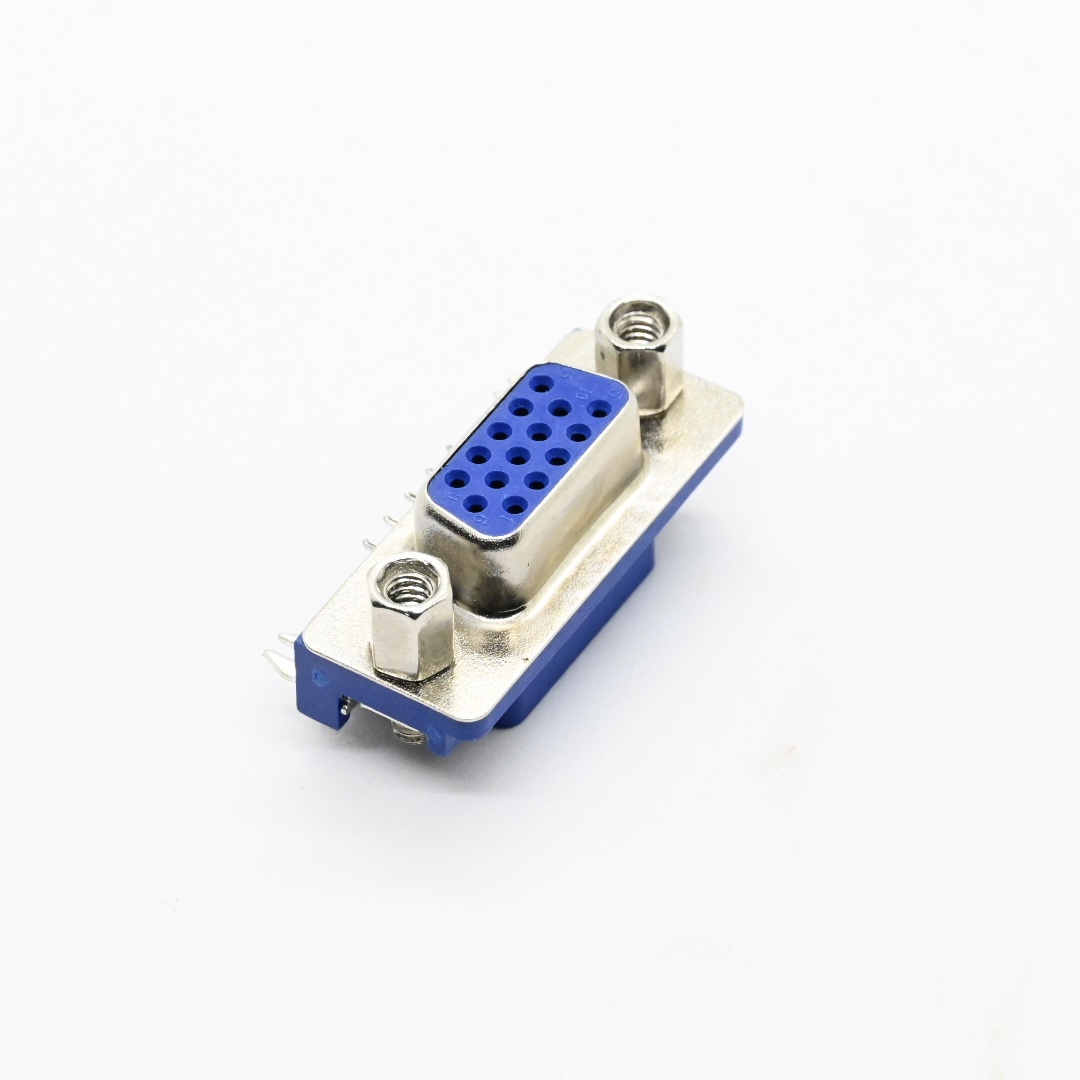

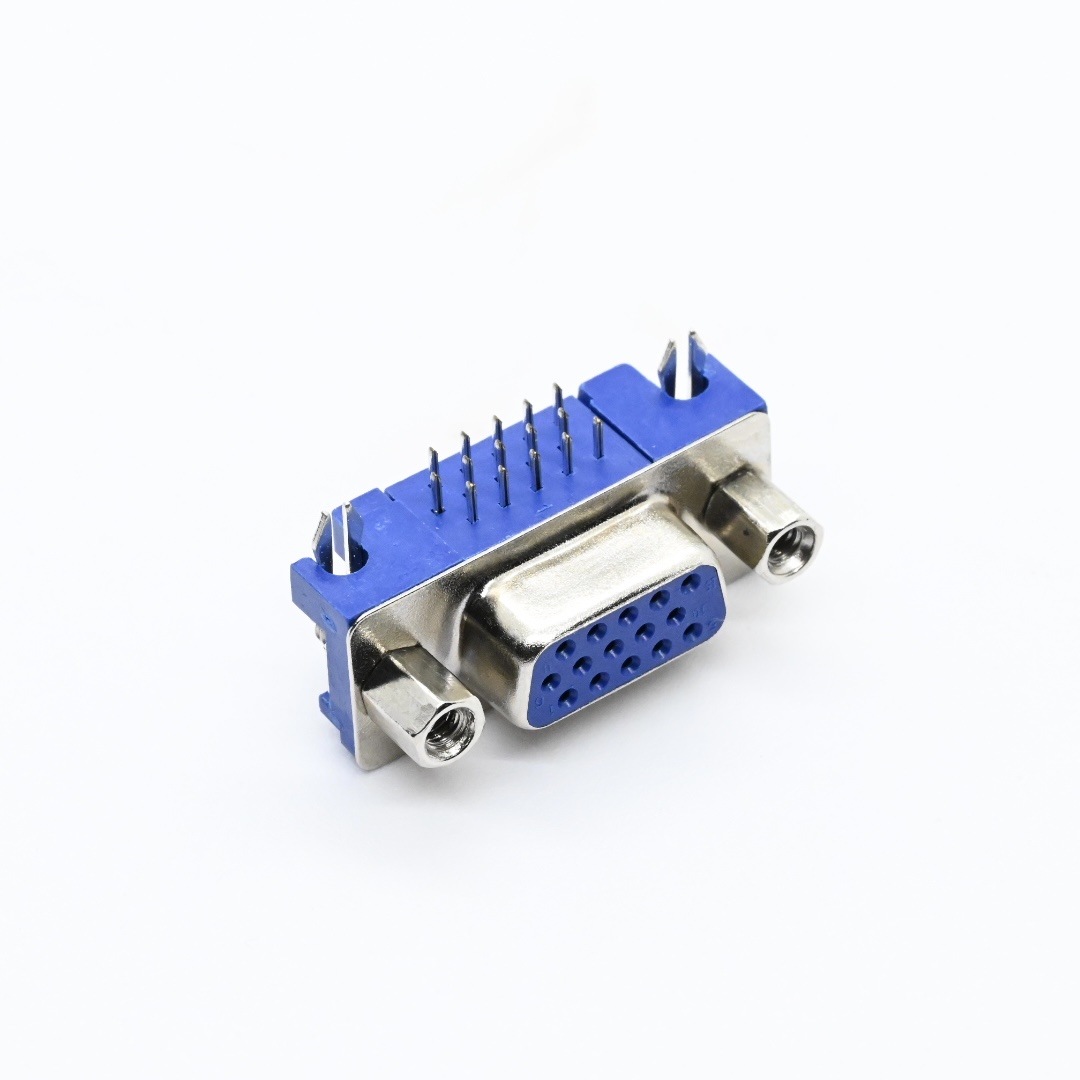

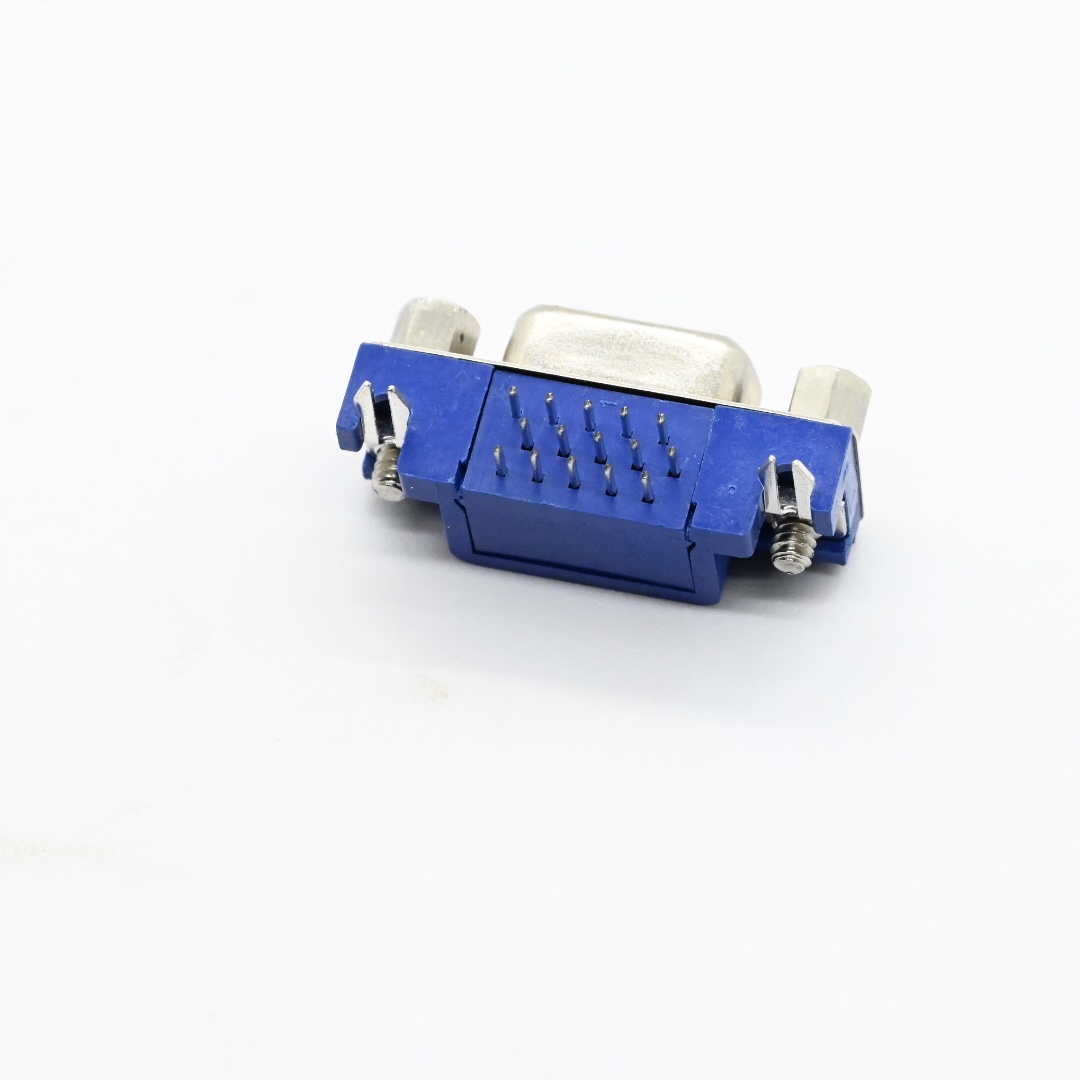

3.08mm Stamped Pin 3-Row Right Angle D-SUB Female

3.08mm Stamped Pin 3-Row Right Angle D-SUB Female

3 week ago

0 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Huizhou Antenk Electronics Co., Ltd. manufactures HDR03-F15AABS three row right angle PCB female D-SUB connector with 3.08mm stamped pins to deliver stable analog video serial data and low-power signal transmission as standard board-mounted I/O interface for industrial and consumer electronic PCB modules. This D-SUB female connector adopts glass fiber filled UL94V0 flame retardant PBT high temperature thermoplastic as insulator housing with optional white blue black grey colors, matched with brass bronze stamped contact pins and full nickel-plated 0.35T steel shielding shell to suppress electromagnetic interference, supporting diversified contact plating including tin gold flash and selective gold thickness from 3 micro inch to 30 micro inch to cap contact resistance at 15 milliohms max and sustain 5A rated current under -55°C to +105°C operating temperature withstanding 500V AC one minute voltage and 1000 megohm minimum insulation resistance. It features three-row right angle through hole DIP structure with standard 3.08mm footprint, four locking mechanisms fork lock riveting riveting with screws rivet lock and multiple customizable zinc alloy iron copper alloy mounting screws in 4.8mm and 5.8mm sizes, fully compliant PCB dimensional tolerance X.XX ±0.20 shtur ±0.15 for automated wave soldering production. This high density 15pin three row D-SUB female socket is widely deployed in industrial control equipment communication switches desktop motherboards VGA display devices precision testing instruments and digital storage peripherals. Operators must follow official PCB layout dimensions strictly during soldering, avoid over-bending stamped pins to prevent terminal fracture and store finished connectors in dry dust-free warehouse to avoid nickel gold plating oxidation and plastic aging. Unlike competitors outsourcing mold stamping and injection molding Antenk completes full in-house production workflow covering self-developed precision plastic and metal mold manufacturing brass high speed stamping glass filled PBT injection molding multi-layer electroplating and comprehensive laboratory electrical temperature and shielding reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications while fully complying with RoHS HSF and REACH global environmental standards. We own over four hundred self-developed plastic and metal precision molds, provide customizable lock type plating housing color and mounting screw options, deliver round-the-clock professional engineering technical support, and more than seventy percent of our D-SUB series connectors are exported worldwide relying on our Guangdong Famous Trademark ANTENK and consistent stable mass production quality.

Glass Filled UL94V0 PBT Housing offers superior heat resistance and flame retardant performance for long-term industrial connector applications.

Full Nickel Plated Steel D-SUB Shell effectively blocks electromagnetic interference and prevents surface rust under complex working environments.

Multi Spec Selective Gold Brass Contact limits maximum contact resistance to 15 milliohms and meets diverse anti-corrosion demands of electronic circuits.

1. Material & Surface Treatment

1.1 Insulator Housing: Glass fiber filled high-temperature PBT thermoplastic, UL94V-0 flame retardant

1.2 Contact Pin Raw Material: Brass or bronze (stamped pin design)

1.3 Shield Shell: 0.35T steel with full nickel plating

1.4 Housing color options: White, Blue, Black, Grey

1.5 Contact plating options

1.5.1 Gold flash (G0)

1.5.2 Full gold plating: 3μ",5μ",10μ",15μ",30μ"

1.5.3 Selective gold plating: 3μ",5μ",10μ",15μ",30μ"

1.6 Locking structure types: Fork lock, Riveting, Riveting with screws, Rivet lock

1.7 Mounting screw accessories: Zinc alloy, iron, copper alloy in 4.8mm / 5.8mm nickel-plated specifications

2. Electrical & Temperature Performance Parameters

2.1 Rated current: 5 Amp

2.2 Max contact resistance: 15 milliohms

2.3 Min insulation resistance: 1000 Megohms

2.4 Withstand voltage: 500V AC, 1 minute duration

2.5 Operating temperature range: -55°C ~ +105°C

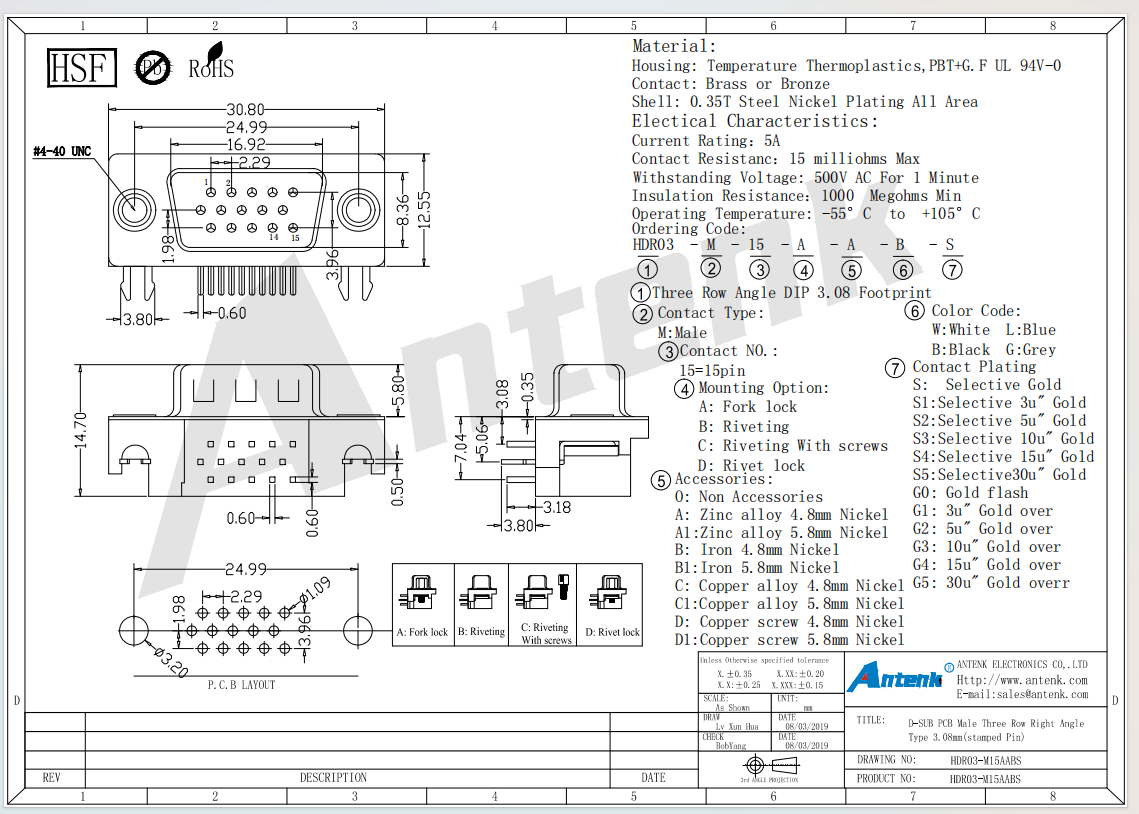

3. Dimension & Structural Standard (Unit: mm)

3.1 Pin arrangement: Three row right angle DIP structure, 3.08mm PCB footprint

3.2 Contact quantity: Fixed 15 pins

3.3 Universal dimensional tolerance rule

3.3.1 X.XX dimension: ±0.20

3.3.2 X.XXX dimension: ±0.15

3.4 Standard thread specification: #4-40 UNC

4. Environmental Compliance

4.1 Conform to HSF and RoHS lead-free environmental standards

5. Application Scenarios

5.1 Industrial control equipment

5.2 Communication devices & switches

5.3 VGA display and liquid crystal display equipment

5.4 Desktop computer mainboards

5.5 Precision testing and measuring instruments

5.6 Digital storage peripheral equipment

6. Usage Precautions

6.1 Complete wave soldering strictly following official PCB layout drawing

6.2 Avoid excessive bending force on stamped brass pins to prevent permanent terminal deformation or fracture

6.3 Store finished connectors in dry dust-free warehouse to avoid oxidation of nickel and gold plating layers

6.4 Select matching lock structure, plating type and mounting screw accessories based on actual circuit assembly requirements

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
