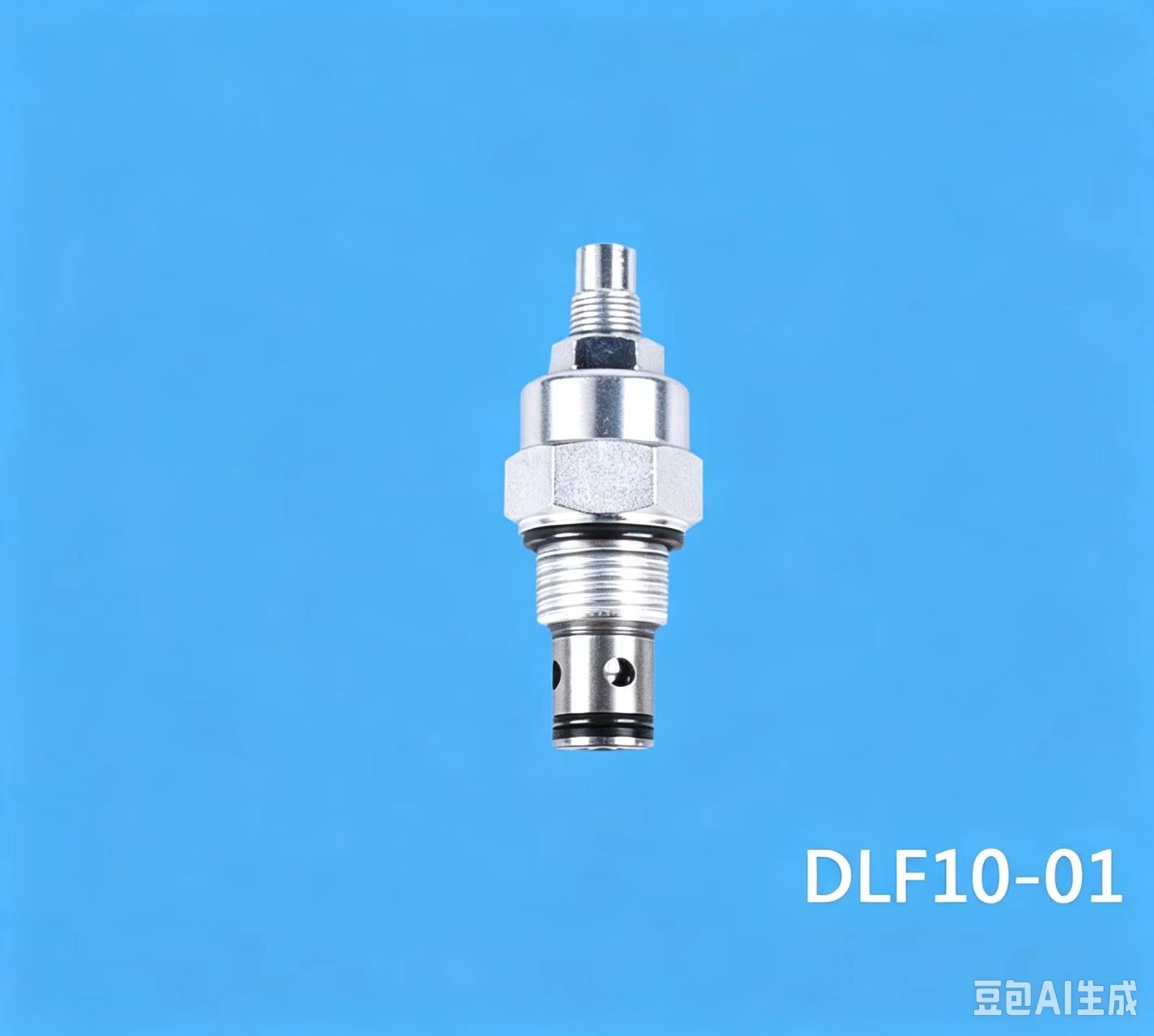

DLF10‑01‑00 Threaded Cartridge Valve

Product Overview

DLF10‑01‑00 is a 10‑size solenoid‑operated threaded cartridge relief valve for hydraulic system. It is installed into standard T‑2A cartridge cavity of manifold block. This hydraulic cartridge component integrates pressure‑limiting relief function and solenoid remote unloading function. When solenoid de‑energized, it acts as system overload‑protection relief valve; when solenoid energized, it realizes remote pressure unloading for energy saving. Widely used for hydraulic power units, lifting platforms, agricultural machinery and mobile equipment hydraulic manifold blocks.

Main Technical Parameters

Item Specification

Model DLF10‑01‑00

Valve cavity size 10‑size standard T‑2A threaded cartridge cavity

Valve type Solenoid‑operated cartridge relief valve

Max working pressure 210 bar

Adjustable pressure range 3‑210 bar

Rated flow 60 L/min

Coil voltage option DC12V, DC24V

Installation Screw‑in threaded mounting into manifold block

Seal material NBR O‑ring; FKM optional for high‑temperature working condition

Hydraulic fluid Anti‑wear hydraulic oil ISO‑VG32 / VG46

Operating temperature ‑10℃ ~ +70℃

Oil filtration requirement ≤25 μm

Working Principle

1. Solenoid de‑energized: Internal pilot oil passage is closed. The relief valve works normally. When system pressure exceeds preset value, the valve opens and discharges excess oil to tank, providing overload protection for hydraulic pump and hydraulic system. System maintains set working pressure.

2. Solenoid energized: Pilot oil circuit opens, main valve spool opens, system pressure unloads to near zero pressure, reducing power consumption and achieving energy‑saving effect.

3. Rotate the pressure‑adjusting screw to set required relief pressure according to actual working conditions.

Core Advantages

1. Adopts industry‑general T‑2A 10‑size cartridge cavity, compatible with most standard manifold blocks without re‑machining.

2. One cartridge valve realizes two functions: system pressure limiting protection and electromagnetic remote unloading.

3. External pressure‑adjusting screw for convenient pressure setting; independent replaceable coil, maintenance without removing valve cartridge from manifold block.

4. Compact screw‑in cartridge construction, fewer pipe joints, lower risk of external leakage for hydraulic system.

5. Precision‑hardened internal components, stable pressure performance under long‑term continuous cyclic operation.

Application Scope

Hydraulic power packs, aerial work platforms, small construction machinery, agricultural machinery, fixture hydraulic circuits, mobile hydraulic systems requiring overload protection and electromagnetic remote unloading.
