8.08mm Stamped Pin Dual Row Right Angle D-SUB Female

8.08mm Stamped Pin Dual Row Right Angle D-SUB Female

3 week ago

1 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

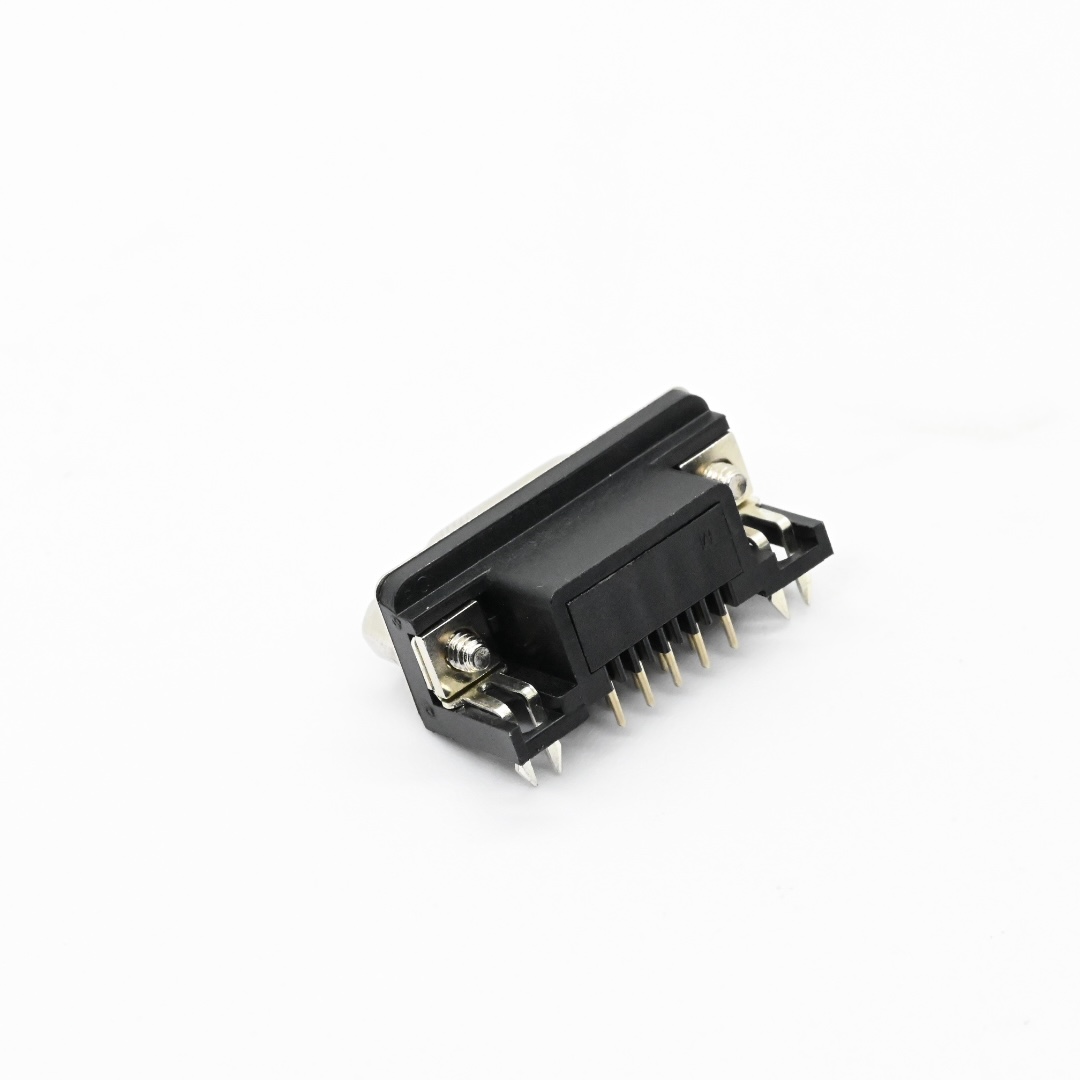

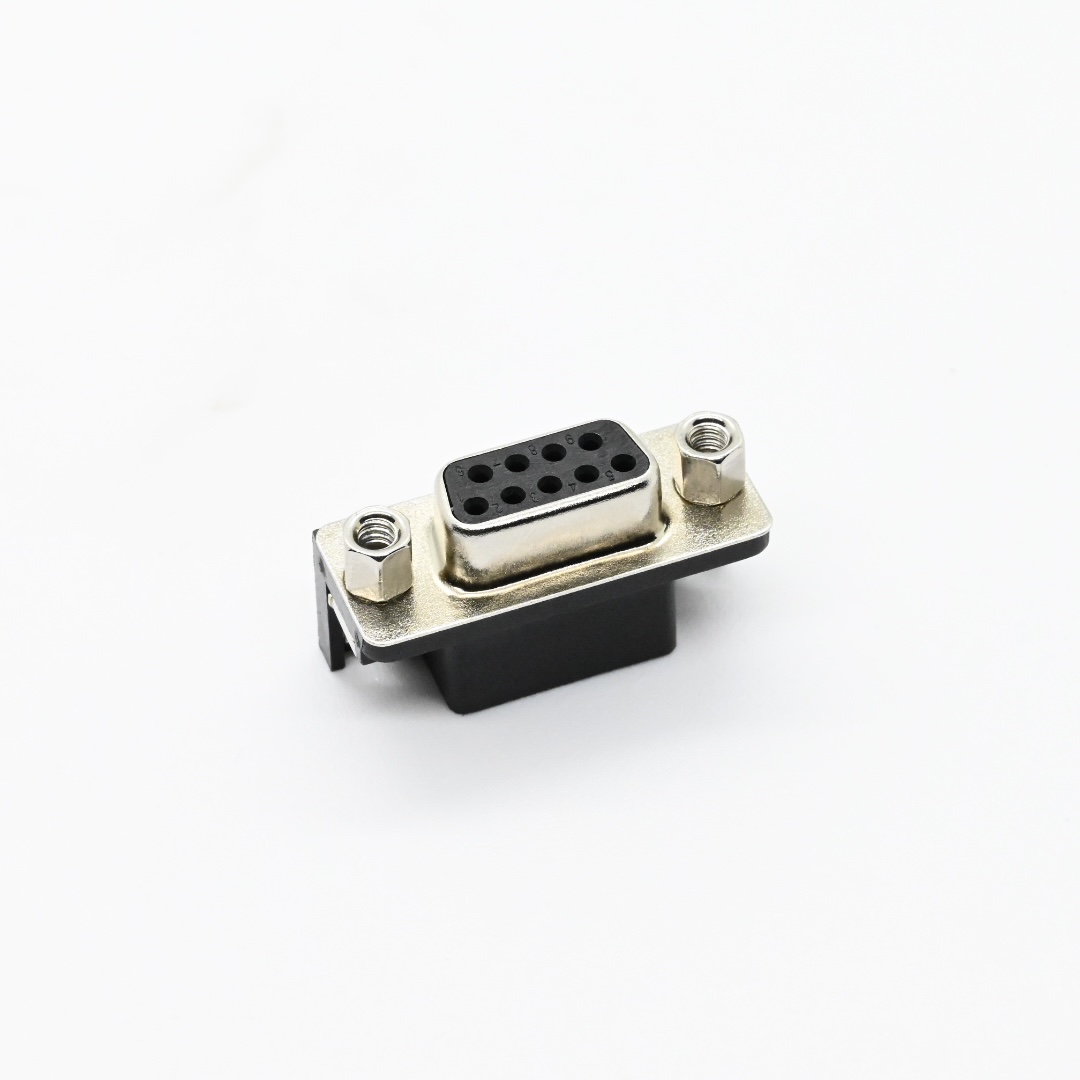

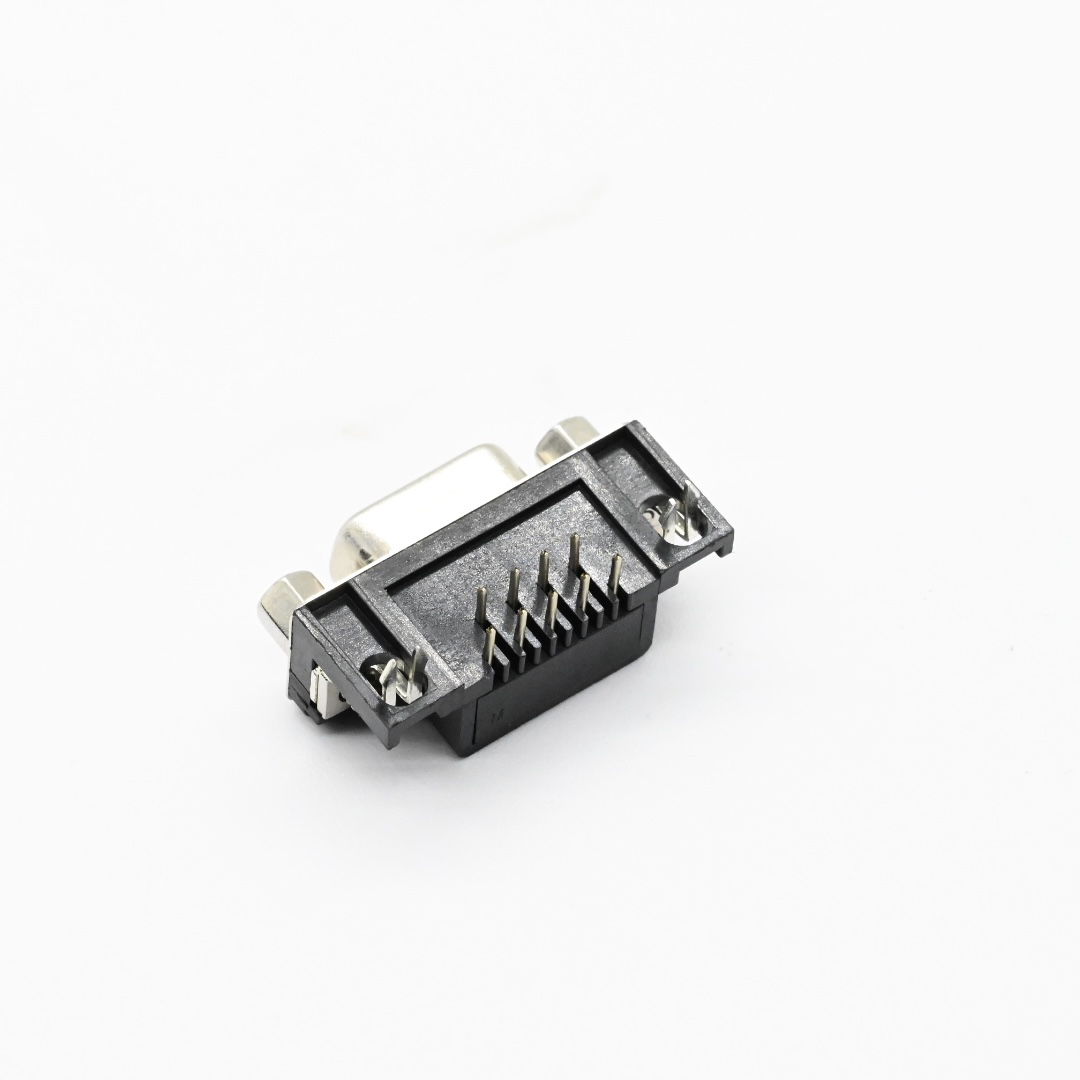

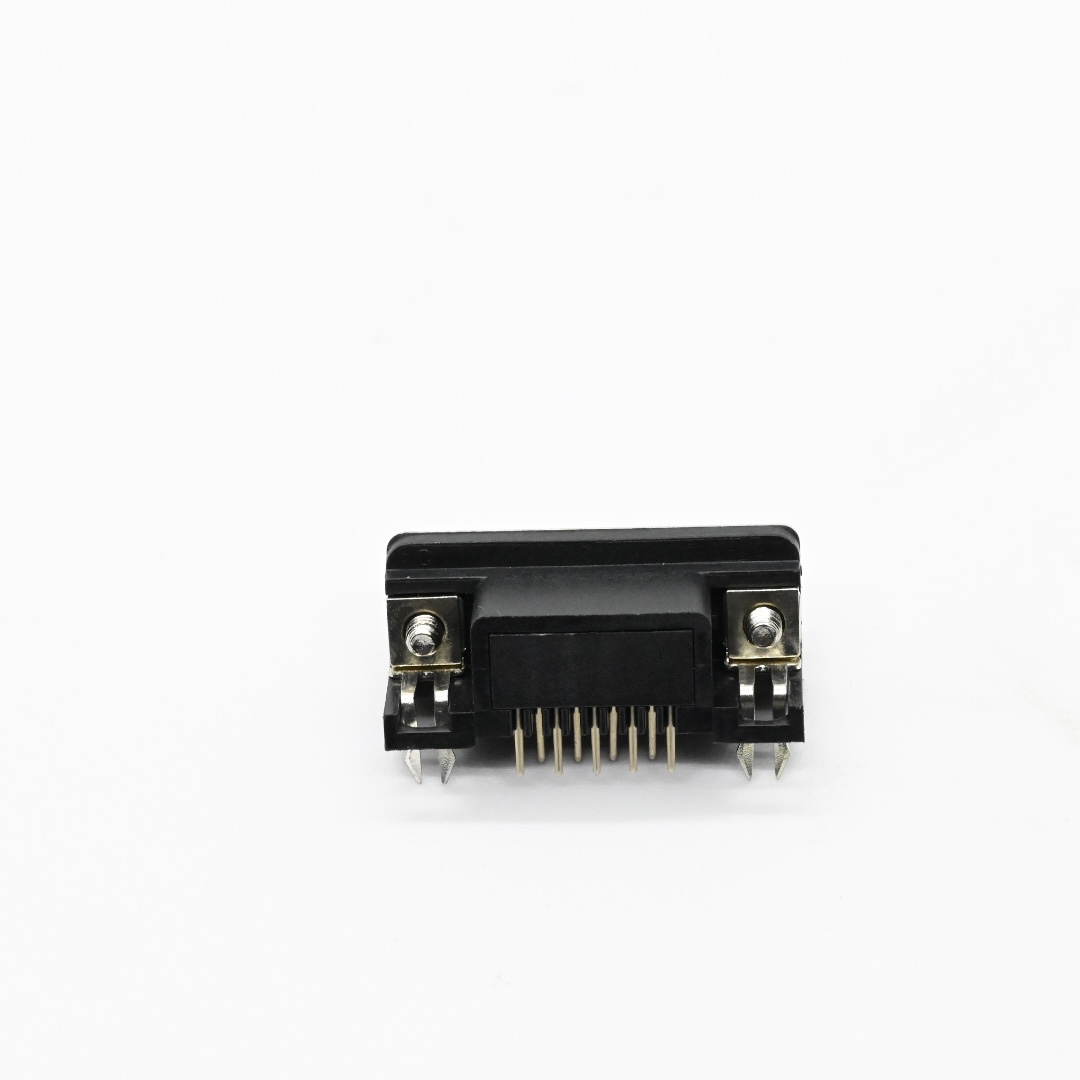

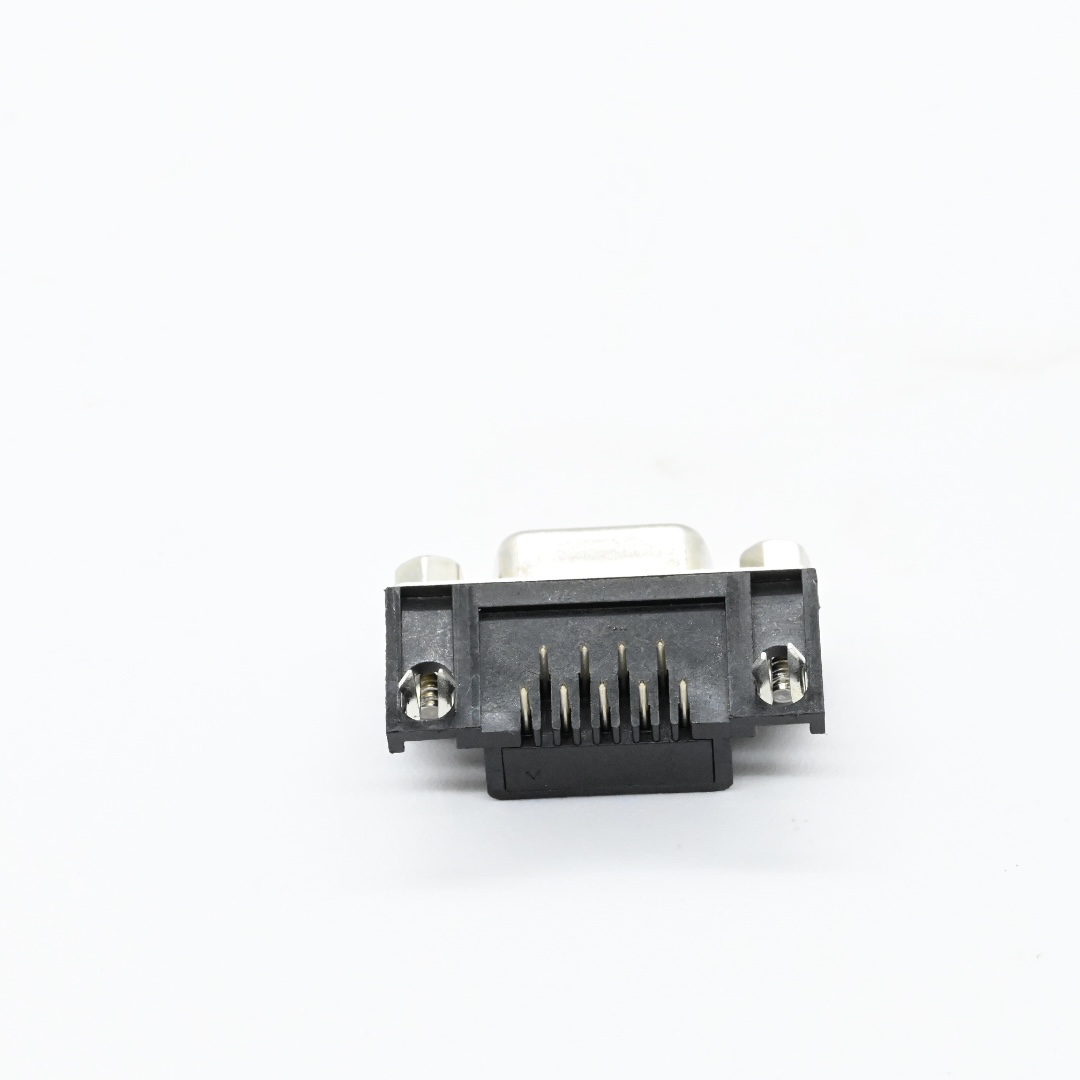

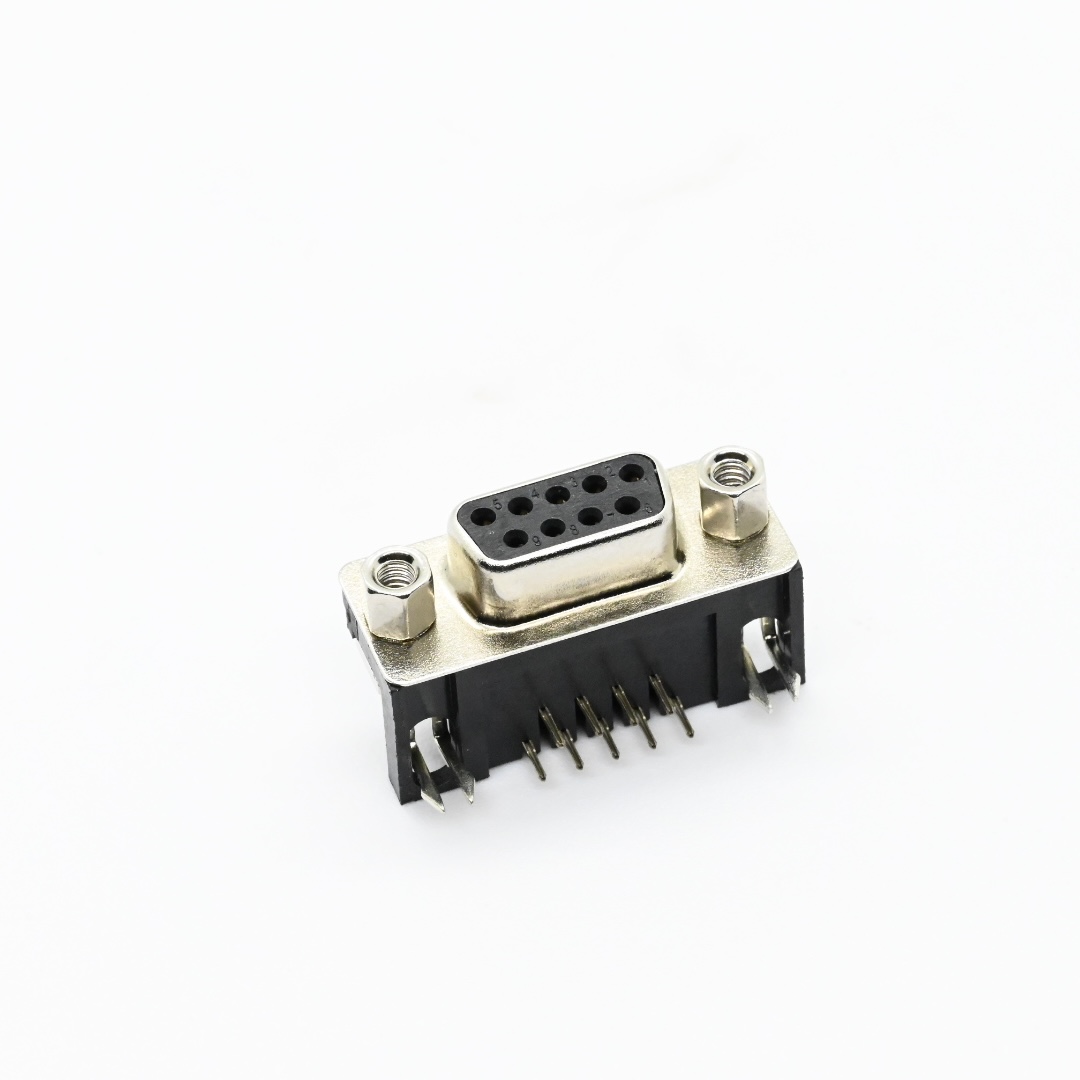

Huizhou Antenk Electronics Co., Ltd. manufactures DR01-FXAABS dual row right angle PCB female D-SUB connector with 8.08mm stamped pins to deliver stable serial signal and low power data transmission as standard board mounted I/O interface for industrial and consumer electronic PCB assemblies. This D-SUB female connector adopts glass fiber filled UL94V0 flame retardant high temperature PBT thermoplastic insulator housing with optional white blue black grey colors, matched with brass or bronze stamped contact terminals and 0.35T steel shell with full area nickel plating to restrain electromagnetic interference, supporting diversified contact plating specifications including gold flash and selective gold thickness ranging from 3 micro inch to 30 micro inch, limiting maximum contact resistance to 30 milliohms, supporting 5 Amp rated current under operating temperature from minus 55 degree Celsius to plus 105 degree Celsius, enduring 1000V AC one minute test voltage and maintaining insulation resistance above 5000 megohms. It adopts dual row right angle DIP structure with standard 8.08mm PCB footprint, four optional locking types fork lock riveting riveting with screws rivet lock, and customizable mounting screws made of zinc alloy iron and copper alloy in 4.8mm and 5.8mm nickel plated specifications, unified dimensional tolerance standards to match automated wave soldering production lines. This dual row stamped pin D-SUB connector is widely used in industrial control equipment communication devices liquid crystal display equipment computer peripherals digital storage devices and precision measuring instruments. Operators must strictly follow official PCB layout dimensions during soldering, avoid excessive force bending stamped pins to prevent terminal breakage and store finished connectors in dry dust free warehouse to prevent oxidation of nickel and gold plating layers. Unlike competitors outsourcing plastic injection molding and metal stamping Antenk implements complete independent production process including self developed precision plastic and metal mold manufacturing brass high speed stamping glass filled PBT injection molding multi layer electroplating and comprehensive laboratory electrical temperature and shielding reliability testing, holding ISO9001 ISO14001 IATF16949 and UL E472792 certifications and fully complying with RoHS HSF and REACH international environmental standards. We have hundreds of self developed precision molds, provide customized locking type plating housing color and accessory schemes, offer round the clock professional engineering technical support, and over seventy percent of our D-SUB connectors are exported globally backed by Guangdong Famous Trademark ANTENK and stable consistent batch production quality.

Heat Resistant PBT+GF UL94V0 Housing ensures stable structural performance under high temperature soldering and long-term operating conditions.

Full Area Nickel Plated Steel Shell effectively suppresses electromagnetic interference and delivers excellent anti-rust capability in complex working environments.

Multi Grade Selective Gold Bronze Contact keeps low contact resistance and satisfies diversified cost and reliability requirements for PCB connection systems.

1. Material & Surface Treatment

1.1 Insulator Housing: Glass fiber reinforced high-temperature PBT thermoplastic, UL94V-0 flame retardant

1.2 Contact Pin Raw Material: Brass or bronze stamped pin structure

1.3 Shield Shell: 0.35T steel with full-area nickel plating

1.4 Housing color options: White, Blue, Black, Grey

1.5 Contact plating types

1.5.1 Gold flash (G0)

1.5.2 Full gold plating: 3μ",5μ",10μ",15μ",30μ" gold

1.5.3 Selective gold plating: 3μ",5μ",10μ",15μ",30μ" gold

1.6 Locking mounting types: Fork lock, Riveting, Riveting with screws, Rivet lock

1.7 Mounting screw accessories: Zinc alloy, iron, copper alloy in 4.8mm / 5.8mm nickel-plated specifications

2. Electrical & Temperature Performance

2.1 Rated current: 5 Amp

2.2 Max contact resistance: 30 milliohms

2.3 Min insulation resistance: 5000 Megohms

2.4 Withstand voltage: 1000V AC, 1 minute test duration

2.5 Operating temperature range: -55°C ~ +105°C

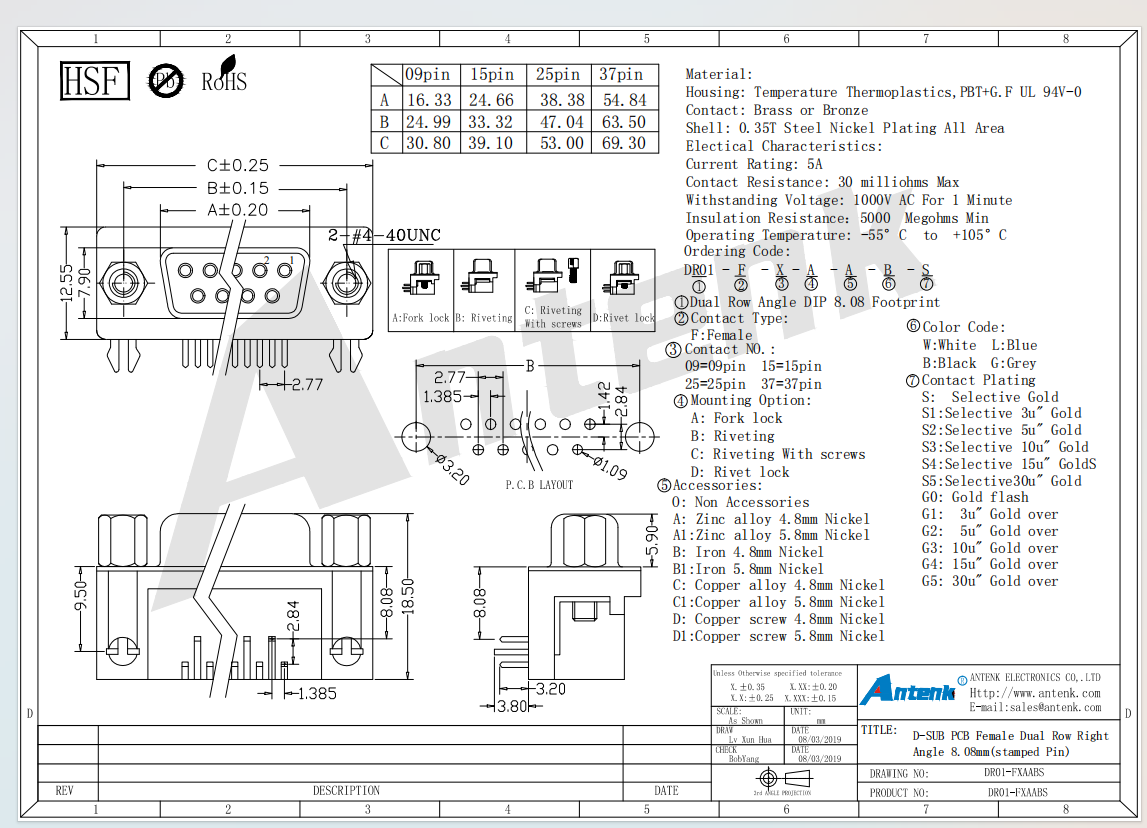

3. Dimension & Structural Standards (Unit: mm)

3.1 Structure: Dual row right angle DIP, standard 8.08mm PCB footprint

3.2 Optional contact pin counts: 9pin,15pin,25pin,37pin

3.3 Standard thread: 2-#4-40 UNC

3.4 Universal dimensional tolerance rules

3.4.1 X. : ±0.35

3.4.2 X.X : ±0.25

3.4.3 X.XX : ±0.20

3.4.4 X.XXX : ±0.15

4. Environmental Compliance

4.1 Comply with HSF and RoHS lead-free environmental standards

5. Application Scenarios

5.1 Industrial control equipment and automation panels

5.2 Communication serial interface devices (RS232/RS485)

5.3 Liquid crystal display and VGA signal transmission equipment

5.4 Desktop computer mainboards and peripheral modules

5.5 Precision measuring and testing instruments

5.6 Digital storage and portable electronic equipment

6. Usage Precautions

6.1 Complete wave soldering operation strictly following official PCB layout drawing

6.2 Avoid excessive bending force on stamped brass pins to prevent terminal fracture

6.3 Store finished connectors in dry dust-free warehouse to prevent nickel and gold plating oxidation

6.4 Match pin count, plating type, lock structure and mounting accessories according to actual circuit design requirements
